Whirlpool GJD3044RB00 Manual de usuario

COOKTOP PARTS

For Models: GJD3044RB00, GJD3044RC00, GJD3044RP00

(Black) (Pure Biscuit) (Pure White)

6−05 Litho in U.S.A. (cre) Part No. 8186327

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

COOKTOP PARTS

For Models: GJD3044RB00, GJD3044RC00, GJD3044RP00

(Black) (Pure Biscuit) (Pure White)

8186327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286553 Installation

Instructions

8286343 Wiring Diagram

8286309 Use & Care Guide

3191638 Safe Cooking Tips

COOKTOP PARTS

2 Cooktop, Glass &

Bracket Assembly

8285969 Black

8286037 Pure Biscuit

8286036 Pure White

3 3196537 Screw, 8−18 x 3/8

5 Element, Surface

8523698 L.R. (1200W)

4453909 L.F. 2500/1200W

8285937 R.R. 2000/1000W

8523697 R.F. (1500W)

6 Rail, Element

8285933 Right Hand

8286054 Left Hand

7 8285809 Box, Burner

9 8285934 Shield, Vent

3177991 Screw

10 3190656 Drip Bowl, Grease

11 4455354 Bracket, Control

Mounting

3183956 Seal, Switch

Cover

12 311865 Screw, 8−32 x 7/32

13 4456836 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

9759474 RR & LF

15 8285469 Seal, Switch

16 3192439 Seal, Limiter

17 4455917 Bracket, Mounting

3400093 Screw

18 Knob, Control

8286043BL

Black

8286043BT

Biscuit

8286043WH

White

19 Knob, Downdraft

8286045BL

Black

8286045BT

Biscuit

8286045WH

White

20 Grille, Air

8285115 Black

8285229 Biscuit

8285228 Pure White

21 3192530 Filter, Grease

22 8523552 Badge

25 9759094 Spring, Locator

30 3193032 Gasket, Vent

Shield

33 8286055 Light, Hot Surface

Indicator

34 3193094 Plate, Cover

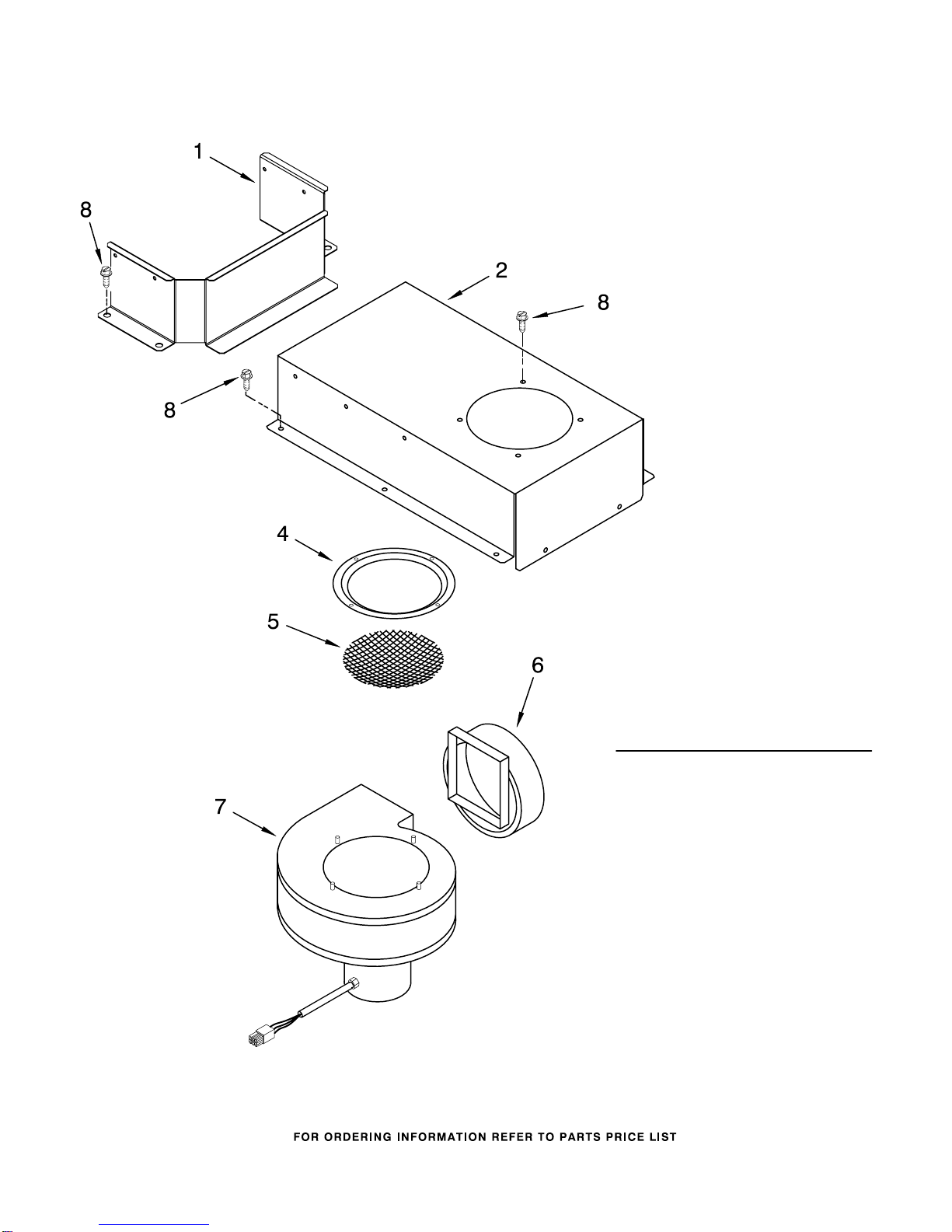

BLOWER UNIT PARTS

For Models: GJD3044RB00, GJD3044RC00, GJD3044RP00

(Black) (Pure Biscuit) (Pure White)

8186327

Illus. Part

No. No. DESCRIPTION

1 8285958 Bracket, Shield

2 3192403 Bracket, Blower

Mounting

4 9760484 Ring, Inlet

5 9760485 Screen, Inlet

6 9760483 Adapter, Vent

7 9760440 Blower Motor Asm.

(Includes Fan Asm)

8 3196537 Screw, 8−18 x 3/8

OPTIONAL PARTS

For Models: GJD3044RB00, GJD3044RC00, GJD3044RP00

(Black) (Pure Biscuit) (Pure White)

8186327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Hardware, Mounting

3192408 Bracket, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

8285953 Harness, Wire

(Ceran Downdraft)

4456859 Harness, Wire

(Blower/Switch)

98997 Clip

9760671 Strain Relief

8286349 Conduit, Downdraft

3196160 Screw

3400015 Screw, 10−32 x 3/8
