Whale Tiptoe Mk4 GP1309 Manual de usuario

Tiptoe Pump

Mk4 GP1309

Also Service Kits/Assemblies: AK1304, AS1305, AS1306

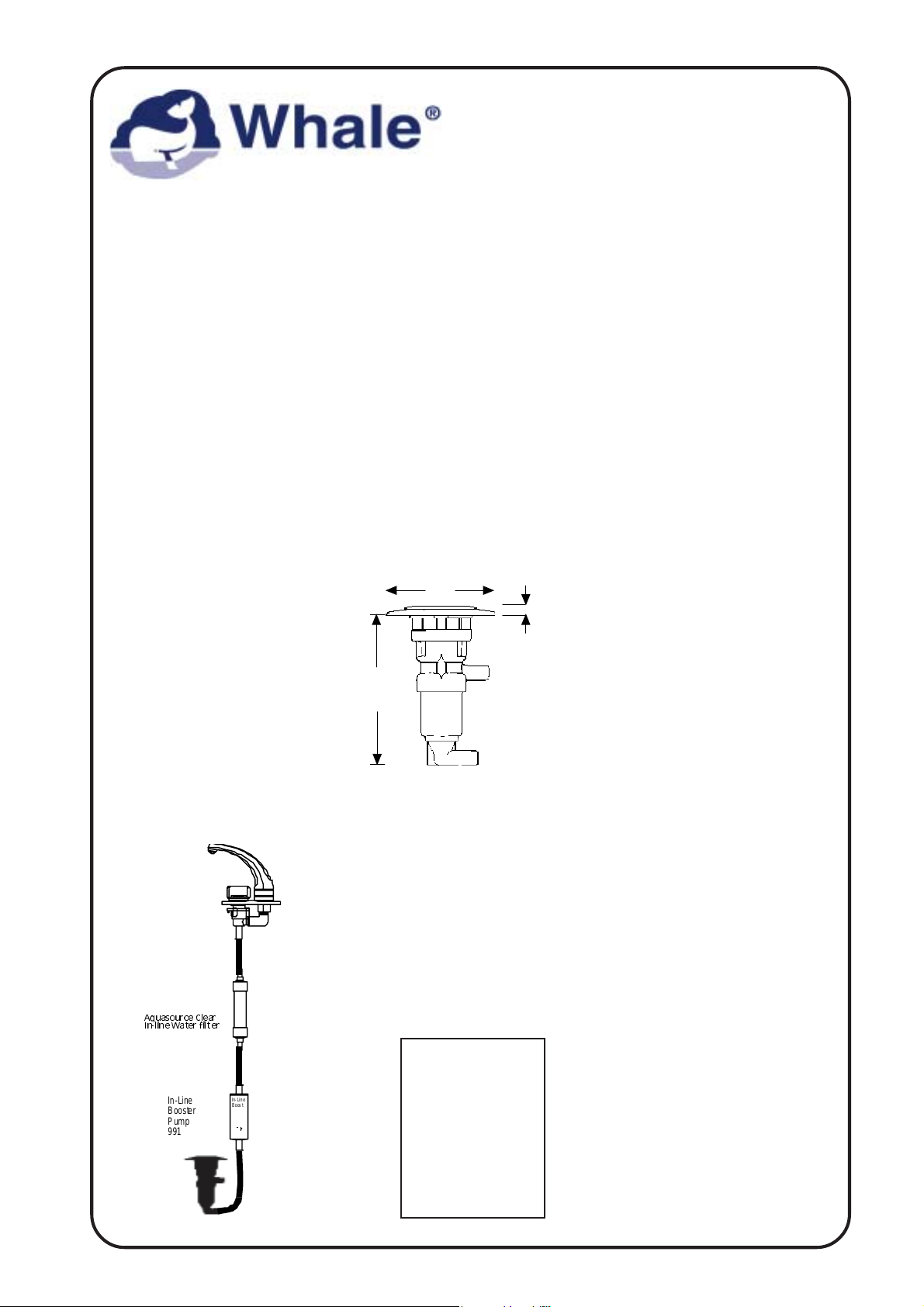

Installation

Choose an installation

where the pump can be

operated comfortably.

1. Cut a 3" (75 mm) diam-

eter hole in the floor.

2. Floor thickness: minimum

3/8" (10 mm), maximum 2"

(50 mm).

3. One piece assembly fits

directly onto floor.

4. Secure with 3 screws.

Operation:

1. Release plunger plate by

twisting anti-clockwise. 2.

Pump up and down with

your foot; vigorously for full

flow, gently for controlled

flow.

3. When pumping is fin-

ished, push the plunger fully

down, twist clockwise to

lock.

Maintenance

Regular inspection of valves

and seals is recommended

with cleaning and replace-

ment of components as

necessary.

Replacement parts are

available in service kits and

assemblies from dealers or

direct from the manufac-

turer.

Note: For winter storage,

ensure that the pump is

drained completely to avoid

frost damage.

Helpful hints

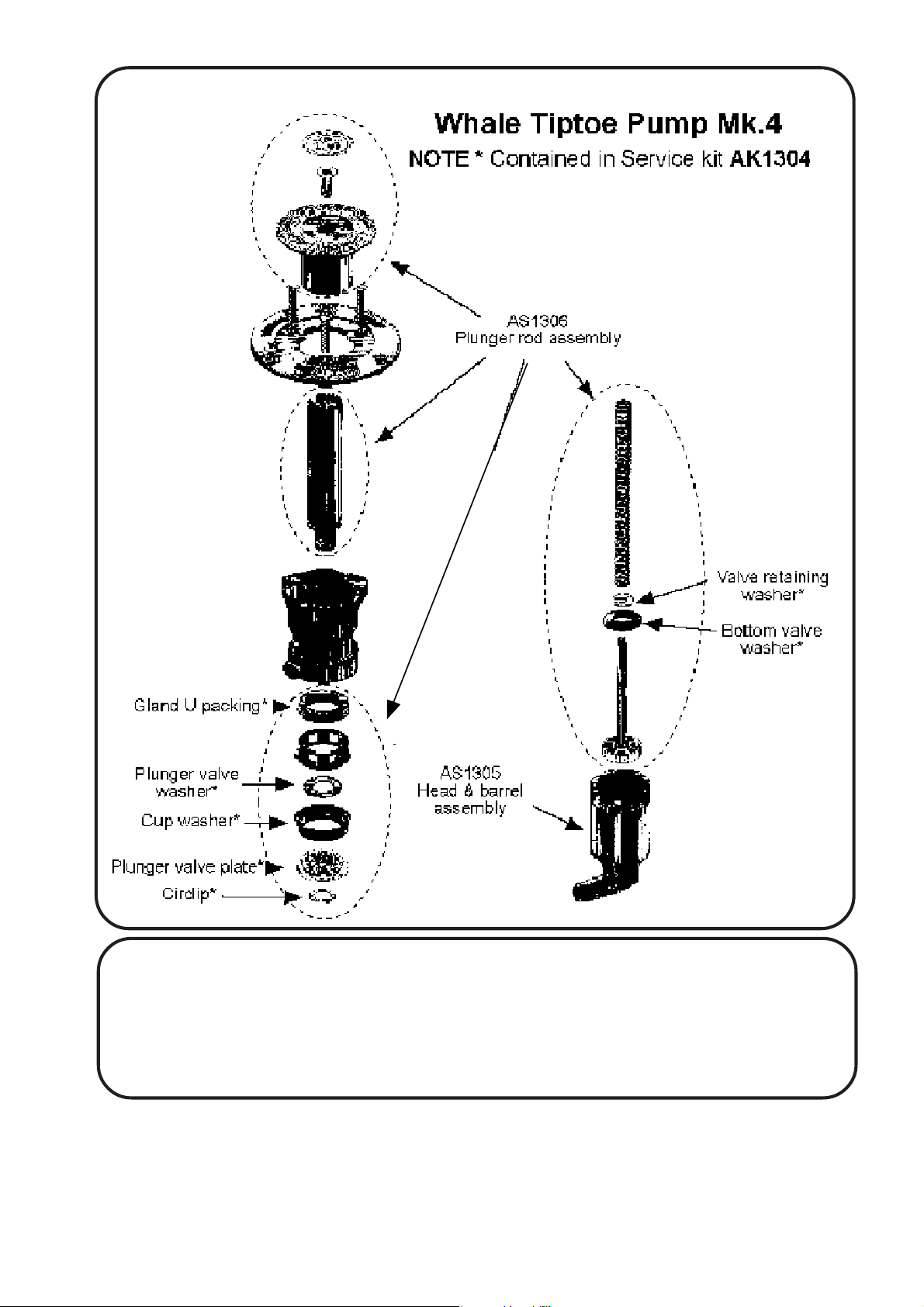

a) The pump can be serv-

iced using Service Kit

AK1304 which contains the

complete set of washers for

the Mk3 and Mk4 pump.

b) If the pump is slow to

prime, the cup washer may

be worn or valves are not

seating properly. Check and

replace these if necessary

using Service Kit AK1304.

c) If the pump will not pump:

- check that the suction line

is in the water.

- check that the hose con-

nections are secure and

there are no air leaks.

- check the washers in the

pump, they may need to be

replaced.

- if the outlet is an on/off

faucet or tap, make sure

that it is open to allow water

to flow.

d) If the pump is leaking, it is

likely that the gland washer

is worn. A replacement for

this part is contained in

Service Kit AK1304.

Read carefully before

installation and use.

To the Fitter: Check that

the product is suitable for

the intended application,

follow installation instruc-

tions and ensure operating

instructions are passed on

to the end user.

To the User: Read the

following instructions care-

fully.

Application:

This product is designed for

use as a fresh water foot

pump in caravans and

boats. Use for any other

purpose or with any other

liquid, is not recommended

and is entirely at the user's

risk.

The Whale Tiptoe can be

used as a manual back-up

with an electric pump

provided that:

1. It is not a pressurized

system.

2. It is placed between the

in-line electric pump and the

water supply.

Elegance

Single

Faucet

 

  

In-Line

Booster

Pump

991

In-Line

Booster

Pump

991

(76 m m)

3/8" (10 mm)

6 5/16

160 mm

Outlet port

Inlet port

Old Belfast Road, Bangor, Co Down, N.Ireland BT19 1LT Tel: +44 (0)28 9127 0531 Fax: +44 (0)28 9146 6421

Web: www.whalepumps.com Email [email protected]

Ref No: 180.05 V10/97

Warranty

Whale Tiptoe pumps are guaranteed for 5 years against defects in materials and workmanship.

If the unit proves faulty, return it to your supplier with proof of purchase and purchase date.

The manufacturer retains the right to repair or replace the unit. The manufacturer cannot be

held responsible for claims arising from incorrect installation, unauthorised modification or

misuse of the product. The above does not affect your statutory rights.

Should you wish to find out about other Whale Water System products please contact us at address below;

Munster Simms Engineering Ltd.
