Westin 58-41215 Manual de usuario

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

INSTALLATION INSTRUCTIONS

ITEM QUANTITY DESCRIPTION TOOLS NEEDED

1 1 CENTER SECTION 18MM SOCKET

2 1 DRIVER POD 18MM WRENCH

3 1 PASSENGER POD 19MM SOCKET

4 1 VALENCE SKID PLATE 19MM WRENCH

5 1 DRIVER MOUNTING BRACKET 10MM SOCKET

6 1 PASSENGER MOUNTING BRACKET 10MM WRENCH

7 1 DRIVER SUPPORT STRAP 15MM SOCKET

8 1 PASSENGER SUPPORT STRAP RATCHET

9 1 DRIVER SKID VALENCE MOUNTING BRACKET TORQUE WRENCH

10 1 PASSENGER SKID VALENCE MOUNTING BRACKET PLIERS

11 4 SENSOR TAB UTILITY KNIFE

12 4 SENSOR HOLE PLUG

13 2 LED LIGHT BRACKET

14 14 M12 FLAT WASHER (YELLOW ZINC)

15 4 M12 HEX HEAD BOLT (YELLOW ZINC)

16 4 M12 SERRATED FLANGE NUT (YELLOW ZINC)

17 10 M10 SERRATED FLANGE NUT (YELLOW ZINC)

18 4 M10 HEX HEAD BOLT (YELLOW ZINC)

19 8 M10 FLAT WASHER (YELLOW ZINC)

20 4 M6 HEX NUT (YELLOW ZINC)

21 4 M6 SQUARE NECK ROUND HEAD BOLT (YELLOW ZINC)

22 4 M6 LOCK WASHER (YELLOW ZINC)

23 4 M6 FLAT WASHER (YELLOW ZINC)

24 4 M8 U-CLIP (YELLOW ZINC)

25 2 M8 SERRATED FLANGE NUT (YELLOW ZINC)

26 12 M6 FLAT WASHER (BLACK ZINC)

27 12 M6 BUTTON HEAD BOLT (BLACK ZINC)

28 6 M10 FLAT WASHER (BLACK ZINC)

29 6 M10 BUTTON HEAD BOLT (BLACK ZINC)

ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING

CONTENT

PRO MOD FRONT BUMPER

APPLICATION:

2019 Chevrolet Silverado 1500 (Excl. 2019 Silverado LD)

PART NUMBER:

58-41215

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

30 6 M8 FLAT WASHER (BLACK ZINC)

31 6 M8 SPLIT LOCK WASHER (BLACK ZINC)

32 8 M8 BUTTON HEAD BOLT (BLACK ZINC)

33 12 M6 SERRATED FLANGE NUT (BLACK ZINC)

34 12 M6 LOCK WASHER (BLACK ZINC)

35 2 MESH COVER PLATE (1 PASSENGER, 1 DRIVER)

ITEM 1 ITEM 3 (Passenger)ITEM 2 (Driver)

ITEM 4

ITEM 13ITEM 7

ITEM 32ITEM 31

ITEM 5 ITEM 6

ITEM 9 ITEM 10 ITEM 11 ITEM 12

ITEM 8

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

PROCEDURE

1. Remove contents from box, verify if all parts listed are present and free from damage.

Carefully read and understand all instructions before attempting installation.

Failure to identify damage before installation could lead to a rejection of any claim.

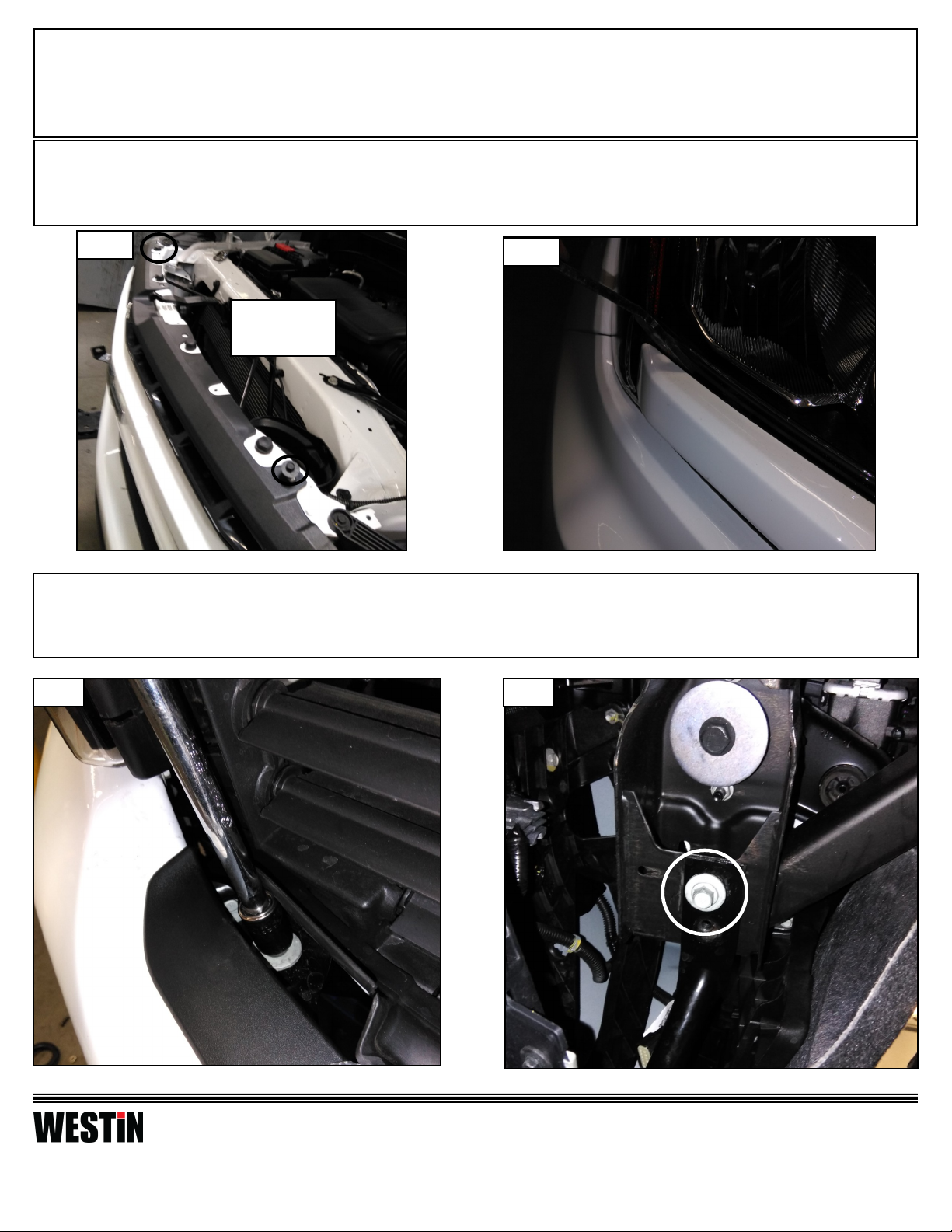

2. Begin by removing the plastic trim fasteners holding the grille in place. Also dethatch the clips of the wings of the grille.

See Figures 1 & 2.

3. Remove the grille by pulling firmly and carefully at the bottom of the grille.

Fig 2

Fig 1

Remove trim

fasteners

4. Remove the 4 bolts behind the plastic cover securing the bumper to the vehicle. See Figure 3.

5. Remove the bolts on the bottom of the frame securing the bumper supports to the vehicle. See Figure 4.

6. Unplug any wire connections and remove the bumper.

Fig 3 Fig 4

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

7. Unbolt the tow hooks (if equipped). They will be re-installed later.

8. The front corner pieces will need to be removed for trimming. Remove the hardware holding on the two brackets circled in

Figure 5.

9. Remove the screws on the inner fender lining holding on the corner piece.

10. Pull off corner piece assembly.

11. Repeat on the opposite side.

Fig. 5

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

TRIMMING NEEDED

 Trimming of the factory Front Corner Pieces will be necessary to install the Pro Mod Front Bumper.

 If you would not like to trim the stock Corner Pieces, OE replacement pieces to trim instead (PN Right-

84658018, PN Left-84658017) may be purchased separately and installed. ONLY ONE OPTION IS

NEEDED:YOU MAY EITHER TRIM THE OEM PIECE OR PURCHASE A REPLACEMENT TO

TRIM INSTEAD.

TRIMMING PROCEDURE

A. With the bumper now off, you will take the supplied templates and align them on the front corner pieces. Tape at the speci-

fied areas on the template. See Figure 6

B. Make sure that the template is aligned with the curve and is level across the bottom to ensure a straight cut.

C. Using a cutting tool, trim the corner piece below the line as specified on the template. See Figure 7

D. Repeat the process on the opposite side.

E. Reinstall the corner pieces.

Tape as shown

Fig. 6

Fig. 7

Cut evenly across

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

7. Use the supplied M12 Hardware to attach each Side Pod Assembly (2.3) to the Center Section (1). See Figure 5.

8. Use the supplied M6 Hardware to attach the LED Brackets (15) to the center section. See Figure 6. Note: If installing an

LED Light Bar (sold separately), install it at this time.

Fig. 4 Remove bolts

Fig. 8

Driver Side Shown

Fig. 9

Driver Side Shown

9. Loosely install the bumper assembly to the Mounting Brackets (5,6) using the supplied M12 Hardware. See Figures 10 &

11.

Fig. 10

1416

Fig. 11

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

10. Remove the parking sensors from the OEM bumper.

11. Use the Sensor Tab (6) along with the supplied M6 Hardware (21, 20) to install the sensors as shown in Figure 9.

12. Make sure to maintain OEM sensor orientation.

13. Handle sensors with care as they are fragile.

PARKING SENSOR INSTALLATION

*If not installing sensors, install Hole Plugs into holes on bumper and proceed

Factory Sensor

Item 11

Items 21, 20

Fig. 12

*Sensor orientation may be

different for certain vehicles

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

14. Loosely attach the preassembled bumper to the vehicle frame using the Factory Hardware. See Figure 10.

15. Use the supplied M8 and M10 Hardware to secure the Support Straps (16,17) to the bumper. See Figure 14-15.

Items 17, 28, 29

Item 7

Fig. 14

Fig. 13

Mount to factory

mounting locations.

Driver side shown

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

Items 25, 30-32

Fig. 15

16. Attach the Mesh Side Covers (35) to the Bumper using the supplied M6 Hardware . See Figures 16 & 17.

Driver Side Shown

Fig. 16

Fig. 17

35 33

17. Using the supplied hardware and mounting brackets, mount the valence skid plate to the bumper. See Figure 18.

18. Attach the M8 U-Clips (24) to the Pro-Mod Bumper in the locations shown in Figure 19.

19. Install the supplied M8 Hardware on to the upper skid. See Figure 20.

Westin Automotive Products, Inc.

320 W. Covina Blvd

San Dimas, Ca. 91773

Thank you for choosing Westin products

for additional installation assistance please call

Customer Service (800) 793-7846

www.westinautomotive.com

P.N.: 75-5841215-RevA ECO #: W19-0085 DATE: 09/23/19

Items 17, 28, 29

Fig. 18

Driver side shown

Attach M8 U-Clip

Fig 19

Fig 20

For all U-Clip locations

31 32
