Westin 25-2130 Manual de usuario

STEP1. Removethecontentsfromtheboxandcheckforanydamage.Verifyallpartsagainstthepartslist.

STEP2. Readandunderstandinstructionscompletelybeforebeginninginstallation.

STEP3.Install mount brackets to vehicle body using (2) M8-1.25 x 30MM hex head bolts, (2) M8 split lock washers and

(2)M8flatwashers. Leaveloose.

STEP4. Fasten mount brace to vehicle body using (1)M8-1.25 x 30MM hex head bolt, (1) M8 split lock washer and (1)

M8flatwasher. Attachotherendofmountbracetomountbracketusing(1)M8-1.25x30MMhexheadbolt,(2)

M8flatwashers,(1)M8splitlockwasherand(1)M8-1.25hexnut. Leaveloose.

STEP5. Positionstepbarinplaceandfastentomountbracketsusing(4)3/8-16x1.00”buttonheadcapscrews and (4)

3/8”internaltoothlockwashers. Leaveloose.

STEP6. Levelandadjuststepbarasdesired. Torque8MMhardwareto25FT.LBS.and3/8”hardwareto30FT.LBS.

1STEP BAR, DRIVER SIDE 13MM SOCKET

4MOUNT BRACKET 7/32” HEX WRENCH (ALLEN)

4MOUNT BRACE RATCHET

4M8-1.25 HEX NUT TORQUE WRENCH

16 M8 SPLIT LOCK WASHER

20 M8 FLAT WASHER

16 M8-1.25 X 30MM HEX HEAD BOLT NOTE: FASTENERS ARE CONTAINED

83/8-16 X 1.00” BUTTON HEAD CAP SCREW IN BOLT KIT 60-1214.

83/8” INTERNAL TOOTH LOCK WASHER

PARTS KIT CONTENTS TOOLS REQUIRED

QTY DESCRIPTION

1STEP BAR, PASSENGER SIDE 13MM WRENCH

75-0313 Revision A 05/16/02

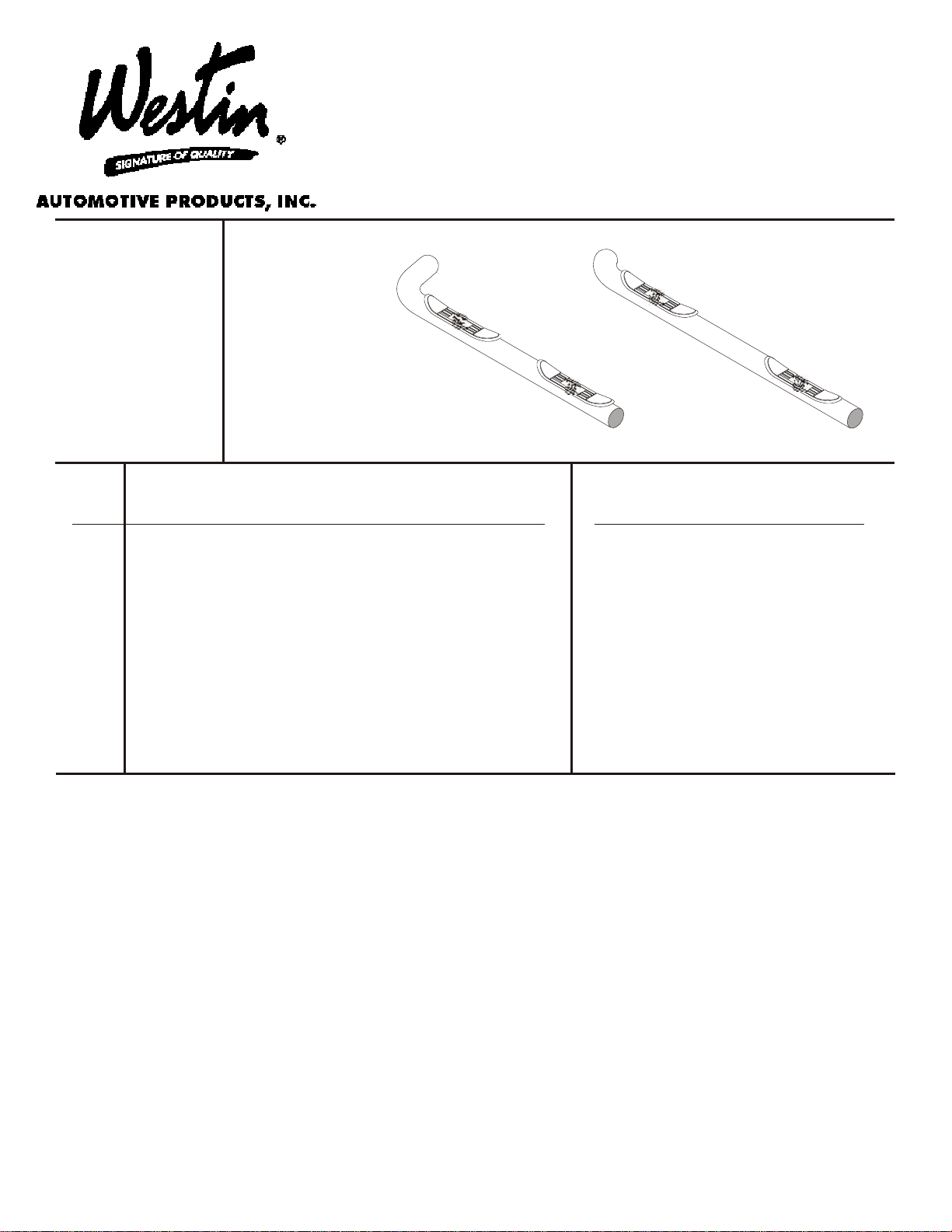

INSTALLATION INSTRUCTIONS

APPLICATION: 2002-UP CHEVROLET TRAILBLAZER

2002-UP GMC ENVOY

2002-UP OLDSMOBILE BRAVADA

2002-UP CHEVROLET TRAILBLAZER EXT

2002-UP GMC ENVOY XL

STEP BAR

ASSEMBLIES

25-2130

25-2135

26-2130

26-2135

25-2240

25-2245

26-2240

26-2245

Finish protection - Westin products have a high quality finish that must be cared for like any

other exposed finish on the vehicle. Protect the finish with a non-abrasive automotive wax

(pure carnauba, for example) on a regular basis. The use of cleaner wax or any compound which

contains an abrasive is detrimental, as the compounds scratch the finish and open it to corrosion.

Thank You for choosing Westin products

For additional installation assistance please call

Customer service (800) 793-7846 or (507) 375-3559

Westin Automotive Products, Inc.

5200 N. Irwindale Ave. Suite 220

Irwindale, Ca. 91706

3/8” INTERNAL TOOTH LOCK WASHER

3/8” BUTTON HEAD CAP SCREW

M8-1.25 X 30MM HEX HEAD BOLT

M8 SPLIT LOCK WASHER

M8 FLAT WASHER

M8-1.25 X 30MM HEX HEAD BOLT

M8 SPLIT LOCK WASHER

M8 FLAT WASHER

M8-1.25 X 30MM HEX HEAD BOLT

(2) M8 FLAT WASHERS

M8 SPLIT LOCK WASHER

M8-1.25 HEX NUT

MOUNT BRACKET

MOUNT

BRACE

FRONT

DRIVER SIDE, FRONT INSTALLATION SHOWN
