Western Digital Ultrastar Serv60 Plus 8 H4060-S Manual de usuario

Installation

Guide

Ultrastar Serv60+8

Regulatory Model H4060-S

Document D018-000252-000

Revision 01

September 2021

Installation Guide Table of Contents

Table of Contents

Revision History.....................................................................................................................................iii

Notices....................................................................................................................................................v

Points of Contact..................................................................................................................................vi

Product Label Information............................................................................................................. vi

Chapter 1. Overview.........................................................................................................1

Ultrastar Serv60+8 Description........................................................................................................... 2

Ultrastar Serv60+8 Layout................................................................................................................... 3

Environmental Specifications.............................................................................................................. 5

Electrical Specifications.......................................................................................................................5

Mechanical Specifications....................................................................................................................6

Performance Specifications................................................................................................................. 6

Ultrastar Serv60+8 Rack Requirements.............................................................................................. 7

Compatible Rack Hardware Configuration.................................................................................8

List of Compatible Drives.................................................................................................................. 10

Chapter 2. Disclaimers.................................................................................................. 30

Restricted Access Location............................................................................................................... 31

Safety Compliance..............................................................................................................................31

Electromagnetic Compatibility (EMC) Class A Compliance............................................................ 31

Country Certifications........................................................................................................................ 32

Chapter 3. Safety........................................................................................................... 33

Safety Warnings and Cautions..........................................................................................................34

Electrostatic Discharge...................................................................................................................... 34

Optimizing Location...........................................................................................................................34

Power Connections............................................................................................................................35

Power Cords.......................................................................................................................................35

Rackmountable Systems....................................................................................................................35

Installation Guide Table of Contents

Safety and Service............................................................................................................................. 36

Chapter 4. Packaging.................................................................................................... 37

Ultrastar Serv60+8 Packaging Overview.......................................................................................... 38

Ultrastar Serv60+8 Unpacking Procedure.........................................................................................41

Chapter 5. Installation...................................................................................................44

Installation Overview..........................................................................................................................45

Rails Installation.................................................................................................................................. 46

Chassis Installation............................................................................................................................. 57

CMA Installation..................................................................................................................................60

Cable Installation................................................................................................................................62

Cabling for CMA Standard and CMA Lite.................................................................................65

Top Cover Installation and Extension Test.......................................................................................66

Drive Installation................................................................................................................................. 68

Operating the 2.5" Drive Carrier................................................................................................ 71

Shipping Screws Installation..............................................................................................................73

Enclosure Power On...........................................................................................................................74

Installation Guide Revision History

Revision History

Date Revision Comment

June 2018 1.0 Initial release

August 2018 1.1 Updated the following sections:

•List of Customer Replaceable Units (CRUs) (topic removed)

December 2018 1.2 Updated the following section:

•List of Compatible Drives (page 10)

March 2019 1.3 Updated the following sections:

•Installation (page 44)

July 2019 1.4 •Updated servicing image to correct length values and rail servicing

extension in Ultrastar Serv60+8 Rack Requirements (page 7)

section.

•Updated the Installation Overview (page 45) section to include

cable management options.

•Updated Installation (page 44) section to combine instructions

for CMA Standard and CMA Lite where applicable.

•Updated Cable Configuration for CMA Lite (page 66) section.

•Updated revision history to remove broken links to topics no longer

in this document.

November 2019 1.5 Updated images of chassis cover screws throughout

December 2019 1.6 Rebranded document to WD design

April 2020 1.7 •Replaced references to He12 drives with Ultrastrar DC HC520 in List

of Compatible Drives (page 10)

•Updated images of chassis cover screws throughout

•Updated drive installation order in the Installation (page 44)

•Added note about minimum time between removing and

reapplying power in Power Connections (page 35)

December 2020 1.8 Added UK Import Representation Contact

April 2021 1.9 •Added Ultrastar DC HC650 drives to List of Compatible Drives

(page 10)

•Updated Installation (page 44) to include instructions for screw

plate

•Removed Mexico from Country Certifications (page 32)

August 2021 1.10 •Added table of enclosure LED behaviors during initial power-up to

Installation (page 44)

iii

Installation Guide Revision History

Date Revision Comment

•Separated installation procedure into individual tasks by component

in Installation (page 44)

September 2021 01 Changed document number from 1ET1114 to D018-000252-000

Installation Guide Notices

Notices

Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not

recommend the use of its products in life support applications wherein a failure or malfunction of the product

may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western

Digital products in life support applications assumes all risk of such use and indemnifies Western Digital

against all damages.

This document is for information use only and is subject to change without prior notice. Western Digital

assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential

damages resulting from the furnishing, performance or use of this material.

Absent a written agreement signed by Western Digital or its authorized representative to the contrary,

Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,

or could, be associated with this document and related material, and any user of this document or related

material agrees to such disclaimer as a precondition to receipt and usage hereof.

Each user of this document or any product referred to herein expressly waives all guaranties and warranties

of any kind associated with this document any related materials or such product, whether expressed or

implied, including without limitation, any implied warranty of merchantability or fitness for a particular

purpose or non-infringement. Each user of this document or any product referred to herein also expressly

agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential

damages, including without limitation physical injury or death, property damage, lost data, loss of profits or

costs of procurement of substitute goods, technology, or services, arising out of or related to this document,

any related materials or any product referred to herein, regardless of whether such damages are based on

tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.

This document and its contents, including diagrams, schematics, methodology, work product, and

intellectual property rights described in, associated with, or implied by this document, are the sole and

exclusive property of Western Digital. No intellectual property license, express or implied, is granted by

Western Digital associated with the document recipient's receipt, access and/or use of this document or the

products referred to herein; Western Digital retains all rights hereto.

Western Digital, the Western Digital logo, and Ultrastar are registered trademarks or trademarks of Western

Digital Corporation or its affiliates in the US and/or other countries. All other marks are the property of their

respective owners. Product specifications subject to change without notice. Pictures shown may vary from

actual products. Not all products are available in all regions of the world.

Western Digital

5601 Great Oaks Parkway

San Jose, CA 95119

Installation Guide Points of Contact

Points of Contact

For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical

support. Please be prepared to provide the following information: part number (P/N), serial number (S/N),

product name and/or model number, and a brief description of the issue.

Email:

support@wdc.com

Website:

https://portal.wdc.com/Support/s/

UK Import Representation Contact

Western Digital UK Limited Hamilton House, Regent Park, Kingston Road Leatherhead, Surrey KT22 7PL, GB,

United Kingdom

Telephone: +44 1372 366000

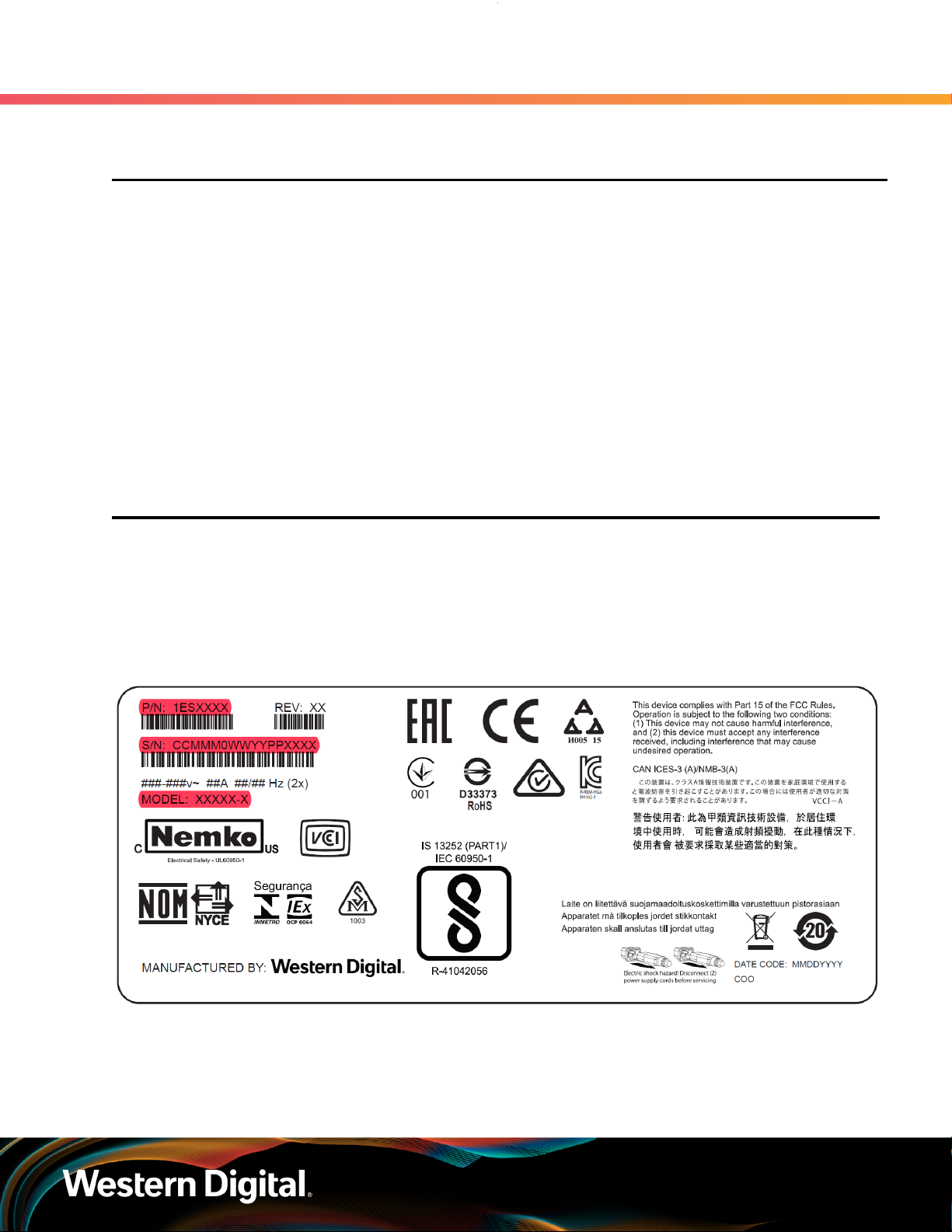

1.1 Product Label Information

The following product information is required for technical support requests:

•Part Number (P/N)

•Serial Number (S/N)

•Product Name and/or Model Number (MODEL)

This information may be found on the product label, which is affixed to an exterior, non-removable surface of

the chassis. The following is an example label with the applicable information fields highlighted:

Western Digital

Overview

This section provides a high level overview of the features of the

Ultrastar Serv60+8 .

In This Chapter:

- Ultrastar Serv60+8 Description.....................2

- Ultrastar Serv60+8 Layout.............................3

- Environmental Specifications........................5

- Electrical Specifications................................ 5

- Mechanical Specifications............................. 6

- Performance Specifications...........................6

- Ultrastar Serv60+8 Rack Requirements........7

- List of Compatible Drives............................ 10

Installation Guide 1. Overview

1.1 Ultrastar Serv60+8 Description

Figure 2: Ultrastar Serv60+8

The Ultrastar Serv60+8 is a 4U form factor, high density, rack-mounted storage enclosure that is capable of

hosting up to 60 HDD SAS or SATA drives. The maximum data storage capacity of the Ultrastar Serv60+8

is 901TB using 14TB Ultrastar® HC530 drives plus an additional 61.44TB using Ultrastar® SS300 SSDs in the

system SSD slots. (For a full list of compatible drives and total storage capacities, see the List of Compatible

Drives (page 10).) The Ultrastar Serv60+8 also integrates an Intel Skylake or Cascade Lake based

server front end. The server is built around an Intel Sawtooth Pass S2600ST motherboard and supports

2 LGA3647-0 (Socket P) processor sockets CPUs, 16 (8 per CPU) slots of DDR4 ECC DIMM memory, and

leverages an AST2500 BMC for out-of-band management of the server subsystem. The enclosure runs on

an input voltage of 200 - 240 VAC and consumes ~1800W of power under typical conditions. It requires a

maximum of ~2000W at full load.

The system contains three externally facing Half-Height, Half-Length (HHHL) PCIe x16 slots, and 3 externally

facing HHHL PCIe x8 slots.

It is designed to fit within a 4U rack space and requires 1200 mm (47.24in.) of usable rack space, frame to

frame. A fully loaded system will add 95.25 kg / 210 lbs. of static load when fully loaded with drives.

•4U Storage Server

•Supports up to 60 HDD Drives

•Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 60 available drive bays.

Supports an additional 8 2.5" drives in the system SSD slots located in the center channel

•Up to 12W per drive slot for the 60 HDD data storage drives (Cannot exceed 85A on the 5V rail) and

25W per slot for the 8 system SSD slots

•House and control six (6) N+1 redundant 80mm fans

•Supports High Line (220-240 VAC) Input Power

•Powered by two (2) redundant 2000W PSUs (High Line only)

•Toolless replacement of all Customer Replaceable Units (CRUs)

•Fits within a standard EIA-310 rack including all necessary cable management (see Compatible Rack

Hardware Configuration (page 8))

•Dual Skylake LGA3647 Socket Processors

•16 DDR4 ECC DIMM slots

Installation Guide 1. Overview

1.2 Ultrastar Serv60+8 Layout

•ASPEED AST2500 BMC

•Lewisburg PCH C624 Chipset

1.2 Ultrastar Serv60+8 Layout

Figure 3: Front and Rear Product Layout

Table 1: Front and Rear Component Identification

Number Component

1 Enclosure Handles

2 CMA

3 PSUs (Delta PSUs shown)

4 Rear IO Ports

5 Chassis Cover

6 Rails (includes rear cover alignment brackets)

The following is an image of the layout of the major system components inside the Ultrastar Serv60+8 .

Tabla de contenidos

Otros manuales de Almacenamiento de Western Digital

Western Digital

Western Digital WDG1U1600N - My Book Essential Edition 160 GB External Hard... Manual de usuario

Western Digital

Western Digital Ultrastar Data102 Manual de usuario

Western Digital

Western Digital WDBAAB2500ASL - My Passport For Mac Manual de usuario

Western Digital

Western Digital My Passport WDBAAB3200ACH Manual de usuario

Western Digital

Western Digital AC2540 Instrucciones de funcionamiento originales

Western Digital

Western Digital My Passport Ultra Manual de usuario

Western Digital

Western Digital SanDisk SecureAccess IXPAND 3.0 32GO Manual de usuario

Western Digital

Western Digital WDG1U7500 - My Book Essential Manual de usuario

Western Digital

Western Digital WDXML400UE - Passport 40 GB External Hard... Instrucciones de instalación

Western Digital

Western Digital PATA Hard Drive Manual de usuario

Western Digital

Western Digital VelociRaptor WD3000GLFS Manual de usuario

Western Digital

Western Digital Ultrastar Serv60+8 Guía rápida

Western Digital

Western Digital My Passport WDMEA3200 Manual de usuario

Western Digital

Western Digital WDBACX0010Bxx - My Passport Essential SE Manual de usuario

Western Digital

Western Digital WD1500HLFS - VelociRaptor 150 GB Hard Drive Manual de usuario

Western Digital

Western Digital WD RE3 Manual de usuario

Western Digital

Western Digital MY PASSPORT AIR Manual de usuario

Western Digital

Western Digital My Passport Pro Manual de usuario

Western Digital

Western Digital 2U24 Manual de usuario

Western Digital

Western Digital My Book World Edition Manual de usuario

Western Digital

Western Digital My Book WDH1B10000 Manual de usuario

Western Digital

Western Digital WDBACG0020HCH - My Book Live Manual de usuario

Western Digital

Western Digital My Passport WDME2500 Manual de usuario

Western Digital

Western Digital My Passport WDME2500 Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
