Wenglor P1PA00 Series Manual de usuario

P1PA00x

Luminescence Sensors

Operating Instructions

Translation of the original operating instructions

Subject to change without notice

Available as PDF ﬁle only

Version 1.0.0

Status: 11/15/2021

www.wenglor.com

2Table of Contents

Table of Contents

1. General 4

1.1. Information Concerning these Instructions 4

1.2. Explanations of Symbols 4

1.3. Limitation of Liability 5

1.4. Copyrights 5

2. For Your Safety 6

2.1. Use for Intended Purpose 6

2.2. Use for Other than the Intended Purpose 7

2.3. Personnel Qualiﬁcations 7

2.4. Modiﬁcation of Products 7

2.5. General Safety Precautions 7

2.6. Laser/LED Warnings 8

2.7. Approvals and Protection Class 8

3. Technical Data 9

3.1. Technical Data 9

3.2. Spot diameter 10

3.3. Wiring Diagram 10

3.4. Complementary Products 11

3.5. Housing Dimensions 11

3.6. Control Panel 12

3.7. Scope of Delivery 12

4. Transport and Storage 13

4.1. Transport 13

4.2. Storage 13

5. Installation and Electrical Connection 14

5.1. Installation 14

5.2. Electrical Connection 15

5.3. Diagnosis 15

6. Initial Start-Up 17

6.1. General Device Information 17

6.2. Factory Default Settings 17

Photoelectronic Sensors

7. Setup 18

7.1. Setting the Switching Threshold with the Teach-In Function 18

7.1.1. Two-point Teach-in 18

7.1.2. Dynamic Teach-in 19

7.1.3. Teach-In Input 19

8. IO-Link 20

9. Maintenance Instructions 20

10. Proper Disposal 20

11. Appendix 20

11.1. List of Abbreviations 20

11.2. Revision History 20

12. EU Declaration of Conformity 20

4General

1. General

1.1. Information Concerning these Instructions

• These instructions apply to the product with ID code P1PA001 and P1PA002

• They make it possible to use the product safely and efficiently.

• These instructions are an integral part of the product and must be kept on hand for the entire duration of

its service life.

• Local accident prevention regulations and national work safety regulations must be complied with as well.

• The product is subject to further technical development, and thus the information contained in these oper-

ating instructions may also be subject to change. The current version can be found at www.wenglor.com in

the product’s separate download area.

NOTE!

The operating instructions must be read carefully before using the product and must be kept

on hand for later reference!

1.2. Explanations of Symbols

• Safety precautions and warnings are emphasized by means of symbols and attention-getting words.

• Safe use of the product is only possible if these safety precautions and warnings are adhered to.

• The safety precautions and warnings are laid out in accordance with the following principle:

SIGNAL WORD

Type and source of danger!

Possible consequences in the event that the hazard is disregarded.

• Measures for averting the hazard.

The meanings of the signal words, as well as the scope of the associated hazards, are listed below:

DANGER!

This signal word indicates a hazard with a high degree of risk which, if not avoided, results

in death or severe injury.

WARNING!

This signal word indicates a hazard with a medium degree of risk which, if not avoided, may

result in death or severe injury.

CAUTION!

This signal word indicates a hazard with a low degree of risk which, if not avoided, may result

in minor or moderate injury.

Photoelectronic Sensors

ATTENTION!

This word draws attention to a potentially hazardous situation which, if not avoided, may

result in property damage.

NOTE!

A note draws attention to useful tips and suggestions, as well as information regarding ef-

ﬁcient, error-free use.

1.3. Limitation of Liability

• The product has been developed in consideration of the current state-of-the-art technology, as well as

applicable standards and guidelines. Subject to change without notice. A valid declaration of conformity

can be found at www.wenglor.com in the product’s separate download area.

• wenglor sensoric elektronische Geräte GmbH (hereinafter referred to as “wenglor”) excludes all liability in

the event of:

• Non-compliance with the instructions

• Use of the product for purposes other than those intended

• Use by untrained personnel

• Use of unapproved replacement parts

• Unapproved modification of products

• These operating instructions do not include any guarantees from wenglor with regard to the described

procedures or specific product characteristics.

• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc-

tions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc-

tions were prepared.

1.4. Copyrights

• The contents of these instructions are protected by copyright law.

• All rights are reserved by wenglor.

• Commercial reproduction or any other commercial use of the provided content and information, in particu-

lar graphics and images, is not permitted without previous written consent from wenglor.

6For Your Safety

2. For Your Safety

2.1. Use for Intended Purpose

This wenglor product is intended for use in accordance with the following functional principle:

Luminescence sensors emit UV light with a wavelength of 375 nm. If the emitted light strikes a luminescent

object, it reﬂects light within a visible wavelength range of 420 to 750 nm depending on the luminophor used.

This ﬂuorescent effect is exploited by the luminescence sensor in order to, for example, detect markings which

are invisible to the human eye by daylight.

This product can be used in the following industry sectors:

• Special-purpose mechanical engineering

• Logistics

• Automotive industry

• Food industry

• Packaging industry

• Pharmaceuticals industry

• Plastics industry

• Woodworking industry

• Consumer goods industry

• Paper industry

• Electronics industry

• Printing industry

• Chemicals industry

Photoelectronic Sensors

2.2. Use for Other than the Intended Purpose

• No safety components in accordance with 2006/42/EC (Machinery Directive).

• The product is not suitable for use in potentially explosive atmospheres.

• The product may be used only with accessories supplied or approved by wenglor, or in combination with

approved products. A list of approved accessories and combination products can be found at

www.wenglor.com on the product detail page.

DANGER!

Risk of personal injury or property damage in case of use for other than the intended

purpose!

Use for other than the intended purpose may lead to hazardous situations.

• Observe instructions regarding use for intended purpose.

2.3. Personnel Qualifications

• Suitable technical training is a prerequisite.

• In-house electronics training is required.

• Trained personnel must have (permanent) access to the operating instructions.

DANGER!

Risk of personal injury or property damage in case of incorrect initial start-up and

maintenance!

Personal injury and damage to equipment may occur.

• Adequate training and qualification of personnel

2.4. Modification of Products

DANGER!

Risk of personal injury or property damage if the product is modiﬁed.

Personal injury and damage to equipment may occur. Non-observance may result in loss of

the CE mark, and the guarantee may be rendered null and void.

• Modification of the product is not permitted.

2.5. General Safety Precautions

NOTE!

• These instructions are an integral part of the product and must be kept on hand for the

entire duration of its service life.

• In the event of possible changes, the respectively current version of the operating

instructions can be found at www.wenglor.com in the product’s separate download area.

• Read the operating instructions carefully before using the product.

• Protect the sensor against contamination and mechanical influences.

8For Your Safety

2.6. Laser/LED Warnings

Applicable standards and safety regulations must be observed.

Attention

UV radiation from this product.

UV RADIATION FROM THIS PRODUCT

RISK GROUP 2 PRODUCT

EN62471: 2008

2.7. Approvals and Protection Class

Photoelectronic Sensors

3. Technical Data

3.1. Technical Data

Order no. P1PA001 P1PA002

Optical Data

Working range 30…90 mm

Working distance 40 mm

Receiving range 420…750 nm 570…750 nm

Switching hysteresis < 10 %

Light source UV light

Wavelength 375 nm

Service life (ambient temp. = 25 °C) 100,000 h

Max. permitted ambient light 10,000 lux

Light spot diameter see table 1 see table 2

Electrical Data

Supply voltage 10…30 V DC

Supply voltage IO-Link 18…30 V DC

Current consumption (operating voltage = 24 V) < 25 mA

Switching frequency 2,500 Hz

Response time 200 µs

On/Off-delay 0…200 ms

Temperature drift < 5 %

Temperature range –25…60° C

Number of switching outputs 2

Switching output voltage drop 1.5 V

Switching output switching current 100 mA

Short-circuit protection Yes

Reverse polarity protected Yes

Lockable Yes

Interface IO-Link

IO-Link version 1.1

Protection class III

Mechanical Data

Setting method Teach-in

Housing material Plastic

Degree of protection IP67

Connection type M12x1; 5-pin

10 Technical Data

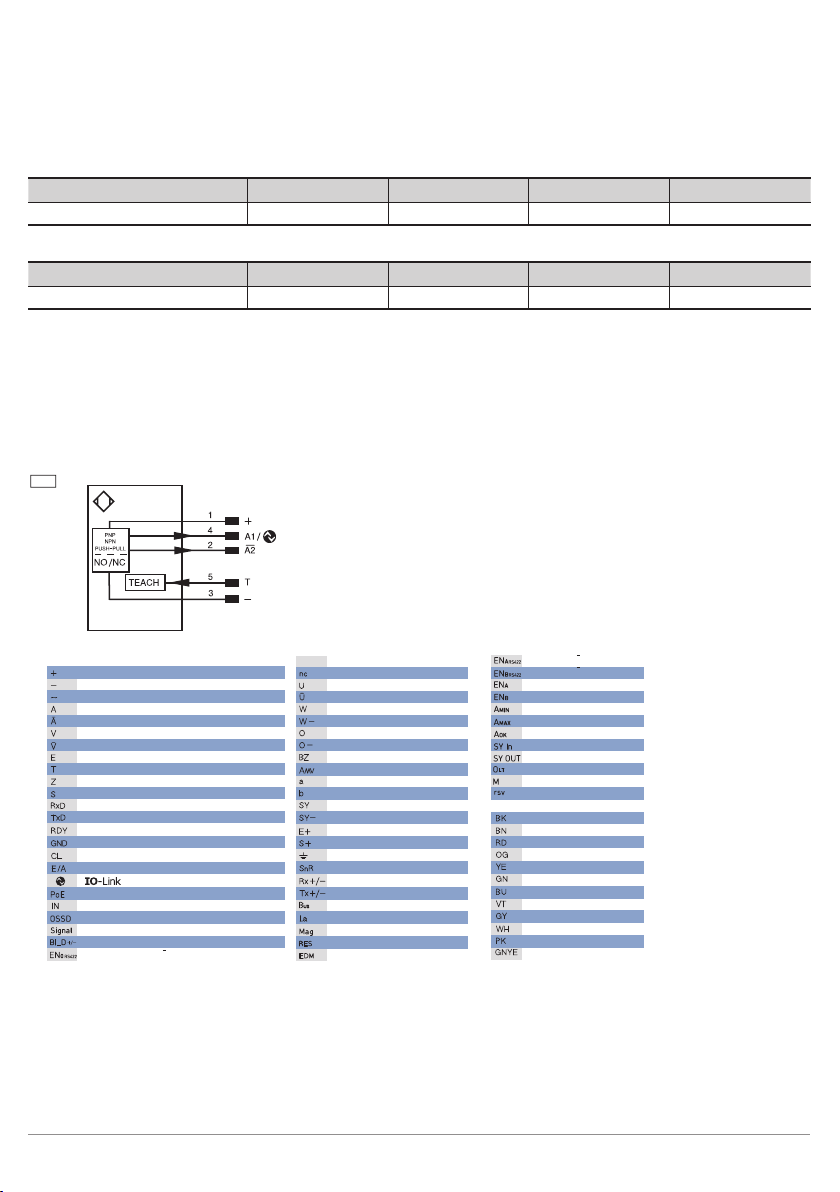

3.2. Spot diameter

Working distance 30 mm 50 mm 70 mm 90 mm

Spot diameter 3 4 6 7

Table 1

Working distance 30 mm 50 mm 70 mm 90 mm

Spot diameter 4 5 7 9

Table 2

3.3. Wiring Diagram



Legend

Wire Colors according to IEC 60757

Platinum measuring resistor

not connected

Test Input

Test Input inverted

Trigger Input

Ground for the Trigger Input

Analog Output

Ground for the Analog Output

Block Discharge

Valve Output

Valve Control Output +

Valve Control Output 0 V

Synchronization

Ground for the Synchronization

Receiver-Line

Emitter-Line

Grounding

Switching Distance Reduction

Ethernet Receive Path

Ethernet Send Path

Interfaces-Bus A(+)/B(–)

Emitted Light disengageable

Magnet activation

Input confirmation

Contactor Monitoring

Black

Brown

Red

Orange

Yellow

Green

Blue

Violet

Grey

White

Pink

Green/Yellow

Supply Voltage +

Supply Voltage 0 V

Supply Voltage (AC Voltage)

Switching Output (NO)

Switching Output (NC)

Contamination/Error Output (NO)

Contamination/Error Output (NC)

Input (analog or digital)

Teach Input

Time Delay (activation)

Shielding

Interface Receive Path

Interface Send Path

Ready

Ground

Clock

Output/Input programmable

Power over Ethernet

Safety Input

Safety Output

Signal Output

Ethernet Gigabit bidirect. data line (A-D)

Encoder 0-pulse 0-0 (TTL)

Encoder A/A (TTL)

Encoder B/B (TTL)

Encoder A

Encoder B

Digital output MIN

Digital output MAX

Digital output OK

Synchronization In

Synchronization OUT

Brightness output

Maintenance

reserved

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Wenglor

Wenglor

Wenglor weCat3D MLSL Manual de usuario

Wenglor

Wenglor P1NK Series Manual de usuario

Wenglor

Wenglor P1KH Series Manual de usuario

Wenglor

Wenglor I12N Series Manual de usuario

Wenglor

Wenglor P1XF001 Manual de usuario

Wenglor

Wenglor P1NL Series Manual de usuario

Wenglor

Wenglor OPT2011 Manual de usuario

Wenglor

Wenglor P1KT Series Manual de usuario

Wenglor

Wenglor OPT1500 Manual de usuario

Wenglor

Wenglor FX Q0 Series Manual de usuario

Wenglor

Wenglor P1NK208 Manual de usuario

Wenglor

Wenglor P1PK Series Manual de usuario

Wenglor

Wenglor P1KK001 Manual de usuario

Wenglor

Wenglor FFAP Series Manual de usuario

Wenglor

Wenglor OPT2041 Manual de usuario

Wenglor

Wenglor P1KY0 Series Manual de usuario

Wenglor

Wenglor UF Series Manual de usuario

Wenglor

Wenglor Y1TA OY1TA603P0003 Manual de usuario

Wenglor

Wenglor OPT2203 Manual de usuario

Wenglor

Wenglor YR24PCT2 Manual de usuario

Wenglor

Wenglor P2KH002 Manual de usuario

Wenglor

Wenglor TIF352U0089 Manual de usuario

Wenglor

Wenglor OPT2012 Manual de usuario

Wenglor

Wenglor OHK202 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
