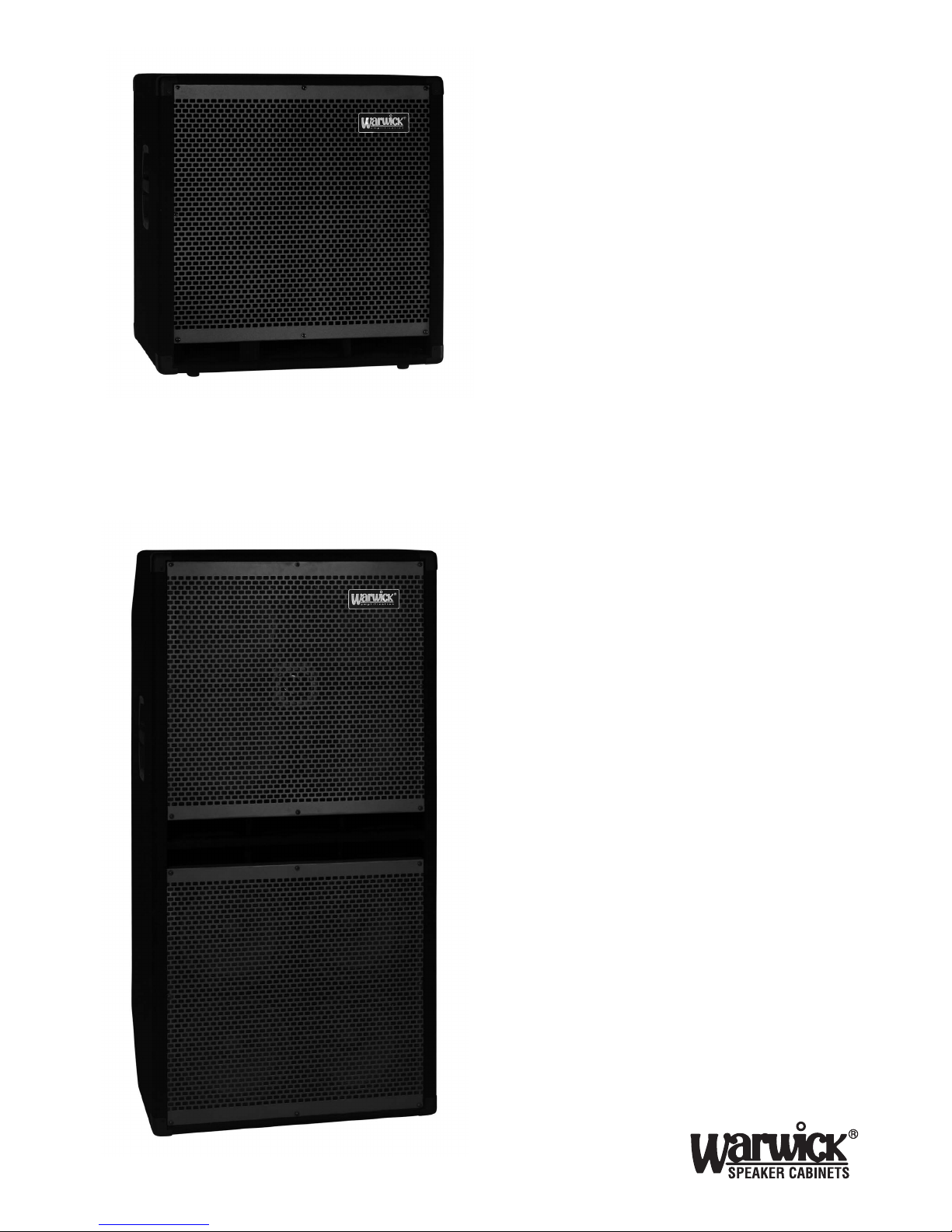

OWNER’S MANUAL
WCA SERIES BASS CABINETS
WCA208 LW CE WCA208 LW
WCA408 LW CE WCA408 LW
WCA112 LW CE WCA112 LW
WCA115 LW CE WCA115 LW
WCA210 WCA410W
WCA115W WCA810W
Family Owned ◊ Solar Powered ◊ Sustainably Manufactured in a Green Environment
INDEX
Product Information
Introduction 3
WCA208 LW CE 4
WCA208 LW 4
WCA408 LW CE 5
WCA408 LW 5
WCA112 LW CE 6
WCA112 LW 6
WCA115 LW CE 7
WCA115 LW 7
WCA210 8
WCA410W 8
WCA115W 9
WCA810W 9
Cabinet Back Plates 10
LIGHT WEIGHT SERIES
STANDARD SERIES
Congratulations! on the purchase of your new Warwick Speaker Cabinet! Whether
playing in small clubs or on big stages in front of thousands of fans, your new
Warwick Speaker Cabinet will always deliver that fat, punchy tone that you have always desired.
Our new WCA series cabinets are available in various sizes designed with the vision of
providing for almost any playing situation that you can possibly imagine. From the
extremely light and portable WCA208 LW CE to the towering WCA810, our speaker cabinets will
satiate your appetite for extreme power and extreme flexibility. Our design philosophy was to
adopt a highly modular approach for these bass cabinets. The WCA series cabinets can be
stacked in different combinations, providing a variety of options for realizing your dream rig.
Proper speaker design can make the difference between just sounding loud; and
sounding GREAT! We believe that amplification and speaker cabinet design go hand in
hand and especially for bass guitars, the cabinetry plays a vital role in sculpting your
sound. We at Warwick developed new speaker drivers to specifically complement our
amplifiers so everything works in tandem, giving you tone that will never make you look back!
3
INTRODUCTION
4
WCA208 LW
• Bass reex speaker cabinet
• 2 x 8”Warwick WPB 12/8 Speaker
• 4” Warwick WBH 4/8 High Frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• Rugged metal grille
• 200 Watts, 8 Ohm
• Sensitivity: 97dB
• Resonant frequency: 59Hz
• Frequency range: 100Hz – 20kHz
• Dimensions (W/H/D)
520mm x 400mm x 370mm
20.5” x 15.8” x 14.6”
• Weight: 16,2kg / 35.30lb
WCA208 LW CE
• Bass reex speaker cabinet
• 2 x 8” Celestion Speaker (8 Ω)
• 1” Celestion neodymium compression HF driver
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 300 Watts
• Sensitivity: 97dB
• Resonant frequency: 45Hz
• Frequency range: 100Hz – 20kHz
• Dimensions (W/H/D)
520mm x 400mm x 370mm
20.5” x 15.8” x 14.6”
• Weight: 14,8kg / 31lb
ARTICLE NUMBER: W CA 208 LW CE
ARTICLE NUMBER: W CA 208 LW
LIGHT WEIGHT SERIES
ARTICLE NUMBER: W CA 208 LW
WCA408 LW
• Bass reex speaker cabinet
• 4 x 8” Warwick WPB 8/4 Speakers
• 4” Warwick WBH 4/8 High Frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 400 Watts
• Sensitivity: 94dB
• Resonant frequency: 78Hz
• Frequency range: 70Hz – 20kHz
• Dimensions (W/H/D)
520mm x 540mm x 400mm
20.5” x 21” x 16”
• Weight: 24,3kg / 53lb
5
WCA408 LW CE
• Bass reex speaker cabinet
• 4 x 8” Celestion Speaker (8 Ω)
• 1” Celestion neodymium compression HF driver
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 600 Watts
• Sensitivity: 94dB
• Resonant frequency: 68Hz
• Frequency range: 65Hz – 20kHz
• Dimensions (W/H/D)
520mm x 540mm x 400mm
20.5” x 21” x 16”
• Weight: 21,9kg / 46.30lb
ARTICLE NUMBER: W CA 408 LW CE
ARTICLE NUMBER: W CA 408 LW
WCA112 LW
• Bass reex speaker cabinet
• 1 x 12”Warwick WPB 12/8 Speaker
• 4” Warwick WBH 4/8 High Frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• Rugged metal grille
• 300 Watts
• Sensitivity: 97dB
• Resonant frequency: 59Hz
• Frequency range: 70Hz – 20kHz
• Dimensions (W/H/D)
520mm x 540mm x 400mm
20.5” x 21” x 16”
• Weight: 19,5kg / 42lb
WCA112 LW CE
• Bass reex speaker cabinet
• 1 x 12” Celestion Speaker (8 Ω)
• 1” Celestion neodymium compression HF driver
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 500 Watts
• Sensitivity: 97dB
• Resonant frequency: 45Hz
• Frequency range: 65Hz – 20kHz
• Dimensions (W/H/D)
520mm x 540mm x 400mm
20.5” x 21” x 16”
• Weight: 17,6kg / 37.5lb
ARTICLE NUMBER: W CA 112 LW CE
ARTICLE NUMBER: W CA 112 LW
6
7
WCA115 LW
• Bass reex speaker cabinet
• 1 x 15“Warwick WPB 12/8 Speaker
• 4” Warwick WBH 4/8 High Frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• Rugged metal grille
• 300 Watts
• Sensitivity: 97dB
• Resonant frequency: 59Hz
• Frequency range: 50Hz – 20kHz
• Dimensions (W/H/D)
520mm x 500mm x 560mm
20.5” x 19.7” x 22.1”
• Weight: 21,6kg / 46.30lb
WCA115 LW CE
• Bass reex speaker cabinet
• 1 x 15” Celestion Speaker (8 Ω)
• 1” Celestion neodymium compression HF driver
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 500 Watts
• Sensitivity: 97dB
• Resonant frequency: 45Hz
• Frequency range: 50Hz – 20kHz
• Dimensions (W/H/D)
520mm x 500mm x 560mm
20.5” x 19.7” x 22.1”
• Weight: 20kg / 44.10lb
ARTICLE NUMBER: W CA 115 LW CE
ARTICLE NUMBER: W CA 115 LW
WCA210
• Bass reex speaker cabinet
• 2 x 10” Warwick WPB 10/4 Speaker
• 4” Warwick WBH 4/8 High frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and coaxial,
lockable connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 200 Watts
• Maximum SPL: 105 dB
• Resonant frequency: 48Hz
• Frequency range: 60Hz – 20kHz
• Dimensions (W/H/D)
660mm x 470mm x 480mm
26” x 18” x 19”
• Weight: 23,8kg / 51lb
8
ARTICLE NUMBER: W CA 210
WCA410W
• Bass reex speaker cabinet
• Available in 4 Ωand 8 Ωversions
• 4 x 10” Warwick WPB 10/8 Speakers
(WPB 10/4 for 4 Ω version)
• 4” Warwick WBH 4/8 high frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and lockable speaker
connectors
• High Frequency Attenuation Control
• Rugged metal grille
• 400 Watts
• Maximum SPL: 105dB
• Resonant frequency: 30Hz
• Frequency range: 35Hz – 20kHz
• Dimensions (W/H/D)
660mm x 660mm x 480mm
26” x 26” x 19”
• Weight: 40kg / 88lb
ARTICLE NUMBERS: W CA 410 W (8 Ω version)
W CA 410 - 4 W (4 Ω version)
STANDARD SERIES
WCA810W
• Bass reex speaker cabinet
• Switchable between single 8x10 (4 Ω)
or dual 4x10 (8 Ω) modes.
• 8 x 10” Warwick WPB 10/8 Speakers
• 1 x 4” Warwick WBH 4/8 high frequency
“bullet” type horn
• 2 Dual purpose ¼” jack and lockable speaker
connectors
• High Frequency Attenuation Control
• Rugged metal grille
• Wheels
• 800 Watts
• Maximum SPL: 105dB
• Resonant frequency: 49Hz
• Frequency range: 30Hz – 20kHz
• Dimensions (W/H/D)
660mm x 1325mm x 480mm
26” x 52” x 19”
• Weight: 90,8kg / 198.50lb
ARTICLE NUMBER: W CA 810 W
9
WCA115W
• Bass reex speaker cabinet
• Available in 4 Ωand 8 Ωversions
• 1 x 15” Warwick WPB 15/8 Speaker
(WPB 15/4 for 4 Ω version)
• 2 Dual purpose ¼” jack and lockable speaker
connectors
• High Frequency Attenuation Control
• Rugged metal grille
• Wheels
• 300 Watts
• Maximum SPL: 105dB
• Resonant frequency: 30Hz
• Frequency range: 30Hz – 3000Hz
• Dimensions (W/H/D)
660mm x 660mm x 480mm
26” x 26” x 19”
• Weight: 27kg / 60lb
ARTICLE NUMBERS: W CA 115 W (8 Ω version)
W CA 115 - 4 W (4 Ω version)
DUAL
SINGLE
0
I
1
I
2
I
3
I
TOP 4x10 + HF
8x10 + HF PARALLEL
BOTTOM 4x10
INPUT
0
I
1
I
2
I
3
I
INPUT
BACK PLATE FOR
WCA810W BACK PLATE
WCA115W BACK PLATE
10
WCA112.LW.CE WCA112.LW
WCA115.LW.CE WCA115.LW
WCA208.LW.CE WCA208.LW
WCA408.LW CE WCA408 LW
WCA210 WCA410W
