Warmup 6iE Manual de usuario
User Guide
WiFi Thermostat
TM
6iE
mini
The smartest, most ecient way to control
the world’s best selling oor heating.
Miniaturised.
2
x1 x1 x1 x2 x1

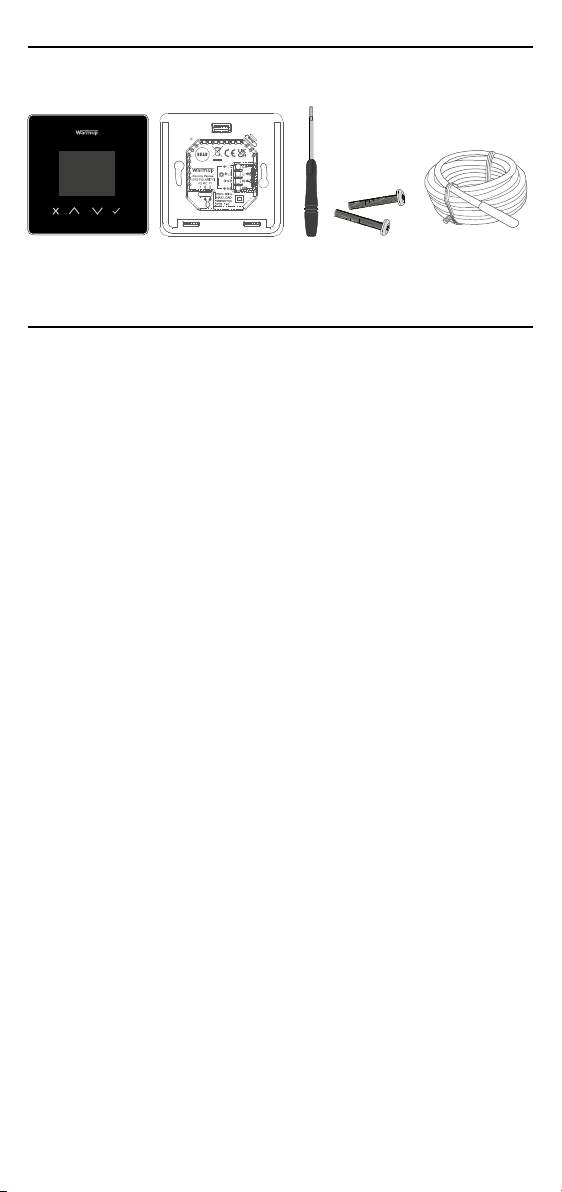

Pack Contents
Contents
Safety Information ............................................................................................ 3
Step 1 - Installation ........................................................................................... 3
Step 2 - Wiring Connections ............................................................................ 4
Wiring Connections - Loads over 16 amps ...................................... 5
Step 3 - Thermostat Mounting ........................................................................ 6
Table 1.0 Thermostat Application ................................................................... 7
Step 4 - Initial Setup .......................................................................................... 7
Welcome to the 6iE mini .................................................................................. 8
How to quickly change the temperature ................................................................ 8
How to quickly change mode ................................................................................... 8
Heating ............................................................................................................... 9
How to set a program ................................................................................................ 9
Setback Temperature ................................................................................................ 9
How to set into Manual Mode ................................................................................ 10
How to set a Temporary Override ......................................................................... 10
Energy Monitor................................................................................................ 12
SmartGeo ......................................................................................................... 12
Settings .............................................................................................................13
Notications & Error codes............................................................................ 15
Troubleshooting .............................................................................................. 15
WiFi Troubleshooting .....................................................................................16
Technical Specications ................................................................................. 17
Warranty .......................................................................................................... 18
3
Safety Information
Step 1 - Installation
The 6iE mini must be installed by a qualied electrician. It requires a
permanent 230 V AC supply from a 30mA RCD or RCBO protected circuit
in accordance with the current edition of the BS7671 Wiring Regulations.
Isolate the 6iE mini from the mains supply throughout the installation
process. Ensure that wires are fully inserted into the terminals and
secured, free strands should be trimmed, as they could cause a short-
circuit.
Install the 6iE mini in an area with good ventilation. It should not be
beside a window/door, in direct sunlight or above another heat generating
device (e.g. radiator or TV).
Ensure the distance from your router to the 6iE mini is not excessive. This
will ensure the wireless connection is not subject to range or interference
issues once installed.
q
q
q
q
For bathroom installations the 6iE mini MUST be mounted outside of
Zones 0, 1 and 2. If this is not possible then it must be installed in an
adjacent room, controlling the rooms using the oor sensor only.
The 6iE mini and its packaging are not toys; do not allow children to play
with them. Small components and packaging present a risk of choking or
suocation.
The 6iE mini is suitable for indoor use only. It must not be exposed to
moisture, vibrations, mechanical loads or temperatures outside of its
rated values.
For safety and licensing reasons (CE/UKCA), unauthorised change and/or
modication of the 6iE mini is not permitted.
q
q
q
q
Isolate the thermostat supply from
the mains supply.
Install a 50 mm deep electrical back
box in your preferred thermostat
location. Pull wires (heater, supply
and sensor(s) through back box
and complete terminal wiring.
Unclip the display from the power
base.
Release the display as shown.
2
1
1
3
2
4
230 V AC:
50Hz Heaters. Max. 16A
(3,680W)
Sensor
4
Step 2 - Wiring Connections
WARNING!
The 6iE mini must be installed by a qualied electrician in accordance with
the current edition of the BS7671 Wiring Regulations.
NOTE: For loads above 10 A, the conductor wire gauge should be at least
2.5mm²
Electric Underoor Heating
L1 & N4 Heater Live and Neutral
Max. 16A (3680W)
L2 & N3 Supply Live and Neutral
Hydronic Underoor Heating
L1 Switched Live to Wiring Centre
L2 & N3 Supply Live and Neutral
N4 Not Used
Central Heating
L1 Switched Live to Zone Valve /Boiler
L2 & N3 Supply Live and Neutral
N4 Not Used
For extra low voltage or volt-free systems a contactor must be used.
Connecting the 6iE mini directly to extra low voltage or volt-free boilers may
cause damage to the boiler circuit.
Sensor Connection
5 & 6 Probe 1 - Floor/Air Control Sensor (No Polarity)
6 & 7 Probe 2 - Limit Sensor (No Polarity)
See Table 1.0 for thermostat use cases
5
Step 2 - Wiring Connections - Loads over 16 amps
Warmup thermostats are rated for a maximum of 16 amps (3680 W). A
contactor must be used to switch loads exceeding 16 amps. Please see wiring
diagram below.
30 mA
≤16A
30 mA
≤16A
R
C
Snubber
L N PE L N PE
PE
L
N
6
Table 1.0 Thermostat Use Cases
# Use Case System Type Control Limit Sensor
1
Thermostat IN room
Air temperature schedule
No oor limit
Internal
Air Sensor None
2*
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
Probe 1
(5 & 6)
Floor Sensor
None
3
Thermostat IN room
Floor temperature schedule
Air limit
Probe 1
(5 & 6)
Floor Sensor
Internal
Air Sensor
4
Thermostat OUT of room
Air temperature schedule
No oor limit
Probe 1
(5 & 6)
Air Sensor
None
5**
Thermostat IN room
Air temperature schedule
Floor limit
Internal
Air Sensor
Probe 2
(6 & 7)
Floor Limit
6
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
Probe 1
(5 & 6)
Floor Sensor
Probe 2
(6 & 7)
Floor Limit
7
Thermostat OUT of room
Air temperature schedule
Floor limit
Probe 1
(5 & 6)
Air Sensor
Probe 2
(6 & 7)
Floor Limit
8
Thermostat IN/OUT of room
Regulator schedule
No limit Reg. None
9
Thermostat IN room
Regulator schedule
Air limit Reg. Internal
Air Sensor
10
Thermostat IN/OUT of room
Regulator schedule
No limit Reg. None
11
Thermostat IN/OUT of room
Regulator schedule
Floor limit Reg.
Probe 2
(6 & 7)
Floor Limit
12
Thermostat IN/OUT of room
Regulator schedule
Floor limit Reg.
Probe 2
(6 & 7)
Floor Limit
Hydronic underoor heating
Electric underoor heatingConventional
2*Recommended when thermostat is OUT of the heated room
5** Recommended when thermostat is IN the heated room
7
Step 3 - Thermostat Mounting
Insert xing screws through
mounting holes of the power base
and tighten.
Re-attach the front housing until a
“click” is heard. You can now power
up the 6iE mini.
1,500W
12
System
type
1,500W
eUFH
2,000W
hUFH
30,000W
Conventional
1,500W
eUFH + relay
Input
wattage
1,500W
2,000W
30,000W
1,500W
Input
eciency
90%
90%
Thermostat
application
(1-12).
See table 1.0
3
WiFi Setup
Open
MyHeating
app. Scan
QR Code
3
Follow the on screen icons to set up your system.
Accept
Back/Cancel
Up/Down
Change value/setting
8
Open the My Heating App and scan
the QR Code on the 6iE mini screen
protector or on reverse of the
display. Follow the instructions in
the App to complete setup.
Download the MyHeating App.
‘MyHeating’
by Warmup
12
Step 4 - Initial Setup
9

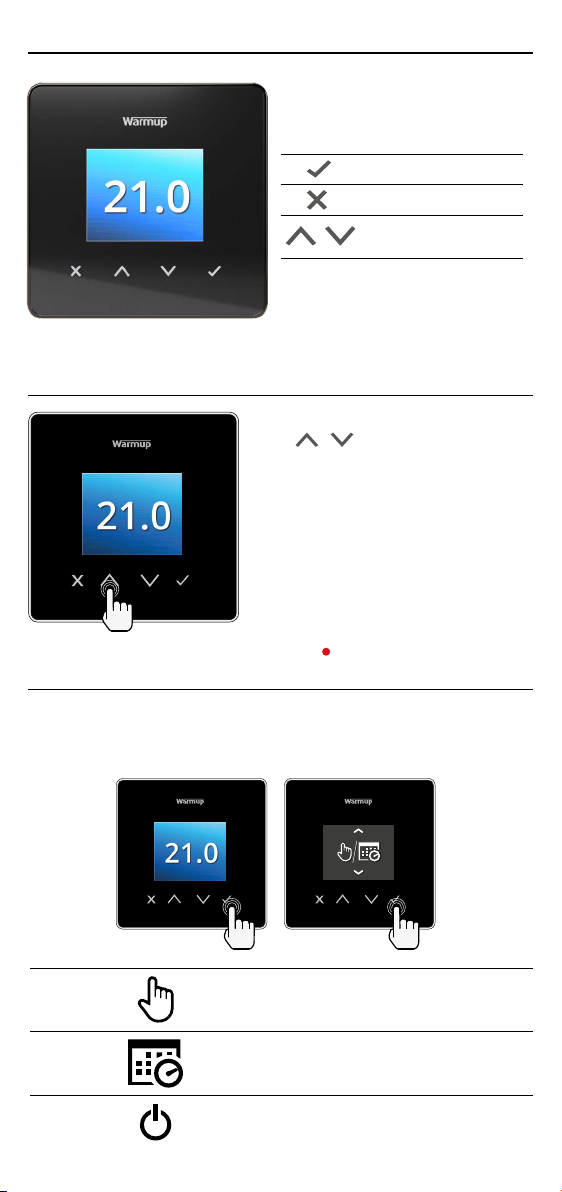

Welcome to the 6iE mini
How to quickly change the temperature
How to quickly change mode
Press / to change your target
temperature.
If in program mode this will set a
temporary override until your next
heating period. See “How to set a
temporary override”.
If in manual mode this will set a xed
target temperature. See “How to set into
Manual Mode”
Once the target temperature is set above
current oor/air temperature the heating
indicator ( ) will appear in the top right
hand corner.
Mode select allows you to quickly change from manual mode, program mode
or simply switch the heating o.
Manual Mode
Program Mode
Heating OFF
Next/Accept
Back/Cancel
Up/Down
Change value/setting
10
Heating
How to set a program
Setting a program allows you to set comfort temperatures at set times
throughout the day. Days can programmed individually, all days the same or
weekdays as a block and weekends as a block, the choice is yours.
Edit Program
12 34 5 6 7
7To select the days you wish to program
press / . A bar will appear below the day of
the week. Press to move to the next day.
07:00AM
09:00AM
21.0
04:30PM
09:00PM
21.0
Press to set a program.
07:00
09:00
21.0°Set the start time, followed by target temperature
and nally the end time for that period. Press
to accept.
+
To add/remove heating period, Press to on the
plus/minus. Up to 5 periods can be set.
+Scroll to the tick and Press to conrm your
program.
Setback temperature
16.0°
Set setback temperature. The setback temperature
is a lower energy ecient temperature when
outside of a heating period.
