Wali GSM001XL Manual de usuario
INSTALLATION MANUAL
75x75/100x100 35"
MAX (1~15kg)
(2.2~33lbs)
RATED
GSM001XL
Single Monitor Desk Mount

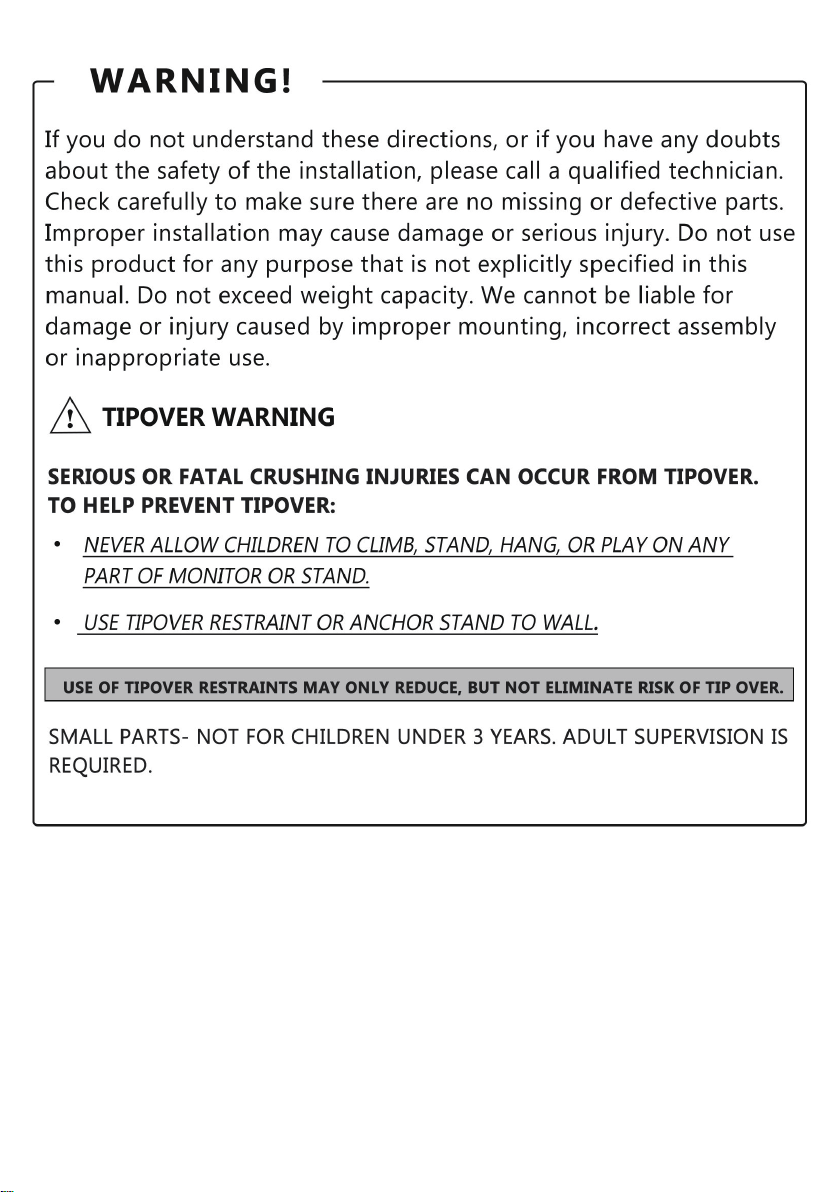

2

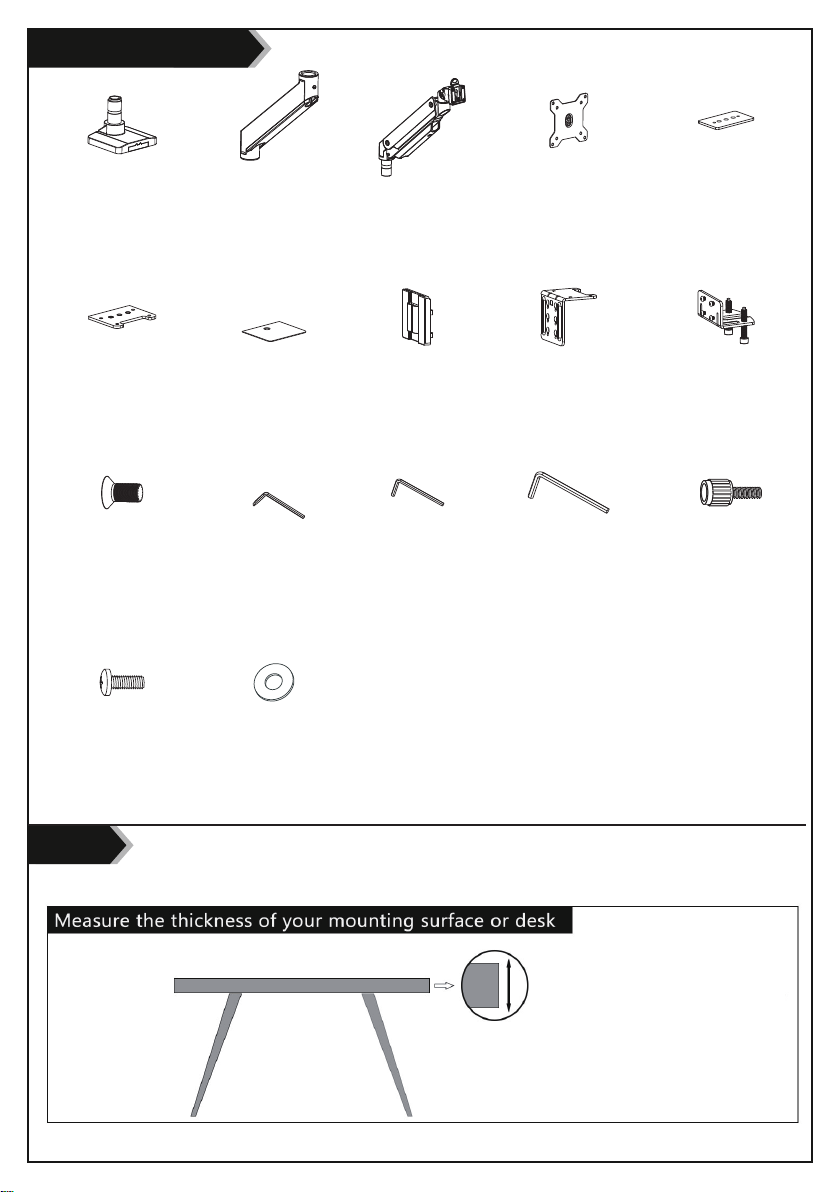

Supplied Parts List
3
Base
A (x1)
Bottom Grommet Plate
F (x1)
Anti-skid Pad
G (x1)
Arm
B (x1)
Arm
C (x1)
Decor Cover
H (x1)
C-Clamp
J (x1)
C-Clamp Brace
I (x1)
Bolt
K (x4)
Allen Key 3mm
L (x1)
Allen Key 4mm
M (x1)
VESA Plate
D (x1)
Support Plate
E (x1)
Allen Key 6mm
N (x1)
Step 1
Fit clamp: 0.4“-3.3”
Grommet: 0.4“-1.9”
M5x12 Bolt
M-B (x4)
M4x12 Bolt
M-A (x4)
D5 Washer
M-C (x4)
4
Step 2
J
K
I
A
M
M
G

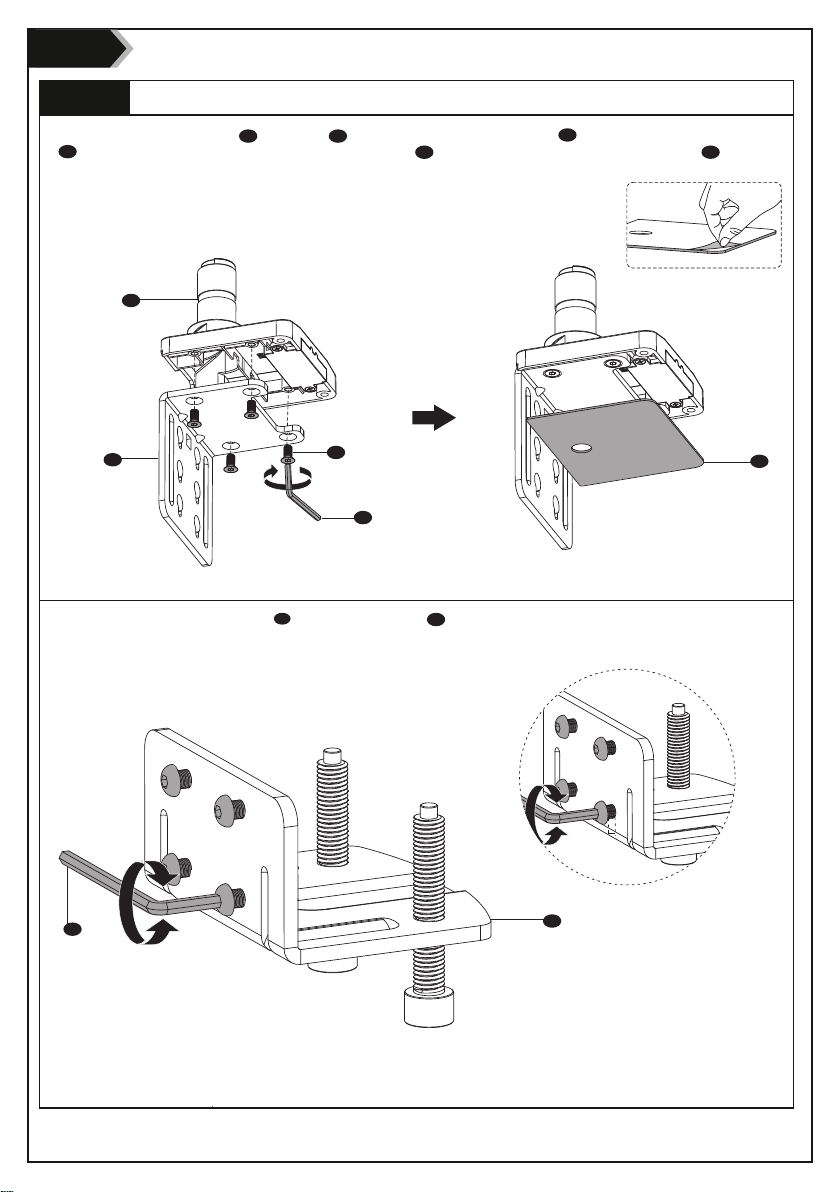

Option A
Clamp Installation
Leave 6mm gap
Leave 6mm gap
1. Connect the C-Clamp Brace Ito the Base Afrom the bottom using 4 pcs Bolt Kand tighten with Allen Key 4mm
M. Tear off the protective paper to attach Anti-Skid Pad Gto the bottom designated position of Base Aas the
image shown.
2. Loosen the Bolts on the C-Clamp Jusing Allen Key 4mm M.
J
I
J
MM
EE
N
H
2.0”-3.3”
0.4”-2.3”
Leave 6mm gap
or
3. Hang the C-Clamp Jon the C-Clamp Brace Ito the preferred height according to your desk thickness and tighten using
Allen Key 4mm M. Place Support Plate Eon top of clamp bolts.
5
4. Position base on desktop and tighten clamp bolts evenly using Allen Key 6mm N. Attach Decor Cover Hto back of
C-Clamp Brace I.
J
K
6
Step 2
F
A
A
M
G
E
N
N

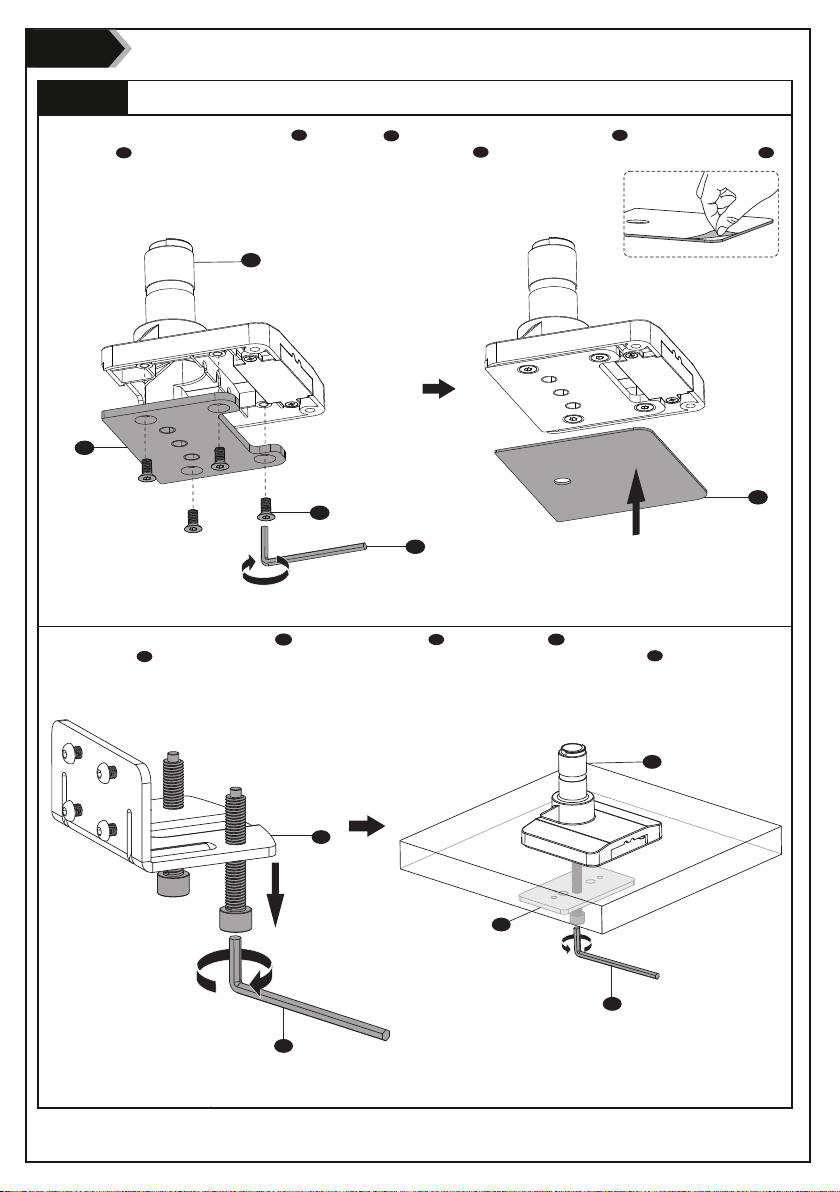

Option B
Grommet Base Installation
1. Connect the Bottom Grommet Plate Fto the Base Afrom the bottom using 4 pcs Bolt Kand tighten with Allen
Key 4mm M . Tear off the protective paper to attach Anti-Skid Pad Gto the bottom designated position of Base A
as the image shown.
2. Remove clamp bolt from C-Clamp Jusing Allen Key 6mm N. Place the Base Aonto the desk hole, and guide the
Support Plate Ethrough the bolt. Tighten the bolt to the base for stability using Allen Key 6mm N.
A
C
L
B
B
7
Step 3
Step 4
Connect the Arm Bto the Base Aand tighten the lower screw with Allen Key 3mm L. Optionally, also tighten the upper
screw to restrict swivel movement to +/-90°.
Connect the Arm Cto the Arm Band tighten with Allen Key 3mm L.
L
M-C
Hand thread screws
into the threaded
inserts on the back
of your TV to
determine which
screw diameter
(M4) or (M5) to use.
M5x12M4x12

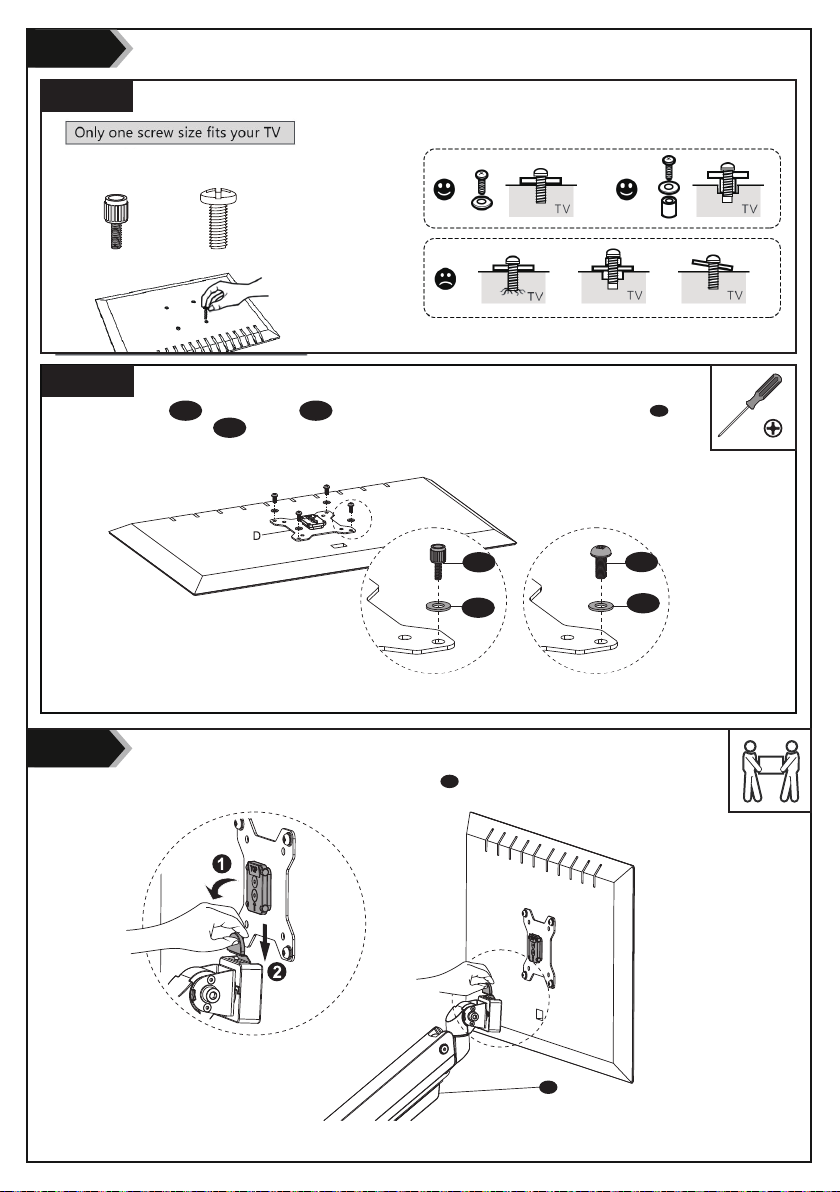

Step 5.1
8
Step 6
Step 5
Step 5.2
M-A M-B
M-C
M-C
Select M4x12 Bolt M-A or M5x12 Bolt M-B according to your TV/Monitor, connect VESA Plate D
together with D5 Washer M-C into the mounting holes on the back of TV/Monitor, tighten with
screwdriver. (Screwdriver needed but not included)
C
Pull the buckle and put the assembled TV/Monitor onto the Arm Cand ensure stability.
C
Adjust the Gas Spring Tension
· Insert the 6mm Allen Key into the adjusting hole and turn clockwise (-) to reduce gas spring tension, suitable for lighter screens.
· Insert the 6mm Allen Key into the adjusting hole and turn counter-clockwise (+) to increase gas spring tension, suitable for heavier screens.
· Please take note it may take numerous turns for gas spring tension adjustment.
N
9

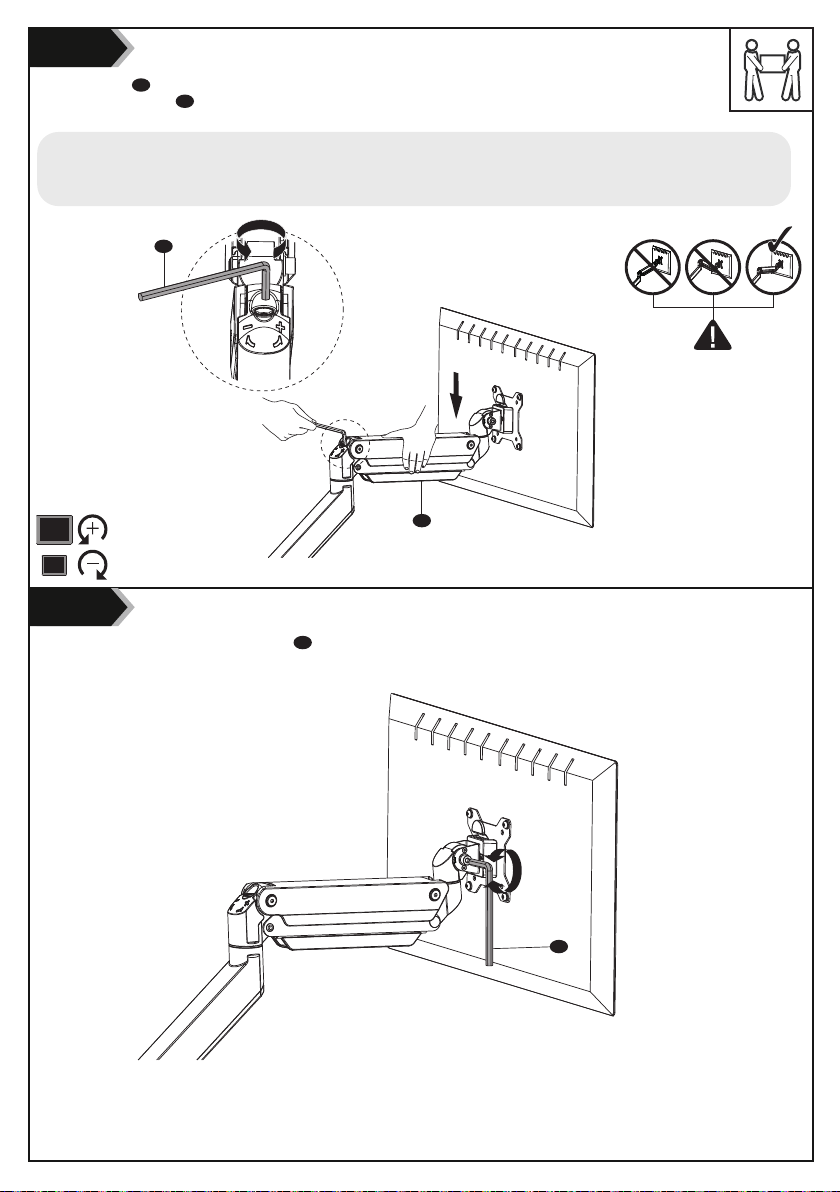

Step 7
Step 8
For Heavier Monitors
For Lighter Monitors
Press the Arm Con horizontal level as image shown, adjust gas spring tension to your personal preference
using Allen Key 6mm N.
Adjust the tilt tension using Allen Key 6mm N.
N
N
10

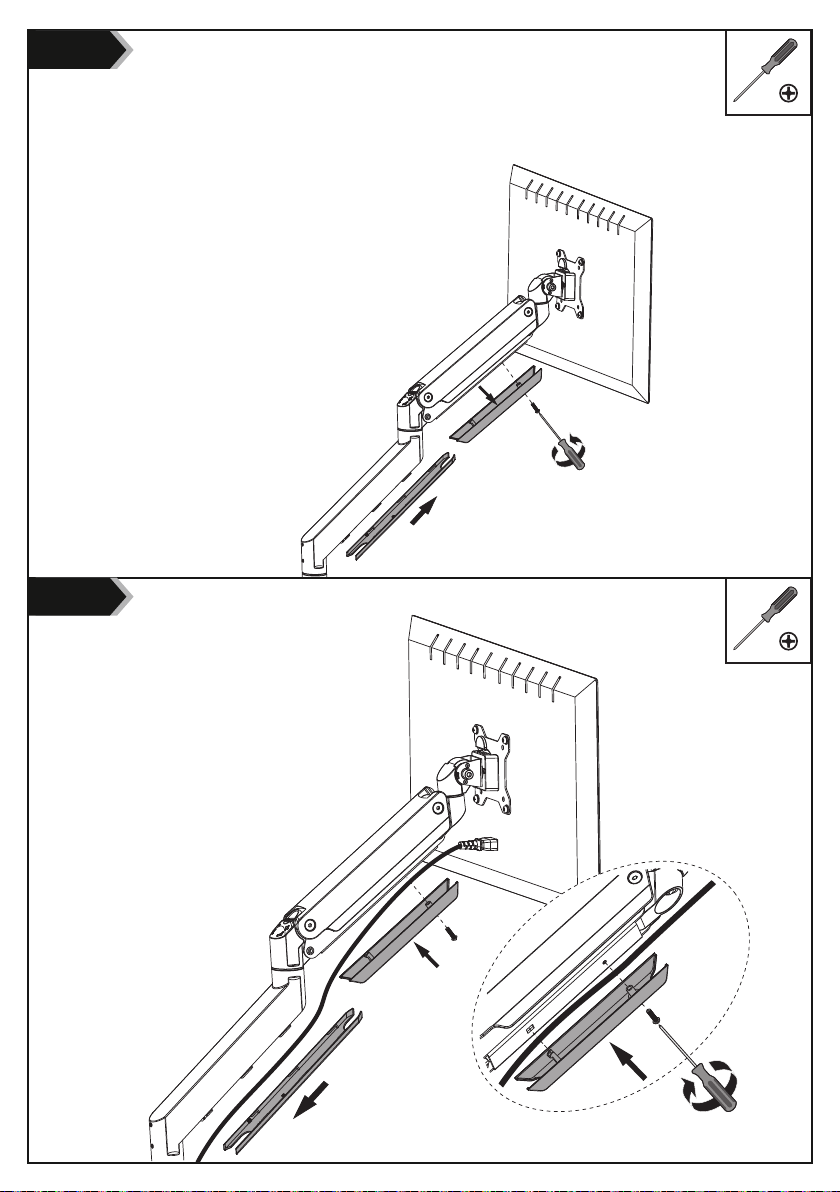

Step 9
Step 10
Screw out the bolts and take off the cable cases.
Guide the cables through and put the cable cases back.
