WAGO 750-461 Manual de usuario

Fieldbus Independent

I/O Modules

Analog Input Modules for RTD's

750-461, (/xxx-xxx)

Manual

Version 1.1.2

ii •General

WAGO-I/O-SYSTEM 750

I/O Modules

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27

D-32423 Minden

Phone: +49 (0) 571/8 87 – 0

Fax: +49 (0) 571/8 87 – 1 69

E-Mail: [email protected]

Web: http://www.wago.com

Technical Support

Phone: +49 (0) 571/8 87 – 5 55

Fax: +49 (0) 571/8 87 – 85 55

E-Mail: [email protected]

Every conceivable measure has been taken to ensure the correctness and com-

pleteness of this documentation. However, as errors can never be fully ex-

cluded, we would appreciate any information or ideas at any time.

E-Mail: [email protected]

We wish to point out that the software and hardware terms as well as the

trademarks of companies used and/or mentioned in the present manual are

generally trademark or patent protected.

Content •iii

WAGO-I/O-SYSTEM 750

I/O Modules

Content

1Important Comments ................................................................................. 4

1.1 Legal Principles........................................................................................4

1.1.1 Copyright.............................................................................................4

1.1.2 Personnel Qualification .......................................................................4

1.1.3 Intended Use ........................................................................................ 4

1.2 Symbols.................................................................................................... 5

1.3 Number Notation......................................................................................5

1.4 Safety Notes .............................................................................................6

1.5 Scope ........................................................................................................6

2I/O Modules ................................................................................................. 7

2.1 Analog Input Modules..............................................................................7

2.1.1 Overview Analog Input Modules for RTD's 750-461, (/xxx-xxx)...... 7

2.1.2 750-461, (/xxx-xxx) [2 AI Pt100/ RTD] .............................................8

2.1.2.1 View................................................................................................8

2.1.2.2 Variations........................................................................................8

2.1.2.3 Description......................................................................................9

2.1.2.4 Display Elements ..........................................................................10

2.1.2.5 Schematic Diagram.......................................................................11

2.1.2.6 Technical Data ..............................................................................12

2.1.2.7 Process Image ...............................................................................13

2.1.2.7.1 I/O Modules for Pt Resistance Sensors......................................... 14

2.1.2.7.1.1 Pt 100 .......................................................................................15

2.1.2.7.1.2 Pt 1000 .....................................................................................15

2.1.2.7.1.3 Pt 100 with Status Information for S5-FB250 in Data Word...16

2.1.2.7.2 I/O Modules for Ni Resistance Sensors........................................17

2.1.2.7.2.1 Ni 100.......................................................................................17

2.1.2.7.2.2 Ni 1000.....................................................................................18

2.1.2.7.3 I/O Modules for Resistance Measuring ........................................19

2.1.2.8 Adjustable 750-461/003-000 Variation ........................................20

2.1.3 750-461/020-000 [2 AI NTC 20kOhm].............................................22

2.1.3.1 View..............................................................................................22

2.1.3.2 Description....................................................................................23

2.1.3.3 Display Elements ..........................................................................24

2.1.3.4 Schematic Diagram.......................................................................24

2.1.3.5 Technical Data ..............................................................................25

2.1.3.6 Process Image ...............................................................................26

4 • Important Comments

Legal Principles

WAGO-I/O-SYSTEM 750

I/O Modules

1 Important Comments

To ensure fast installation and start-up of the units described in this manual,

we strongly recommend that the following information and explanations are

carefully read and abided by.

1.1 Legal Principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations

contained therein. Any use of this manual which infringes the copyright

provisions stipulated herein, is not permitted. Reproduction, translation and

electronic and photo-technical archiving and amendments require the written

consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will

entail the right of claims for damages.

WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform

modifications allowed by technical progress. In case of grant of a patent or

legal protection of utility patents all rights are reserved by WAGO

Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always

named without referring to patent rights. The existence of such rights can

therefore not be ruled out.

1.1.2 Personnel Qualification

The use of the product detailed in this manual is exclusively geared to

specialists having qualifications in PLC programming, electrical specialists or

persons instructed by electrical specialists who are also familiar with the valid

standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability

resulting from improper action and damage to WAGO products and third party

products due to non-observance of the information contained in this manual.

1.1.3 Intended Use

For each individual application, the components supplied are to work with a

dedicated hardware and software configuration. Modifications are only

permitted within the framework of the possibilities documented in the

manuals. All other changes to the hardware and/or software and the non-

conforming use of the components entail the exclusion of liability on part of

WAGO Kontakttechnik GmbH & Co. KG.

Please direct any requirements pertaining to a modified and/or new hardware

or software configuration directly to WAGO Kontakttechnik GmbH & Co.

KG.

Symbols • 5

Intended Use

WAGO-I/O-SYSTEM 750

I/O Modules

1.2 Symbols

Danger

Always abide by this information to protect persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Attention

Marginal conditions must always be observed to ensure smooth operation.

ESD (Electrostatic Discharge)

Warning of damage to the components by electrostatic discharge. Observe

the precautionary measure for handling components at risk.

Note

Routines or advice for efficient use of the device and software optimization.

More information

References on additional literature, manuals, data sheets and INTERNET

pages

1.3 Number Notation

Number Code Example Note

Decimal 100 normal notation

Hexadecimal 0x64 C notation

Binary '100'

'0110.0100'

Within ',

Nibble separated with dots

6 • Important Comments

Safety Notes

WAGO-I/O-SYSTEM 750

I/O Modules

1.4 Safety Notes

Warning

Switch off the system prior to working on bus modules!

In the event of deformed contacts, the module in question is to be replaced, as

its functionality can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and

insulating properties. Belonging to this group of materials is: e.g. aerosols,

silicones, triglycerides (found in some hand creams).

If it cannot be ruled out that these materials appear in the component

environment, then additional measures are to be taken:

- installation of the components into an appropriate enclosure

- handling of the components only with clean tools and materials.

Attention

Cleaning of soiled contacts may only be done with ethyl alcohol and leather

cloths. Thereby, the ESD information is to be regarded.

Do not use any contact spray. The spray may impair the functioning of the

contact area.

The WAGO-I/O-SYSTEM 750 and its components are an open system. It

must only be assembled in housings, cabinets or in electrical operation

rooms. Access must only be given via a key or tool to authorized qualified

personnel.

The relevant valid and applicable standards and guidelines concerning the

installation of switch boxes are to be observed.

ESD (Electrostatic Discharge)

The modules are equipped with electronic components that may be destroyed

by electrostatic discharge. When handling the modules, ensure that the

environment (persons, workplace and packing) is well grounded. Avoid

touching conductive components, e.g. gold contacts.

1.5 Scope

This manual describes the Analog Input Modules 750-461, (/xxx-xxx)

Analog Input Modules for RTD's of the modular WAGO-I/O-SYSTEM 750.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

Analog Input Modules • 7

Overview Analog Input Modules for RTD's 750-461, (/xxx-xxx)

WAGO-I/O-SYSTEM 750

I/O Modules

2 I/O Modules

2.1 Analog Input Modules

2.1.1 Overview Analog Input Modules for RTD's 750-461, (/xxx-xxx)

I/O Module 750-461 750-461/

000-002

750-461/

000-003

750-461/

000-004

750-461/

000-005

Function PT100/

RTD

Resistance

Measuring

10R-1k2

PT1000/

RTD

Ni 100/

RTD

Ni 1000/

RTD

Channels 2 2 2 2 2

Measuring

range

-200 °C ...

+850 °C

10 Ω...

1,2 kΩ

-200 °C ...

+850 °C

-60 °C ...

+250 °C

-60 °C ...

+250 °C

Counter depth 2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

I/O Module 750-461/

000-006

750-461/

000-007

750-461/

000-200

750-461/

003-000

750-461/

020-000

Function PT100/

RTD/

high

precision

Resistance

Measuring

10R-5k0

PT100/

RTD/

with

status

informatio

PT100/

RTD/

adjustable

NTC

20kOhm

Channels 2 2 2 2 2

Measuring

range

-200 °C ...

+850 °C

10 Ω...

5,0 kΩ

-200 °C ...

+850 °C,

-200 °C ...

+850 °C

-30 °C ...

+130 °C

Counter depth 2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

2 x 16

bits Data

2 x 8 bits

Control/

Status

(option)

2 x 16 bits

Data

2 x 8 bits

Control/

Status

(option)

8 • 750-461, (/xxx-xxx) [2 AI Pt100/ RTD]

View

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.2 750-461, (/xxx-xxx) [2 AI Pt100/ RTD]

2-Channel Analog Input Module for RTDs

2- or 3-wire connection

2.1.2.1 View

+R1 +R2

13 14

RL1 RL2

-R1 -R2

750-461

+R 2

Data contacts

Function AI 2

RL 2

Function AI 1

+R 1

Error AI 2

Error AI 1

RL 1

Shield

(screen)

Shield

(screen)

-R 2

-R 1

2-conductor 3-conductor

Fig. 2.1.2-1: 2-Channel Analog Input Module 750-461 g046100e

2.1.2.2 Variations

Item-No. Designation Description

Pt resistance sensors

750-461 2 AI PT100/RTD 2-Channel Analog Input Module, Pt 100

Measuring range: -200 °C ... +850 °C

750-461/000-003 2 AI PT1000/RTD 2-Channel Analog Input Module, Pt 1000

Measuring range: -200 °C ... +850 °C

750-461/000-006 2 AI PT100/RTD/

high precision

2-Channel Analog Input Module, Pt 100

Measuring range: -200 °C ... +850 °C

750-461/000-200 2 AI PT100/RTD/

With status information

2-Channel Analog Input Module, Pt 100

Measuring range: -200 °C ... +850 °C,

With status information for S5-FB250

Ni resistance sensors

750-461/000-004 2 AI Ni 100/RTD 2-Channel Analog Input Module, Ni 100

Measuring range: -60 °C ... +250 °C

750-461/000-005 2 AI Ni 1000/RTD 2-Channel Analog Input Module, Ni 1000

Measuring range: -60 °C ... +250 °C

750-461, (/xxx-xxx) [2 AI Pt100/ RTD] • 9

Description

WAGO-I/O-SYSTEM 750

I/O Modules

Item-No. Designation Description

Resistance measuring

750-461/000-002 2 AI Resistance

Measuring, 10R-1k2

2-Channel Analog Input Module,

Resistance measuring,

Measuring range: 10 Ω... 1,2 kΩ

750-461/000-007 2 AI Resistance

Measuring, 10R-5k0

2-Channel Analog Input Module,

Resistance measuring,

Measuring range: 10 Ω... 5,0 kΩ

Operating mode configurable with WAGO-I/O-CHECK

750-461/003-000 2 AI PT100/RTD/

Adjustable

2-Channel Analog Input Module,

Adjustable; Factory preset: Pt 100

Measuring range: -200 °C ... +850 °C

2.1.2.3 Description

The 750-461 analog input module and its 750-461/xxx-xxx variations allow

Pt or Ni Resistive Temperature Devices, RTDs, to be measured in the field.

It can also be used to measure resistances in the field.

Depending on the operating mode, the resistance value is converted to a

temperature or directly sent out by the module. A microprocessor within the

module is used for converting and linearizing the measured resistance value

into a numeric value proportional to the temperature of the selected resistance

sensor.

The operating mode of the 750-461/003-000 variation can be set by using the

WAGO-I/O-CHECK 2 start-up and diagnostic tool (Item No.: 759-302). The

default setting is Pt 100. After setting the parameters, the module behaves like

the version with the selected operating mode.

The operating mode of the 750-461 basic module described in this manual is

for a Pt 100 resistance sensor.

The analog input module is a 2- to 3-conductor device and has 2 input

channels. Two devices may be directly connected to the module.

For example, two 3-wire sensors can be connected either to +R1, RL1 and –

R1 or to +R2, RL2 and –R2.

For the connection of 2-wire sensors, putting of a bridge is necessary between

+R1 and RL1 or +R2 and RL2.

The shield (screen) is directly connected to the DIN rail. A capacitive

connection is made automatically when snapped onto the DIN rail.

An optocoupler is used for electrical isolation between the bus and the field

side.

The operational readiness and trouble-free internal data bus communication of

the channels are indicated via a green function LED. A broken wire, short-

circuit or overrange are indicated by a red error LED per channel.

10 • 750-461, (/xxx-xxx) [2 AI Pt100/ RTD]

Display Elements

WAGO-I/O-SYSTEM 750

I/O Modules

After the error has been corrected, the module needs up to 4 seconds to output

a correct measured value, the module 750-461/000-006 needs up to 12

seconds.

Any configuration of the input modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

Attention

This module has no power contacts. For field supply to downstream I/O

modules, a supply module will be needed.

The analog input module 750-461 and its variations can be used with all

couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy

types 750-320, -323, -324 and -327).

2.1.2.4 Display Elements

LED Channel State Function

off No operational readiness or the internal data bus

communication is interrupted

green on Operational readiness and trouble-free internal data

bus communication

off Normal operation

750-461,

750-461/000-003,

-004, -005, -006

Overrange/underflow of the

admissible measuring range,

broken wire

750-461/000-200 Overrange of the admissible

measuring range, broken wire

750-461/000-002 Overrange/underflow of the

admissible measuring range

red

750-461/000-007 Overrange of the admissible

measuring range

off No operational readiness or the internal data bus

communication is interrupted

green on Operational readiness and trouble-free internal data

bus communication

off Normal operation

750-461,

750-461/000-003,

-004, -005, -006

Overrange/underflow of the

admissible measuring range,

broken wire

750-461/000-200 Overrange of the admissible

measuring range, broken wire

750-461/000-002 Overrange/underflow of the

admissible measuring range

13 14

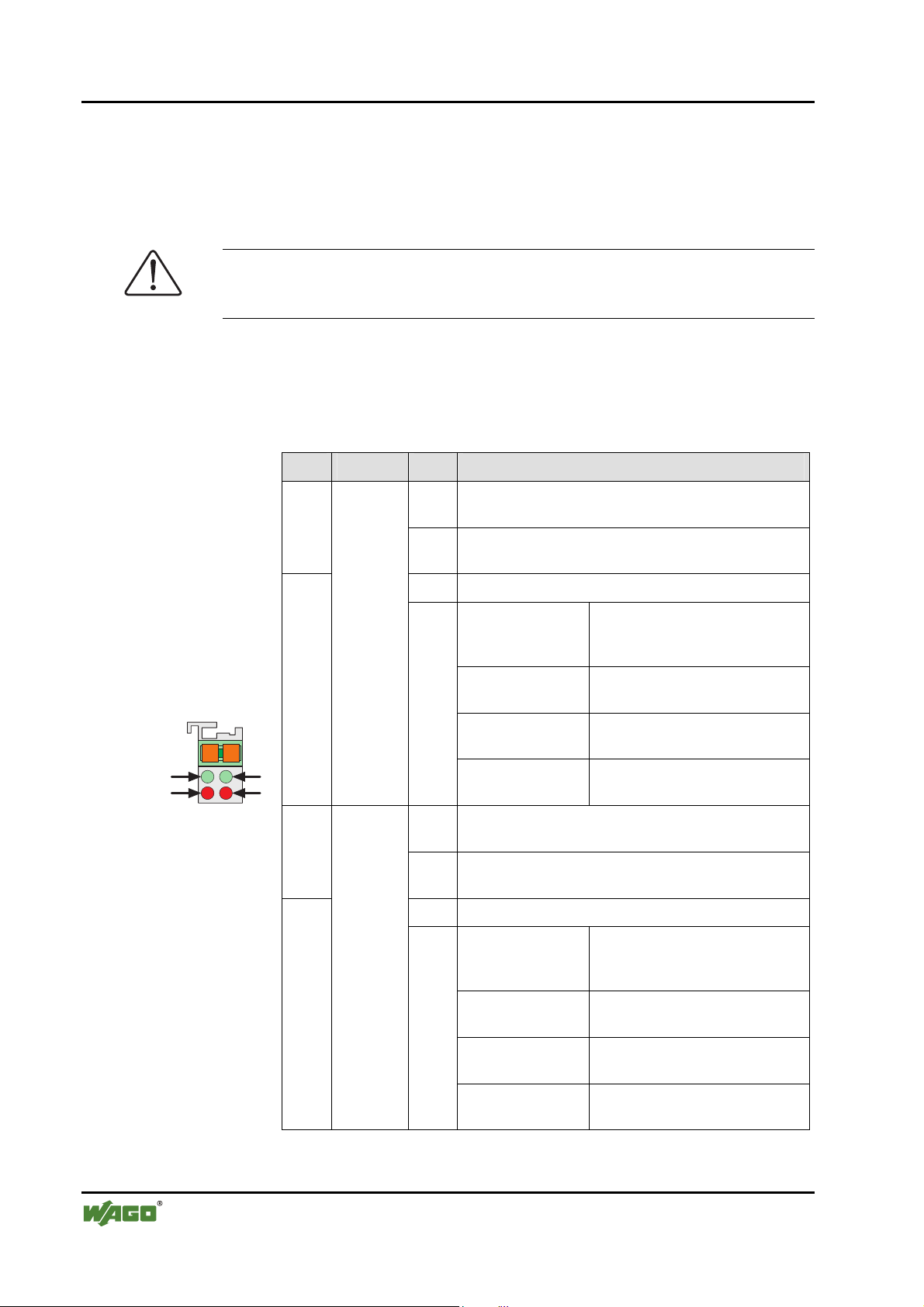

Fig. 2.1.2-2:

Display Elements

g045202x

red

750-461/000-007 Overrange of the admissible

measuring range

Otros manuales para 750-461

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de E/S de WAGO

WAGO

WAGO 750-370 Manual de usuario

WAGO

WAGO 750-530 Manual de usuario

WAGO

WAGO CANopen 752 Manual de usuario

WAGO

WAGO I/O System 750 Series Manual de usuario

WAGO

WAGO 750-481/003-000 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario

WAGO

WAGO 750-484 Manual de usuario

WAGO

WAGO 750 Series Manual de usuario

WAGO

WAGO 750-462 Series Manual de usuario

WAGO

WAGO 750-1423 Manual de usuario

WAGO

WAGO 750-402 Manual de usuario

WAGO

WAGO 750-404 Manual de usuario

WAGO

WAGO I/O SYSTEM 750 Manual de usuario

WAGO

WAGO 750 Series Manual de usuario

WAGO

WAGO TEchDocs 765-4501/0100-0000 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750-517 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750-1425 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario

WAGO

WAGO I/O SYSTEM 750 750-421 Manual de usuario

WAGO

WAGO 765-4203/0100-0000 Manual de usuario

WAGO

WAGO 750-496 Manual de usuario

WAGO

WAGO 765-1505/100-000 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario

Manuales populares de Sistema de E/S de otras marcas

Teknim

Teknim TWM-1887 Manual de instrucciones

Intelligent Appliance

Intelligent Appliance IA-2662-E Manual de usuario

BERGHOF

BERGHOF ECC DIO 16/16 Manual de instrucciones

Advantech

Advantech PCM-27J3AU Manual de instalación y operación

Festo

Festo CP-E08-M12-CL Manual de usuario

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manual de usuario

Hitachi

Hitachi HX-RIO3 Series Manual de usuario

NUUO

NUUO SCB-A08 Manual de usuario

M-system

M-system R3Y-RS8 Manual de usuario

jablotron

jablotron JB-110N Manual de usuario

Omron

Omron SYSMAC C200H Manual de usuario

DOLD

DOLD SAFEMASTER M Manual de usuario

ABB

ABB OPT-MF-001 Manual de usuario

Omron

Omron SYSMAC C2000H Manual de usuario

Helmholz

Helmholz TB20 Manual de usuario

ICP DAS USA

ICP DAS USA tM-AD2 Manual de usuario

Automationdirect.com

Automationdirect.com DL305 Manual de usuario

Contec

Contec PIO-16L(PCI)H Manual de usuario
