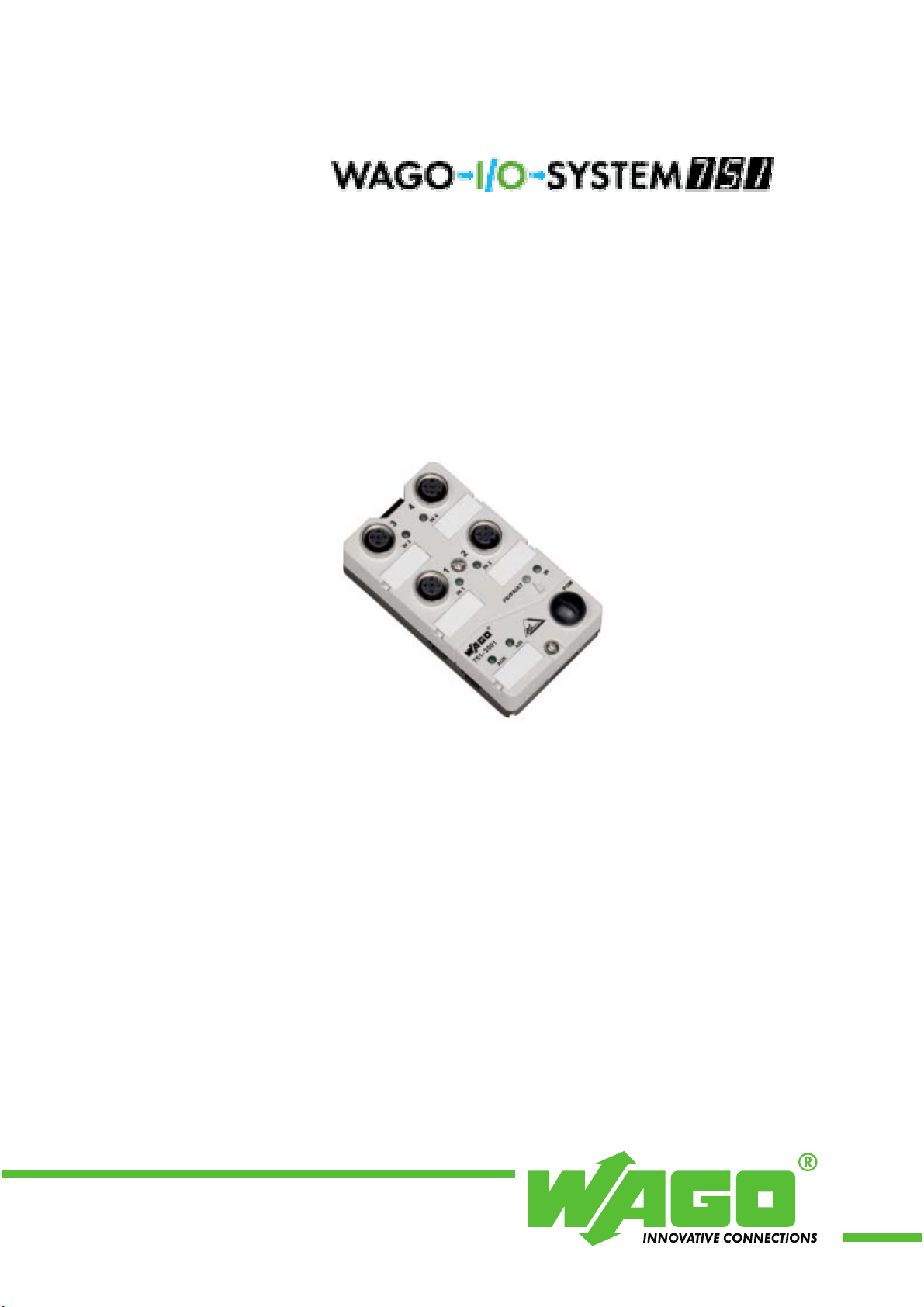

WAGO I/O-SYSTEM 751-3001 Manual de usuario

AS-Interface Components IP67

AS-Interface Module 4IN 24V

Single

751-3001

Manual

Version 1.1.0

ii • General

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

WAGO Kontakttechnik GmbH & Co. KG

Hansastraße 27

D-32423 Minden

Phone: +49 (0) 571/8 87 – 0

Fax: +49 (0) 571/8 87 – 1 69

E-Mail: [email protected]

Web: http://www.wago.com

Technical Support

Phone: +49 (0) 571/8 87 – 5 55

Fax: +49 (0) 571/8 87 – 85 55

E-Mail: [email protected]

Every conceivable measure has been taken to ensure the correctness and com-

pleteness of this documentation. However, as errors can never be fully ex-

cluded, we would appreciate any information or ideas at any time.

E-Mail: [email protected]

We wish to point out that the software and hardware terms as well as the

trademarks of companies used and/or mentioned in the present manual are

generally trademark or patent protected.

Content •iii

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

Content

1Important Comments ................................................................................. 5

1.1 Legal Principles........................................................................................5

1.1.1 Copyright.............................................................................................5

1.1.2 Personnel Qualification .......................................................................5

1.1.3 Intended Use ........................................................................................5

1.2 Symbols.................................................................................................... 6

1.3 Number Notation......................................................................................6

1.4 Safety Notes .............................................................................................7

1.5 Scope ........................................................................................................7

2AS-Interface Components .......................................................................... 8

2.1 AS-Interface Module IP67 ....................................................................... 8

2.1.1 751-3001 [AS-Interface Module 4IN 24V Single]..............................8

2.1.1.1 View................................................................................................8

2.1.1.2 Description...................................................................................... 8

2.1.1.3 Connectors ...................................................................................... 9

2.1.1.4 Display Elements ..........................................................................10

2.1.1.5 Operating Elements.......................................................................10

2.1.1.6 Schematic Diagram.......................................................................11

2.1.1.7 Technical Data ..............................................................................12

2.1.1.8 Assembly.......................................................................................15

2.1.1.9 Start-up and diagnosis...................................................................16

iv • List of Figures

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

List of Figures

Fig. 2.1.1-1: View gq30010e .................................................................................8

Fig. 2.1.1-2: Sensor Connector gqxxx01x ..............................................................9

Fig. 2.1.1-3: Display Elements gq30012x ............................................................10

Fig. 2.1.1-4: Schematic Diagram gq30011e ........................................................11

Fig. 2.1.1-5: Characteristic Input Curve gqxxx15e ..............................................14

Fig. 2.1.1-6: Dimensions gqxxx08x .....................................................................14

Fig. 2.1.1-7: Assembly gqxxx10x.........................................................................15

List of Tables

Tab. 2.1.1-1: Sensor Connectors........................................................................9

Tab. 2.1.1-2: Display Elements .......................................................................10

Tab. 2.1.1-3: Technical Data ...........................................................................12

Important Comments •5

Legal Principles

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

1 Important Comments

To ensure fast installation and start-up of the units described in this manual,

we strongly recommend that the following information and explanations are

carefully read and abided by.

1.1 Legal Principles

1.1.1 Copyright

This manual is copyrighted, together with all figures and illustrations

contained therein. Any use of this manual which infringes the copyright

provisions stipulated herein, is not permitted. Reproduction, translation and

electronic and photo-technical archiving and amendments require the written

consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will

entail the right of claims for damages.

WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform

modifications allowed by technical progress. In case of grant of a patent or

legal protection of utility patents all rights are reserved by WAGO

Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always

named without referring to patent rights. The existence of such rights can

therefore not be ruled out.

1.1.2 Personnel Qualification

The use of the product detailed in this manual is exclusively geared to

specialists having qualifications in PLC programming, electrical specialists or

persons instructed by electrical specialists who are also familiar with the valid

standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability

resulting from improper action and damage to WAGO products and third party

products due to non-observance of the information contained in this manual.

1.1.3 Intended Use

For each individual application, the components supplied are to work with a

dedicated hardware and software configuration. Modifications are only

permitted within the framework of the possibilities documented in the

manuals. All other changes to the hardware and/or software and the non-

conforming use of the components entail the exclusion of liability on part of

WAGO Kontakttechnik GmbH & Co. KG.

Please direct any requirements pertaining to a modified and/or new hardware

or software configuration directly to WAGO Kontakttechnik GmbH & Co.

KG.

6 •Important Comments

Symbols

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

1.2 Symbols

Danger

Always abide by this information to protect persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Attention

Marginal conditions must always be observed to ensure smooth operation.

ESD (Electrostatic Discharge)

Warning of damage to the components by electrostatic discharge. Observe

the precautionary measure for handling components at risk.

Note

Routines or advice for efficient use of the device and software optimization.

More information

References on additional literature, manuals, data sheets and INTERNET

pages

1.3 Number Notation

Number Code Example Note

Decimal 100 normal notation

Hexadecimal 0x64 C notation

Binary '100'

'0110.0100'

Within ',

Nibble separated with dots

Important Comments •7

Safety Notes

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

1.4 Safety Notes

Attention

Switch off the system prior to working on bus modules!

In the event of deformed contacts, the module in question is to be replaced, as

its functionality can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and

insulating properties. Belonging to this group of materials is: e.g. aerosols,

silicones, triglycerides (found in some hand creams).

If it cannot be ruled out that these materials appear in the component

environment, then additional measures are to be taken:

- handling of the components only with clean tools and materials.

Attention

Cleaning of soiled contacts may only be done with ethyl alcohol and leather

cloths. Thereby, the ESD information is to be regarded.

Do not use any contact spray. The spray may impair the functioning of the

contact area.

Attention

Unused connection sockets must be sealed with filler plugs in order to keep

IP67 degree of protection!

1.5 Scope

This manual describes the Digital Input Module 751-3001

AS-Interface Module 4IN 24V Single of the modular WAGO-I/O-SYSTEM

751.

Handling, assembly and start-up are described in the manual of the Fieldbus

Coupler. Therefore this documentation is valid only in the connection with the

appropriate manual.

8 •751-3001 [AS-Interface Module 4IN 24V Single]

View

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

2 AS-Interface Components

2.1 AS-Interface Module IP67

2.1.1 751-3001 [AS-Interface Module 4IN 24V Single]

Digital I/O-Module 4 IN 24 V Single

2.1.1.1 View

751-3001

ASI

IN 1 IN 2

IN 3 IN 4

FID/FAULT

PGM

NTERFACE

Status

inputs

Status

AS-interface

Error

Sensor connectors

AS-interface flat cable

Programming device

connector

Fig. 2.1.1-1: View gq30010e

2.1.1.2 Description

The AS-Interface module 751-3001 is an economical solution for a fieldbus-

independent and flexible connection of actuators and sensors from the field

and the control cabinet. The module is in accordance with AS-Interface

specification V.3.0.

The module works in standard address area and can be set to one of 31

addresses ranging from 1 ... 31.

The voltage for the sensors is supplied via the AS-Interface cable and is short

circuit protected.

The AS-Interface module 751-3001 provides 4 digital 24 V inputs.

The sensors are connected using M12x1 round plugs. The AS-Interface cable

can be connected directly.

LEDs indicate the status of inputs and outputs, the AS-Interface and actuator

supply as well as a short circuit or overload condition.

751-3001 [AS-Interface Module 4IN 24V Single] •9

Connectors

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

2.1.1.3 Connectors

2.1.1.3.1 AS-Interface Cable

The AS Interface cable is connected using piercing technology.

When assembling the upper part, contacts are pressed into the cable, which is

located in the ground plate, making the electrical contact.

The functional earth contact is also made during assembly of the upper part.

2.1.1.3.2 Sensor Connectors

Sensor connections are 5-pole sockets for M12x1 round plugs.

When using angled connectors, the socket design provides a connecting angle

of 45° (top left or top right) for the connecting cable.

The following table shows the pin assignment of the sockets.

Tab. 2.1.1-1: Sensor Connectors

Sensor Connectors

Connector Pin Function

IN 1/3 IN 2/4 1 Sensor supply L+

IN 1/3 --- 2 Sensor signal (from IN 2/4 Pin 4)

IN 1/3 IN 2/4 3 Sensor supply L-

IN 1/3 IN 2/4 4 Sensor signal

IN 1/3 IN 2/4

Fig. 2.1.1-2: Sensor

Connector gqxxx01x

IN 1/3 IN 2/4 5 Functional earth FE

Pin 5 of the sockets makes connection to functional earth. Four-pole plugs

without functional earth or 5-pole plugs with functional earth may be

connected.

Pin 2 of the IN 1 or the IN 3 socket is connected with Pin 4 of the IN 2 or IN 4

socket. This allows the connection of 2-channel sensors with the IN 1 or IN 3

socket. The IN 2 or IN 4 socket will then remain unconnected.

Warning

Unused sensor connections must be sealed with protective caps!

2.1.1.3.3 Programming Connector

The PGM connection is the programming connector. It is a plug for a DC

socket, which is compatible with all popular programming adapters, for

example Pepperl+ Fuchs VAZ-PK-1.5M-V1-G.

Please note manufacturer documentation for the operation of the programming

device.

10 •751-3001 [AS-Interface Module 4IN 24V Single]

Display Elements

WAGO-I/O-SYSTEM 751

AS-Interface Components IP67

Warning

The inputs are DC coupled with the AS-Interface voltage. They shall not be

supplied with an external supply voltage!

Warning

After use, the programming connector must be sealed again with a protective

cap!

2.1.1.4 Display Elements

Tab. 2.1.1-2: Display Elements

LED Designation Status Function

off Input 1, Signal voltage (0)

IN 1

yellow

Status

DI1 on Input 1, Signal voltage (1)

off Input 2, Signal voltage (0)

IN 2

yellow

Status

DI2 on Input 2, Signal voltage (1)

off Input 3, Signal voltage (0)

IN 3

yellow

Status

DI3 on Input 3, Signal voltage (1)

off Input 4, Signal voltage (0)

IN 4

yellow

Status

DI4 on Input 4, Signal voltage (1)

off OK

on Configuration error

FID/

FAULT

red

Error status

blinking Short circuit / sensor

supply overload

off AS-Interface supply error

IN 3 IN 4

IN 1 IN 2

FID/FAULT

ASI

Fig. 2.1.1-3: Display

Elements gq30012x ASI

green

Status AS-

Interface

supply on AS-Interface supply OK

2.1.1.5 Operating Elements

Above the programming connector is an infrared sensor for communication

with a programming device with optical interface. Please note manufacturer

documentation for the operation of the programming device.

Tabla de contenidos

Otros manuales de Unidad de control de WAGO

WAGO

WAGO I/O-SYSTEM 750-597 Manual de usuario

WAGO

WAGO 750-508/040-000 Manual de usuario

WAGO

WAGO 750-494 Series Manual de usuario

WAGO

WAGO 750-563/040-000 Manual de usuario

WAGO

WAGO 750-654 Manual de usuario

WAGO

WAGO 2789-9080 Manual de usuario

WAGO

WAGO 750-1515/040-000 Manual de usuario

WAGO

WAGO 750-606/040-000 Manual de usuario

WAGO

WAGO 761-216 Manual de usuario

WAGO

WAGO 750-535 Manual de usuario

WAGO

WAGO WAGO-TO-PASS 761 Manual de usuario

WAGO

WAGO 750-430/040-000 Manual de usuario

WAGO

WAGO 753-466 Manual de usuario

WAGO

WAGO 750-506 Series Manual de usuario

WAGO

WAGO 750-536 Manual de usuario

WAGO

WAGO 750-616/040-000 Manual de usuario

WAGO

WAGO 753-647 Manual de usuario

WAGO

WAGO WAGO-TO-PASS 761 Manual de usuario

WAGO

WAGO 750-486 Manual de usuario

WAGO

WAGO 750-427/040-000 Manual de usuario

WAGO

WAGO 750-555 Manual de usuario

WAGO

WAGO 767-1501 Manual de usuario

WAGO

WAGO 750-652/040-000 Manual de usuario

WAGO

WAGO 761-214 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario

Flyron

Flyron FN-BC04 Manual de usuario
