W48 DC/AC Safety instructions

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is resold, this

operating manual must be handed over to the purchaser along with it.

Contents

1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Please observe the following safety instructions.

1 Safety instructions

1.1 General safety

azDo not operate the device if it is visibly damaged.

zEnsure that the ventilation slots are not covered.

zThis device may only be repaired by qualified personnel. Inade-

quate repairs can lead to considerable hazards.

zPersons (including children) whose physical, sensory or mental

capabilities or lack of experience and knowledge prevents them

from using the appliance safely should not use this appliance

without initial supervision or instruction by a responsible person.

zElectronic devices are not toys.

Always keep and use the device out of the reach of children.

zChildren must be supervised to ensure that they do not play with

the device.

zFood may only be stored in its original packaging or in suitable

containers.

zThe cooling device is not suitable for transporting caustic mate-

rials or materials containing solvents.

_W48.book Seite 5 Donnerstag, 23. Oktober 2008 4:42 16

Safety instructions W48 DC/AC

ezOnly connect the device as follows:

– With the cable (fig. 12, page 3) to the cigarette lighter in

the vehicle or a 12 V plug socket in the vehicle

– Or with the connection cable (fig. 13, page 3) to the

220–240 V AC mains supply

zNever pull the plug out of the socket by the cable.

zDo not operate the device if the connection cable is damaged.

zDisconnect the device from the mains.

– Before cleaning and maintenance

– After use

zIf the cooler is connected to the 12 V socket: disconnect the

cooler or switch it off when you turn off the engine. Otherwise

you may discharge the battery.

zOn boats: if the device is powered by the mains, ensure that the

power supply has a ground fault interrupter circuit. Danger of

fatal injuries!

zDisconnect the cooling device and other power consuming

devices from the battery before connecting the quick charging

device.

zCheck that the voltage specification on the type plate corre-

sponds to that of the energy supply.

1.2 Operating the device safely

azBefore starting the device, ensure that the power supply line

and the plug are dry.

zDo not place the device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

zCaution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the

heat that arises during operation does not build up. Make sure

that the device is sufficiently far away from walls and other ob-

jects so that the air can circulate.

zDo not fill the inner container with ice or fluid.

zNever immerse the device in water.

zProtect the device and the cable against heat and moisture.

_W48.book Seite 6 Donnerstag, 23. Oktober 2008 4:42 16

W48 DC/AC Intended use

zA few water drops may form inside the cooler if it has been cool-

ing for a lengthy period. This is normal because the moisture in

the air condenses to water when the temperature in the cooler

falls. The cooler is not defective. Wipe it out with a dry cloth if

necessary.

zDo not touch exposed cables with your bare hands. This espe-

cially applies when operating the device with an AC mains pow-

er supply. Danger of fatal injuries!

zMobicool cannot be held liable for damage resulting from

improper usage or incorrect operation.

2 Intended use

The cooling device is suitable for cooling foodstuffs.

The device is designed for operation on:

zA 12 V DC vehicle-electrics socket of a car (e. g. cigarette lighter), boat or

caravan.

zA 220–240-V AC mains supply

The appliance may also be used for camping use. The appliance shall not to

be exposed to rain.

aCaution!

If you wish to cool medicines, please check if the cooling capacity

of the device is suitable for the medicine in question.

3 Scope of delivery

Quantity Description

1 Cooling device

Partition

1 Instruction manual

_W48.book Seite 7 Donnerstag, 23. Oktober 2008 4:42 16

Technical description W48 DC/AC

4 Technical description

The cooler is suitable for mobile use. You can cool products to a maximum

of 18 °C under the ambient temperature .

A grid divider can be used to separate foodstuffs, e.g. bottles and fruit.

The device has two wheels and a multi-function handle so that it can be

pulled along. Alternatively, you can carry with two hands.

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is

discharged by a fan.

4.1 Description of the device

5 Operation

INote

Before starting your new cooling device for the first time, you

should clean it inside and outside with a damp cloth for hygienic

reasons (please also refer to the “Cleaning and maintenance”

chapter on page 10).

5.1 Energy saving tips

zChoose a well ventilated installation location which is protected against di-

rect sunlight.

zAllow warm food to cool down first before placing it in the device to keep

cool.

zDo not open the cooling device more often than necessary.

zDo not leave the lid or door open for longer than necessary.

No. in

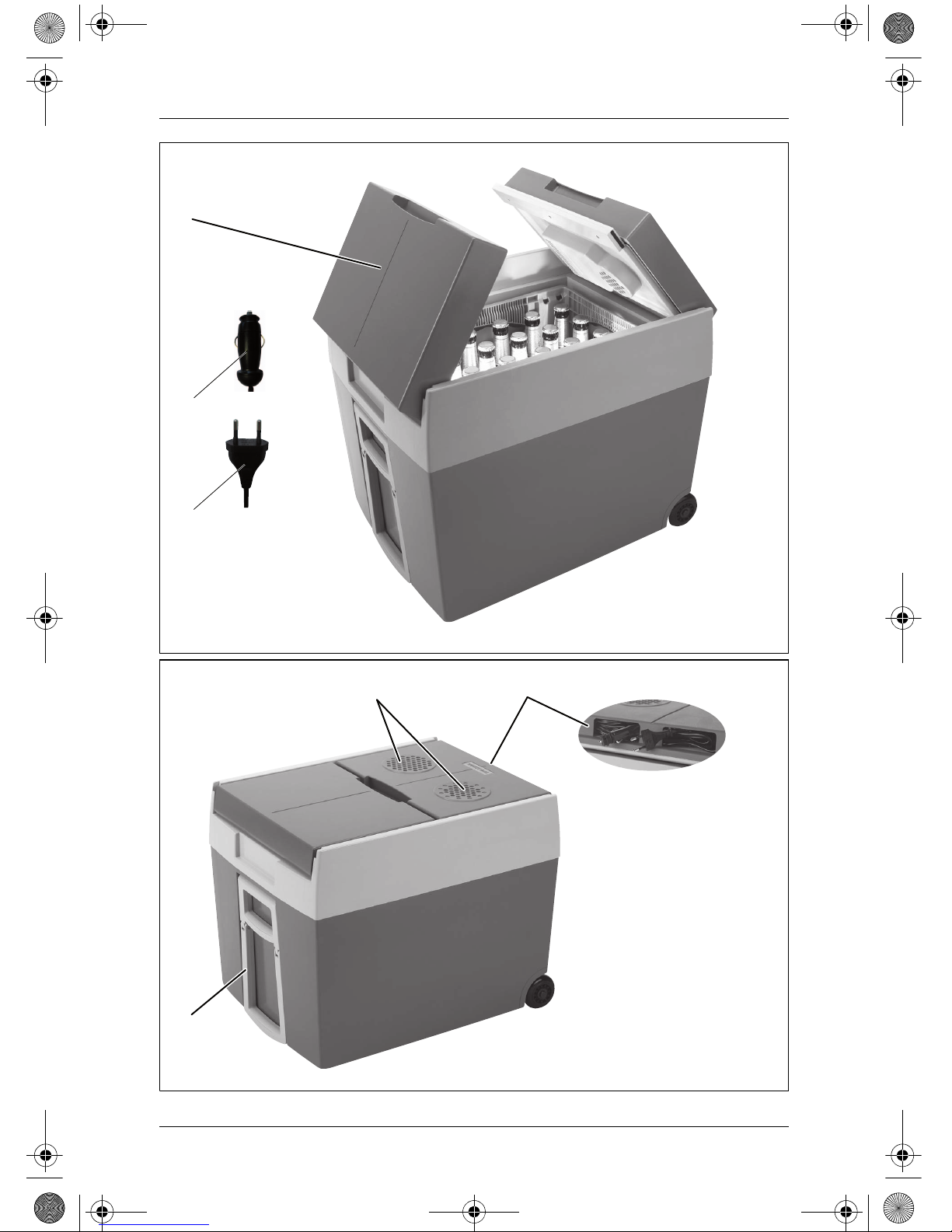

fig. 2, page 3 Description

1 Handle

2 Ventilation slots

3 Cable compartment

_W48.book Seite 8 Donnerstag, 23. Oktober 2008 4:42 16

W48 DC/AC Operation

5.2 Using the cooler

INote

Like every cooling device, your cooler must be properly ventilated

so that any heat created can dissipate. Otherwise proper function-

ing cannot be ensured.

➤Place the cooler on a firm base.

➤Connect the 12 V connection cable (fig. 12, page 3) to the cigarette

lighter or a 12 V plug socket in the vehicle.

or …

➤Connect the 220–240 V connection cable (fig. 13, page 3) to the

220–240 V AC mains supply.

INote

Close the box tightly by pushing down the lid.

✓The cooler starts cooling the interior.

aCaution!

Ensure that the objects placed in the cooler are suitable for cooling

to the selected temperature.

➤If you wish to switch the cooler off:

– Disconnect the plug.

5.3 Connecting to a cigarette lighter

INote

If you connect the device to the cigarette lighter of your vehicle,

remember that the ignition must be turned on to supply the device

with power.

_W48.book Seite 9 Donnerstag, 23. Oktober 2008 4:42 16

Cleaning and maintenance W48 DC/AC

6 Cleaning and maintenance

eCaution!

Always disconnect the device from the mains before you clean and

service it.

aCaution!

Do not clean the cooler under running water or in dish water.

aCaution!

Do not use abrasive cleaning agents or hard objects during clean-

ing as these can damage the cooler.

➤Occasionally clean the device interior and exterior with a damp cloth.

7 Troubleshooting

Fault Possible cause Suggested remedy

Your cooler does not func-

tion (plug is inserted).

There is no voltage

present in the 12 V

socket (cigarette

lighter) in your vehicle.

The ignition must be switched on in most

vehicles for voltage to flow at the ciga-

rette lighter.

No voltage present in

the AC voltage socket.

Try using another plug socket.

Your cooler does not cool

(plug is inserted).

The inner fan or the

cooling element is

defective.

This can only be repaired by an author-

ised customer services unit.

When operating from the

12 V socket (cigarette

lighter):

The ignition is on and the

cooler is not working.

Pull the plug out of the

socket and make the fol-

lowing checks.

The fitting of the

12 V plug is dirty. This

results in a poor electri-

cal contact.

If the plug of your cooler becomes very

warm in the 12 V socket fitting, either the

fitting must be cleaned or the plug has

not been assembled correctly.

The fuse of the 12 V

plug has blown.

Replace the fuse (5 A) in the 12 V plug

(fig. 31, page 4).

The vehicle fuse has

blown.

Replace the vehicle's 12 V socket fuse

(usually 15 A). Please refer to the oper-

ating manual of your vehicle.

_W48.book Seite 10 Donnerstag, 23. Oktober 2008 4:42 16
