Vortex SOLO R Manual de usuario

www.vortexoptics.com

Image Focus

Objective Lens

Flared,

Fold-down Eyecup

Eyepiece

Rubber Armor

Diamond Checker

Grip

MOLLE Clip

The 36mm Solo R/T Tactical monocular delivers

bright images, is compact, easy to handle, and

designed for hard use.

www.vortexoptics.com

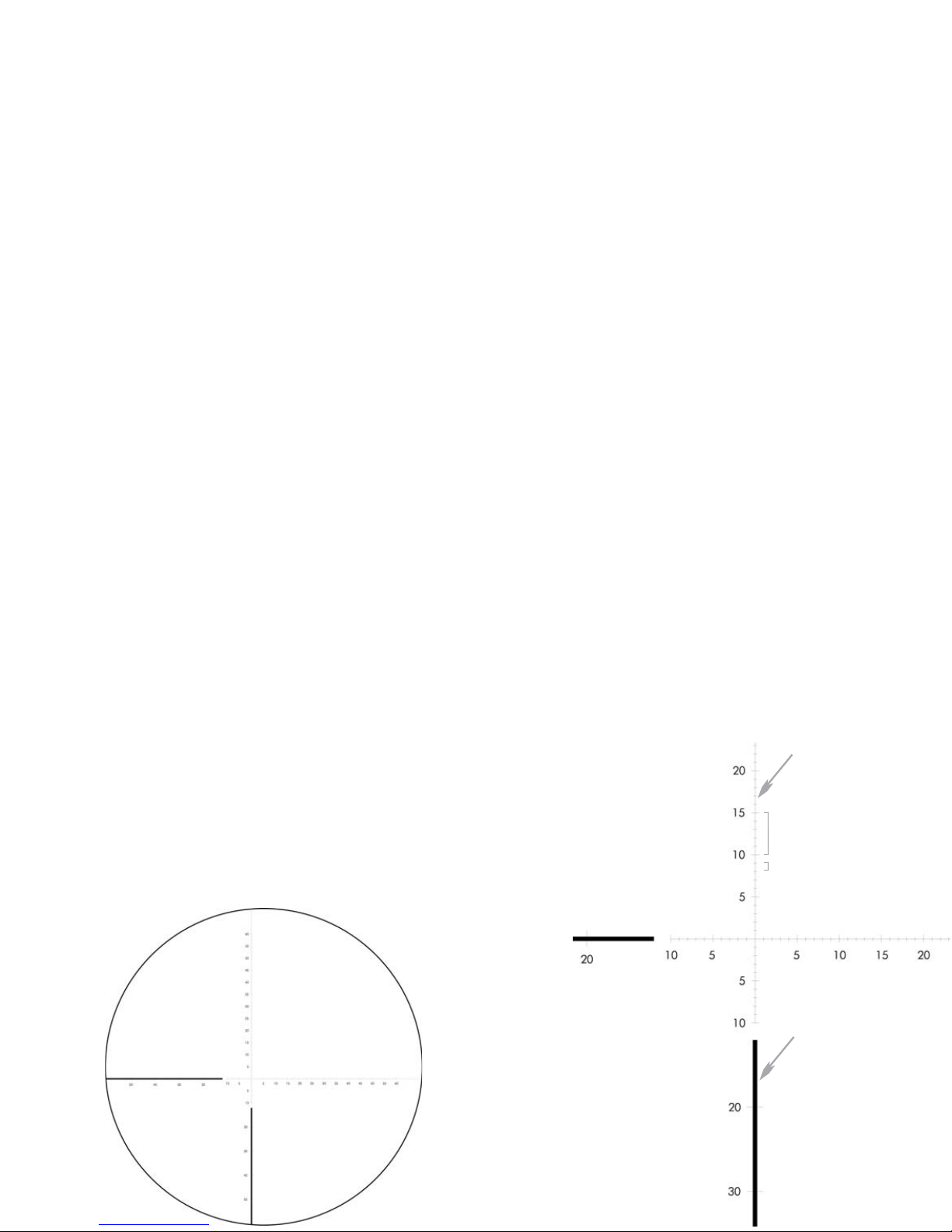

5 mrads

Fine crosshair thickness

subtends .05 mrads

Heavy crosshair thickness

subtends .5 mrads

Subtensions

1 mrad

The Solo R/T reticle is based on a form of angular

measurement called the milliradian (mrad for short).

These angular measurements allow a user to calculate

ranges when comparing the reticle to objects of known

dimension. The key to effective ranging using this

reticle is knowing common objects in your vicinity and

their measurements.

Using the Solo R/T Reticle

www.vortexoptics.com www.vortexoptics.com

Ranging with mrads

Mrad measurements are very effective for ranging using

simple formulas. Knowing the size of the target or a

nearby object is essential to using these formulas.

Accurate measuring will depend on a very steady hold.

Be sure to solidly brace the arms when measuring or

use a tripod mount for maximum accuracy. Once you

have an accurate mrad reading, use one of the formulas

to calculate the distance.

Ranging a 6-foot man (2 yards) at 4 mrads yields 500 yards.

2 x 1000

4 mrads 500 Yards

Using either the vertical or horizontal mrad scale,

place the reticle on the target of known dimension and

read the number of mrads spanned. Obtain maximum

accuracy in ranging by calculating exact mrad

measurements—try to estimate mrad measurement in

1/10s if possible.

Range (Yards)

Target Size (Yards) x 1000

Measured mrads

Range (Yards)

Target Size (Inches) x 27.8

Measured mrads

Range (Meters)

Target Size (Meters) x 1000

Measured mrads

Basic Operation

Adjusting the Image Focus

Use the main focus wheel on the

eyepiece to obtain crisp, sharp

images of objects at varying

distances. Designed for quick single-

handed operation, simply place the

thumb and forefinger on the focus

wheel and turn to move lens forward

or backward until the image is as

sharp as possible.

Adjusting the Eyecup

The heavy duty flared rubber eyecup on the Solo R/T

monocular folds up and down to accommodate both

eyeglass weares and non-eyeglass wearers.

• The Solo R/T features a flared

eyecup that blocks stray light when

fully extended.

• Fold the eyecup down when

viewing with eyeglasses.

Rotate to focus image

Accessories

The Lanyard

Attach to the Solo R/T

monocular in a few simple steps:

1. Detach clip from the lanyard.

2. Push the loop end through the

attachment point on the monocular.

3. Pull the clip through the loop and

cinch tight.

4. Re-attach

clip to lanyard.

www.vortexoptics.com www.vortexoptics.com

Slip the belt loop of the Solo R/T over a

belt for an easy carry.

The soft case of the Solo comes with a

belt loop attachment for an easy carry

in the field and provides protection for

the monocular when not in use.

The Case

The MOLLE Clip

The versatile MOLLE clip allows quick

attachment of the Solo R/T monocular

to MOLLE webbing, a pocket edge or

other equipment.

Maintain the optical brilliance of the Solo R/T monocular

by keeping the lens surfaces free of dirt, dust, and oils.

Protect Lenses While Out in the Field.

Caring for the Lenses

When not viewing, store the Solo R/T monocular in its

custom carry case.

Keep Lenses Clean

Needing to clean optical lenses is part of normal use.

Follow these guidelines for cleaning:

1. Remove any dust or grit from lenses before wiping. Use a

Vortex Lens Pen, a can of pressurized air, or soft camel hair

brush (acrylic optical brushes also work well).

2. Clear lens of smudges, fingerprints, or eyelash oil. Fog the

lenses with your own breath and wipe with the non-abrasive

lens cloth included with the Solo monocular.

Vortex Fog-Free Lens cleaning systems include cleaning

fluid and optical paper for proper care of optical lenses.

You should never use facial tissue, heavy cotton, or ﬂannel

clothing on lenses—these materials can scratch the lens

surfaces.

Other cleaning options:

Monoculars are not intended for looking at the sun or any other intense light

source. Such viewing could damage the retina and cornea of your eyes—even to

the point of causing blindness.

Note:

9 10

www.vortexoptics.com www.vortexoptics.com

11 10

www.vortexoptics.com www.vortexoptics.com

Unconditional Lifetime

Warranty

Vortex Service and Repair Policy

Vortex Optics wants you to use your Solo monocular

under any conditions with

complete confidence—

that’s why our warranty is

straightforward and simple:

Rest assured, if this monocular should ever require

repair, all you need to do is contact Vortex for

absolutely free service. Call 800-426-0048 or e-mail

service@vortexoptics.com.

• Fully transferable

• No warranty card needed

• No receipt needed

Vortex Optics

2120 West Greenview Drive

Middleton, Wisconsin 53562

USA

Visit Vortex Optics at vortexoptics.com.

Patent Pending

©Vortex Optics USA
