INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

VOLT® Top Dog Scotty Cast Brass Spotlight

ITEM: VAL-180

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT® Top Dog Scotty Cast Brass Spotlight VAL-180

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and

instructions

may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or more

from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transformer)

rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within 6

inches (15.2 cm) from a building structure, a luminaire or fitting.

6. The main low voltage cable is intended for shallow burial - less than 6 inches

(152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when

turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from

skin may damage lamp.

6. Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS

PRODUCT DIMENSIONS

INSTALL STAKE

813.978.3700 • [email protected] • www.voltlighting.com

PRODUCT DIMENSIONS

A. (1) Fixture Body

A. Mounting Accessory

B. MR16 Lamp

5.67”

2.4”

1.0”

Determine the desired location for

mounting the stake mount. Hammer

the stake into the ground until ange

of stake is ush to grade. To avoid

damage to the stake, place a board

on top of the stake while

hammering.

Note: If the ground is hard and the

stake is difcult to install, make a

crosscut in the ground using a at

shovel.

Board

Stake

Soil

Ground

INSTALL FIXTURE BODY TO STAKE

VOLT® Top Dog Scotty Cast Brass Spotlight VAL-180

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Clear away an area in the ground

at the wireway slot on top of the

stake. Lay the supply wires into

the wireway slot and attach the

xture on to the stake. Tighten

until snug.

Fixture

Body

Ground

Wireway

Slot

Stake

Supply

Wires

Wire Connection

Strip both the leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Pigtail

Wire Connectors

Main Supply

Cable

813.978.3700 • [email protected] • www.voltlighting.com

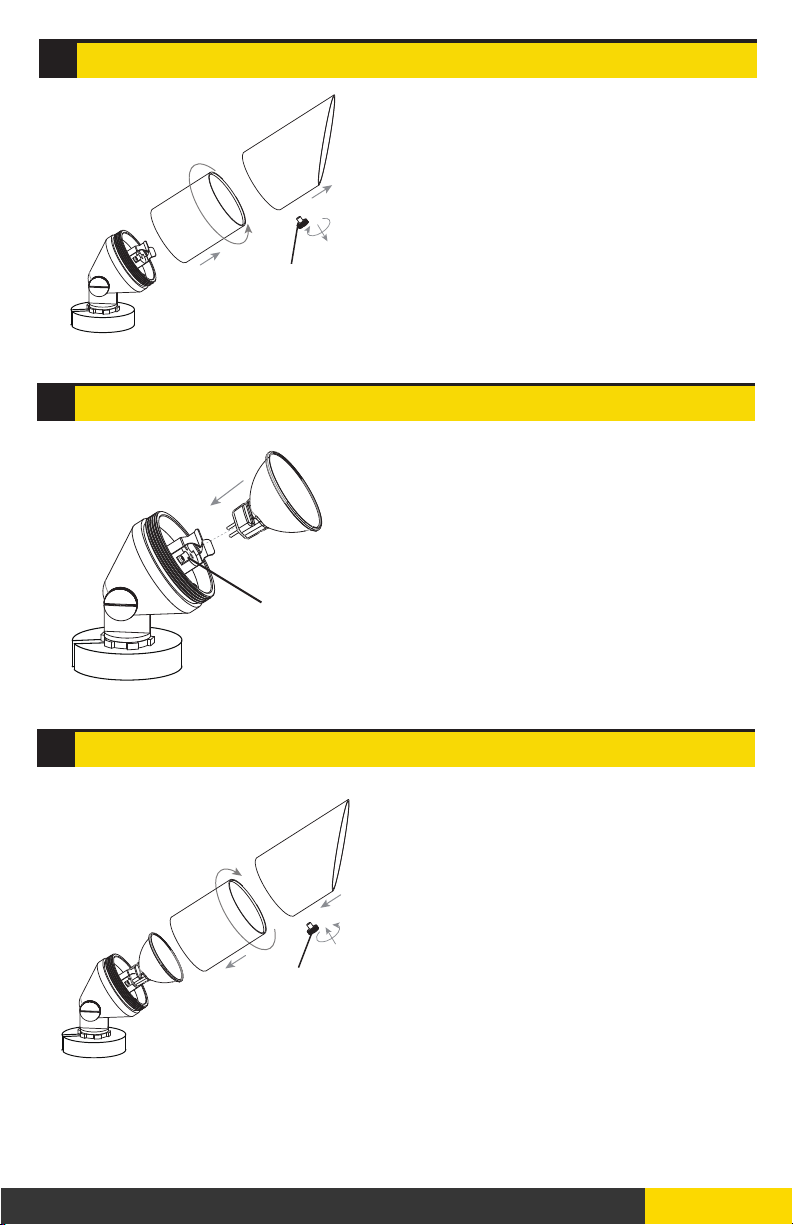

Remove Glare Guard and Lens

Install MR16 Lamp

Install Glare Guard and Lens

Unlock the set screw and

remove the glare guard from

the lens. Unscrew the lens to

remove it from xture.

Glare Guard

Set Screw

Fixture

Lens

Insert MR16 bulb with the cor-

rect wattage and type marked

on the xture label and secure

into place.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

Socket

Fixture

MR16 Lamp

Thread the lens back onto the

xture and hand tighten. Place

the glare guard back onto the

lens and secure with previously

removed set screw.

Lens

Glare Guard

Set Screw

Fixture

VOLT® Top Dog Scotty Cast Brass Spotlight VAL-180

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

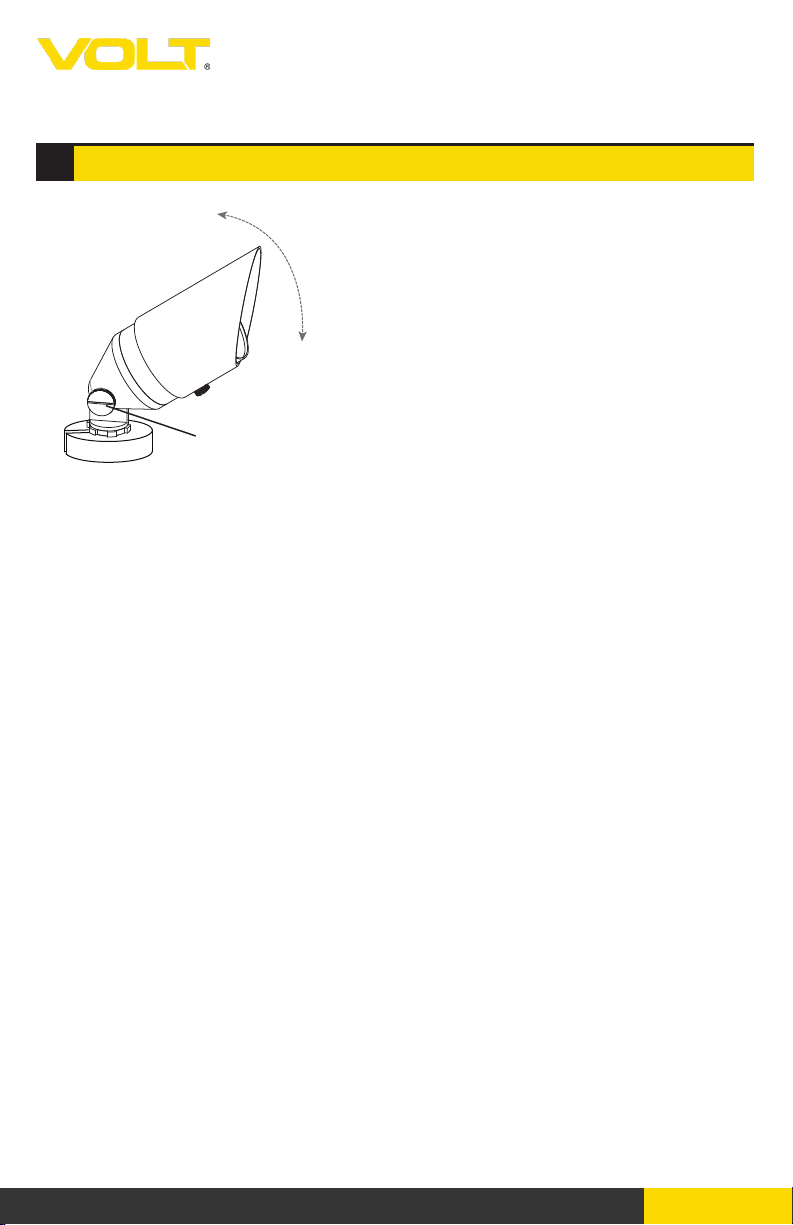

Adjust Luminaire Direction

ROTATE Loosen the adjustment screw at

the joint and adjust the

luminaire to the desired

direction. Once the desired

direction is achieved, tighten the

adjustment screw.

Adjustment Screw

Luminaire

813.978.3700 • [email protected] • www.voltlighting.com

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
