VOGELS TVM 5440 Series Manual de usuario

TVM 5445/5645/5845 Series - English 1

TVM 5440 Series

TVM 5640 Series

TVM 5840 Series

Full Installation Guide

Everything you need to get your TV safely on the wall, in no time

Before you start

…we just wanted to say thanks for choosing Vogel’s. Smart choice.

And you’re already making another smart choice – reading the manual! Keep reading to learn all about

safe, efficient installation, and how to use your new mount.

TVM 5445/5645/5845 Series - English 2

Stay safe

Warning

Always read these safety instructions carefully before installing and using this product.

Following these instructions is strictly required. Incorrect mounting and/or installation could put

you, your TV, and your family at substantial risk.

Don’t dare risk it… Read all

lVogel’s recommends that the mounting and/or installation of this product should be carried out

by a suitably qualified expert.

lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect

installation.

lPlease consult the manual for your TV and ensure that the weight and size of the TV is within

the maximum weight and size limits specified for this product, and that the TV mounting bolts

used are of a suitable length and diameter. Note that not all the TV mounting accessories

provided are required for the installation of any one TV.

lThe wall mounting accessories provided are exclusively intended for installation on walls made

of solid brick, solid concrete or solid wood columns.

lAny material covering the wall must not exceed 3 mm/ 0.12 inch.

lFor mounting on walls made of other materials, such as hollow bricks, wood panels or

plasterboard, please consult your installer and/or specialist supplier.

lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the

product.

lOnly qualified, certified personnel may repair the product. Use only original spare parts. The

use of other parts will result in voiding the warranty, and could lead to injuries.

lAlterations to the product and technical modifications are not permitted. This will void the

warranty, and could lead to injuries.

lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.

lHandle and transport the product with care.

lRepack the product when transporting or not using it for a longer period of time.

lLifting your TV is a two-person job. Don’t be bold!

TVM 5445/5645/5845 Series - English 3

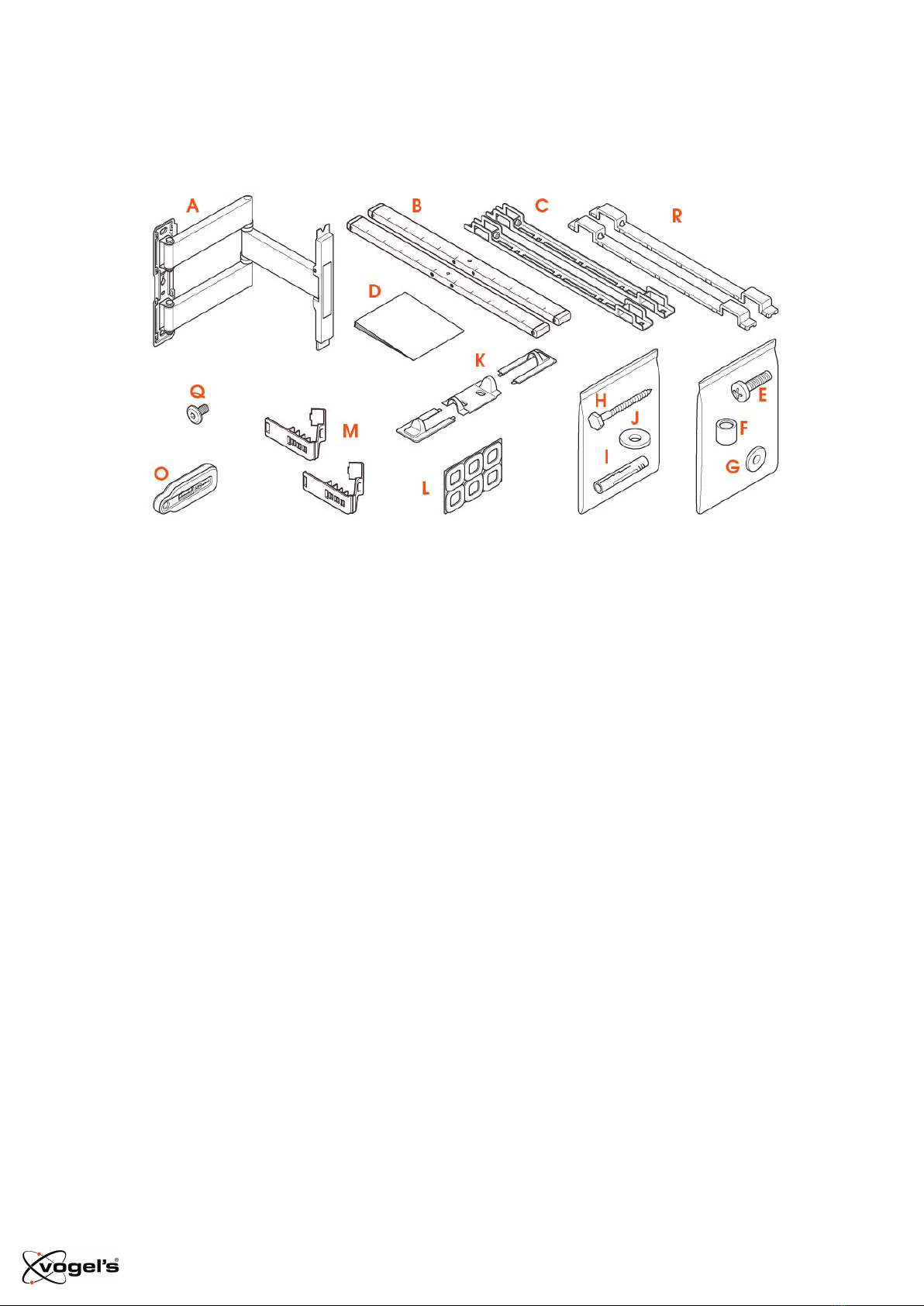

What’s in your box?

lSomething missing? Make sure your packaging has everything in place:

A. Wall mount

B. Interface bars

C. Interface strips

D. Safety instructions

E. Bolts for fastening strips on TV (see contents below)

F. Spacers

G. Washers Ø 18 mm

H. Screws

I. Plugs (fischer© DuoPower)

J. Washers Ø 26 mm

K. Covers

L. Protective TV patches

M. Cable fingers

O. Spirit level

Q. Interface bolts

R. Strip covers

TVM 5445/5645/5845 Series - English 4

lContents of the TV fasteners kit:

l4x M6*12mm bolts

l4x M6*25mm bolts

l4x M6*35mm bolts

l4x M8*12mm bolts

l4x M8*25mm bolts

l4x M8*45mm bolts

l4x M6 washer

l4x spacer 10mm

l4x spacer 5mm

You don't need all fasteners to mount your TV. Store the rest for later or other use!

Got your tools ready?

lDon’t start without all the necessary tools:

lCrosshead screwdriver

lDrilling machine

l10 mm or 25/64” concrete / brick drill (for concrete / brick walls only)

l5 mm or 13/64” concrete / brick drill (for concrete / brick walls only)

TVM 5445/5645/5845 Series - English 5

l5 mm or 13/64” wood drill (for wooden walls only)

lStud finder

lSocket wrench

lPencil

lM4 (4mm) Allen key

Take care of your safety

lWho cares about looking cool? Always wear personal protective equipment:

lEye protection

lEar protection

lSafety shoes

TVM 5445/5645/5845 Series - English 6

Ready… set… get installing!

Step 1: Attach the strips to the TV

1. Put the protective TV patches Ⓛon the interface strips Ⓒ.

2. Carefully place the TV face down, on a clean surface without any obstacles.

3. Screw the interface strips Ⓒon to the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ

are at the same height and do not stick out.

4. Loosen the interface bars Ⓑ.

Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer

Care are waiting to help: vogels.com/contact

Make sure bolts and spacers are positioned correctly.

TVM 5445/5645/5845 Series - English 7

Refer to the user manual of your TV for the correct mounting material.

5. Slide the interface bars Ⓑthrough the interface strips Ⓒ.

6. Tighten the bars Ⓑ.

7. Attach the strip covers Ⓡ.

8. Put the interface bolt Ⓠin the upper interface bar. Make sure you don't screw it in completely,

yet.

TVM 5445/5645/5845 Series - English 8

Step 2: Attach the wall mount to the wall

How well do you know your walls? What they’re made of matters more than you think…

Concrete / Brick wall

Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first

hole, easily.

1. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.

2. Drill the holes.

How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this

stops things from breaking.

TVM 5445/5645/5845 Series - English 9

3. Attach the wall mount Ⓐto the wall with the screws Ⓗ,washers Ⓙand plugs Ⓘ. Use the

spirit level to level the wall mount. Make sure that you insert the centre screw into the wall first.

Lubricate the screws for easy screwing in.

4. Click the covers Ⓚinto place. Simple!

TVM 5445/5645/5845 Series - English 10

Wooden wall with studs

Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first

hole, easily.

1. Don’t just guess! Always use a stud finder to determine the position of studs.

2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template.

Don’t destroy your belongings! The wall mount must always be attached to the studs.

3. Now for the fun part… drilling the holes.
