Vivotek PT8133 Manual de usuario

Quick Installation Guide

PT8133/33W

1MP • PoE

1MP • WPS • 802.11n

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

PT8133:

PT8133W:

EN - 1

English

Contact your distributor in the event of

occurrence.

Keep the Network Camera

away from water. If the Network

Camera becomes wet, power off

immediately.

Refer to your user’s manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors

are detected.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Keep the Network Camera away

from direct sunlight.

Do not place the Network Camera

in high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Do not manually pan and tilt the

Network Camera when the power is

on.

EN - 3

English

Antenna

(PT8133W Only)

Screws

PT8133/33W Power Adapter

Quick Installation Guide /

Warranty Card

Software CD

Mount kit & Foot Pads

Package Contents

EN - 4

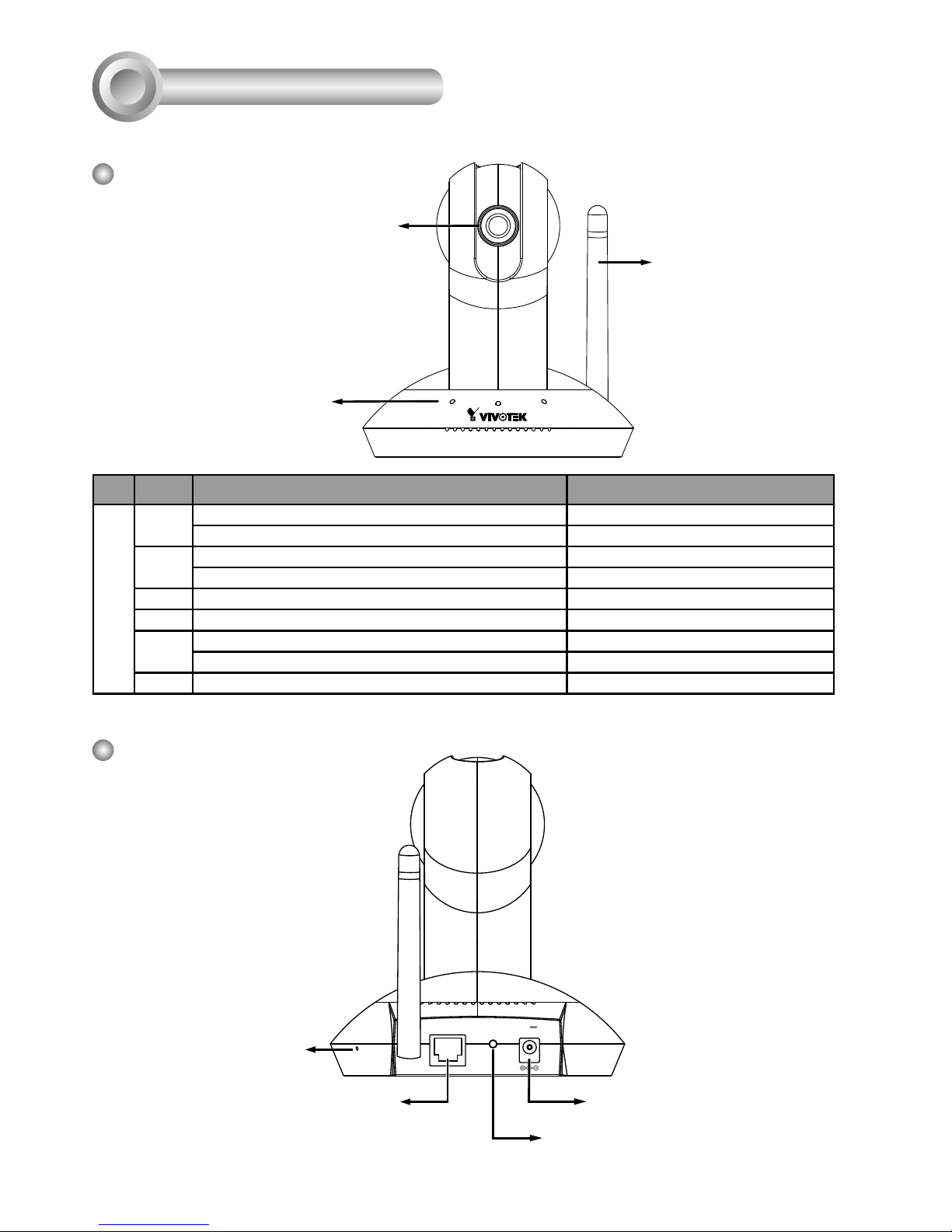

Front Panel

Back Panel

Antenna

Status LEDs

Lens and Manual

Focus Ring

Ethernet 10/100

RJ45 Socket Power cord socket

Physical Description

ETHERNET 12V

1.5A

WPS

WPS button (PT8133W)

Recessed Reset

Button

Item LED status Description

LED Denitions

1 Steady Red Power on and system boot

Red LED off Power off

2 Blink Green every 1 sec. + Steady Red Network connected (heartbeat)

Green LED off + Steady Red Network failed

3 Blink Red every 0.15 sec. + Blink Green every 1 sec. Upgrading rmware

4 Blink Red every 0.15 sec. + Blink Green every 0.15 sec. Restoring defaults

5 Steady Blue Linked to a wireless AP

Blue LED off Not connected to wireless network

6 Blink Blue every 0.15 sec. WPS searching

EN - 5

English

Mounting the Network Camera - Ceiling Mount

1. Use the holes on the mount bracket as a template to mark where holes will be drilled

on the ceiling. Drill two holes into the ceiling; and hammer in the plastic anchors.

2. Attach the Network Camera to the mount bracket using two athead screws.

3. Secure mount bracket to the ceiling using two panhead screws.

4. You can now proceed with cabling.

Hardware Installation

If you prefer wireless conguration, you

can congure wireless connection before

you mount the camera to bracket.

NOTE:

EN - 6

Mounting the Network Camera - Wall Mount

1. Use the holes on the mount bracket as a template to mark where holes will be drilled

on the ceiling. Drill two holes into the wall; and hammer in the plastic anchors.

2. Secure mount bracket to the wall using two included panhead screws.

3. Attach the Network Camera to the mount bracket using two athead screws.

4. You can now proceed with cabling.

If you prefer wireless conguration, you

can congure wireless connection before

you mount the camera to bracket.

NOTE:

EN - 7

English

General Connection (without PoE)

1. Connect the camera to a switch via Ethernet cable.

2. Connect the supplied power adapter between the camera and a power outlet.

Network Deployment

12V

1.5A

ETHERNET

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Ethernet Switch

NOTE:

The PT8133W comes with an antenna. It should be installed by turning clockwise to

attach to the associated connector. The wireless model, PT8133W, does not support

PoE.

EN - 8

Power over Ethernet (PoE)

12V

1.5A

ETHERNET

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE switch

12V

1.5A

ETHERNET

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

PoE Power Injector

(optional)

When using a PoE-enabled switch

The PT8133 Network Camera is PoE-compliant, allowing transmission of power and

data via a single Ethernet cable. Follow the below illustration to connect the camera to a

PoE enabled switch via a CAT5e Ethernet cable.

Non-PoE Switch

EN - 9

English

0002D10766AD

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

0002D10766AD

172.16.7.13 PZ71X2

PZ81X1

Installation

Wizard 2

Assigning an IP Address

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.
