Vivotek IP8371E Manual de usuario

EN-1

English

Warning Before Installation

Refer to your user's manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Do not touch the Network Camera

during a lightning storm.

Do not place the Network Camera on

unsteady surfaces.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Package Contents

IP8371E with an RJ45 Cable

Waterproof Connector (for backup

use)

Alignment Sticker / Desiccant Bag

Wall Mount Bracket Waterproof Connector for RJ45

Ethernet Enclosure

Sun Shield / Wrench / RJ45 Female /

Female Coupler / Double-sided Tape / Screws

EN-2

Physical Description

IR LEDs

Lens

Light Sensor

NTSC-PAL switch

General I/O Terminal

Block

Reset Button

SD/SDHC/SDXC Card

Slot

Software CD

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

2MP • Outdoor • Day & Night

IP8371E

Network Bullet Camera

Cable Management

Warranty Card

NTSC PAL

Auto Focus

Zoom in

Zoom out

Red LED

Green LED

EN-3

English

1. Attach the alignment sticker to the wall. Drill four holes into the wall. Then hammer the supplied

plastic anchors into the holes and secure the plate with supplied screws.

2. Fix the intersection bracket to the side of the Network Camera with two screws.

3. Feed the RJ45 cable through the front opening of the wall mount bracket. (If you want to use

external devices such as sensors and alarms, please refer to the assembling steps on the next

page.)

4. Push the spring mortise and hook the bracket onto the groove of the wall mount bracket.

5. Secure the two screws on the other side of the wall mount bracket.

6. Hang the wall mount bracket to the mounting plate.

7. Fix the wall mount bracket with the supplied screw.

8. Adjust the angle of the wall mount bracket to aim at the shooting area.

Hardware Installation

EN-4

Waterproof Connector

1 AC 24V IN

2 AC 24V IN

3 DC12V+ IN

4 DC12V- IN

5 DI-

6 DI+

7 DO-

8 DO+

9 N/C

10 N/C

11 EXT_MIC

12 Audio Out

13 Audio GND

14 TV Out

15 GND

Pin number

Components of the Waterproof Connector

Seals (C)

Housing (D)

Sealing Nut (E)

Seal (B)

Screw Nut (A)

Pin Denitions

If you should need to open the front cover, make

sure you tighten it up later so that the camera can

be waterproof.

IMPORTANT:

Cabling Assembly

EN-5

English

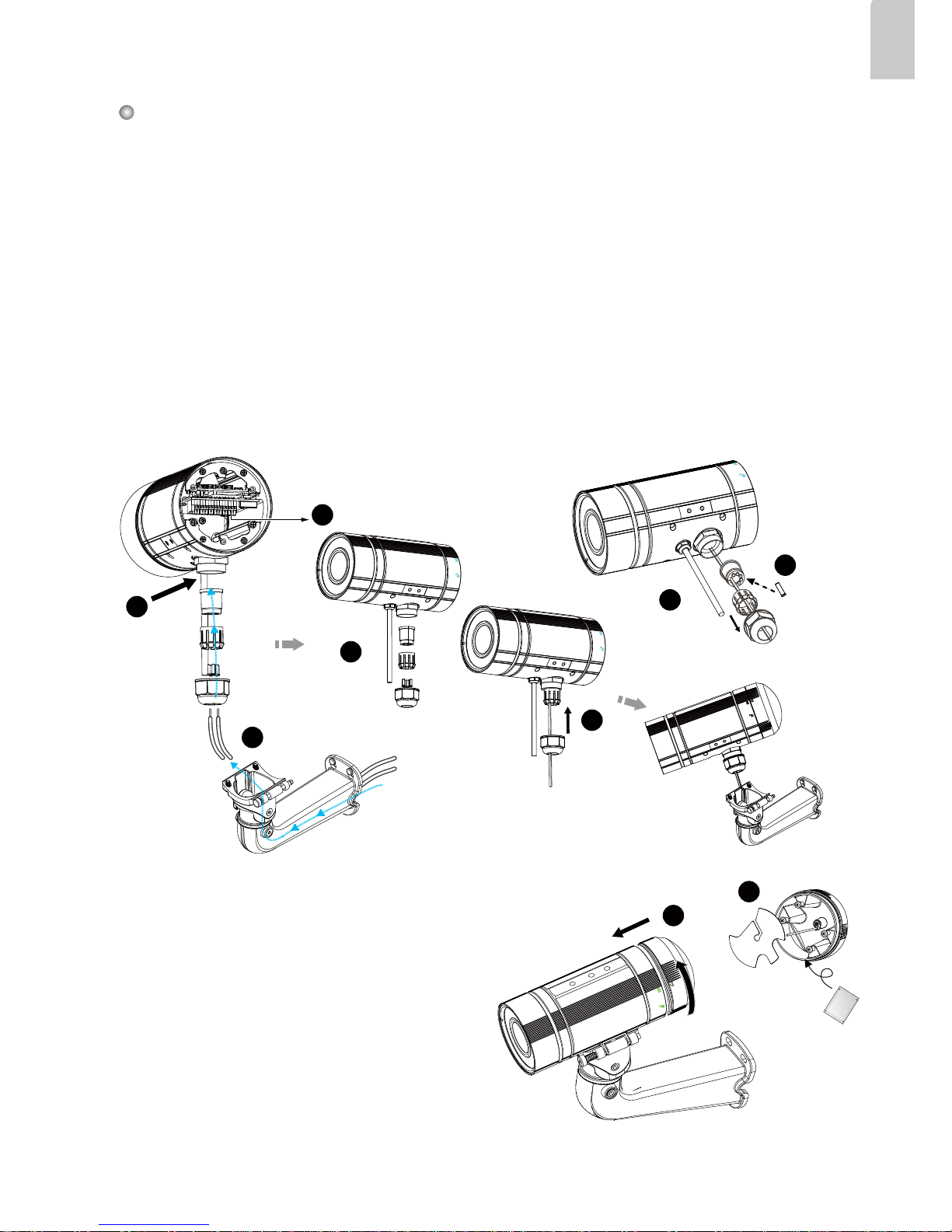

1. Disassemble the components of the waterproof connector into part (A) ~ (E) as shown above.

2. Open the rear cover of the Network Camera.

3. Remove the rubber stopper from the bottom of the Network Camera and secure the screw nut (A)

tightly.

4. You may choose to use AC24V or DC12V inputs as power source, please feed the power lines

through the wall mount bracket and the waterproof connector (E --> D --> B --> A) as illustrated

below. Pass power lines through the rubber seal (B) and then connect the power lines to the

terminal block.

5. If you have external devices such as sensors and alarms, feed the cables through the wall mount

bracket and the waterproof connector (E --> D --> B --> A) as the illustration shown below. Then

refer to the pin denition to connect them to the general I/O terminal block. Note: The recom-

mended cable gauge is 2.0 ~ 2.8 mm.

6. Push the seal (B) into the housing (D).

7. Insert the seals (C) into the empty holes on the seal (B) to avoid moisture.

8. Secure the sealing nut (E) tightly.

Assembling Steps

(E)

(D)

(B)

(A) 7

6(C)

(B)

(D)

9. Open the aluminum foil vacuum bag and take

out the desiccant bag. Attach the desiccant

bag to the inner side of the rear cover, to

under the insulation pad, and then tighten the

rear cover. (Please replace the desiccant bag

with a new one whenever you open the rear

cover.)

9-2

9-1

EN-6

(D) (B)

(C)

(A)

(E)

Components of the Waterproof

Connector

Screw Nut (C)

Housing (D)

Gasket (E)

Seal (B)

Sealing Nut (A)

RJ45 Cable Dimension (unit: mm)

Prepare an Ethernet cable

and strip part of the sheath.

Insert the housing into the

screw nut.

Insert the seal into the housing.

Insert the stripped Ethernet

cable through the sealing

nut and the housing.

Clamp the cable with

an RJ45 plug.

Push the RJ45 plug into the

housing, then secure the

sealing nut tightly.

Attach the gasket to the front

of the housing.

Assembling Steps

Recommended cable gauge: O.D.

5.5~7

Connect the Ethernet cable to the RJ45 cable and secure the

connectors tightly.

RJ45 Cable Connector

EN-7

English

Network Deployment

Power over Ethernet (PoE)

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled

switch via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Non-PoE Switch

PoE Power Injector

(optional)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

EN-8

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

Assigning an IP Address

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below

2. You should be able to see live video from your camera. You may also install the 32-

channel recording software from the software CD in a deployment consisting of

multiple cameras. For its installation details, please refer to its related documents.

EN-9

English

If you want to use the supplied sun shield for outdoor environments, please follow the steps below to

install:

1. Tighten the supplied two hex couplers.

2. Attach the supplied sun shield to the Network Camera and slide it to the desired position.

3. Fix the sun shield with the supplied two screws.

NOTE:

VIVOTEK also provides other accessories for versatile applications as the following illustrations.

Please visit VIVOTEK's ofcial website for more purchase information.

Accessories

Corner Mount Bracket Pole Mount Bracket
