Vivo STAND-TV01B Manual de usuario

Black Mobile TV Cart

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-tv01b

SKU: STAND-TV01B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

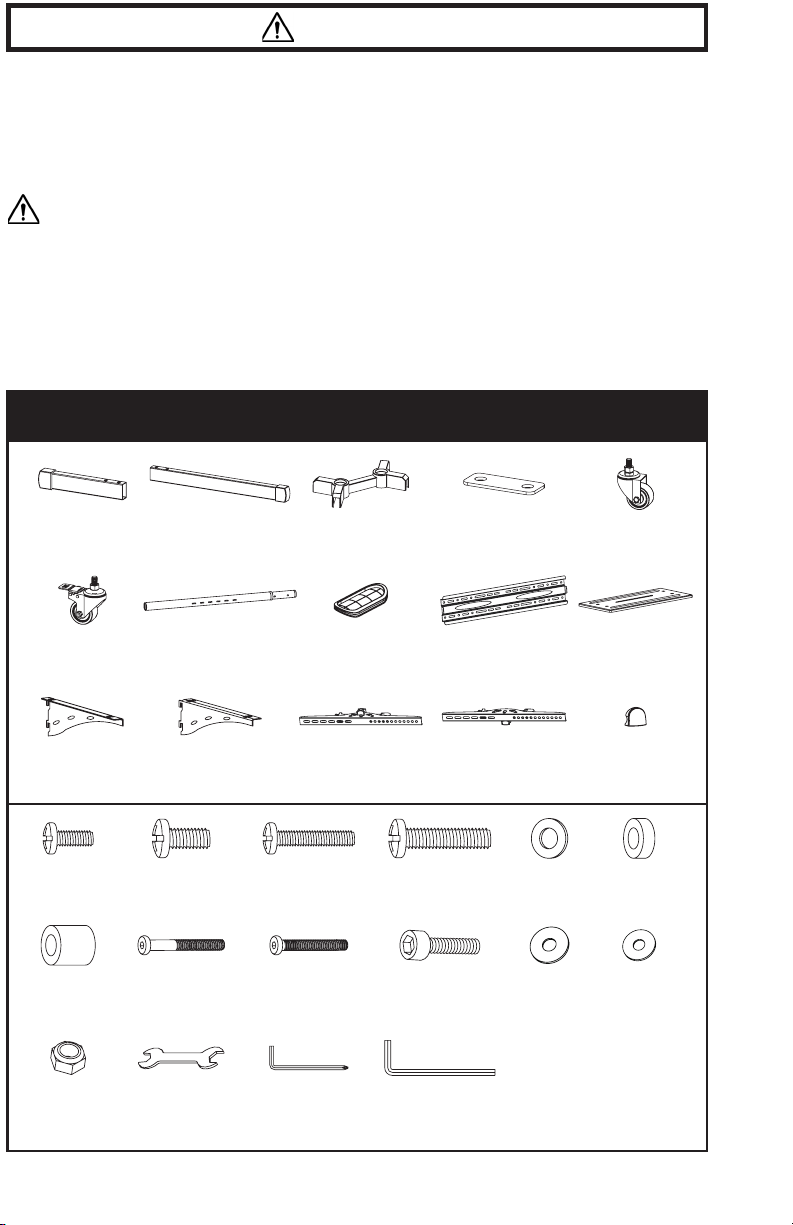

PACKAGE CONTENTS

WARNING!

A (x2)

Back Foot

B(x2)

Front Foot

C(x1)

Base

I (x1)

Plate

J (x2)

Shelf

K(x2)

Right Shelf Bracket

L (x2)

Le Shelf Bracket

H(x6)

Cable Grommet

D (x4)

Metal Spacer

E (x2)

Caster

F (x2)

Locking Caster

G (x2)

Pole

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

N (x1)

Le TV Bracket

M(x1)

Right TV Bracket

O (x4)

Shelf Clip

M-F (x4)

Small Spacer

M-A (x4)

M6x14mm Screw

M-B (x4)

Mx16mm Screw

M-D (x4)

M8x35mm Screw

M-G (x4)

Big Spacer

M-C (x4)

M6x30mm Screw

P-A (x8)

M8x65mm Screw

P-B (x4)

M8x60mm Screw

P-C (x2)

M10x35mm Screw

P-D (x2)

M10 Washer

P-E (x4)

M8 Washer

P-F (x12)

M8 Nut

P-G (x1)

Wrench

P-H (x1)

5mm Allen Wrench

P-I (x1)

8mm Allen Wrench

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

M-E (x4)

M8 Washer

ASSEMBLY STEPS

STEP 1

Remove plastic covers from Base (C). Attach Feet (A,B) using M8x65mm Screws (P-A) Metal Spacers (D)

and M8 Nuts (P-F). Tighten using 5mm Allen Wrench (P-H) and Wrench (P-G). Thread Casters (E,F) into

bottom of feet using Wrench (P-G). Reattach plastic covers.

TOOLS NEEDED

110lbs

(49.9kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT

SUPERVISION IS REQUIRED.

P-A

P-F

P-H

P-G

STEP 2

Press button on bottom half of Poles (G) to extend the two halves. Slide button into top hole to secure

pole length. Insert Cable Grommets (H) into holes as shown in diagram.

STEP 3

Attach Plate (I) to Poles (G) using M8x60mm Screws (P-B), M8 Washers (P-E) and M8 Nuts (P-F) at the

desired height. Tighten using 5mm Allen Wrench (P-H) and Wrench (P-G).

STEP 4

Insert Poles (G) into Base (C) and secure using M10x35mm Screws (P-C) and M10 Washers (P-D).

Tighten using 8mm Allen Wrench (P-I).

P-C

P-D

P-I

P-B

P-E

P-F

P-H

P-G

Slide Shelf Brackets (L,K) into Shelves (J).

STEP 5

STEP 6

Mount shelf assemblies to Poles (G) by hanging the hooks in the slots at the desired heights as shown in

below. Use Shelf Clips (O) to lock shelves into place.

STEP 7

Attach TV Brackets (N,M) to back of television using Screws (M-A through M-F) and M8 Washers (M-E)

using Phillips head screwdriver. Spacers (M-F, M-G) may be required.

STEP 8

Hang TV Brackets (M, N) with television on Plate (I) and tighten security screws on the bottom of

brackets with a Phillips screwdriver to secure.

M,N

STEP 9

Route cables through Cable Grommets (H) in Poles (G). Adjust as desired.

LAST UPDATED: 02/10/2023

REV2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
