Vivo MOUNT-VW11 Manual de usuario
TV Wall Mount and Entertainment Shelf
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vw11
SKU: MOUNT-VW11
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
TOOLS NEEDED
100lbs
(45.34kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
TV Plate
B(x2)
TV Bracket
C(x2)
Hanger
P (x2)
M6x25
Q x4)
M6 Nut
R(x1)
Bracket
U(x1)
4mm Allen
Wrench
O(x4)
12x6.5x1.5
K (x4)
18x6.5x1.5
Washer
L (x6)
Washer
M (x6)
M8x60
N (x6)
M10x50
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
W(x1)
2.5mm Allen Wrench
V (x4)
Support
Pad
Drill
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
D(x1)
Mounting Bracket
E(x1)
Glass Shelf
F (x1)
Shelf Support
G(x4)
M4x12
H(x4)
M5x12
I(x4)
M6x12
J(x4)
M8x16
S(x3)
M5x12
T(x2)
M6x35
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
STEP 1
OPTION A: Wood Wall
Use TV plate (A) to mark mounting locations on wall for drilling. Use of a stud finder is highly
recommended. Drill 1.2” deep holes with a 3mm or 1/8” drill bit, and anchor TV mounting plate (A) to
wall using screws (M) and washers (L).
OPTION B: Concrete Ceiling
Use TV plate (A) to mark mounting locations on wall for drilling. Drill 2.4” deep holes using 10mm or
13/32” drill bit. Press anchors (N) into wall, and anchor TV mounting plate (A) to wall using screws (M)
and washers (L).
4

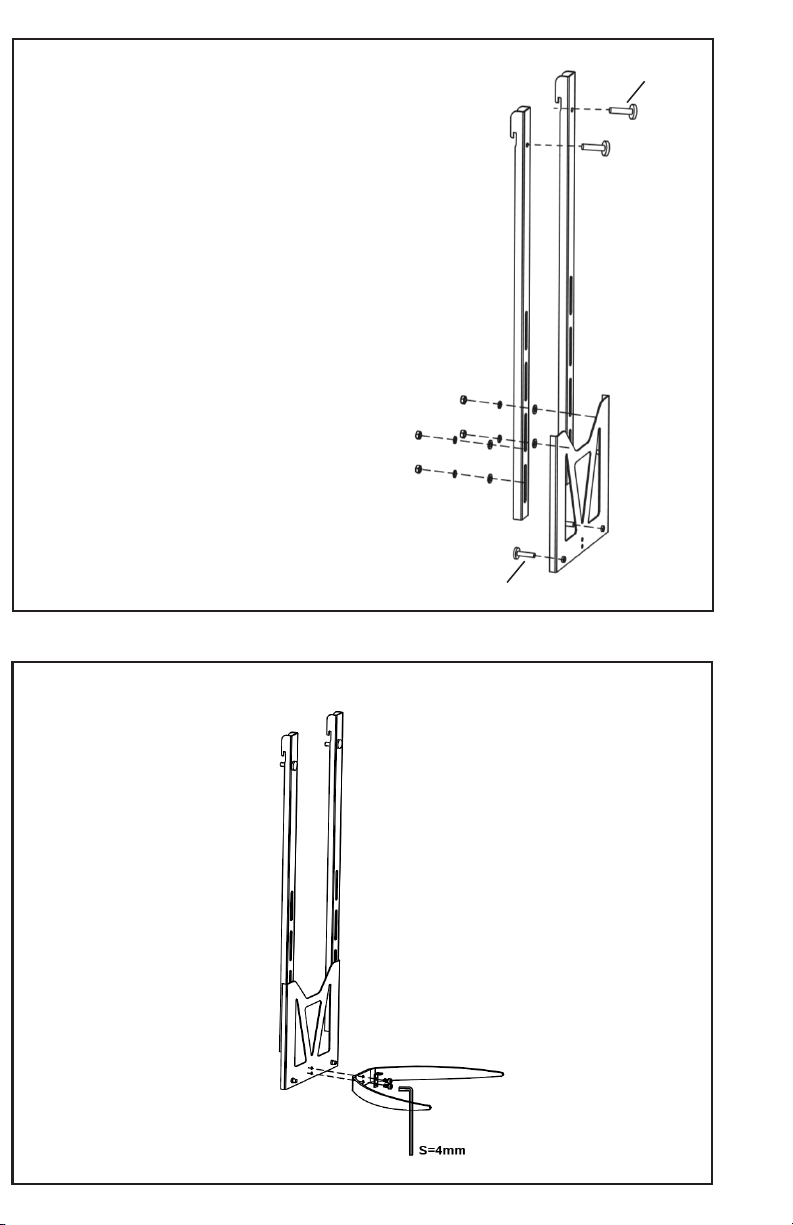

STEP 2
STEP 3
Assemble shelf support (F) and L bracket (R) to shelf mounting bracket with screws (S).
Assemble mounting bracket (D) to hangers (C) at
desired height using nuts (Q) and washers (O).
Screw plastic thumb screws (P) through front of
hangers (C) and thumb screws (T) through back
of shelf mounting bracket.
P
T
5
STEP 4
Slip shelf support pads (V) onto shelf support, and secure with 2.5mm Allen key (W). Rest glass shelf
(E) on shelf support with pads, and secure with screw (S). DO NOT OVERTIGHTEN, as this could
damage the glass.
STEP 5
Hang shelf assembly onto TV plate (A), and secure with previously installed thumbscrews. Turn lower
thumbscrews to adjust the angle of the shelf.
6

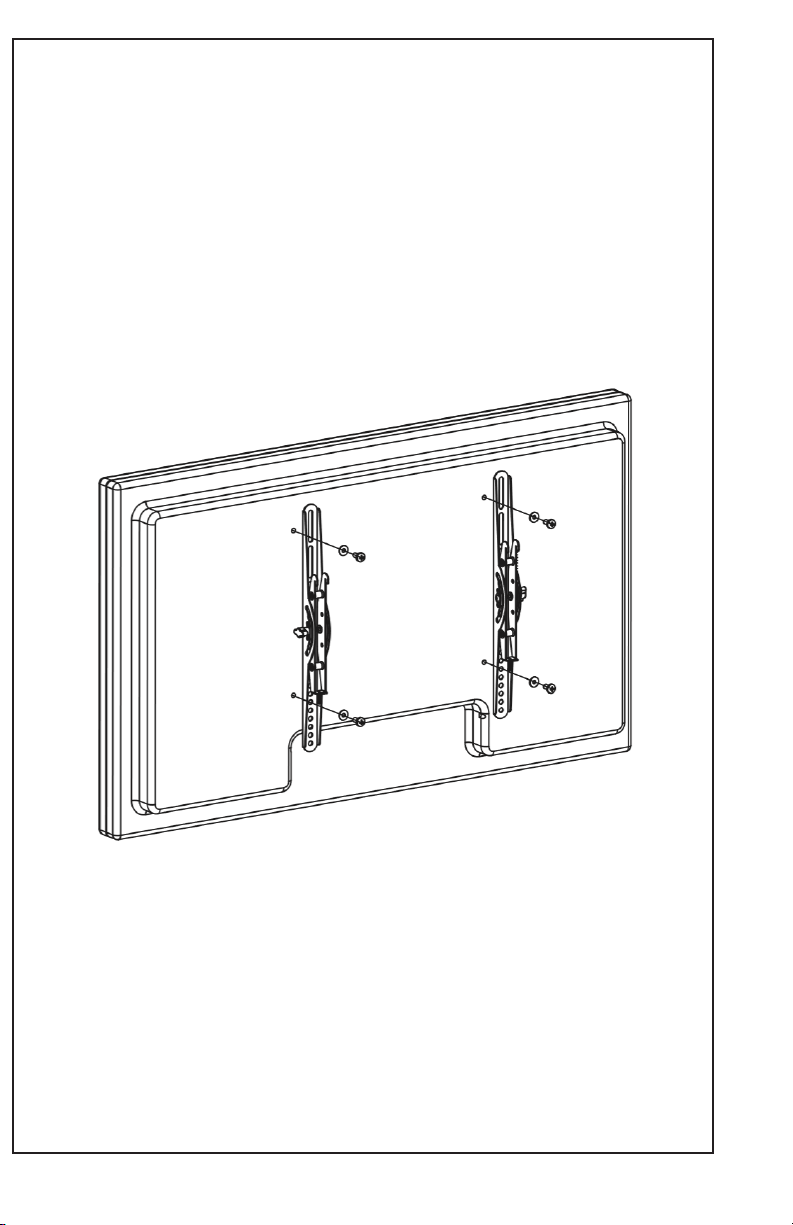

STEP 6
Assemble TV brackets (B) to TV using appropriate mounting screws (G, H, I, J) and washers (K). Ensure
that VESA brackets are positioned with slots on top and holes on bottom, and with the tilt adjustment
knobs facing away from each other.
7

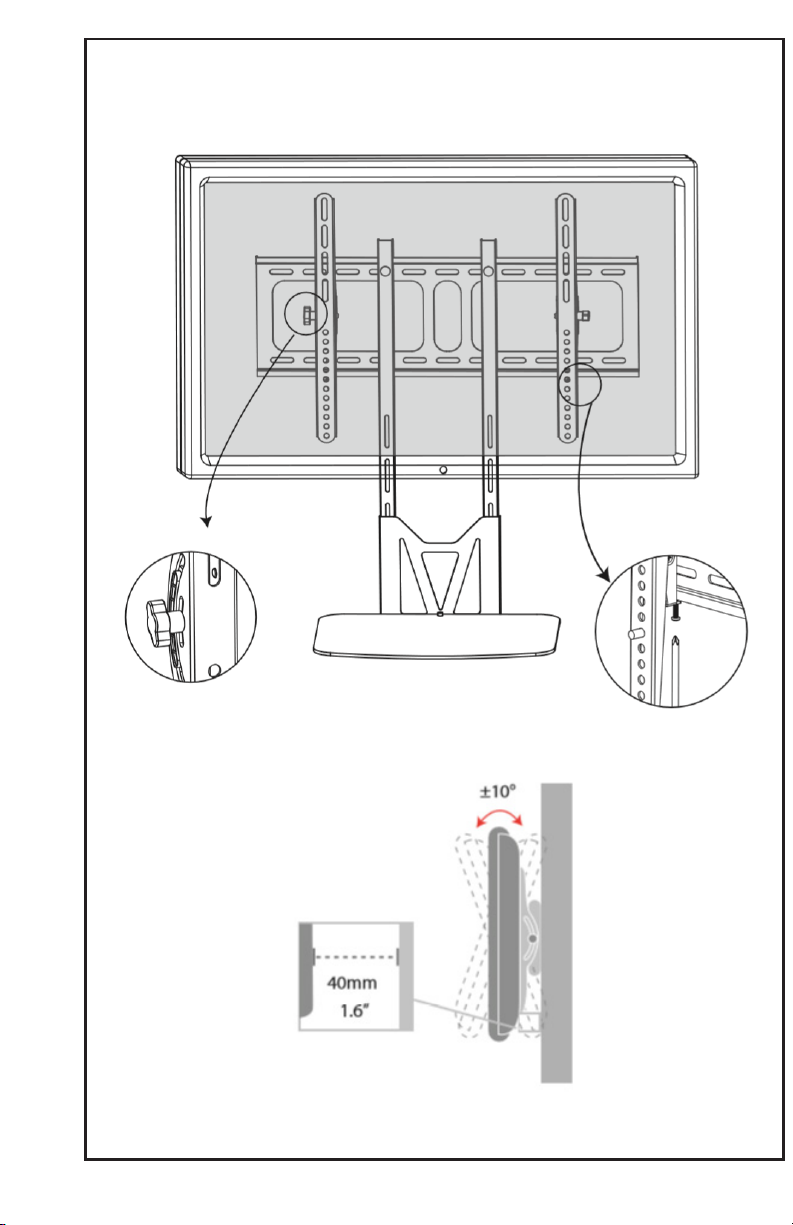

STEP 7
Hang TV on TV plate (A) and secure with safety bolts underneath TV brackets (B).
LAST UPDATED: 03/05/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
