Vivo STAND-V002K Manual de usuario

Pneumatic Arm Dual Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002k

SKU: STAND-V002K

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

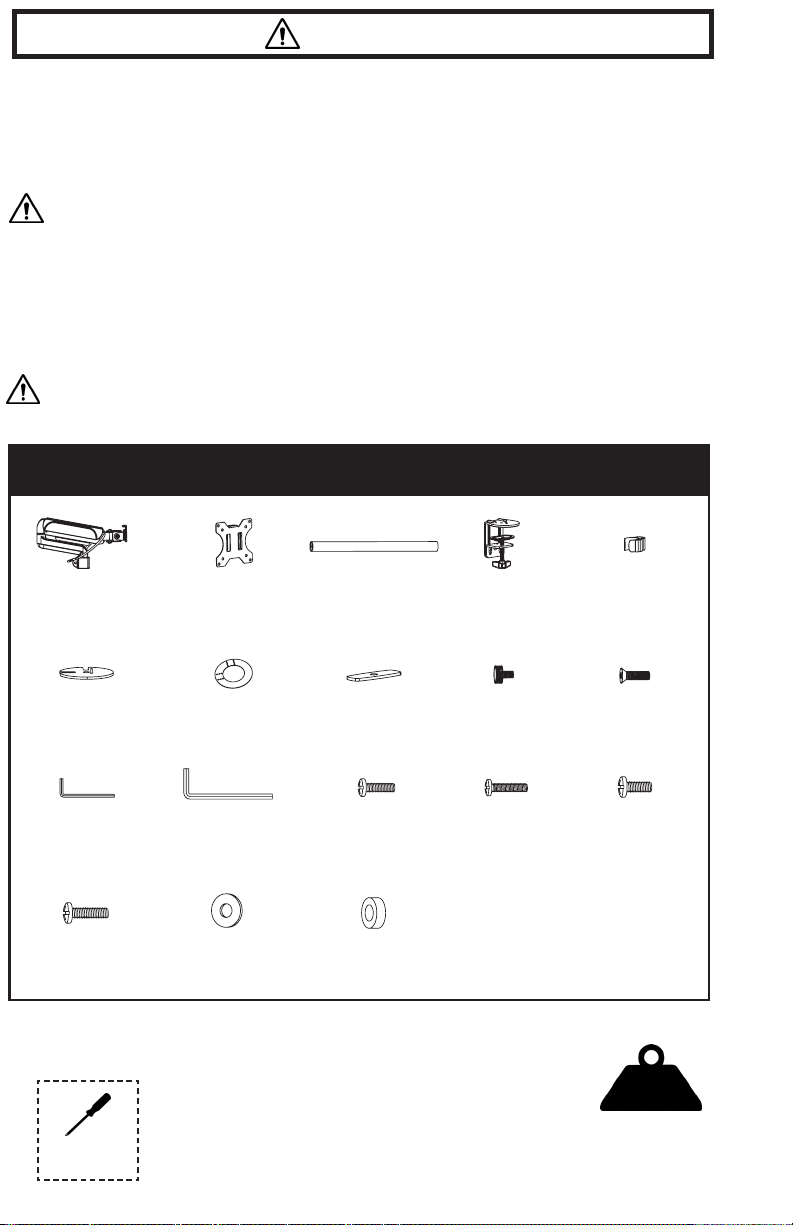

PACKAGE CONTENTS

WARNING!

A (x1)

Arm

B(x2)

VESA Plate

C(x1)

Pole

J (x3)

M6x16

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

Clamp

E(x1)

Cable Clip

F (x1)

Grommet

Base

G(x1)

So Pad

H (x1)

Support Plate

I (x2)

Thumbscrew

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

K (x1)

4mm Allen

Wrench

L (x1)

6mm Allen

Wrench

M-A (x8)

M4x12

M-B (x8)

M4x16

M-C (x8)

M5x12

M-D (x8)

M5x16

M-E (x8)

D5 Washer

M-F (x8)

Spacer

TOOLS NEEDED

2.2-19.8lbs

(1-9kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

PER MONITOR

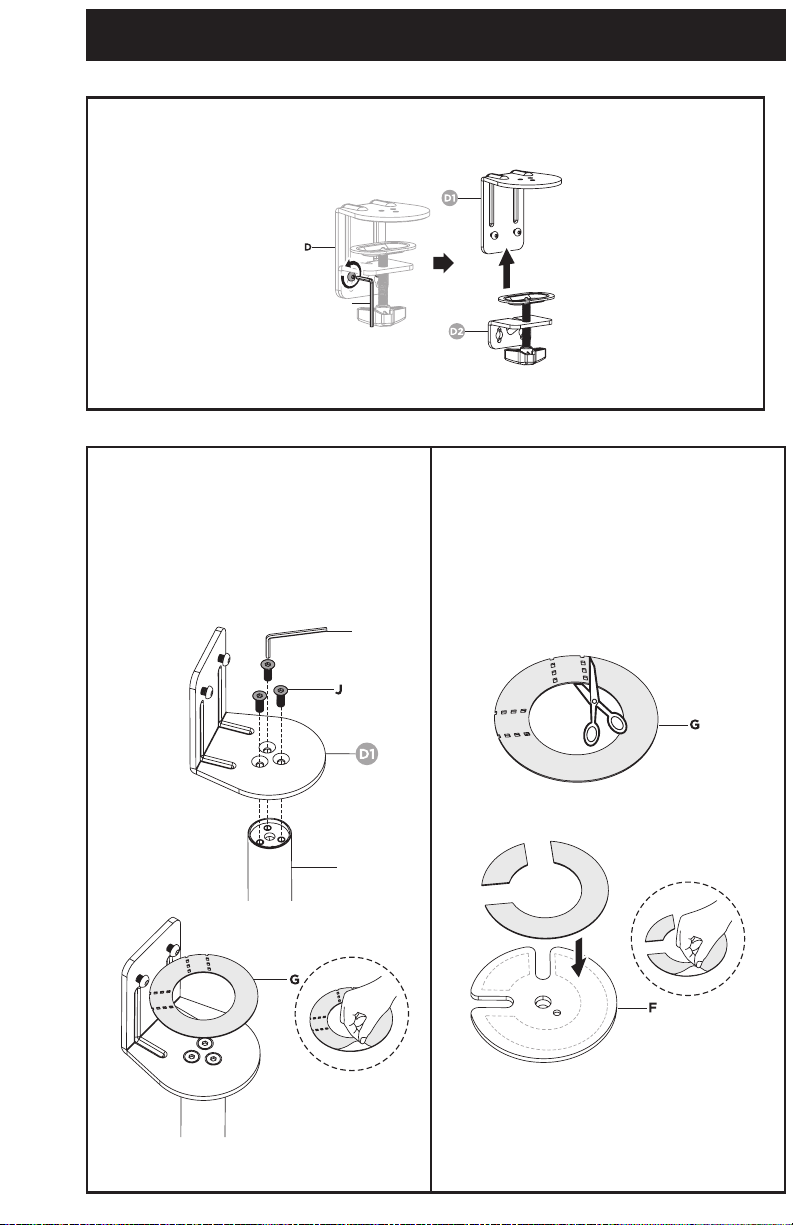

ASSEMBLY STEPS

STEP 1

Loosen the screws and disassemble the Clamp (D) using the 4mm Allen Wrench (K).

OPTION A: Clamp Installation

Attach clamp brace (D1) to the Pole (C) using

the M6x16 bolts (J) and the 4mm Allen Wrench

(K). Peel the protective film o of the So Pad

(G) and place it onto the clamp brace (D1).

OPTION B: Grommet Base Installation

For grommet hole attachment only, cut the

So Pad (G) along the indentations. Peel the

protective film o of the So Pad (G) and place

the pieces onto the Grommet Base (F) as shown

below.

STEP 2

STEP 2 (Continued)

OPTION A: Clamp Installation

For thinner desktops, re-attach the Clamp (D2)

to the Clamp Brace (D1) and tighten the screws

using the 4mm Allen Wrench (K).

For thicker desktops, disassemble the Clamp

(D2) using a Phillips screwdriver as shown in

3.1. Flip the L-bracket over and reassemble.

Then re-attach the Clamp (D2) to the Clamp

Brace (D1) and tighten the screws using the

4mm Allen Wrench (K).

OPTION B: Grommet Installation

If not using an existing through-hole, using a

10mm (⅜”) drill bit, drill through the desktop

at least 2” away from the edge. Disassemble

the Clamp (D2) using a Philips screwdriver. Set

aside all parts except for Clamp Bolt (D3). Attach

Pole (B) and Grommet Base (F) to the desktop

using the Support Plate (H) and Clamp Bolt (D3)

as shown below.

3.1

While holding Arm (A) closed, cut the

shipping tie and gently release (A).

STEP 4

Attach VESA Plate (B) to the back of the

monitor using Screws (M-A through M-D) and

Washers (M-E). If needed, use Spacers (M-F).

STEP 5

Slide VESA Plate (B) with monitor over

bracket on Arm (A). Secure using the

Thumbscrew (I).

Slide Arm (A) onto Pole (B) and tighten using 6mm Allen

Wrench (L). Attach Cable Clip (E) to Pole (C).

STEP 3

STEP 6

Adjust gas spring support in Arm (A) using 6mm Allen wrench (L). Turning counter-clockwise increas-

es support, and clockwise decreases.

STEP 7

Remove bottom cover from Arm (A) by sliding it o. Organize cables and re-attach cover.

STEP 8

Adjust tilt support using 6mm Allen Wrench (L). Store Allen Wrenches (K and L) in Cable Clip (E).

Adjust as desired.

LAST UPDATED: 06/02/2021

REV2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
