Vivo PP-DK30B-2 Manual de usuario
Black Clamp-on Pegboard Panel (x2)
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/pp-dk12b
SKU: PP-DK30B-2
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual
and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect
assembly, or inappropriate use.
WARNING!
TOOLS NEEDED
Phillips
Screwdriver
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS
A (x4)
Support B (x2)
Pegboard
C (x2)
Shelf
S-A (x12)
M6x16mm
Screw
S-B (x12)
M6 Washer
T-A (x1)
4mm Allen Wrench
E (x8)
Zip Tie
I (x8)
Magnet
H (x2)
Hook
J (x2)
Clip
D (x4)
Clamp Pad
F (x4)
Shelf Bracket
G (x2)
Loop
3
Option B:
Below Desk
Cable Management
Page 9
Option A:
Above Desk Mounting
Page 4
ASSEMBLY OPTIONS:
4

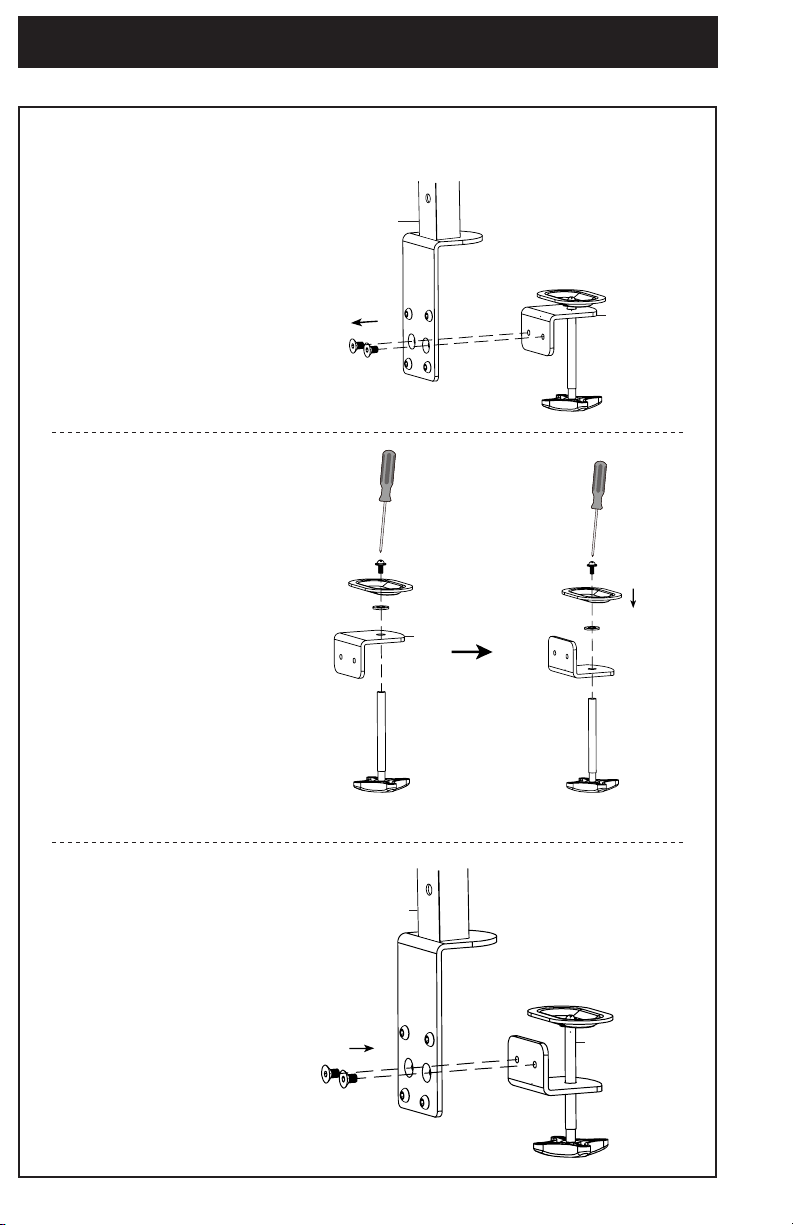

ASSEMBLY OPTION A: Above Desk Mounting
Pre-Assembly
0 - 2" / 0 - 51mm Desktop Thickness: No pre-assembly required. Proceed to STEP 1.
1.1 - 3" / 28 - 77mm Desktop Thick: Follow steps below.
1. Use a Phillips screwdriver to
remove screws separate Lower
Clamp (A1) from Support (A).
2. Remove the center screw to
disassmble Lower Clamp using
a Phillips screwdriver. Flip
Clamp Plate (A2) as shown and
reassemble Lower Clamp.
3. Reconnect Lower Clamp (A1)
to Support (A) using a Phillips
screwdriver.
A
A1
A2
A1
A
5

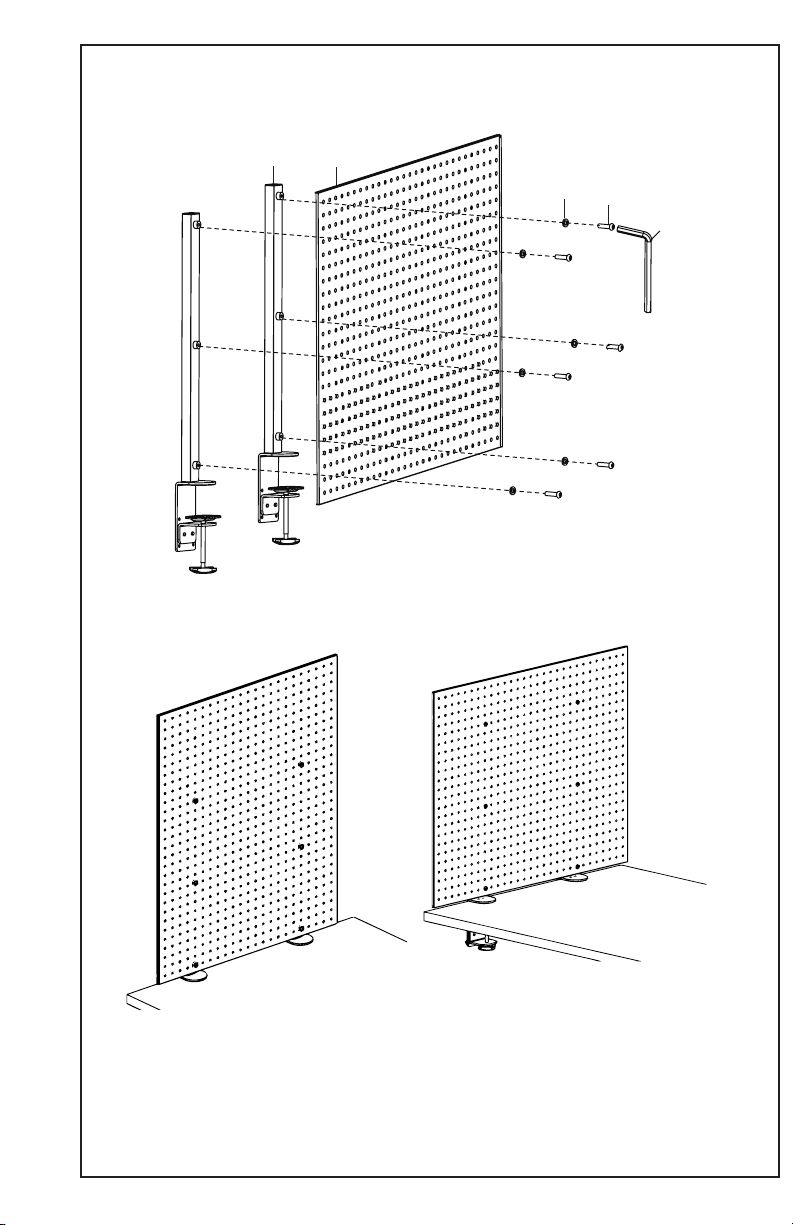

STEP 1
Connect Pegboard (B) to Supports (A) by installing M6x16mm Screws (S-A) and M6 Washer (S-B)
through pegboard into threaded holes of Supports (A) using 4mm Allen Wrench (T-A). This can be done
in a portrait or landscape orientation. See examples below.
Orientation Options
Portrait Landscape
AB
S-B S-A
T-A
6
A

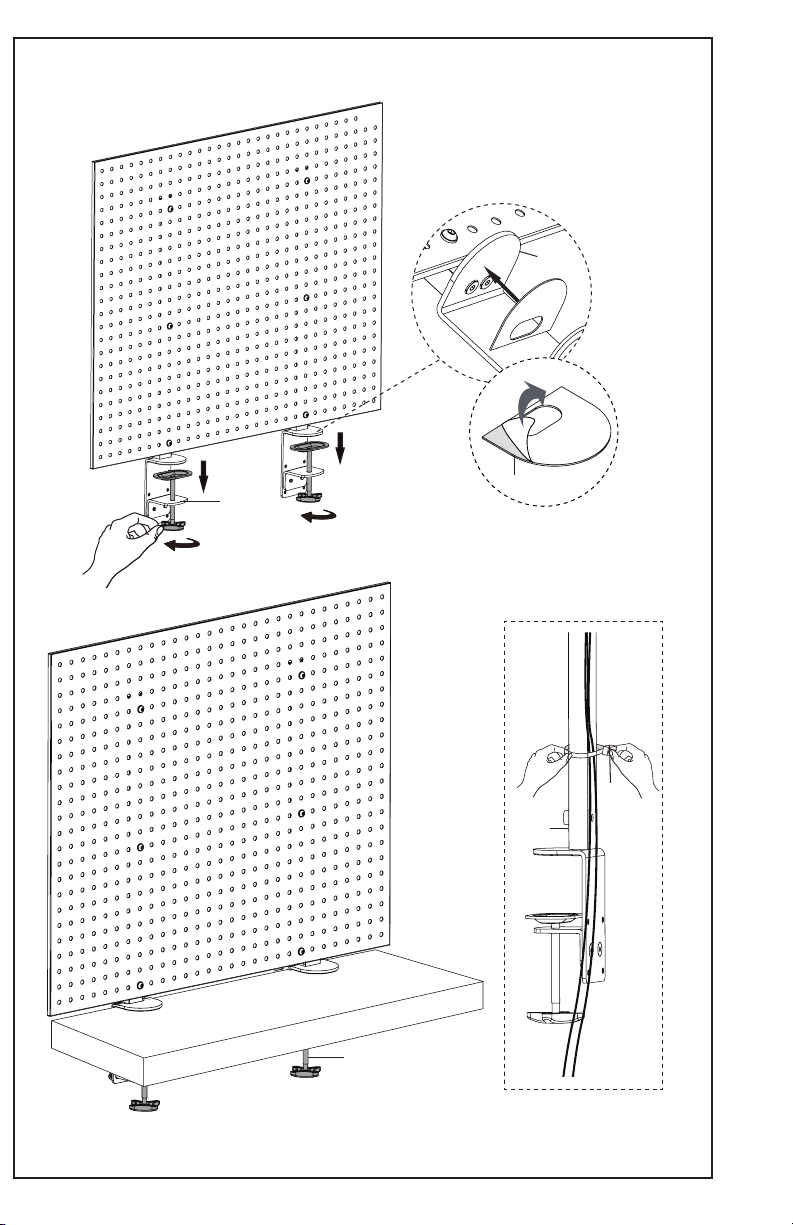

STEP 2
Install Clamp Pads (D) on the Clamps (A1) on Supports (A). Tighten Clamps (A1) to attach to desired
surface. Use Zip Ties (E) to secure cables along Supports (A).
D
A1
A
E
A
A1
7

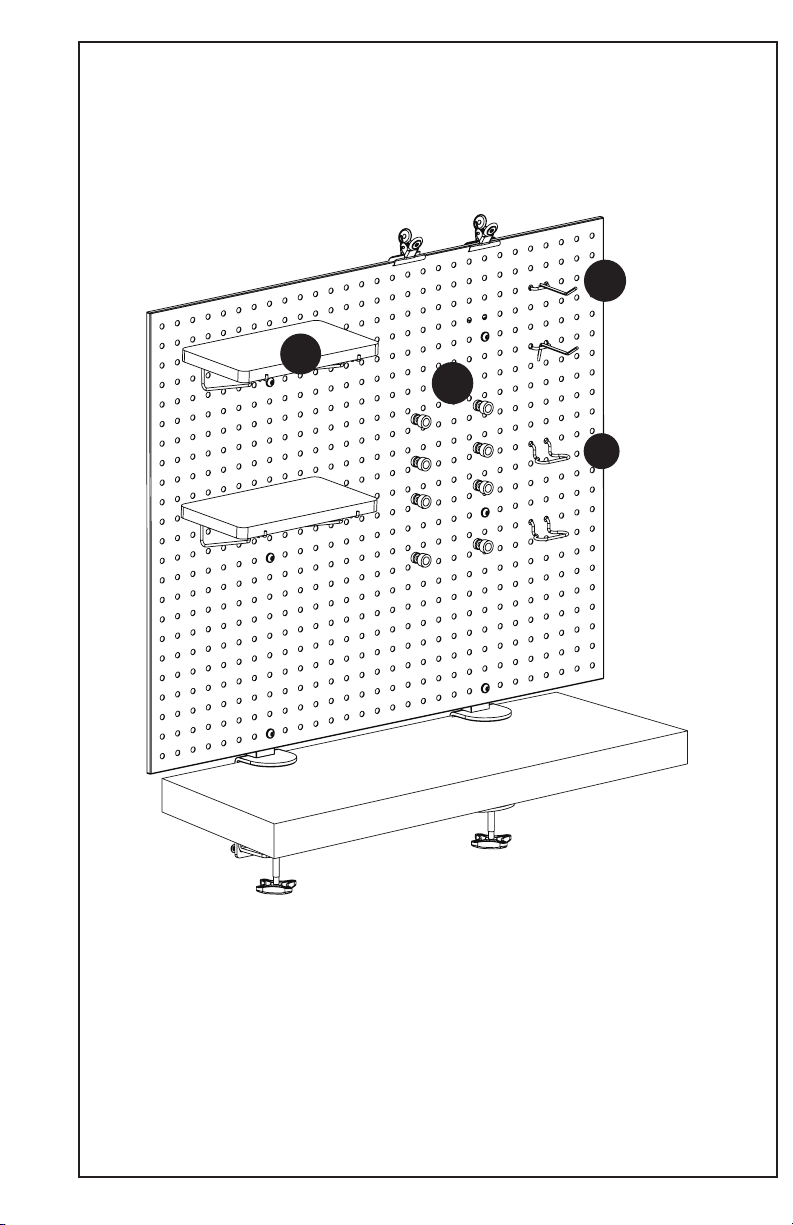

STEP 3
Install accessories (C, F thru J) onto assembled pegboard. See images on next page for placement.
1
3
4
2
8

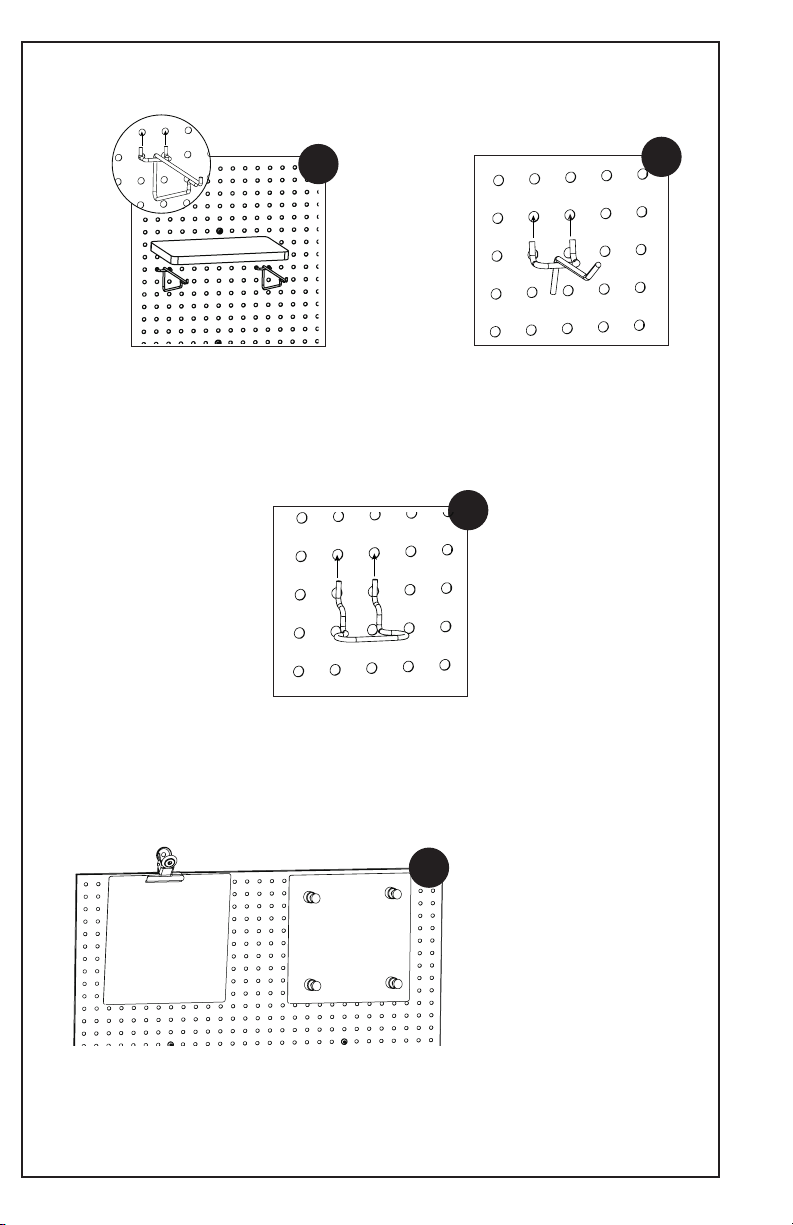

Shelf (C,F)
Magnets
Hooks (H)
Place Shelf Brackets (F)
onto desired location on
pegboard. Place Shelf (C)
onto Shelf Brackets (F).
Clips (J) and Magnets (I) can be
used as desired on pegboard.
Place Hooks (H) into
desried pegboard holes.
1
Loops (G)
Place Loops (G) into
desired pegboard holes.
3
2
4
Accessory Placement
9

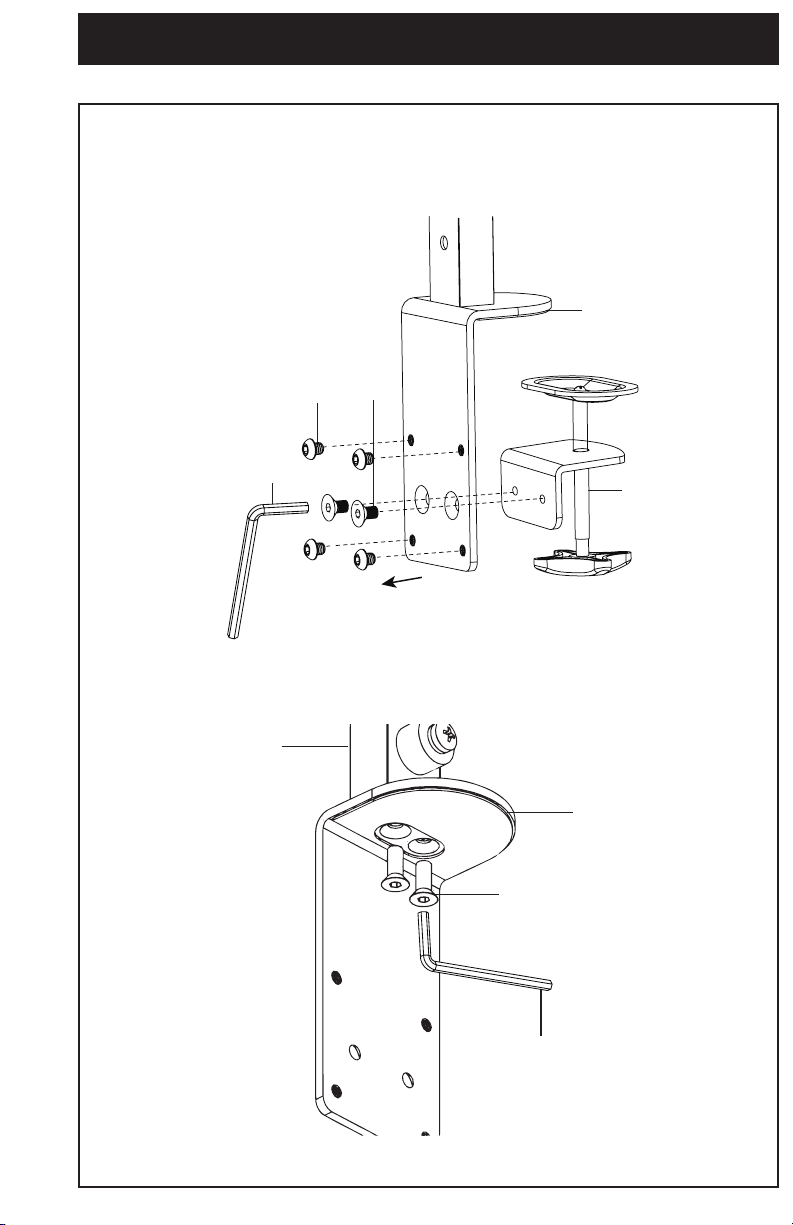

STEP 1
To mount belowdesktop, the Clamp on Supports (A) will first need to be removed. The Clamp will be
re-installed to the pegboard and used to secure pegboard below desktop.
DISASSEMBLE SUPPORTS (A):
Remove M6x6mm Screws (A2) and M6x8mm Screws (A3) from Clamp (A1) to remove Clamp Bolt (A4)
using 4mm Allen Wrench (T-A).
Next, remove M6x16mm Screws (A5) from underside of Supports (A) using 4mm Allen Wrench (T-A) to
separate Clamp (A1).
A5
T-A
A1
A
A4
A3
T-A
A1
A2
ASSEMBLY OPTION B: Below Desk Cable Management
10
STEP 2
Connect Clamp Bolt (A4) to Clamp (A1) using previously removed M6x8mm Screws (A3) and
4mm Allen Wrench (T-A).
Connect Pegboard (B) to front of Clamps (A1) using previously removed M6x6mm Screws (A2).
A3
A4
T-A
A2
BA1
