Vivo MOUNT-SG04 Manual de usuario
Desk Clamp Designed for Samsung OEM Monitor
Stands
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-sg04
SKU: MOUNT-SG04
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

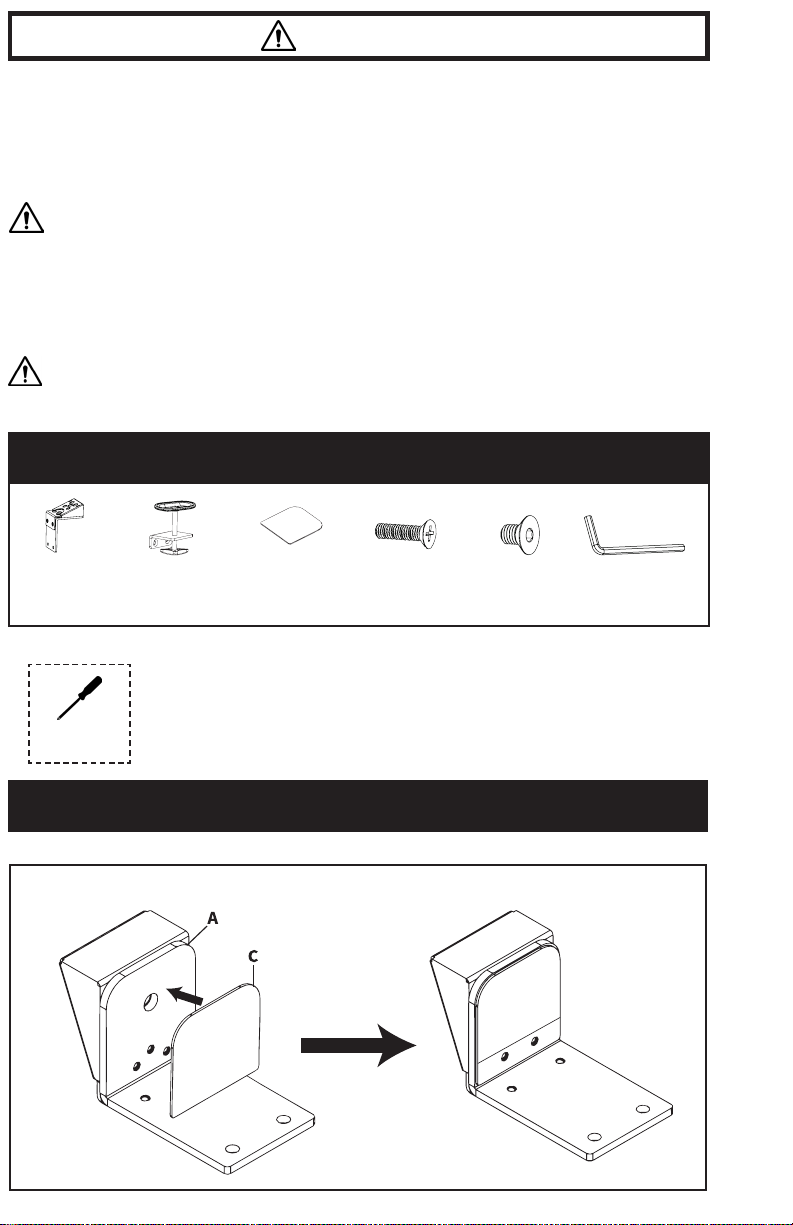

ASSEMBLY STEPS
PACKAGE CONTENTS
A (x1)
Upper Clamp
B (x1)
Lower Clamp
C (x1)
Pad
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
S-A (x1)
M4x20mm
Screw
S-B (x2)
M8x12mm
Screw
T-A (x1)
5mm Allen
Wrench
STEP 1
Remove the protective film from Pad (C) and apply the pad to Upper Clamp (A).
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product for
any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot
be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate
use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
3
Remove Locking Screws (A1) from Upper Clamp (A) using a Phillips screwdriver. Slide Base (A2) out
from the clamp.
STEP 2
STEP 3
Remove the OEM Base and the Plastic Shroud from your Samsung display following the
manufacturer’s instructions. Set screw aside for use in later step.
4
STEP 4
STEP 5
Install Base (A1) to the monitor stand using M4x20mm Screw (S-A) and a Phillips screwdriver.
Attach the Lower Clamp (B) to Upper Clamp (A) using M8x12mm Screws (S-B) and 5mm Allen
Wrench (T-A).
OEM Monitor
Stand
S-A
A1
Secure clamp assembly to desktop in it’s intended location. Tighten by turning the hand bolt.
5
STEP 6
Slide the Samsung monitor with stand onto Upper Clamp (A). Ensure the Sliding Plate (A2) is
sliding into the slot on the attached base.
NOTE: Two person installation is recommended.
6
STEP 7
STEP 8
Secure monitor into place using the screws removed in Step 2 and a Phillips screwdriver.
The Plastic Shroud can be reinstalled following the manufacturer’s recommended instructions.
7
[ THIS PAGE INTENTIONALLY LEFT BLANK ]
LAST UPDATED: 04/11/2023
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
