Vivo STAND-V101GTU Manual de usuario
Pneumatic Arm Single Monitor Desk Mount with USB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v101gtu
SKU: STAND-V101GTU
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
WARNING!
A (x1)
Base
B(x1)
Pole
C(x1)
Cable Clip
N (x4)
Flat Head Bolt
J (x1)
So Pad
K (x1)
Cover
L (x1)
Clamp Brace
M (x1)
Clamp
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
M-A (x4)
M4x12
D(x1)
Arm Support
E(x1)
Lower Arm
F (x1)
Gas Spring Arm
G(x1)
VESA Plate
H (x1)
Clamp Plate
I (x1)
Grommet
Plate
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
M-B (x4)
M5x12
M-C (x4)
D5 Washer
Q(x1)
6mm Allen
Wrench
O (x1)
3mm Allen
Wrench
P (x1)
4mm Allen
Wrench
3
ASSEMBLY STEPS
STEP 1
OPTION A: Clamp Installation
Attach clamp brace (L) to base (A) using
flat head bolts (N) and tighten with
4mm Allen wrench (P). Apply so pad
(J) to underside of base. Loosen bolts
on back of clamp (M) using 4mm Allen
wrench (P), leaving 6mm of thread
exposed.
For a desk thickness of 3/8” - 2-1/2”
(10 - 58mm), hang clamp into top 4 slots
of clamp brace. Tighten rear bolts with
4mm Allen wrench. Place clamp plate
(H) on top of clamp bolts. Install to desk
and tighten clamp bolts using 6mm
Allen wrench (Q).
For a desk thickness of 2” - 3-3/8” (50 -
85mm), hang clamp into lower 4 slots
of clamp brace. Tighten rear bolts with
4mm Allen wrench. Place clamp plate
(H) on top of clamp bolts. Install to desk
and tighten clamp bolts using 6mm
Allen wrench (Q).
Snap cover (K) onto back of base.
TOOLS NEEDED
2.2-33lbs
(1-15kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Phillips
Screwdriver
A
L
P
N
J
H
10-58mm
H
50-85mm
Q
K
6mm
P
M
6mm
P
M
4
STEP 1 (Continued)
OPTION B: Grommet Base Installation
Attach grommet plate (I) to base (A)
using flat head bolts (N) and tighten with
4mm Allen wrench (P). Apply so pad
(J) to underside of base. Position base
over grommet hole in desktop, or drill a
3/8” (10mm) hole through the desk for
installation. Remove clamp bolt from
clamp (M) using 6mm Allen wrench (Q)
if needed. Insert clamp bolt with clamp
plate (H) up through the underside of the
desk and tighten to the base using the
6mm Allen wrench.
STEP 2
STEP 3
Screw pole (B) into base, and tighten the grub screws using the 3mm Allen wrench (O). Attach cable
clip (C) to pole.
Slide arm support (D) onto pole and tighten using the 6mm Allen wrench. Place lower arm (E) on top
of arm support, and secure by turning the screw on the support with the 3mm Allen wrench (O).
J
I
N
P
M
Q
H
Q
B
C
O
5
STEP 4
Install the VESA plate (G) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with
washers (M-C), making sure the arrow in back is pointing up.
STEP 5
STEP 6
Pull back the release lever on the support bracket, then place the monitor with VESA
plate into the support.
Place gas spring arm (F) on top of lower arm, and secure by turning the screw on the lower arm with
3mm Allen wrench (O).
D
M-A
M-B
M-C
G
6
STEP 7
If needed, adjust gas spring arm to support the monitor using the 6mm Allen wrench. Turn the screw in
back clockwise to decrease support, and counter-clockwise to increase. Adjust the tilt joint to tighten
or loosen tilt support.
STEP 9
Organize cables, then reinstall cable covers to arms.
STEP 8
Remove cable cover on upper arm using a Phillips screwdriver.
Slide cable cover on lower arm forward to remove.
7
STEP 10

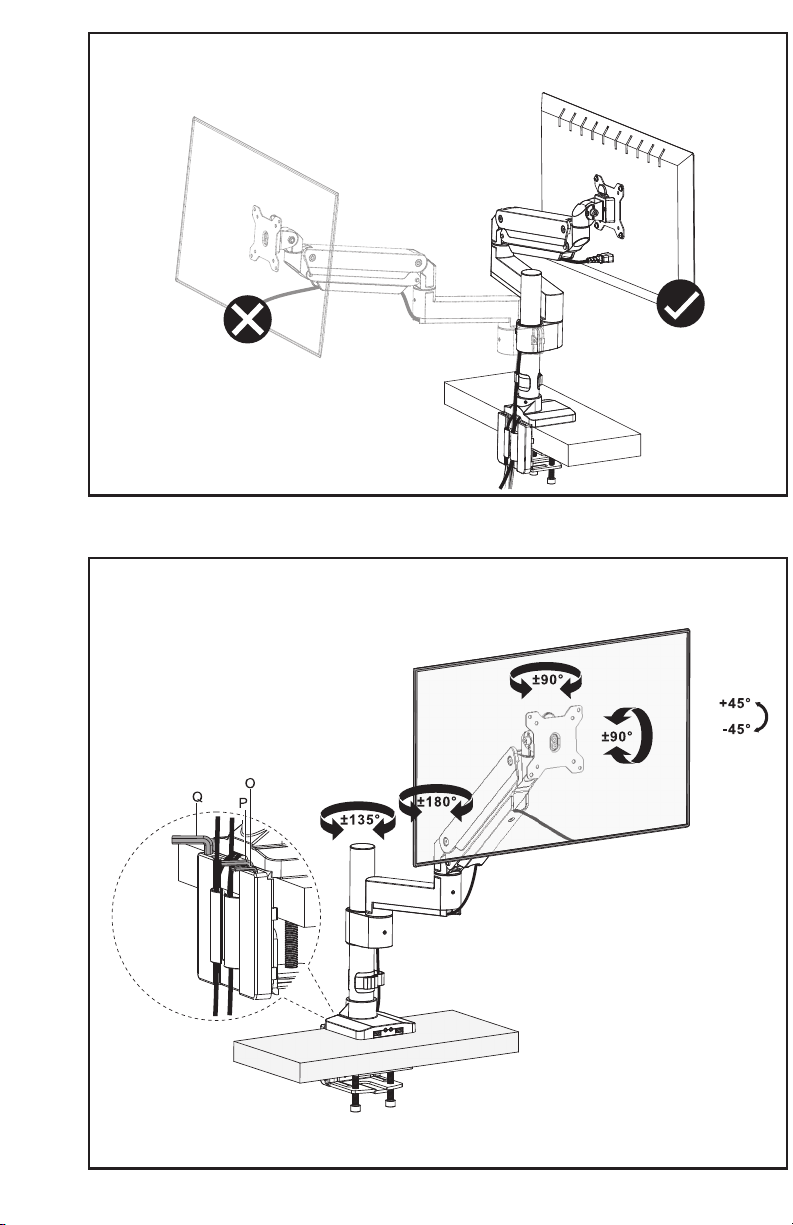

For safety, please do not extend the monitor behind the desk. This may cause instability and tip the
desk over.
Adjust as Desired
LAST UPDATED: 04/28/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
