Vivo CART-V03E Manual de usuario

Black Multi-Purpose Mobile Podium

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/cart-v03e

SKU: CART-V03E

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

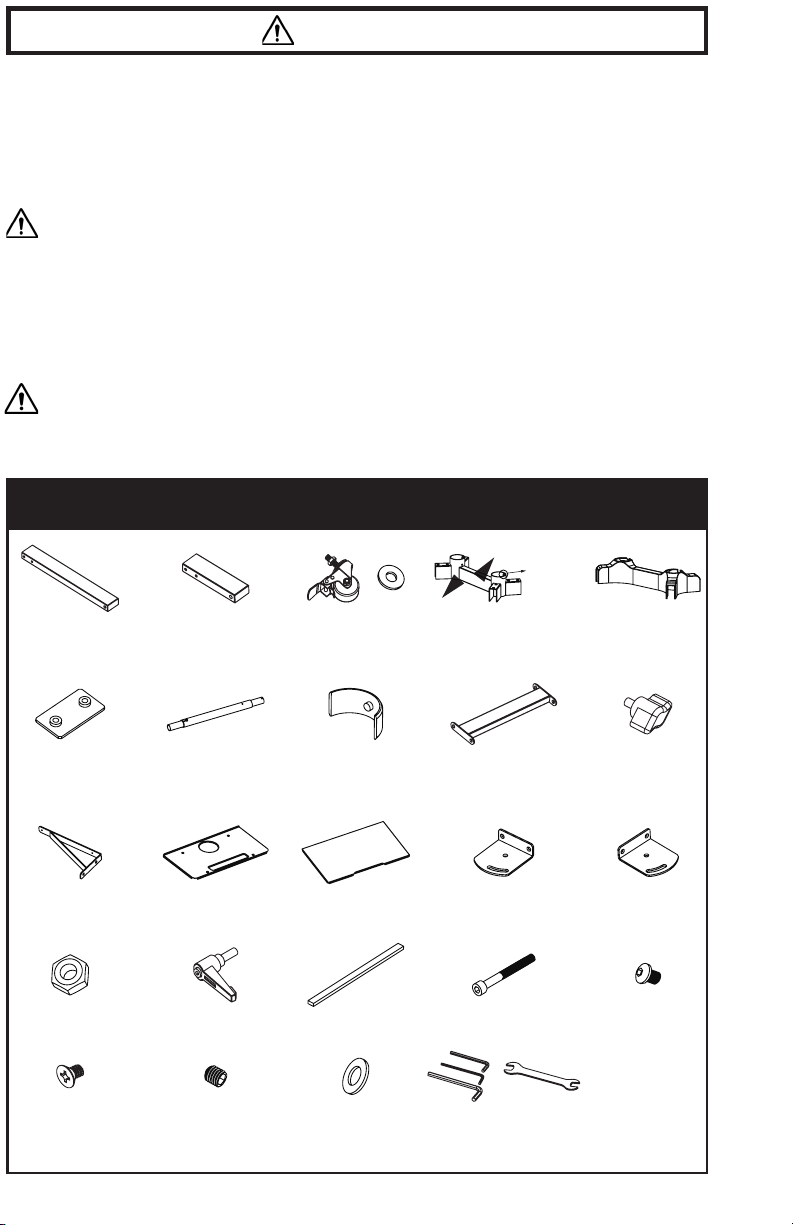

PACKAGE CONTENTS

WARNING!

1 (x2)

Long Square

Tube

2 (x2)

Short Square

Tube

3 (x4)

Wheel and

Washer

4 (x1)

Tube Connector

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF CART.

• USE TIPOVER RESTRAINT OR ANCHOR CART TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

5 (x1)

Tube Connector

Cover

6 (x4)

M6 Socket Plate

7 (x2)

Pole Set

8 (x4)

Plastic Sleeve

9 (x1)

Connecting

Tube

10 (x2)

Plastic Knob

11 (x2)

Shelf Support

12 (x1)

Shelf

13 (x1)

Top Plate

14 (x1)

Right Connecting

Plate

15 (x1)

Le Connecting

Plate

16 (x4)

M6 Nut

17 (x2)

Lever

18 (x2)

So Pad

19 (x8)

M6x60

20 (x12)

M6x10

Front

Back

hole for

connecting

the Pole Set(7)

21 (x4)

Countersink Bolt

22 (x2)

M5x6 Grub

Screw

23 (x2)

M6 Washer

24 (x1)

Tool Kit

ASSEMBLY STEPS

STEP 2

Attach plastic sleeves (8) to pole set (7)

as shown. Slide the inner poles upward

with the plastic sleeves fitting inside the

outer poles, then extend the pole set to the

maximum height.

STEP 3

Attach the square tubing (1,2) to the tube

connector (4) using M6x60 Allen head bolt (19)

and the M6 socket plate (6). Tighten using the

tool kit (24).

STEP 1

Attach wheels and washers (3) to the long and

short square tubes (1, 2) using the provided

wrench (24).

Front

Back

hole for

connecting

the Pole Set(7)

3.1

3.23 .3

44 lbs

(20 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 22 lbs

(10kg)

TOP SHELF BOTTOM SHELF

STEP 4

Mount the connecting tube (9) to the pole set with four

M6x10 bolts (20) using the tool kit.

STEP 5

Insert plastic knobs (10) into the back of the pole set.

STEP 6

Attach the assembled pole set to the tube conneector cover (5) then to the tube connector (4) using

M6x10 bolts (20) in the back and M5x6 grub screws (22) in the sides.

These holes are used

for connecting the

shelf(12), facing them

to the Long Square

Tube(1).

Left

Right

STEP 7

Attach the shelf supports (11) to the pole set using four M6x10

Allen head bolts (20).

STEP 8

Mount the right and le connecting plates (14, 15) to the top plate (13) using M6 nuts (16) and tighten

with the wrench. The slots in the connecting plates must be facing towards the front of the top plate.

STEP 9

Attach the shelf (12) to the supports using M4x6 countersink bolts (21).

STEP 10

Place the assembled top plate onto the pole set, and secure with two M6x10 bolts (20).

STEP 11

Attach so pads (18) to the top front edge of the top plate.

STEP 12

Insert levers (17) with M6 washers (23) through the slots in the connecting plates and screw

into pole set.

17 23

STEP 13

Loosen the levers to adjust the tilt angle, then tighten in the desired position. Adjust the height by

loosening the plastic knobs, then tighten at the desired height.

STEP 14

tilt 40˚

LAST UPDATED: 01/29/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
