FEATURES

• 1/2.8” 5.69 / 8.51 Megapixel Sony® Starvis™* Progressive Scan CMOS

Sensor

• 5MP Models: 20fps live view @ 2592 x 1944p

• 8MP Models: 15fps live view @ 3840 x 2160p

• True Day/Night by IR Cut Filter

• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)

• 5MP Models: Motorized 2.7~13.5mm MegaPixel IR Corrected Auto Focus

Varifocal Lens

• 8MP Models: Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus

Varifocal Lens

• 4 Integrated High Power Dynamic IR LEDs with up to 165’ IR Range (VTC-

T4B4HR5MD/8MD), 3 Integrated High Power Dynamic IR LEDs with up to

135’ IR Range (VTC-T4T4HR5MD/8MD)

• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction

• Double Shutter Wide Dynamic Range (WDR)

• 16:9 Video format

• IP66 Weather Resistance

• Supports Control over COAX (CoC)

• Over 1500’ HD Video Transmission (Depending on cable characteristics and

integrity)

• Optional Junction Box Mount Available for Cable Management (VT-TJB04)

• 12VDC / 24VAC Dual Voltage Operation

• 3 Year Warranty

*Sony Starvis is a registered trademark of Sony

VTC-T4B4HR5MD

VTC-T4T3HR5MD

VTC-T4B4HR8MD

VTC-T4T3HR8MD

5 and 8 Megapixel 4-in-1 HD-TVI/AHD/CVI/CVBS

Motorized Varifocal Bullet and Turret Cameras

2 3

TABLE OF CONTENTS

1. Safety and Notes ................................ 3~4

2. Product Introduction ................................ 5

2.1 Production Instruction .......................... 5

2.2 Product Features .................................. 5

3. Product Structure ..................................... 6

4. OSD Menu Tree ...................................... 7

5. Product Installation ................................. 8

5.1 Installation Note .................................... 8

5.2 Installation Method ................................ 8

5.3 Connection ............................................ 9

Appendix: Accessories, Specs................10~15

Warranty Information ..................................16

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electrical shock.

4 5

Notes

Please use the specified power supply to connect the camera.

Do not attempt to disassemble the camera; in order to prevent electric shock,

do not remove screws or covers.

There are no user-serviceable parts inside. Please contact the nearest service

center as soon as possible if there is any failure.

Avoid incorrect operation, shock vibration, and heavy pressure which can

cause damage to product.

Do not use corrosive detergent to clean main body of the camera. If necessary,

please use soft dry cloth to wipe dirt; for hard contamination, use neutral

detergent. Any cleanser for high grade furniture is applicable.

Avoid aiming the camera directly towards extremely bright objects, such as

the sun, as this may damage the image sensor.

Please follow the instructions to install the camera.

Do not operate it in case temperature, humidity and power supply are

beyond the limited stipulations.

Keep away from heat sources such as radiators, heat registers, stove, etc.

Do not expose the product to the direct airflow from an air conditioner.

Otherwise, it may cause moisture condensation inside due to temperature

differences between the interior and exterior.

. Product Introduction

2.1 Production Instructions

This series of cameras uses a CMOS image sensor with high

performance, which provides mega pixel resolution and supports

HD video. Transmission distance can reach more than 900’

based on RG59 95% coaxial cable. This series can support TVI/

CVI/AHD/CVBS output.

2.2 Product Features

1. 1/2.8" 5.69MP Sony® Starvis© CMOS / 1/2.8” 8.51 Sony® Starvis©

CMOS

2. Full HD Resolution:5MP 20fps / 8MP 15fps

3. WDR (Wide Dynamic Range)

4 XD-DNR (3D and 2D Digtal Noise Reduction)

5. True Day / Night

6. Auto White Balance

7. Smart IR Function

8. DC IRIS

9. Low Power Consumption

10. Supports Control over COAX (CoC)

6 7

3. Product Structure

The followings are the dimensions for the bullet and turret cameras

in this series:

4. OSD Menu tree

Main Menu

Secondary menu

BRIGHTNESS

0~100

EXPOSURE

MODE

GLOBAL

BLC

0~7

GAIN

HIGH

MIDDLE

LOW

OFF

AWB

MODE

PRO, GRAY WORLD

RGAIN

0~100

BGAIN

0~100

DAY/NIGHT

MODE

EXT

AUTO

, COLOR, B/W

IMAGE ENHANCE

CONTRAST

AUTO

MANUAL

0~20

SHARPNESS

AUTO

MANUAL

0~20

SATURATION

AUTO

MANUAL

0~20

3DNR

AUTO

VIDEO SETTING

TVI

AHD

CVI

CVBS

STANDARD

5MP, 4MP, 1080P

VERSION

FX5.00.01

APPLY&REBOOT

LANGUAGE

English

Chinese (simple)

Chinese (traditional)

Russian,Spanish, French, Polish, Italian, Portuguese,

Japanese, Korean

8 9

LENADJ

L+L+R+R+C

RESET

SAVE&EXIT

5. Product Installation

5.1 Note

1) Make sure the unit is powered off before installation.

2) Make sure to only use specified power to prevent damage to

the camera

3) Do not use in environment beyond the boundaries of the

temperature and maintain good ventilation to prevent the risk

of fire or electric shock.

4) The installation and maintenance of this product should be

done by professionals only, please do not remove or modify

the equipment in any way; Only use the required accessories

of manufacturers. Problems caused by unauthorized repair are

at your own risk.

5.2 Installation Method

1) Disconnect power before installation.

2) Confirm proper 12VDC or 24VAC power supply is used to

prevent damage to the camera.

3) Do not use in an environment beyond the boundaries of the

specifications.

Power & Video Connections

Monitor

Video

12VDC / 24VAC Power

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC

patch cable, then to a DVR. Next connect the power connector to a

12VDC or 24VAC power adaptor.

Installation

1) Disconnect power before installation.

2) Confirm proper 12VDC or 24VAC power supply is used to prevent

damage to the camera.

3) Do not use in an environment beyond the boundaries of the

specifications.

On Cable Switch:

Press & Hold button to cycle between HD-TVI, AHD, and CVI

Modes (Green BNC Connection required).

Press & Release the Switch quickly to enter OSD Menu

Screen.

BNC Connections:

Green: HD Connection

Yellow: SD Connection

5.4 Connection

Connection as shown in the figure below:

Power & Video Connections

Monitor

Video

12VDC / 24VAC Power

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC

patch cable, then to a DVR. Next connect the power connector to a

12VDC or 24VAC power adaptor.

Installation

1) Disconnect power before installation.

2) Confirm proper 12VDC or 24VAC power supply is used to prevent

damage to the camera.

3) Do not use in an environment beyond the boundaries of the

specifications.

Video Output Mode Switch:

Select the desired video mode using the dip switches

contained within the on-cable Output Mode Switch as follows:

CVBS

AHD

HD-TVI

CVI

5.4 Connection

Connection as shown in the figure below:

Power & Video Connections

Monitor

Video

12VDC / 24VAC Power

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC

patch cable, then to a DVR. Next connect the power connector to a

12VDC or 24VAC power adaptor.

Installation

1) Disconnect power before installation.

2) Confirm proper 12VDC or 24VAC power supply is used to prevent

damage to the camera.

3) Do not use in an environment beyond the boundaries of the

specifications.

Video Output Mode Switch:

Select the desired video mode using the dip switches

contained within the on-cable Output Mode Switch as follows:

1 2

CVBS

1 2

AHD

1 2

HD-TVI

1 2

CVI

10 11

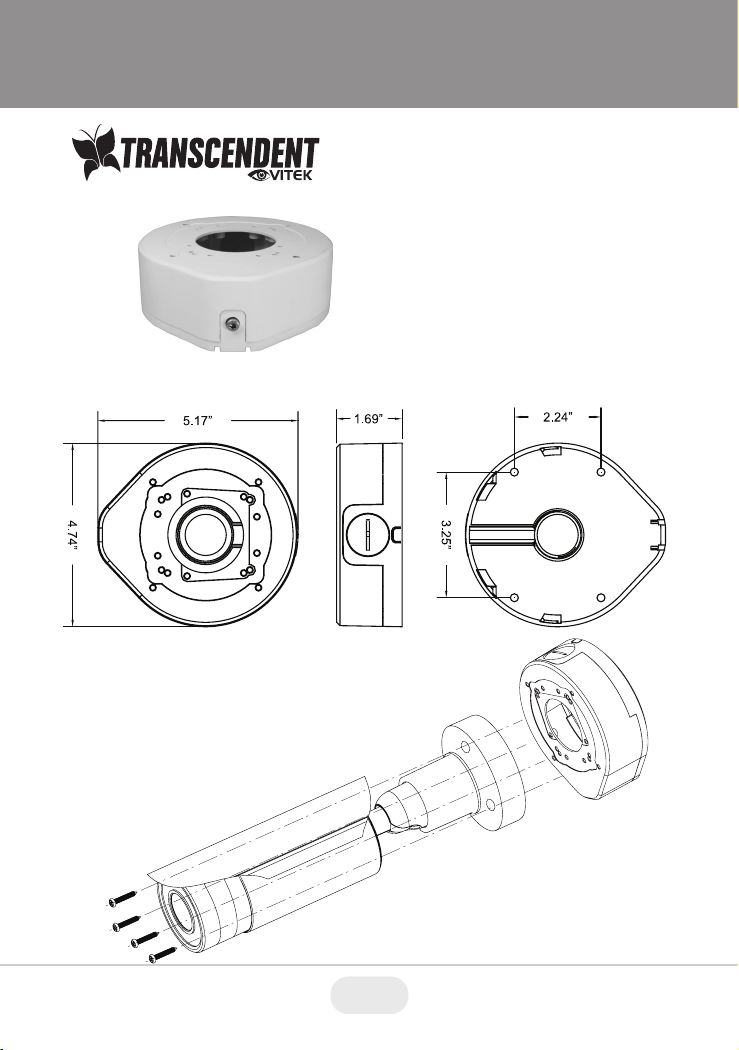

VT-TJB04

Optional Junction Box for Cable

Management including for

models: VTC-T4B4HR5MD,

VTC-T4T3HR5MD,

VTC-T4B4HR8MD, and

VTC-T4T3HR8MD
