Vitea Care Junior Plus 2 Manual de usuario
USER’S MANUAL
Junior Plus 2 & 3
CHILDREN’S
REHABILITATIVE
STROLLER
(DRVG0J)
EDITION 06.2020ML
page - 1
INSTRUKCJA UŻYTKOWNIKA
Junior Plus 2 i 3
WÓZEK INWALIDZKI
SPECJALNY,
DZIECIĘCY
(DRVG0J)
WYDANIE 06.2020ML
strona - 23
1
USER’S MANUAL (GB/EN)
Table of content
1. Introduction.....................................................................................................................2
2. Product description.........................................................................................................2
3. Application.......................................................................................................................4
4. Contradictions .................................................................................................................4
5. Usage...............................................................................................................................5
6. Safety of use....................................................................................................................8
7. Everyday use and maintenance ......................................................................................10
8. Technical parameters......................................................................................................20
9. Symbols ...........................................................................................................................21
10. Contact details...............................................................................................................22
ATTENTION
Always follow the basic precautions according to the information included
below and regarding safety measures when using the device. Read the entire
instructions carefully before use. Keep this user’s manual for future reference.
Junior Plus children’s rehabilitative stroller is available in two sizes,
further known as Junior Plus 2, Junior Plus 3. For detailed information please
refer to the Technical Parameters section.
2
1. Introduction
Thank you for choosing our product. We are deeply convinced that it will meet your
expectations. Please read this document before first use. This manual was made in order to
provide the necessary information on the safe use of the device. The correct application of
the recommendations will contribute significantly to extended durability and visual design of
the product. We would like to highlight that to date we are constantly improving the quality
of our products, which may result in minor changes that are not included in this manual.
2. Product description
Fig. 1. Construction scheme of Junior Plus children’s rehabilitative stroller.
1. Handle, 2. Lever for changing the seat angle and backrest, 3. Trunk stabilizer,
4. Side stabilizer, 5. Side frame, 6. Rear wheel, 7. Basket for small items,
8. Canopy, 9. Head stabilizer, 10. Safety belts, 11. Front guard, 12. Front wheel
handle, 13. Footrest, 14. Front wheel.
3
Equipment of the stroller’s package
Fig 2. Stroller corpus
Fig. 3. Seat
Fig. 4. Wheels
Side frame connector
Rear wheel
Front wheel stem
Front of the wheel
4
Fig. 5. Front guard Fig. 6. Canopy
Fig. 7. Basket for small items, umbrella, table and try holder, lumbar support, attachable cup
Fig. 8. Sleeping bag Fig. 9. Raincover
3. Application
The stroller is designed for children with disabilities and / or dysfunctions movement activities
as a result of damage of the CNS Central Nervous System. It can be used in children with CP
Cerebral Palsy, myelomeningocele, muscle disorders, dysfunctions of the lower limbs.
The maximum weights are 40 kg (Junior Plus 2) & 75 kg (Junior Plus 3).
4. Contraindications
Contradictions against sitting position.
5
Caregiver handle
5. Usage
• After unpacking the package, check if it contains all parts in accordance with the list of
elements set out above.
• Ensure that all components have no visible damage. If any doubts, please contact the
manufacturer.
• Do not use the stroller until all parts are properly connected.
a) Unfolding the stroller

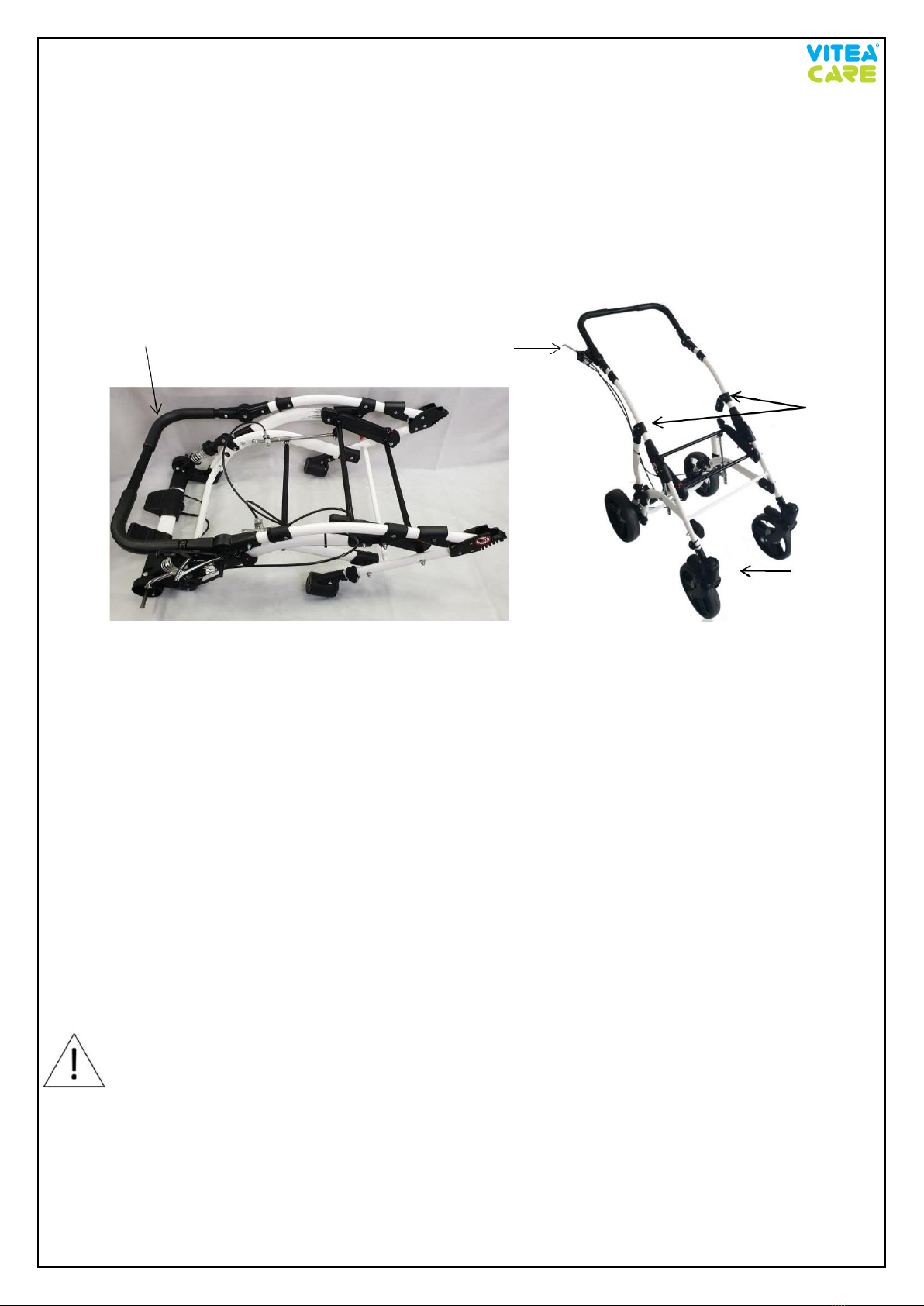

Fig. 10.Folded stroller Fig. 11. Unfolded stroller
•Unfolding the stroller should begin with the setting of the corpus on a flat surface,
preferably on the floor. Handle to drive should be facing up (Fig. 10).
•Stroller corpus should be lifted up using the handle until (Fig. 11.) you will hear
a click.
•To fold a stroller corpus, at the same time pull upwards the two levers folding. At this
moment lock is released and side frame connector is separated.
•Then direct down the driving handle till the stroller corpus get figure like on Fig. 10.
•Make sure that the actuators are unlocked when folding and unfolding the stroller.
To do this, press the seat and backrest
WARNING! When folding the stroller, the rear wheels must be unlocked!
Lever for changing angle
of seat and backrest
Levers
for
corpus
folding
Front
wheel
handle
6
Fig. 12. Folded stroller Fig. 13. Seat lock closeup
•Into unfolded stroller corpus, attach wheels.
•Front wheel stem slip in the wheel grip in the direction from the bottom to the top, to the
point hearable click.
•To remove the front wheels, press button located at the top of wheel handle and pull it in
from top to bottom (Fig. 12.).
•Rear wheels slide on the pin located in the back of the stroller corpus. Press in this same
time the button located in the central part of the wheel to hearable click.
•To remove the rear wheels, press the button in the middle of the wheel and then pull the
wheel out of the stroller corpus (Fig. 13.).
•Basket for small items should be mounted on the front of the stroller to a thin rod in the
lower part of the side frames using latch, while at the rear of the horizontal rod using
Velcro (Fig 13.).
Fig. 14. Seat with rod Fig. 15. Seat sockets
Seat lock
Rod
Seat socket
7
Fig. 17. Canopy attachment Fig. 18. Canopy folded Fig. 19. Canopy unfolded, sleeping bag
•Seat is equipped with four pins, two on each side.
•While installing the seat, pins should be positioned in the seat socket (Fig. 15.).
•The seat should be held with both hands, one hand front edge of the seat and second hand
the upper edge of the backrest.
•After placing the seat in the stroller corpus, it will lock automatically.
•To remove the seat from the corpus, the safety devices must be unlocked at the same
time. The safety catch (1) needs to be moved down, and the second safety catch (2)
towards the first safety catch (Fig. 16.). There will be a characteristic click. Do this on both
sides. Carefully pull out the seat.
Fig. 16. Safety catches
•To install the canopy push canopy handles on the stroller support frame (Fig. 17, 18.).
•Sleeping bag mount if only the child is properly fasted with the seatbelt (Fig. 19).
•To mount the sleeping bag, start from the bottom by hooking it on the footrest.
•Front guard must be attached to the seat frame with clips, make sure that the barrier is properly
fastened (Fig. 18.).
2
1
Canopy
lock
8
•Raincover should be placed from top to bottom. Cover canopy and then stretch down to
a footrest (Fig. 20.).
•When the raincover is no longer needed, dry it, out of the reach of children.
Fig. 20. Raincover properly attached to the stroller
b) Folding the stroller
•To fold the stroller, remove the canopy and front guard.
•Open seat lock, remove seat.
•Unlock the rear wheels (you can also remove the front and rear wheels).
•Pull levers folding corpus.
•Fold corpus.
WARNING! Failure to follow these guidelines can result in damage to the wheelchair.
6. Safety of use
a) Before using the stroller, refer to this manual and keep it for future reference.
b) Your child's safety may be compromised case of non-compliance of rules contained in this
manual.
c) Never leave a child unattended. Always watch the child when he/she is in the stroller.
Caretakers are responsible for the safety of the child.
d) The seat is not suitable for children under 6 months.
e) Always use the seat belts to avoid serious injuries caused by the child falling out or slipping
out of the stroller.
f) It is important to fasten seat belt properly and its adjustment to the user.
g) The seat and belts do not replace proper supervision of caretaker.
h) While adjusting the parameters of the stroller, the child should not be in a stroller.
9
i) All repairs must be carried out by qualified personnel. And during the warranty period only
by the manufacturer's service.
j) The stroller is not suitable for running or ice-skating and roller skating.
k) The stroller is designed for transporting only one child.
l) It is unacceptable to use the stroller, if you found visible or palpable damage, or worn out
parts and stroller parts indicates a potential risk of an accident (e.g. Consumption wheels,
upholstery, cracks, etc.).
m) Always check before use if the stroller is properly unfolded. Ensure that all locks blocked
before use.
n) To avoid injury to make sure that the child is far away when the product is being folded
and unfolded.
o) When moving the stroller through doors and other passages, make sure that on both sides
there is enough space to avoid injury of hands or damage the stroller.
p) Do not allow your child to play with this product.
q) Do not allow your child to stand on the stroller or footrest. The stroller might fall over
and hurt the child.
r) When in motion, always hold the handle of the stroller.
s) Be especially careful while using the wheelchair near to steps and stairs.
t) The stroller is not intended for use on stairs and escalators.
u) Do not to move the stroller if a child is sitting in it.
v) Do not to move the stroller by holding the front guard. If there is a need to move your
stroller, you should hold the fixed elements of the frame.
w) In order to avoid accidental rolling off the stroller, always put on the brakes and turn on
the lock of driving direction when the stroller is stopped, when patient get in, get off,
changing the position.
x) Do not let the child stand on the footrest. Never leave the stroller unattended on sloping
ground, even if the brakes are on.
y) The stroller is designed for children up to 40 kg (Junior Plus 2) and 75 kg (Junior Plus 3).
z) Stroller should always be easy to fold out. In case of problems with unfolding. You should
re-read the user's manual or contact the manufacturer.
aa) Keep extreme caution while passing an obstacle. Extreme use of the stroller could cause
damage or destroy it.
bb)Never use the stroller as a seat for the transportation of people in cars, buses, or any motor
vehicles.
cc)During transport (e.g. In the trunk), do not burden stroller, it may weaken or damage its
structure.
dd)Do not leave the stroller with the user close to open sources of fire
ee) Be aware that the surface temperature of the upholstery and the frame parts may be
increased after exposure to the sun or other heat source. Furthermore, with low
temperatures there is a danger of overcooling metal parts of stroller. It may cause burns
