Vinpower Flash Memory V 2.1 Manual de usuario

User Manual

For Flash Memory Duplicator

V 2.1

WARNING!

THIS FLASH MEMORY DUPLICATOR IS MEANT FOR BACK UPAND

DISTRIBUTION OF ORIGINAL DATAAUTHORED OR OWNED BY THE USER. ANY

COPIES MADE FROM THIS FLASH MEMORY DUPLICATORARE THE COPYRIGHT,

OWNERSHIP OF THE AUTHOR OR COMPANY WHO OWNS THE SOURCE DATA.

ANY UNAUTHORIZED COPYING, EDITING, ORANY PART THEREOF OF

COPYWRITTEN MATERIAL IS STRICTLY PROHIBITED. WE DISCOURAGE THE USE

OF ANY SUCH ACTION THAT GIVES RISE TO CRIMINAL INTENT AND

PROSECUTION.

THE SELLER OF THIS PRODUCT IS NOT RESPONSIBLE FORANY POTENTIAL

ILLEGALACTIONS OF THE USER DUE TOACTIVITIES BEYOND THE SCOPE OF

THE PRODUCTS INTENDED USE.

Copyrights and Trademarks

REPRODUCED IN ANY MEDIUM, PRINTED OR ELECTRONIC, WITHOUT THE

Table of Contents

Title

Page

Chapter 1: Introduction & Manual Overview ………………...…….……….………

Before getting started ………….……………………………………….…….

Package Accessory List ………………………………...……………………

Chapter Overview ……………………………………...……………….…….

Chapter 2: Getting to know the system ………………………….…………………

System Overview ………………………………………...……….………….

LCD Display & Operation Panel ……...………..…...……………………….

Flash Device Port Status Indicator …………….….…..…………………….

Menu Navigation ………………………………………..…………………….

Chapter 3: Basic Operations …………………………..……...……………………..

Make Copies of a Flash Device ..…………………….………..…………….

Make Copies of a Flash Device via Async Copy ….……………………….

Chapter 4: Device Menu Overview ……………….….……………………………..

Appendix A: Troubleshooting ………………………………..….…………………...

Common Concerns ………..…..…………………………………..…………

Error Codes .……………………….…..…………….………………………..

Appendix B: Safety & Regulatory information …………...………………………...

Chapter 1: Introduction & Manual Overview

This system is a reliable, high performance, high speed, standalone manual duplication system.

With its professional industrial design and simple user interface, it will make the duplicating

experience easier than ever.

Before getting started:

Before starting to use this system, please read the following to ensure proper operation:

1. Temperature Warning:

If the system was stored in a location where the temperature dropped below 32⁰F (0⁰C)

within the past 24 hours, please leave the system in a warm room with a temperature of at

least 65⁰F (19⁰C), for 4 hours prior to powering on the unit for the first time. Failure to do so

may cause irreparable harm and prevent the system from functioning properly.

2. Maintenance:

It is very important to operate and keep the system in a dust free, clean environment since

dust is the number one killer of electronic devices. Failure to do so may severely damage

the system. It is strongly suggest that an Air Cleaner be placed next to the system and that

an air duster (canned air) be used consistently to clear off any dust, which may accumulate

on the surface of the system.

3. Proper Shutdown:

To avoid possible system failures, the system needs to be shutdown properly. To shutdown

the system, press the Up or Down Arrow button until the “Shutdown” menu is appears and

then press the “ENT” button. Follow the instructions on the screen to shutdown the system

properly. Turning off the system without performing this function will increase the risk of

damage to the system.

Package Accessory List:

System Power Cord

System Operation User Manual (This manual)

Chapter Overview:

Chapter 2: Getting to know the system

This chapter describes the physical features and instructions of how to operate the

system.

Chapter 3: Basic Operations Guide

This chapter describes how to perform basic operations like Making Copies, etc.

Chapter 4: Menu Overview

This chapter describes what each function/setting does.

Appendix A: Troubleshooting

This section provides many solutions to frequently asked questions and provides

insights on system error codes.

Appendix B: Safety & Regulatory information

This section provides environment, health, safety and other regulatory information.

Chapter 2: Getting to know the system

System Overview

The image below is a representation of the flash duplicator casing. The design of

the casing may vary but the unit continue to operate using similar principles.

Figure 1-1 System Controls and Display

The components shown in Figure 1-1 are:

1. System Power On/Off Button

2. Source Flash Device Port (ex. USB, SD, CF, etc)

3. Target Flash Device Port (ex. USB, SD, CF, etc)

4. Flash Device Port Status Indicator

5. LCD Display & Operation Panel

6. System Ventilation Vents

7. Power Supply Fan

8. Power Cord Input

LCD Display & Operation Panel

*The below image is for reference only. (Actual screen may vary. )

Up Arrow Button

Menu/Option Scroll Up

Down Arrow Button

Menu/Option Scroll Down

Enter/OK Button

Enter into the Menu

Execute the Function

Submit the Setting change

Escape Button

Go back to the previous Menu

Abort the current Function.

Cancel the Setting change

Smart Copy Button

Shortcut to make a copy under Smart mode

RAW Copy Button

Shortcut to make a copy under RAW mode

Device Scan Button

Shortcut to detect available devices

Shutdown Button

Shortcut to perform Shutdown function of the system

Flash Device Port Status Indicator

Every flash device port (ex. USB, SD, CF, etc) on the system comes with 2 colored LED lights,

which indicate the current status of the port. Reference chart below to understand the LED

status readings:

GREEN LED

RED LED

DESCRIPTION

Blinking

Off

This port is active in terms of reading/writing.

Off

A flash device (ex. USB, SD, CF, etc) is connected on this port

Off

A flash device (ex. USB, SD, CF, etc) is disconnected on this port.

Off

An error occurred on this port.

Menu Navigation

The functions and settings that operate this unit are organized in a menu tree structure. The

user accesses the 4 buttons on the controller interface panel to navigate through the menu chart

and select the desired function or setting:

Menu/Option Scroll Up

Menu/Option Scroll Down

Enter into the Menu

Execute the Function

Submit the Setting change

Go back to the previous Menu

Abort the current Function

Cancel the Setting change

Example: Adjust the “Buzzer” setting in the “Setup” menu:

Step 1.Turn on the system by pressing the Power button.

After it has booted up, the main menu screen will

appear (root menu) that signifies the system is ready.

Step 2.Consecutively press the UP or DOWN arrow button

until “7.Setup”appears.

Step 3.Press the “ENT” button once to enter into the

“Setup”menu.

Step 4.Consecutively press the UP or DOWN arrow button

until “5.Buzzer” appears.

Step 5.Press the “ENT” button once to enter into the

“Buzzer”menu.

Step 6.Press the UP or DOWN arrow button to change the

option from “On” to “Off”

Step 7.Press the “ENT”button once to submit the setting

change. The menu will change back to the previous

menu, “7.Setup”.

Step 8.Press the “ESC” button once to go back to the

previous menu, the root menu.

DUPLICATOR U.14

1.Copy (Smart)

DUPLICATOR U.14

7.Setup

Setup

1.Language

Setup

5.Buzzer

Buzzer:

Off

Setup

5.Buzzer

DUPLICATOR U.14

7.Setup

Chapter 3: Basic Operations

Making Copies of a Flash Device

This process will copy a flash device (ex. USB, SD, CF, etc), inserted into the Source Port, onto

one or more target flash devices simultaneously.

There are two ways to make copies of a flash device (ex. USB, SD, CF, etc):

Smart Copy: This is the recommended and fastest approach to making copies since it

will scan the flash device and copy only the area that contains data.

RAW Copy: This is the safest and slowest approach to making copies since it will copy

the entire flash device bit by bit.

Note: Due to capacity variances among various brands of flash devices, it is advised that

the “Size Tolerance” setting be enabled under the “Setup” menu, to avoid unnecessary

errors. By enabling this setting, some data/empty spaces may not be copied. Please use

with caution.

The tutorial guide below demonstrates how to copy a Flash Device.

Step 1.

Power on the system by

pressing the Power button

Step 2.

After it has booted up, the

screen on the left should

appear signifying the system

is ready.

Press the “F1 Smart Copy”

button to initiate the copying

process.

DUPLICATOR U.14

1.Copy (Smart)

Target Detected: 01

Job will start in 30

Step 3.

Insert the original flash

device (ex. USB, SD, CF,

etc) (the drive to be

copied) into the Source

port.

Step 4. Insert empty target flash

devices (ex. USB, SD, CF,

etc) (the drive(s) to receive

data) into the other non-

Source ports.

Note: If the flash devices

inserted contain data, all data

on those devices will be erased

permanently. Please insert with

caution.

Step 5. Once the system detects

one or more empty flash

devices, the system will

countdown 30 seconds

prior to executing the Copy

process.

Any new devices detected will reset the countdown period.

If the system detects all the available ports have been occupied

or the “ENT” button is pressed, then the system will execute the

Copy process immediately.

The system will scan the

Source flash device and

proceed with the Copy

process immediately.

(Shown on the left)

Below explains the various items on the copy progress screen:

3820M, this indicates the amount of data to be copied.

3m44s, this indicates the time left for the copy operation.

14%, this indicates the progress of the copy operation.

Copying... 3820M

3m44s 14%

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Duplicadora de discos de Vinpower

Vinpower

Vinpower Daisy Chain Manual de usuario

Vinpower

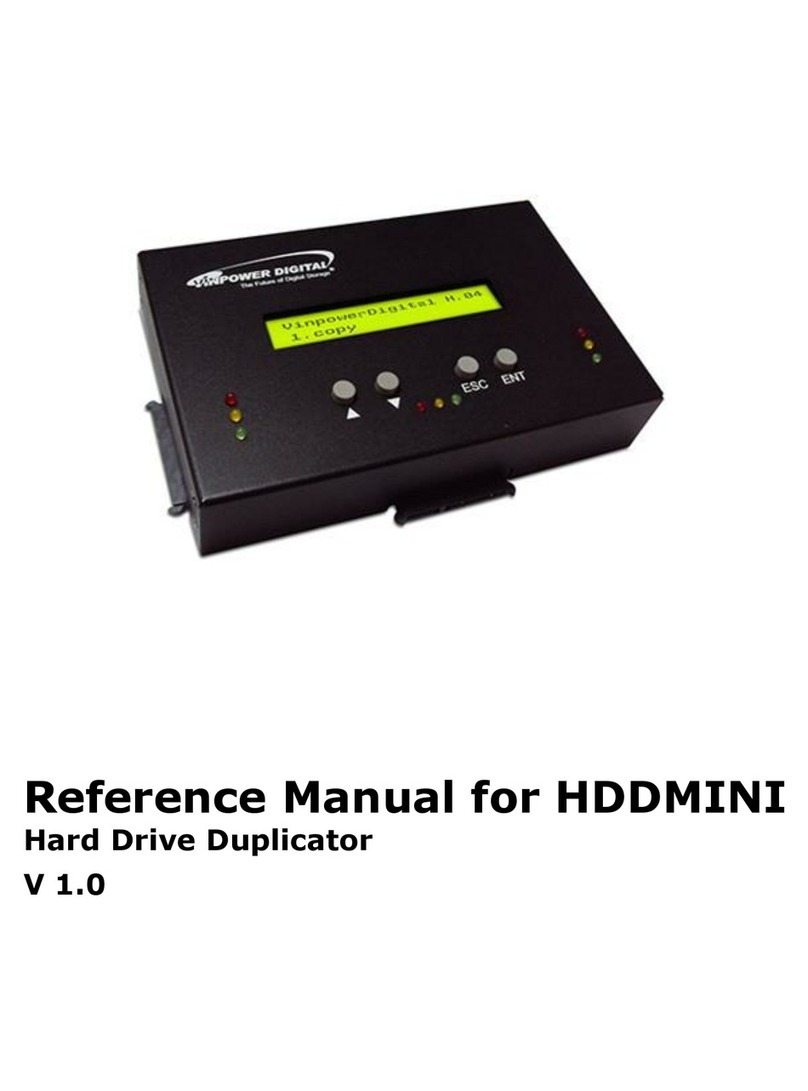

Vinpower HDDMINI Manual de usuario
