Operating instructions

for the system user

Heating system

with control unit for constant temperature or weather-

compensated mode

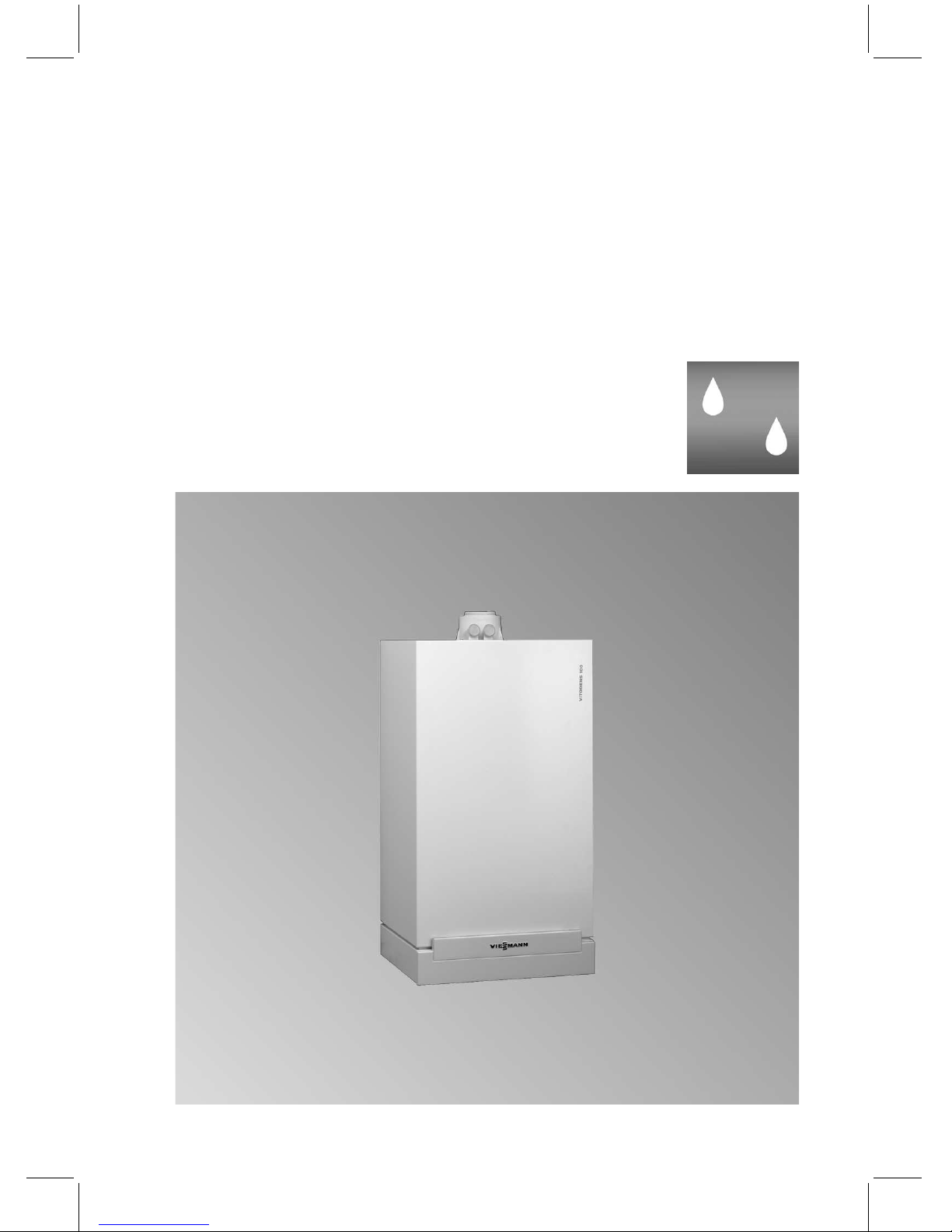

VITODENS 100-W

5592 584 GB 3/2008 Please keep safe.

Please follow these safety instructions closely to prevent accidents and

material losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and

environmental pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These operating instructions are for

the heating system user.

This unit is not designed to be used

by persons (including children) with

limited bodily, sensory or mental

capacities, or lacking experience and/

or lacking knowledge, unless they are

supervised by a person responsible

for their safety, or have received

instructions from such a person as to

how to use the unit.

!Please note

Children should be supervised.

Ensure that children do not

play with the unit.

Danger

Incorrectly executed work on

the heating system can lead to

life-threatening accidents.

&Work on gas appliances must

only be carried out by a

registered gas fitter.

&Work on electrical equipment

must only be carried out by a

qualified electrician.

If you smell gas

Danger

Escaping gas can lead to

explosions which may result in

serious injury.

&Do not smoke. Prevent

naked flames and sparks.

Never switch lights or electri-

cal appliances ON or OFF.

&Close the gas shut-off valve.

&Open windows and doors.

&Remove all people from the

danger zone.

&Notify your gas or electricity

supplier and your heating

contractor from outside the

building.

&Shut off the electricity supply

to the building from a safe

place (outside the building).

For your safety

Safety instructions

5592 584 GB

If you smell flue gas

Danger

Flue gas can lead to life-threa-

tening poisoning.

&Shut down the heating sys-

tem.

&Ventilate the boiler room.

&Close all doors in the living

space.

In case of fire

Danger

Fire creates the risk of burning

and explosions.

&Shut down the heating sys-

tem.

&Close the shut-off valves of

the fuel lines.

&Use a tested fire extin-

guisher, class ABC.

Boiler room requirements

!Please note

Incorrect ambient conditions

can lead to damage to the

heating system and put the

safe operation at risk.

&Ensure ambient tempera-

tures above 0 ºC and below

35 ºC.

&Prevent air contamination by

halogenated hydrocarbons

(e.g. as contained in paints,

solvents or cleaning fluids)

and excessive dust (e.g.

through grinding/polishing

work).

&Avoid continuously high

humidity levels (e.g. through

frequent drying of washing).

&Never close existing ventila-

tion apertures.

Ancillary components, spare and

wearing parts

!Please note

Components that are not

tested with the heating system

may lead to damage to the

heating system, or may affect

their various functions.

Installation or replacement

work must only be carried out

by qualified personnel.

For your safety (cont.)

Safety instructions

5592 584 GB

Introductory information

Commissioning........................................................................................... 5

Your system is preset at the factory ............................................................. 5

Where to find the controls

Summary of controls and indicators ............................................................ 6

&Opening the control unit ........................................................................... 6

&Control and display elements ................................................................... 6

&Indicators in the display ........................................................................... 7

Operating mode of the heating system ........................................................ 7

&Operation without room thermostat .......................................................... 7

&Operation with room thermostat ............................................................... 7

&Weather-compensated operation ............................................................. 8

Start-up/shutdown

Starting the heating system......................................................................... 9

Shutting down the heating system............................................................... 9

&Switching the Vitodens OFF with frost protection ...................................... 9

&Shutting down the heating system ............................................................ 10

Settings

Heating ...................................................................................................... 11

Domestic hot water ..................................................................................... 11

Starting the comfort function ...................................................................... 12

Displays

Heating water temperature.......................................................................... 13

What to do if...

System characteristics................................................................................ 14

Fault display ............................................................................................... 15

Maintenance

Cleaning..................................................................................................... 16

Inspection and maintenance ....................................................................... 16

Energy saving tips .................................................................................... 18

Keyword index .......................................................................................... 19

Index

5592 584 GB

The commissioning and matching up

of the control unit to local conditions

and the structural characteristics of

the building must be carried out by

your heating contractor.

As the user of new combustion equip-

ment, you may be obliged to notify

your local flue gas inspector of the

installation [check local regulations].

Your local flue gas inspector will also

inform you [where appropriate] about

work he may be required to perform

on your combustion equipment (e.g.

regular checks, cleaning).

gGas council no.

Rated output range

Gas fired condensing

boiler

Gas fired condensing

combi boiler

10 - 26 41-819-12 47-819-18

11 - 30 41-819-13 47-819-19

11 - 35 41-819-14 47-819-20

Your system is preset at the factory

The control unit is preset at the fac-

tory for standard operation.

Your heating system is therefore

ready for use. You may change the

factory settings in accordance with

individual requirements.

Commissioning

Introductory information

5592 584 GB

Opening the control unit

The controls and display elements are behind the hinged flap at the front.

Control and display elements

APressure gauge

BDisplay

Ctw "Water temperature " rotary

selector

Dtr "Heating water temperature"

rotary selector

EON/OFF switch

Summary of controls and indicators

Where to find the controls

5592 584 GB

Indicators in the display

AHeating operation

BDHW heating

CDisplay value or fault code

DTemperature in °C or °F (in con-

junction with the display value)

EService setting active (only for

contractors)

FComfort function started

GComfort function stopped

HCurrent burner output

KBurner in operation

LFault

Operating mode of the heating system

Operation without room thermostat

The required room temperature can

be set with the rotary selector "tr"

(see page 11).

Operation with room thermostat

Make any adjustments at the con-

nected room thermostat following the

relevant operating instructions.

Note

The heating water temperature at the

rotary selector "tr" must be set suf-

ficiently high for the required room

temperature to be reached.

Summary of controls and indicators (cont.)

Where to find the controls

5592 584 GB

Weather-compensated operation

In weather-compensated mode, the

boiler water temperature is regulated

subject to the outside temperature.

With the rotary selector "tr" you can

raise or lower the room temperature.

Operating mode of the heating system (cont.)

Where to find the controls

5592 584 GB

We recommend you contact your heating contractor if you are planning to start

up a heating system that has not been used for a long period.

1. Check the pressure of your heating

system on the pressure gauge.

Minimum system pressure 0.8

bar.

Notify your heating contractor if the

pressure of the system is too low.

2. Open the gas shut-off valve.

3. Switch ON/OFF switch ON.

Your heating system and room ther-

mostat (if connected) are now

ready for operation.

Shutting down the heating system

Switching the Vitodens OFF with frost protection

If you do not wish to use your boiler for several days you can switch it off. Not at

the fused spur.

Starting the heating system

Start-up/shutdown

5592 584 GB

Turn both rotary selectors to "0".

Frost protection is now active for the

boiler.

Note

Frost protection for the entire heating

system –see operating instructions

for the room temperature control unit.

Shutting down the heating system

Shut down your heating system completely if it will not be required for longer

periods (several months).

We recommend you contact your heating contractor if you plan to take your

heating system out of use for longer periods. Your heating contractor can then

take any necessary action, subject to requirements, e.g. frost protection or pre-

serving the heating surfaces.

1. Close the main gas shut-off valve

and safeguard against

unauthorised reopening.

2. Switch ON/OFF switch OFF.

The power to the system is now

switched off.

Note that the system is no longer

frost protected.

Shutting down the heating system (cont.)

Start-up/shutdown

5592 584 GB

Otros manuales para Vitodens 100-W

Tabla de contenidos

Otros manuales de Sistema de calefacción de Viessmann

Viessmann

Viessmann Divicon Manual de usuario

Viessmann

Viessmann VITOVENT 300 Manual de usuario

Viessmann

Viessmann Vitotronic 200 KW2 Manual de usuario

Viessmann

Viessmann Vitovalor PA2 Instrucciones de funcionamiento

Viessmann

Viessmann Vitotronic 200 Series Instrucciones de funcionamiento

Viessmann

Viessmann VITODENS Manual de usuario

Viessmann

Viessmann VITOVENT 300 Instrucciones de funcionamiento

Viessmann

Viessmann VITOCELL 300B Instrucciones de funcionamiento

Viessmann

Viessmann VITOCELL 300-H Guía de inicio rápido

Viessmann

Viessmann VITOBLOC 200 Manual de lista de piezas

Viessmann

Viessmann Vitocell 100-H Guía de inicio rápido

Viessmann

Viessmann VITODENS Manual de usuario

Viessmann

Viessmann VITODENS 200 WB2B Manual de usuario

Viessmann

Viessmann Vitocell 100-H Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 100-W Manual de usuario

Viessmann

Viessmann NC-Box Instrucciones de funcionamiento

Viessmann

Viessmann Vitocell 100-L Instrucciones de funcionamiento

Viessmann

Viessmann VITOTRONIC 300 Manual de usuario

Viessmann

Viessmann Vitodens 100-W Manual de usuario

Viessmann

Viessmann VITOTRONIC 200 Manual de usuario

Viessmann

Viessmann Vitodens 100-W Manual de usuario

Viessmann

Viessmann Solar-Divicon-HX Manual de usuario

Viessmann

Viessmann Vitodens 100-W Manual de usuario

Viessmann

Viessmann VITOCELL 100-W Instrucciones de funcionamiento

Manuales populares de Sistema de calefacción de otras marcas

aerauliqa

aerauliqa QR350ABP Manual de usuario

WatchGas

WatchGas ATEX BEACON Manual de usuario

Lampoassa

Lampoassa 203GT Manual de usuario

MSA

MSA SOA-1022 Manual de usuario

nilan

nilan Compact P Manual de usuario

ITR

ITR OASIS NE-S Manual de usuario

Carrier

Carrier 48LJD Dimensiones y guía de instalación

aldes

aldes EVEREST XV Manual de usuario

Kober

Kober C22SPV23MEF Manual de usuario

Oxygen

Oxygen X-Air V400 Manual de usuario

Carrier

Carrier FB4CNF Manual de usuario

Kroll

Kroll HM200 Manual

Kroll

Kroll HM200 Manual

NuAire

NuAire XBOXER XBC Series Manual de usuario

Trane

Trane VR104GD-U Series Manual de usuario

Vents

Vents VUT V mini Manual de usuario

Magnum Heating

Magnum Heating W-CONTROL Manual de usuario

Solar 3C

Solar 3C 3C382B Guía de solución de problemas
