Viessmann Solar-Divicon-HX Manual de usuario

Solar-Divicon Pumping

and Heat Transfer Stations

for Closed Loop Solar Systems

9443412 v1.0 09/2010

Solar-Divicon-HX

Solar-Divicon

Typical System Layouts

Solar-Divicon-HX Solar-Divicon

Pumping and heat transfer station for a closed loop solar circuit.

Incorporates a double-wall heat exchanger for transferring heat

to the domestic hot water (DHW) storage tank.

•Large double wall stainless steel heat exchanger with

visible leak detection

•Available in two sizes

•Pre-assembled and wired

•Includes 3-speed solar loop pump, 3-speed DHW

pump, double-wall heat exchanger and solar controller

Pumping station for a closed loop solar circuit connected to a

solar tank with an internal coil heat exchanger.

•Suitable for residential and commercial flow requirements

•Available in two sizes

•Pre-assembled and wired

•Includes 3-speed solar loop pump and 3-speed DHW pump

•Optional mounting bracket available for SCU solar controls

Solar-Divicon-HX

Solar heat is transferred

to solar tank via integrated

double wall heat exchanger

Integrated solar control

operates solar pump and

DHW pump

Uses any standard DHW

storage tank

DHW storage tank with upper

electric element creates

a “one tank” solar system

•

Solar heat is transferred

to internal heat exchanger

coil of solar tank

External solar control operates

solar pump

Uses Vitocell-V/B DHW

storage tank complete with

internal heat exchanger coil

Dual coil tank complete

with boiler back-up provide

a “one tank” solar system

Solar-Divicon

•

•Essential link between high-performance solar collectors

and the storage tank

•Two models available

•Pre-assembled with high-quality brass fittings and essential

safety devices

•Leak tested and fully-insulated

•Wall-mounted and compact

Ensure maximum system performance and reliability with

a Solar-Divicon Station from Viessmann. Choose from a full

range of Stations to satisfy a variety of solar applications.

New! New!

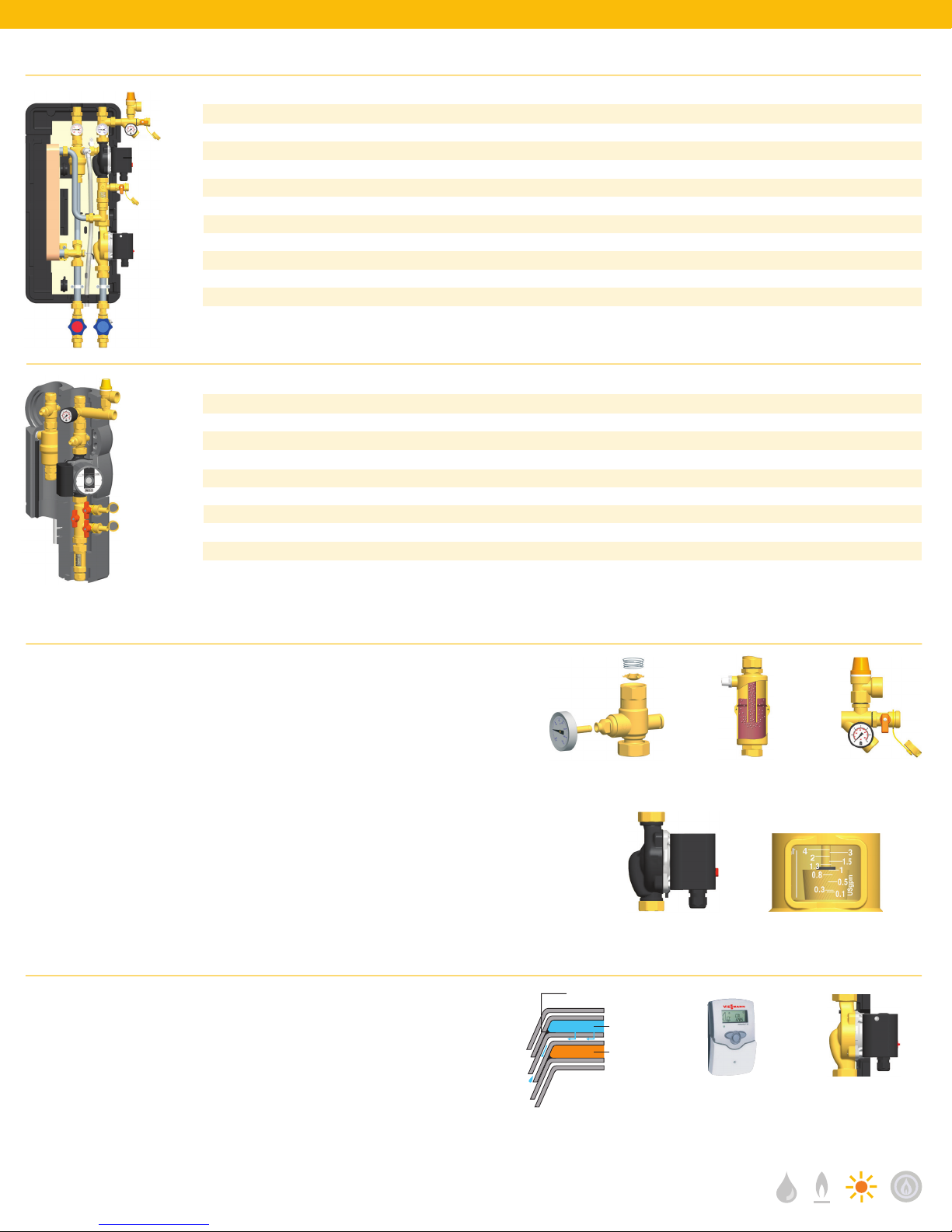

Technical Data

Common Components of Solar-Divicon-HX and Solar-Divicon

ww.v

essmann-us.com www.v

essmann.ca

DN 20

STAR S 16 U 15

0.5 to 5

1 to 20

87 / 6

248 / 120

180

USG/min

ltr/min

psig/bar

Degrees F/C

inches

STAR S 30 U 25

1 to 10

5 to 40

87 / 6

248 / 120

360

Solar-Divicon

Solar circulation pump (Wilo Model)

Flow meter (setting range)

Max. pressure

Max. operating temperature

Solar circuit connections

Max. number of Vitosol-F collectors*

Max. number of Vitosol-T tubes*

DN 25

Unique Components of Solar-Divicon-HX

Ball Valves equipped

with Check Valves

Solar Safety

Device

3-speed Bronze

DHW Pump

SCU 123

Control

•Supply and return lines contain solar ball valves equipped with

spring-charged check valves, and 0-320°F temperature gauges

•Air-scoop for manual bleeding of the heat transfer medium

•Solar safety device with high temperature 0-90 psig pressure gauge,

87 psig solar pressure relief valve and ¾” expansion tank connection

•3-speed solar pump for wide range of flow rates

•Flow meter for displaying and setting the flow rate

•Flush and fill connection ports with isolation valves

•High efficiency double wall stainless steel heat exchanger

with visible leak detection

•Integrated pre-wired control with 4 sensors and 2 relay outputs

•3-speed bronze pump for the secondary DHW tank loop

3-speed Solar Pump

DN 20

STAR S 21 U 15

STAR S 21 BU

0.1 to 4.0

1 to 15

87 / 6

150 / 10

248 / 120

150

DN 25

STAR S 30 U 25

STAR S 21 BU

0.1 to 6.0

1 to 23

87 / 6

150 / 10

248 / 120

270

USG/min

ltr/min

psig/bar

Degrees F/C

inches

Solar-Divicon-HX

Solar circulation pump (Wilo model)

DHW circulation pump (Wilo model)

Flow meter (setting range)

Max. solar loop pressure

Max. DHW tank loop pressure

Max. operating temperature

Solar and DHW circuit connections

Max. number of Vitosol-F collectors*

Max. number of Vitosol-T tubes*

* Actual number of collectors will depend on system layout, type of collector, length of piping run and size of pipe used.

Double Wall

Heat Exchanger

Brazing material

Fluid 1

Fluid 2

Air

Scoop

Flow Meter
