Installation and service instructions
for contractors
VIESMANN
EM-EA1 extension
Function extension
Safety instructions
Please follow these safety instructions
closely to prevent accidents and material
losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Installation, initial start-up, inspection, maintenance
and repairs must only be carried out by a competent
person (heating engineer/installation contractor).
Before working on the equipment/heating system, iso-
late the power supply (e.g. by removing a separate
mains fuse or by means of a mains isolator) and safe-
guard against unauthorised reconnection.
When using gas as fuel, also close the main gas shut-
off valve and safeguard against unauthorised reopen-
ing.
Repairing components which fulfil a safety function can
compromise the safe operation of your heating system.
For replacements, use only original spare parts sup-
plied or approved by Viessmann.
Application information
The functions that can be connected depend on the
settings made at the heat generator. See the service
instructions for the heat generator and/or control unit.
Only one function can be connected to each EM-EA1
extension.
Up to max. 3 EM-EA1 extensions can be connected to
a heat generator.
2
1.
Fig. 1
Electrical connections
jF jF [{][{][{] hH [{] fÖ
1234123456121212?
1??
fD
K1
S1
Fig. 2
DI1 Digital input 1
DI2 Digital input 2
DI3 Digital input 3
0 - 10 V IN 0 - 10 V input
0 - 10 V OUT 0 - 10 V output
PWM1 Control voltage output
S1 Rotary switch for codes
Z1 fD 230 V relay output with 230 V input
fÖ Power supply
fÖ A Power supply for additional accessories
hH Connection for fault message signalling
equipment (floating switching contact)
jF PlusBus
Mounting on the wall
6020379
3
Function Connections
DI1 DI2 DI3 PWM1 0 - 10 V
IN
0 - 10 V
OUT
66 Z1-1
IN
230 V
Z1-L
OUT
230 V
Flue gas damper
Output Z1-L opens flue gas damp-
er. Feedback contact from Z1-1
comes back from flue gas damper.
Burner control unit is enabled.
X X
230 V fault message input and
fault message output (potential-
free) without system blocking
Fault message input: If digital in-
put contact across Z1-L and Z1-1
is closed, fault message active.
Fault message output 66 active.
X X X
External safety valve LPG
Output Z1-L is active if burner
control unit opens the external
safety valve.
X
Operating mode changeover
Demand to all available heating
circuits as long as contact remains
closed. With set room tempera-
ture:
DI1 Reduced room temperature
DI2 Standard room temperature
DI3 Comfort room temperature
X X X
External demand, DHW circula-
tion pump
If input Z1-1 – Z1-L is closed, the
DHW circulation pump starts.
X X
Fault message input 24 V and
system blocking
If contact DI1 is closed, the burner
control unit is blocked. Output 66
is switched over. Fault message F.
104 appears.
X X
External safety valve LPG with
feedback
Output Z1-L is active if burner
control unit opens the external
safety valve. If feedback is re-
ceived from Z1-1 that the valve is
open, the burner control unit is en-
abled.
X X
Fault message input 230 V and
system blocking
If contact Z1-1 – Z1-L is closed,
the burner control unit is blocked.
Output 66 is switched over. Fault
message F.104 appears.
X X X
Electrical connections (cont.)
6020379
4
Function Connections
DI1 DI2 DI3 PWM1 0 - 10 V
IN
0 - 10 V
OUT
66 Z1-1
IN
230 V
Z1-L
OUT
230 V
External demand (digital)
If contact Z1-1 – Z1-L is closed, a
demand is sent to the heat gener-
ator according to an adjustable set
flow temperature (parameter
528.0).
X X
External blocking
If contact Z1-1 – Z1-L is closed,
the heat generator is blocked.
X X
!Please note
Electronic assemblies can be damaged by static
loads.
Before beginning work, touch an earthed object
such as heating or water pipes to discharge any
static.
Note
Apply strain relief to on-site cables.
Secure individual wires directly to each plug using
cable ties.
Blank off unnecessary knockouts with cable grommets
(not cut out).

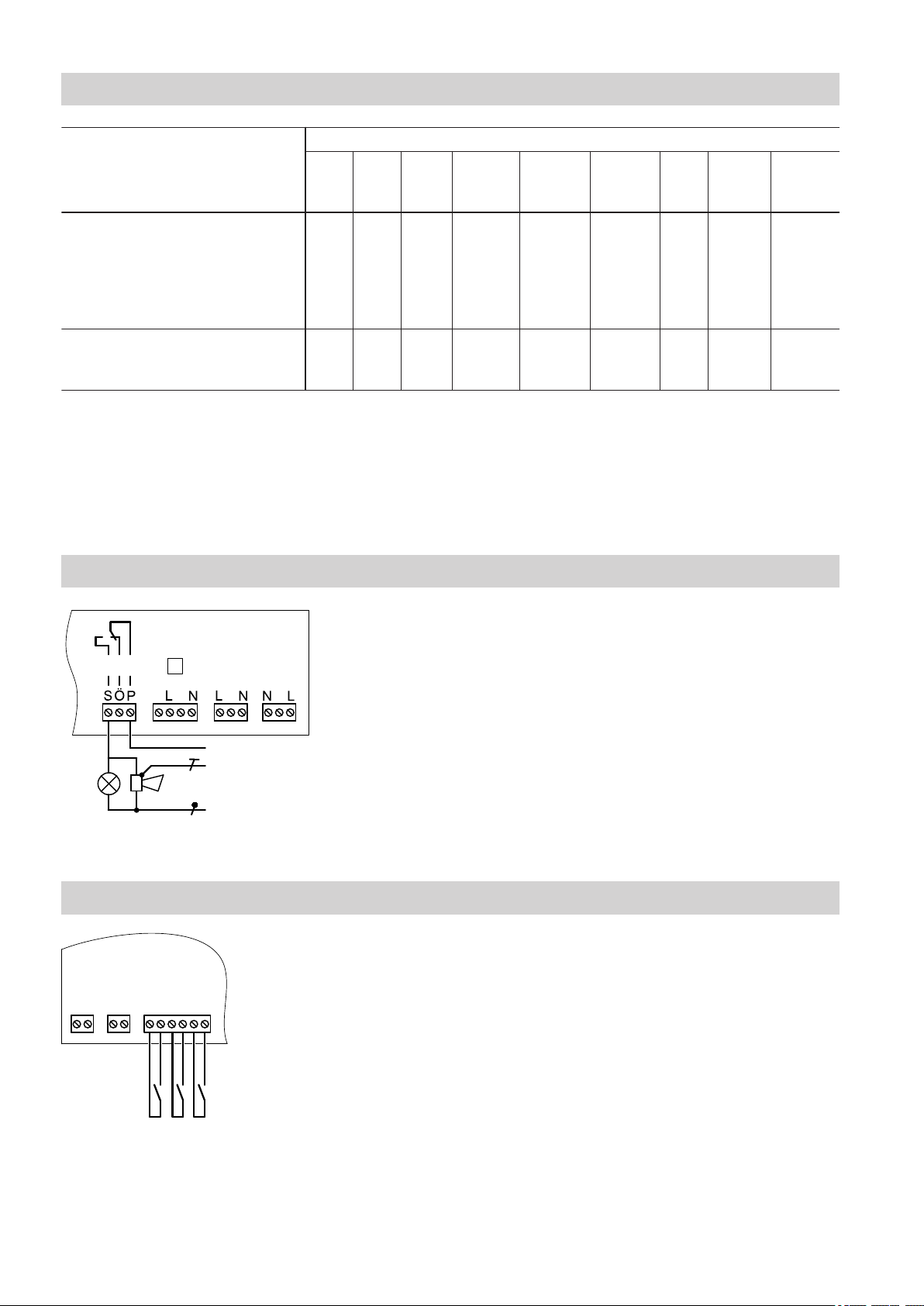

Connect fault message facility to output hH
? ?
fÖf-]
A
hH Z1
?
1
?
N
L
Fig. 3
Rated current max. 1 A~
Connecting a floating switching contact to digital inputs DI1 to DI3
jF jF [{][{][{]
DI1 DI2 DI3
1234123456
Fig. 4
Electrical connections (cont.)
6020379
5
[{] fÖ
?
1??
fD
M
1~
Fig. 5
[{] fÖ
?
1??
fD
M
1~
Fig. 6
Rotary switch S1
Fig. 7
Set rotary switch S1 to a consecutive number as
shown in the example below:
■1st extension EM-EA1: Rotary switch to 1
■2nd extension EM-EA1: Rotary switch to 2
■3rd extension EM-EA1: Rotary switch to 3
Note
These settings are independent of the settings made
at other extensions, such as EM-MX (mixer). If an EM-
EA1 extension is set to 1, an EM-MX extension can
also be set to 1.
Configuring functions
Configure the settings of the connected function during
commissioning using the heat generator's commission-
ing assistant.
Heat generator installation and service instruc-
tions
Connections at plug Z1
6020379
6
B
74
1 2
A
jF jF [{][{][{]
DI1 DI2 DI3
1234123456
Fig. 8
AExtension
BPlusBus to heat generator
Note
If making the connection to the heat generator with an
external plug for the bus connection, disconnect plug
jF and connect the wires directly.
Heat generator installation and service instruc-
tions
Power supply
Power supply at the heat generator control unit
L?NL
?
N
156
LN
Fig. 9
AExtension
fÖ Power supply
fÖAPower supply for further accessories
aBH Plug for power supply to accessories in the heat
generator control unit
Create the power supply connection.
Route the power cable to the heat generator control
unit and connect to plug aBH.
If power is supplied to a further accessory, use plug
fÖA provided
Heat generator installation and service instruc-
tions
Danger
Incorrect core assignment can result in serious
injury and damage to the appliance.
Take care not to interchange wires "L1" and "N".
Separate power supply
If the power supply for the extension is not made at
the heat generator control unit.
Danger
Incorrect electrical installations can lead to seri-
ous injury from electrical current and result in
appliance damage.
Connect the power supply and implement all
safety measures (e.g. RCD circuit) in accord-
ance with the following regulations:
■IEC 60364-4-41
■VDE regulations
■Technical connection requirements (TAB)
specified by the local grid operator
Connecting the PlusBus to the heat generator control unit
6020379
7
Danger
The absence of system component earthing can
lead to serious injury from electric current if an
electrical fault occurs.
The appliance and pipework must be connected
to the equipotential bonding of the building.
Isolators for non-earthed conductors
■The mains isolator (if installed) must simultaneously
isolate all non-earthed conductors from the mains
with a minimum contact separation of 3 mm.
■If no mains isolator is installed, all non-earthed con-
ductors must be isolated from the power supply by
the upstream circuit breaker with a minimum contact
separation of 3 mm.
L1
B
FE
D
D
N
C
A
40
Fig. 10
APower supply for extension
BPower supply for heat generator control unit
CPower supply 1/N/PE, 230 V/50 Hz
DFuse (max. 16 A)
EMains isolator, 2-pole, on site
FJunction box (on site)
Connect the power supply in accordance with the dia-
gram.
If the power supply to the appliance is connected with
a flexible cable, ensure that the live conductors are
pulled taut before the earth conductor in the event of
strain relief failure. The length of the earth conductor
wire will depend on the design.
Danger
Incorrect core assignment can result in serious
injury and damage to the appliance.
Never interchange cores "L" and "N".
!Please note
Incorrect phase sequence can cause damage to
the appliance.
Ensure phase equality with the power supply of
the heat generator control unit.
Colour coding to IEC 60757
BN Brown
BU Blue
GNYE Green/yellow
Power supply (cont.)
6020379
8
Fig. 11
DI1 Digital input 1
DI2 Digital input 2
DI3 Digital input 3
0 - 10 V IN 0 - 10 V input
0 - 10 V OUT 0 - 10 V output
PWM1 Control voltage output
S1 Rotary switch
Z1 230 V relay output with 230 V input
fÖ Power supply
fÖ A Power supply for additional accessories
hH Connection for fault message signalling
equipment (floating switching contact)
jF PlusBus
Parts list
The following details are required when ordering parts:
■Serial no. (see type plate)
■Position number of the part
Connection and wiring diagram
6020379
9
0015
0014
0002
00050004
0006
0013
A
Fig. 12
AType plate
Pos. Part
0002 Casing top
0004 Connecting cable fÖA
0005 PlusBus cable
0006 Plug set DIO
0013 Strain relief fittings
0014 Fuse 2.0 A (slow), 250 V~ (10 pce)
0015 Installation and service instructions
Parts list (cont.)
6020379
10
Rated voltage 230 V~
Rated frequency 50 Hz
Rated current 2 A
Power consumption 2 W
Power consumption 9 mA
Permissible ambient temperature
■During operation 0 to +40 °C
■During storage and transport –20 to +60 °C
Output for rated breaking capacity hH (floating) 1 A 230 V~
Rated breaking capacity of output Z1 1 A 230 V~
Declaration of Conformity
We, Viessmann Werke GmbH & Co. KG, D-35107
Allendorf, declare as sole responsible body that the
named product complies with the European directives
and supplementary national requirements in terms of
its design and operational characteristics.
Conformity has been verified with the CE designation.
Using the serial number, the full Declaration of Con-
formity can be found on the following website:
www.viessmann.co.uk/eu-conformity
Specification
6020379
Otros manuales para EM-EA1 extension
5
Tabla de contenidos
Otros manuales de Unidad de control de Viessmann
Viessmann
Viessmann 5096 Manual de usuario
Viessmann
Viessmann VITOTRONIC 300 Guía rápida
Viessmann
Viessmann VITOTRONIC 200 Instrucciones de funcionamiento
Viessmann
Viessmann EM-P1 Instrucciones de funcionamiento
Viessmann
Viessmann Vitovolt 300 Guía rápida
Viessmann
Viessmann VITOTRONIC 200 Guía rápida
Viessmann
Viessmann VITOSOLIC 100 Guía rápida
Viessmann
Viessmann PLC VITOCAL 350-HT PRO Instrucciones de funcionamiento
Viessmann
Viessmann 5066 Manual de usuario
Viessmann
Viessmann VITOSOLIC 100 Manual de usuario
Viessmann
Viessmann Vitotronic 300 GW6B Manual de usuario
Viessmann
Viessmann VITOTRONIC 200 Instrucciones de funcionamiento
Viessmann
Viessmann 5205 Manual de usuario
Viessmann
Viessmann VITOTRONIC 200 Guía rápida
Viessmann
Viessmann VITOSOLIC 100 Instrucciones de funcionamiento
Viessmann
Viessmann VITOSOLIC 100 Guía rápida
Viessmann
Viessmann SM1 Guía rápida
Viessmann
Viessmann LB1 Instrucciones de funcionamiento
Viessmann
Viessmann SCU 123 Manual de usuario
Viessmann
Viessmann BCU Manual de usuario
Manuales populares de Unidad de control de otras marcas
Festo
Festo Compact Performance CP-FB6-E Manual de lista de piezas
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manual de usuario
JS Automation
JS Automation MPC3034A Manual de usuario
JAUDT
JAUDT SW GII 6406 Series Guía rápida
Spektrum
Spektrum Air Module System Manual de usuario
BOC Edwards
BOC Edwards Q Series Manual de usuario
