Vicon IX 4000 L Manual de usuario
Installation&
O
p
eration Manual
IX 4000 L, IX 4000 H
Colour Camera
Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or
that the operation will be entirely error free or perform precisely as discribed in the documentation. This system has
not been designed to be used in life critical situations and must not be used for this purpose.
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and ist logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24- Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: vicon-cctv.com
-2-
Dear Customer!
By selecting this VICON product you have chosen a professional device which
guarantees highest possible quality and reliability. We like to thank you very much for
your confidence in our products and kindly ask you to read the following instructions
carefully before commissioning the product in order to be able to take full advantage
of all quality features regarding this product line.
Contents Page
General Information
¨Safety Precautions 3
¨Accessories and Additional Devices 3
Mounting the Camera
¨Mounting the Camera to a Wall Mount 4
Commissioning the Camera
¨Tips for Camera Location 5
¨Adjustment of Back Focus 6
¨Calibration of ES/DC- Lenses 6
¨Focusing the Camera Lens 7
¨Circuit points and operation 8
¨Remote Jack 9
¨Camera Configuration 10
Exhibit
¨Troubleshooting 16
¨Technical Specifications 17
¨Cleaning and Care 18
¨Technical Support 18
¨Shipping Instructions 19
GENERAL INFORMATION
-3-
General Information
Safety Precautions
*Read these instructions carefully before commissioning the camera in order to
avoid damages caused by improper installation or use.
*Installation may only be carried out by authorised personnel according to the local
safety regulations.
*Operate the camera with the designated voltage only.
*Follow the safety instructions attached to the camera.
*Never use the camera for other purposes than designated.
*Repairs and adjustments at the camera may only be carried out by authorised
personnel.
*In case of ourdoor use you have to install the camera in a suitable weather
protection case incl. heating element.
*If any liquid or solid matter should get into the housing, disconnect the camera
from power supply and have it checked by your authorised dealer before re-using
(danger of electronic shock!).
*Do not disassemble the camera. To avoid electric shocks, never remove screws or
covers. There are no user-serviceable parts inside it. All maintenance may only be
carried out by authorised personnel according to the local safety regulations.
Install the camera by a least height of 2.30 m.
Composition
1. Auto Iris Lens Plug
2. Remote Plug
3. L-Wrench
4. C-Mount Adapter
5. Instruction Manual
MOUNTING THE CAMERA
-4-
Mounting the Camera
Mounting the Camera to a Wall Mount
COMMISSIONING THE CAMERA
-5-
Commissioning the Camera
Tips for Camera Location
1.0 To avoid internal overheating:
-never expose the camera to direct sunlight without additional camera housing
-keep sufficient distance to direct heat sources.
2.0 Never install the camera at humid, oily or dusty locations without using an
additional housing. (without additional housing the camera is not suitable for
outdoor use!)
3.0 The camera should be installed out of reach (min. height: 2.30 m)
4.0Do not aim the camera towards indoor lighting, the windows, the sunlight or the
sky (to get good pictures, camera and light should be aimed towards the object)
5.0 Reduce the picture detail to the
essential parts of the picture and place
the camera as close as possible to the
object (a smaller picture detail
guarantees sharper details).
6.0 Do not aim the camera towards a
window but instead towards the room.
7.0 Outdoors the camera should be
placed as high as possible so that the
horizon does not appear in the picture.
8.0 Avoid peak light as background (also
caused by reflections, e.g. window
panes).
wrong right
COMMISSIONING THE CAMERA
-6-

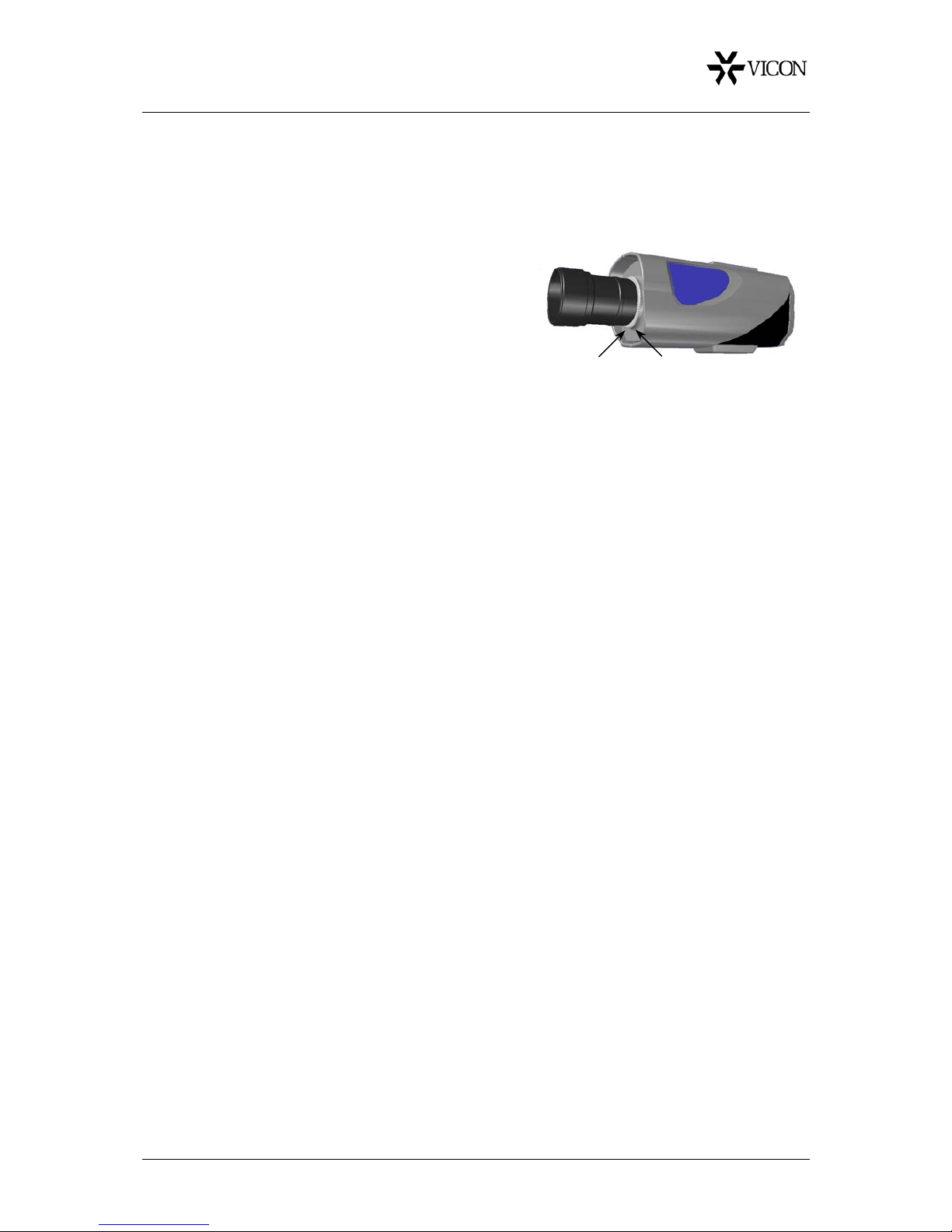

Adjustment of Back Focus
This adjustment should only be carried out, if the lens cannot be focused properly
using the lens focus ring. For such a case proceed as follows:
1 Loosen the Allan head screw with the
attached Allan head key. For large distances,
turn the focus ring of the lens almost (0.5 cm)
to the "endless" limit position. If you need to
focus an object near the camera, turn the
focus ring of the lens to a position 1cm before
the "near" limit position.
2 Use the back focus adjustment screw to adjust the distance between lens and
CCD chip until the picture is in focus. Then fix the Allan head screw using the Allan
head key.
3 Finally, focus the picture using the lens focus ring.
Adjustment of ES / DC Lenses
To adjust a lens with automatic iris (DC driven or video driven) to the camera, please
proceed as follows:
1. Turn the level potentiometer (position: ES lenses at the lens itself, DC lenses: at
the camera) to the max. position H (turn right). The monitor picture then
appears to be too bright.
2. Slowly turn the level potentiometer back until the monitor picture appears to be
perfect and is not too bright anymore. Then turn the potentiometer back to the
right (in direction "H") just a little bit.
3. Check the lens performance by using the camera under different and/or changing
light conditions.
Locking screws
COMMISSIONING THE CAMERA
-7-
Focusing the Camera Lens
After you have selected the correct picture detail you have to adjust the lens focus.
The focus adjustment needs to be done with the iris fully open, since the camera has
the smallest depth of focus in this position. If the focus adjustment was not done with
the iris completely open, the picture would be sharp during the day but slowly getting
out of focus the more the light disappears. To fully open the lens, use a grey filter in
front of the lens, provided you are using a lens with automatic iris. Adjust the focus
while the iris is fully open using the lens focus ring. Make sure the most important
picture details are in optimum focus (use a service monitor). If it is not possible to
bring the picture into focus, please adjust the back focus of the camera as described
above.
If you intend to use I.R. illumination at a later stage, you must use an I.R. pass filter
together with the grey filter during focus adjustment to ensure that only I.R. light will
get through to the camera chip and the focus adjustment is done according to this
spectrum, only. Attention: I.R. light can only be used in combination with mono
cameras, not colour cameras!
COMMISSIONING THE CAMERA
-8-
Circuit points and operation
A
ttention:
This camera comes with a four times electronic zoom. With the buttons Ý(Tele) and
ß(Wide) you can operate the zoom function. With activated WDR function the
electronic zoom is not possible!
1. Lens connector
2. Menu buttons
1
2
DC - Lens
1. Controll -
2. Controll +
3. Drive+
4. Masse
COMMISSIONING THE CAMERA
-9-
Rear View
Remote Jack
PC Interface
Belegung:
1. Frame GND
2. RD
3. TD
4. DTR
5. Signal GND
6. DSR
7. RTS
8. CTS
9. RI
RS 232/ RS 485 Converter
RS 232C PC Connector
Control
V-Phase
ELC
DC
ELC
DC
V-Phase
Control
AC 24V/ DC12V FG
Rear View IX 4000H Rear View IX 4000L
1
2
3
4
5
1. Auto Shutter / DC Lens
2. LL Phasen adjust
3. Control (Remote) Connector
4. Video Out
5. Power input
COMMISSIONING THE CAMERA
-10-
Camera Configuration
Menu:
CAMERA ID 000 ~ 255
ZONE LABEL SET
NEGA/POSI POSITIV / NEGATIV
SHARPNESS 0 ~ 15
MIRROR NORMAL, MIRROR, VERTIKAL, ROTATE
FREEZE ON, OFF
INITIAL ON, OFF
GENERAL
EXIT
WB MODE AUTO, HOLD, USER
RED CONT NOT USE (AUTO, HOLD), 1 ~ 255 USER
BLUE CONT NOT USE (AUTO, HOLD), 1 ~ 255 USER
PUSH AUTO NOT USE (AUTO, USER), OFF PUSH (HOLD)
INITIAL ON, OFF
AWB
EXIT
BRIGHTNESS 0 ~ 60
FLICKERLESS ON (PAL 1/100, NTSC 1/120)
SHUTTER SPD 1/250,1/500,1/1000,/1/2000,1/4000,1/10000
AGC MAX SET AGC OFF, LOW, MID, HIGH
MAX FLD SET OFF,2~20FLD,40FLD,80FLD,160FLD
INITIAL ON, OFF
AE
EXIT
D/N MODE AUTO, DAY, NIGHT, EXT
LEVEL 0 ~ 200
FILTER DLY 0 ~ 15 SEC
INITIAL ON, OFF
D&N
EXIT
WDR MODE ON, OFF
WDR LEVEL 0 ~ 15
BACK LIGHT ON, OFF
BLC LEVEL 0 ~15
INITIAL ON, OFF
WDR
EXIT
AREA 1 ~ 4
MASK ON, OFF
START X
END X
START Y
END Y
INITIAL ON, OFF
PRIVACY
EXIT
CAMERA ID ON, OFF
ZONE LABEL ON, OFF
VERSION
DISPLAY
INITIAL ON, OFF
INITIAL OFF STATE
EXIT
