VESTEL RN 425S Manual de usuario

VESTEL REFRIGERATOR

SERVICE MANUEL CODE : 52000615

VESTEL CUSTOMER PRODUCT

MODEL : MODEL : CUSTOMER : CODE:

VESTEL WHITE GOODS

CUSTOMER SUPPORT

SERVICE MANUAL

RN 425S SMP 420.05 FRANCE / VESTEL FRANCE / STARFROST 10600044

Printed Date : 24 / 04 / 2004 Document No : 52000615

CONTENTS PAGE

1. ASSEMBLE & DISASSEMBLE

* Changing the door swing direction 1-3

* Changing the freezer door swing direction 4

* Changing the thermostat 5

* Thermostat knob 5

3. REFRIGERANT CYCLE DIAGRAM 6

4. COMPRESSOR AREA VIEW 7

5. CIRCUIT DIAGRAM 7

6. INTERIOR PARTS 8

7. INTERIOR PARTS LIST 9-10

8. DOOR ASSY. PARTS 11

9. DOOR ASSY. PARTS LIST 12

10. UNIT PARTS 13

11.UNIT PARTS LIST 14

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

VESTEL WHITE GOODS CUSTOMER

SUPPORT

APRIL

2004

ASSEMBLE & DISASSEMBLE

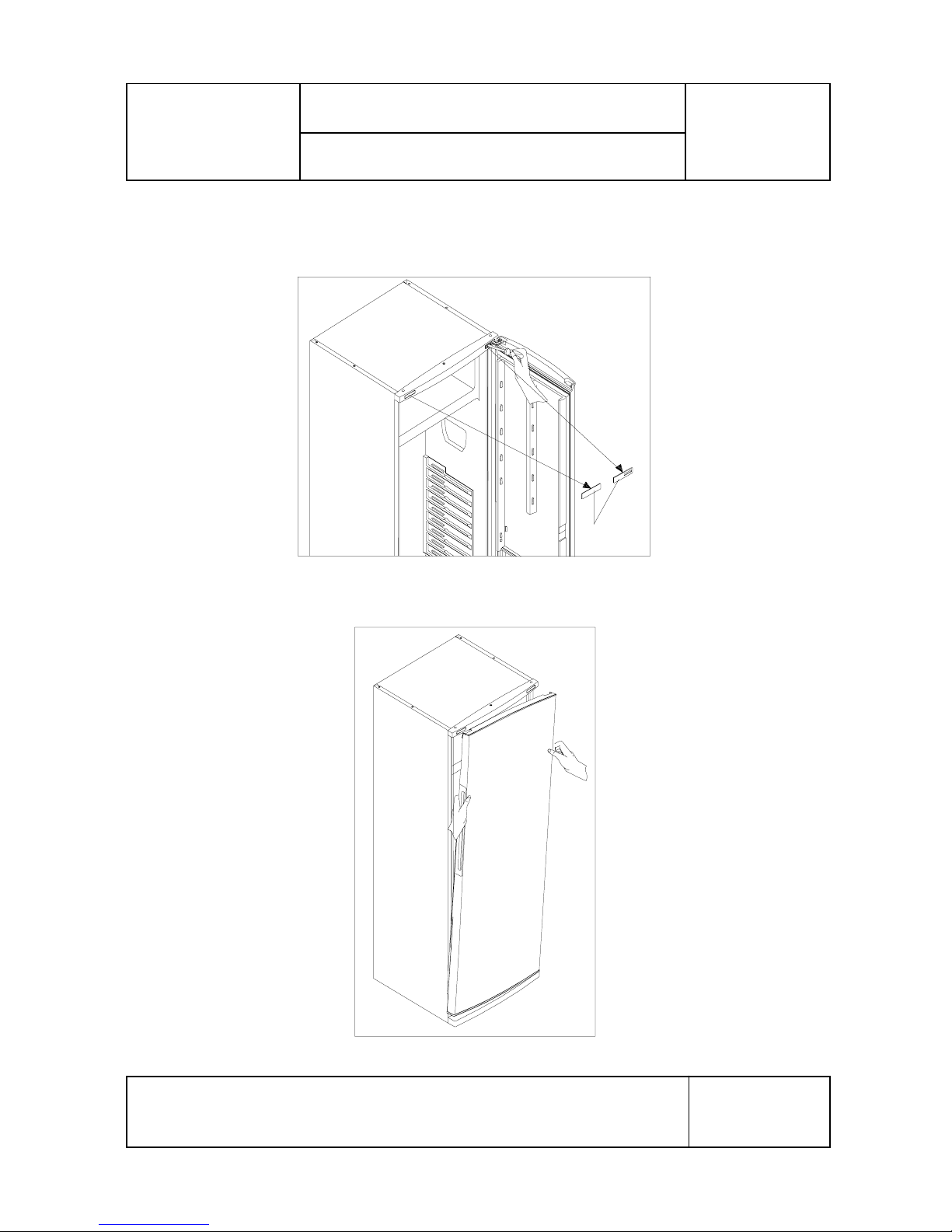

Figure - 1

Figure - 2

A- Changing The Door Swing Direction :

1- Remove the head panel hinge covers and unscrew the two screws fixing the top

hinge and remove it. (FIG-1)

2- Dismantle the door from bottom hinge by pulling the door upwards. (FIG-2)

Hinge covers

VESTEL

WHITE GOODS

APRIL

2004

VESTEL WHITE GOODS CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

ASSEMBLE & DISASSEMBLE

Figure - 3

3- Remove the kick plate by pulling forward. Unscrew the bottom hinge fixing screws

and remove it. Unscrew the pin of bottom hinge from Hole 1, rotate the bottom hinge

900and screw the pin to Hole 2. Dismantle stationary foot of bottom hinge from Hole 3

and screw the stationary foot to Hole 4. (See Detail A) Then remove the stationary foot

from the left side and assemble it to the right side. Screw the hinge to bottom left side

of the cabinet. (FIG-3)

Screw

Kick Plate

Hole 4

Hole 1 Hole 2

Stationary

Foot

Hole 3

Detail A

Bottom

Hinge

Figure - 4

Turn the

top hinge

180°

4- Unscrew the pin of the top hinge. Turn the top hinge by 1800then screw the pin of

the top hinge. (FIG-4)

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

VESTEL WHITE GOODS CUSTOMER

SUPPORT

APRIL

2004

ASSEMBLE & DISASSEMBLE

Figure - 5

5- Remove the top bushing and insert it into left side hole. (FIG-5)

Remove the bottom bushing and bottom stopper and reassemble them to the

left side. (FIG-5)

6- Assemble the door by repeating the reverse operation of items 1 and 2.

( Screw the top hinge to left hand side. ) Fix the hinge covers by replacing the right and

left one. Finally, by using a knife cut left side of the kick plate and assemble it.

VESTEL

WHITE GOODS

APRIL

2004

VESTEL WHITE GOODS CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

ASSEMBLE & DISASSEMBLE

1. Remove the freezer door hinge cover. (FIG-1) Unscrew the two screws fixing the

freezer door hinge and remove the freezer door (FIG-2)

2. Unscrew the one screw fixing the freezer door holder and remove it. Then screw it

to the right side. Remove the two small caps on the left side and insert them to right

side as shown in the figure. (FIG-3) Assemble the freezer door and fix the freezer

door hinge by tighting the screws. (Reverse operation of item 1) (FIG-4) Finally,

insert the freezer door hinge cover.

Freezer Door

Holder

insert the two

small caps

Figure - 1 Figure - 2

Figure - 3 Figure - 4

Changing The Freezer Door Swing Direction :

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

VESTEL WHITE GOODS CUSTOMER

SUPPORT

APRIL

2004

ASSEMBLE & DISASSEMBLE

B - Changing The Thermostat :

1) Remove the lamp cover and unscrew the fixing screw.

2) Remove the thermostat box by pulling it and disconnecting the cable terminals.

3) Remove the thermostat knob by pulling forward. Loosen the nut which is fixing the thermostat.

4) Pull out the thermostat bulb from the housing.

5) Replace the thermostat with a new one and assemble the thermostat box following the steps

backwards.

C - Thermostat Knob

vThis knob is used to control the temperature of the freezer and refrigerator parts automatically. It can

be set to any value between “0“ and “5“positions.

v“ 0 ” position indicates that the thermostat is “off ”.The refrigerator is “off ” on this setting.

vBy turning the knob between “1” and “5”, you can increase or decrease the cooling degree.

vThe refrigerator is designed to get optimum performance when the thermostat knob is set between

position “2” to “4”.

VESTEL

WHITE GOODS

APRIL

2004

VESTEL WHITE GOODS CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

REFRIGERANT CYCLE DIAGRAM

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

VESTEL WHITE GOODS CUSTOMER

SUPPORT

APRIL

2004

COMPRESSOR AREA VIEW & CIRCUIT DIAGRAM

COMPRESSOR AREA VIEW

CIRCUIT DIAGRAM

VESTEL

WHITE GOODS

APRIL

2004

VESTEL WHITE GOODS CUSTOMER

SUPPORT

VESTEL REFRIGERATOR

Printed Date : 24 / 04 / 2004 Document No : 52000615

INTERIOR PARTS

192021

23 24 25 26

4344

4647

4849505152
