VESTEL REFRIGERATOR

SERVICE MANUAL

TECHNICAL DEPARTMENT WHITE GOODS TECHNICAL DOCUMENT : 50024371

VESTELMODEL: MODEL: CODE :

RT 260S RD 26T ( GREECE / CARAD ) 10010452

VESTEL WHITE GOODS

CONSUMER SERVICE

CONTENTS PAGE

1. SPECIFICATIONS 1-2

2. ASSEMBLE & DISASSEMBLE

A - Changing the doorway direction to right hand 3-5

B - Changing the thermostat 6

C - Thermostat knob 6

3. REFRIGERANT CYCLE DIAGRAM 7

4. MACHINE ROOM VIEW 8

5. CIRCUIT DIAGRAM 8

6. INTERIOR PARTS 9

7. INTERIOR PARTS LIST 10

8. DOOR ASSY. PARTS 11

9. DOOR ASSY. PARTS LIST 12

10. UNIT PARTS 13

11. UNIT PARTS LIST 14

Printed Date : 21 / 12 / 2001 Document No : 50024371

VESTEL

WHITE GOODS CONSUMER SERVICE

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

TECHNICAL

DEPARTMENT

Printed Date : 21 / 12 / 2001 Document No : 50024371

DECEMBER

2001

SPECIFICATIONS

MAIN SPECIFICATIONS

RD 26T

CLIMATE T

DOOR COLOUR WHITE

DOOR 2 SIDE AVAILABLE

DOOR INSULATION CYCLOPENTAN

INSULATION CYCLOPENTAN

LEVELLING FOOT 2

REFRIGERATOR GASKET WHITE

FREEZER GASKET WHITE

ELECTRICAL SPECIFICATIONS

RD 26T

VOLTAGE/FREQUENCY 220-240 V / 50Hz

POWER OUTPUT 230 W

LAMP TYPE E14

POWER CONSUMPTION 1.09 kWh/24h

CURRENT 0.8A

REFRIGERANT R 134a

REFRIGERANT CHARGE 130 gr

ENERGY CLASS B

COMPRESSOR

RD 26T

COMPRESSOR TYPE BPM1111Z(220-240V,50Hz)

RELAY

RD 26T

RELAY TYPE 1260001 (V230)

THERMIC TYPE T0062/26

TEMPERATURE CONTROL&DEFROST

RD 26T

CAPILLARY LENGTH 0.66x3400 mm

DEFROST TYPE Semi Automatic

VESTEL

WHITE GOODS DECEMBER

2001

VESTEL

WHITE GOODS CONSUMER SERVICE TECHNICAL

DEPARTMENT

VESTEL REFRIGERATOR

Printed Date : 21 / 12 / 2001 Document No : 50024371

SPECIFICATIONS

TEMPERATURE CONTROL MAXIMUM (COLD)

RD 26T

+ 3.5 C

OFF

- 29 C

TEMPERATURE CONTROL MINIMUM (WARM)

RD 26T

+ 3.5 C

OFF

- 16.7 C

DIMENSIONS

RD 26T

REFRIGERATOR VOLUME GROSS (l)

198

FREEZER VOLUME GROSS (l)

REFRIGERATOR VOLUME NET (l)

195

FREEZER VOLUME NET (l)

WEIGHT (kg)

45.4

HEIGHT (mm)

1440

DEPTH (mm)

600

WIDTH (mm)

540

PACKAGED DIMENSIONS

RD 26T

WEIGHT (kg)

48.4

HEIGHT (mm)

1495

DEPTH (mm)

632

WIDTH (mm)

575

FREEZER ACCESSORY

RD 26T

ICE SCRAPER

ICE TRAY

SHELF

REFRIGERATOR ACCESSORY

RD 26T

CRISPER

CRISPER COVER

SHELF

TUNNEL DRAIN PLUG

DOOR ACCESSORY

RD 26T

SHELF

SHELF SECTION

SHELF COVER

BOTTLE HOLDER WIRE

EGG HOLDER

VESTEL

WHITE GOODS CONSUMER SERVICE

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

TECHNICAL

DEPARTMENT

Printed Date : 21 / 12 / 2001 Document No : 50024371

DECEMBER

2001

ASSEMBLE & DISASSEMBLE

2- Remove two doors by pulling towards to you with the middle hinge. (FIG-2)

A- Changing The Doorway Direction to Right Hand

1- Unscrew the two screws which are fixing the middle hinge and remove two big

taps and one small tap. (FIG-1)

Unscrew the two

hinge screw.

Remove two big taps

and one small tap.

Pull the doors towards to

you with middle hinge.

Figure - 1

3- Dismantle both levelling feet and loosen two screws,which are fixing the bottom

hinge and dismantle the bottom hinge. (FIG-3)

Unscrew and remove the two

levelling foot and the bottom hinge.

Figure - 2

Figure - 3

VESTEL

WHITE GOODS DECEMBER

2001

VESTEL

WHITE GOODS CONSUMER SERVICE TECHNICAL

DEPARTMENT

VESTEL REFRIGERATOR

Printed Date : 21 / 12 / 2001 Document No : 50024371

ASSEMBLE & DISASSEMBLE

A- Changing The Doorway Direction to Right Hand

4- Then change the placement of bottom hinge pin as shown below.Unscrew the

hinge pin and screw in the next hole. (FIG-4)

Figure - 4

5- Place the two big taps and one small tap as shown in the figure. (FIG-5)

Figure - 5

Detail-B

Detail-A

Plug the two big taps

andonesmalltaphere.

6- Break this ear and cut circular hole.(FIG-6/Detail-A)

Unscrew and remove the tap hinge pin and screw on the top hinge on the left side.

(FIG-6/Detail-B)

Figure - 6

DETAIL-A

DETAIL-B

VESTEL

WHITE GOODS CONSUMER SERVICE

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

TECHNICAL

DEPARTMENT

Printed Date : 21 / 12 / 2001 Document No : 50024371

DECEMBER

2001

ASSEMBLE & DISASSEMBLE

A- Changing The Doorway Direction to Right Hand

7- Replace the bushing with the bushing cap on top of refrigerator door. Change the

placement of bushing on the bottom of the refrigerator door. (FIG-7)

Replace the bushing with the bushing cap on top of freezer door. Change the place-

ment of bushing on the bottom of the freezer door. (FIG-8)

Figure - 7

Figure - 8

8- Turn the middle hinge 180 clockwise direction. And then assemble with the two

doors.Finally screw it on the left holes with two screws. (FIG-9)

Turn the middle hinge

180° clockwise direction.

Figure - 9

VESTEL

WHITE GOODS DECEMBER

2001

VESTEL

WHITE GOODS CONSUMER SERVICE TECHNICAL

DEPARTMENT

VESTEL REFRIGERATOR

Printed Date : 21 / 12 / 2001 Document No : 50024371

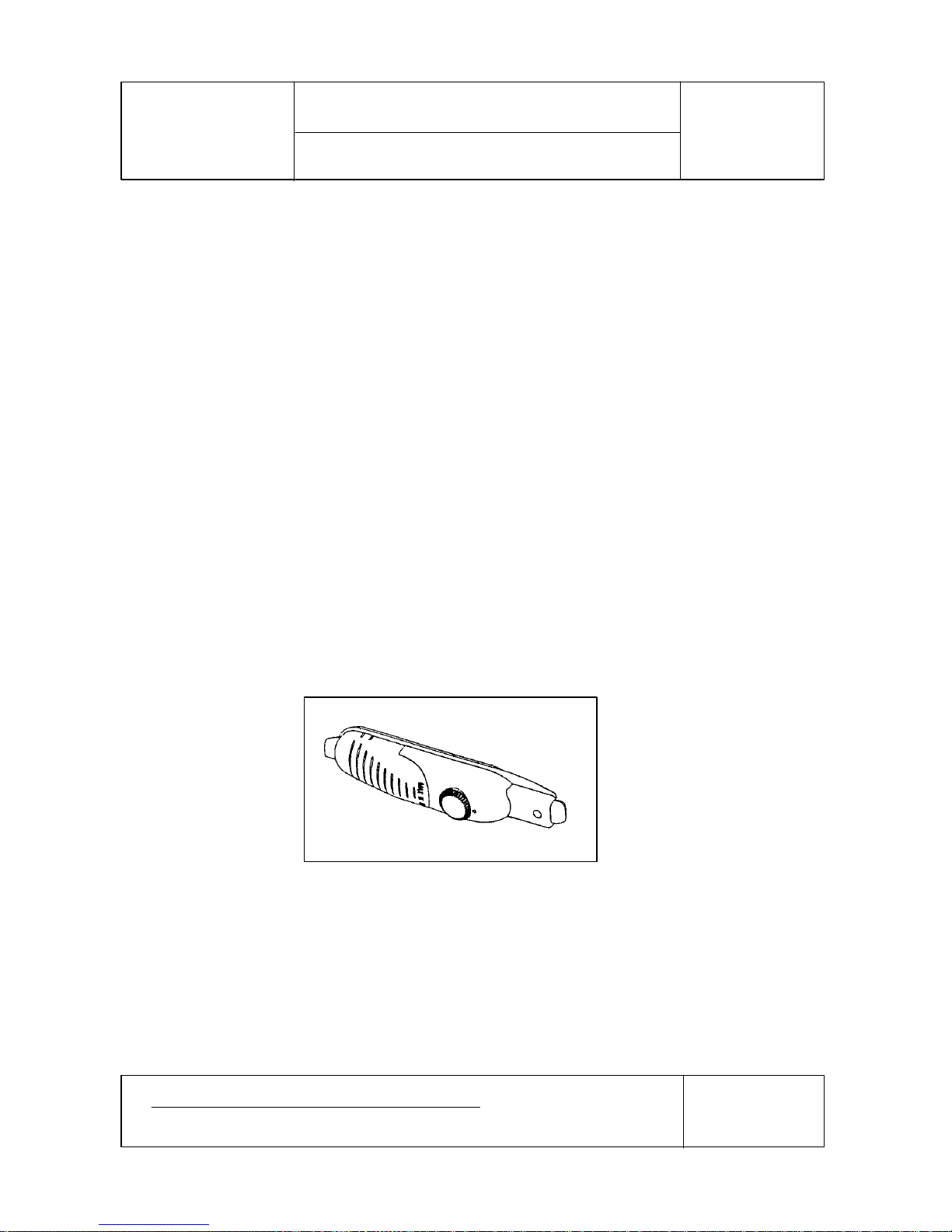

Thermostat Knob

vThis knob is used to control the temperature of the freezer and refrigerator automatically. It can be set

to any value between the min and max positions.

v0 position indicates that the thermostat is off and so in this position no cooling is done.

vBy turning the knob from min to max you can increase the cooling degree.

vThe refrigerator is designed to get optimum perforformance when the thermostat knob is set in the

middle position (between min and max).

ASSEMBLE & DISASSEMBLE

1) Take off the lamp cover and unscrew the fixing screw.

2) Take off screw cap and unscrew the fixing screw.

3) Take off the thermostat box by pulling and take off the wire connector.

4) Pull out the thermostat bulb from the cabinet.

5) Take off the thermostat knob pulling forward. Loosen the nut fixing the thermostat.

6) Replace the thermostat and assemble the thermostat box following the steps backwards. Be

carefull to first mount the thermostat box to the cavity properly.

Changing the thermostat

VESTEL

WHITE GOODS CONSUMER SERVICE

VESTEL

WHITE GOODS

VESTEL REFRIGERATOR

TECHNICAL

DEPARTMENT

Printed Date : 21 / 12 / 2001 Document No : 50024371

DECEMBER

2001

REFRIGERANT CYCLE DIAGRAM

VESTEL

WHITE GOODS DECEMBER

2001

VESTEL

WHITE GOODS CONSUMER SERVICE TECHNICAL

DEPARTMENT

VESTEL REFRIGERATOR

Printed Date : 21 / 12 / 2001 Document No : 50024371

CIRCUIT DIAGRAM

MACHINE ROOM VIEW / CIRCUIT DIAGRAM

MACHINE ROOM VIEW
