Vertiv Cybex SC 840D Manual de usuario

590-1485-501A

VERTIV™ CYBEX™ SC 840D/845D

AND 940D/945D KVM SWITCHES

Quick Installation Guide for 4-Port DisplayPort

The following instructions will help

you install your Vertiv™ Cybex™SC

840D/940D/845D/945D switch.

WARNING: This product is equipped

with active intrusion protection. Tamper-

ing may permanently disable the switch

and void the warranty. If the enclosure

appears to have been tampered with or

if all the port LEDs ash continuously,

please contact Technical Support. This

product also has tamper evident seals.

Broken or removed seals will void the

warranty.

1. Connecting local peripherals

Turn o all computers you

plan to use with your SC

840D/940D/845D/945D switching

system. Plug the monitor cable

into the appropriate CONSOLE

port on the back of the switch.

Plug the USB or PS/2 keyboard

and mouse cables, speaker or

headset cable and Common

Access Card (CAC) device into the

appropriate ports.

2. Turning on your system

Turn the monitor on. Plug the

power supply cord into the switch.

Plug the other end of the power

supply cord into an AC wall outlet.

The display diagnostic LED should

be solid green a few seconds after

power is applied. This indicates the

display EDID information has been

captured and secured.

3. Connecting computers to the

switch

Make sure all computers are turned

o. Plug the monitor, speaker,

keyboard and mouse cables from

the corresponding computer into

one of the ports on the switch.

Repeat for all computers.

NOTE: The cables must be

connected directly to a free USB

port on your computer with no USB

hubs or other devices in between.

4. CAC device conguration

and operation (applies to SC

845D and SC 945D models

only)

Using a USB cable, connect one

end of the cable to the computer

that requires CAC, and the other

end to the CAC port on the

switch that corresponds to the

computer. Enable CAC for the

port connection by switching the

CAC switch to the right. Repeat

the previous steps for additional

computers that require CAC.

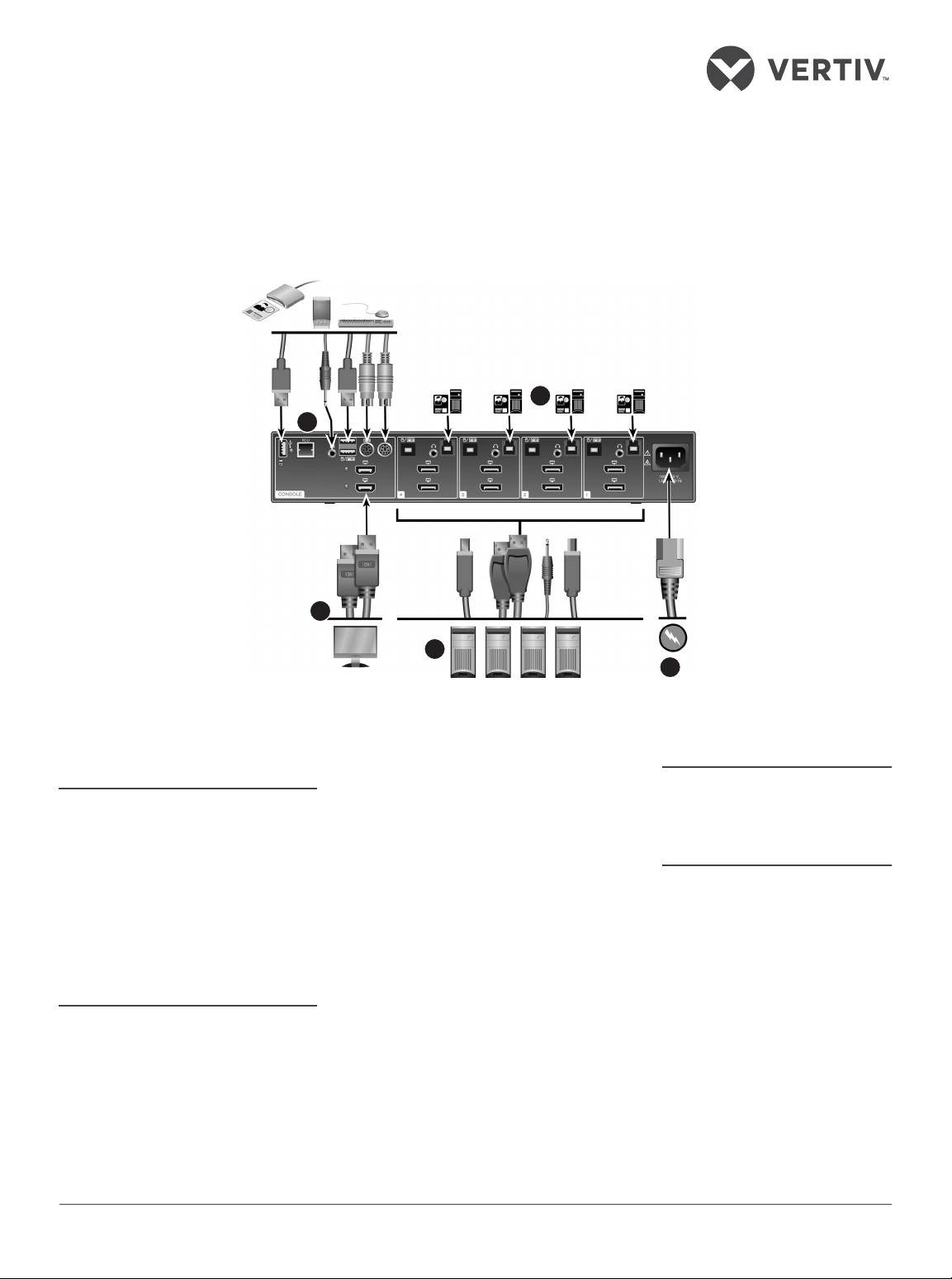

Vertiv™ Cybex™ SC 945D Switch Shown

VertivCo.com |Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA

registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all

liability, for damages resulting from use of this information or for any errors or omissions. Specications are subject to change without notice.

590-1485-501A

VERTIV™ CYBEX™ SC 840D/845D AND 940D/945D KVM SWITCHES

Quick Installation Guide for 4-Port DisplayPort

NOTE:Make sure that the CAC

switch is disabled (switched left)

for all other non-connected CAC

systems.

Once congured, the CAC

connection will be switched only

when required by the connected

computer. When switching from a

CAC enabled port to a non-CAC

enabled port, the CAC connection

will remain with the last previously

selected port where the CAC was

enabled.

5. Turning on the computers

Turn on all the attached

computers and check for display

and peripheral functionality.

6. Switching your computers

When you turn on your computers,

the computer connected to the

front panel will be displayed.

Press the corresponding front

panel button (1 through 4) on the

switch to access the computers

on your SC switching system. The

front panel button of the selected

computer will illuminate.

Supported Hardware

The SC switches support most DVI,

HDMI, VGA monitors and video cards

(with adaptors), headsets, speakers,

USB and PS/2 keyboards and USB

mice.

Environmental

Operating temperature is 32° to 104° F

(0° to 40° C).

Storage temperature is -4° to 140° F

(-20° to 60° C).

Humidity requirements are 0-80%

relative humidity, non-condensing.

MECHANICAL

Approximate Dimensions

W x D x H

: 13.5 x 5 x 2.2 inches

(

342 x 125 x 56.6 mm)

Weight: 4 lbs (1.85 kg)

Supported Resolution

Supports 4K HDMI resolutions at 30

Hertz.

Cables

Users can choose from 6 ft. or 10 ft.

cables and select whether or not to

use CAC functionality.

Contact a Vertiv representative for

ordering details.
