SVARA

Stylish and versatile bathroom fan

A product by

Instruction Manual

2Operating and installation instructions

DO NOT install this product in areas where the following

may be present or occur:

• Excessive oil or a grease laden atmosphere.

• Corrosive or flammable gases, liquids or vapours.

• Ambient temperatures are outside 5-50°C.

• Possible obstructions which would hinder the access or

removal of the Fan.

SAFETY AND GUIDANCE NOTES

A. All wiring to be in accordance with the current I.E.E.

Regulations, or the appropriate standards of your

country and MUST be installed by a suitably qualified

person.

B. The Fan should be provided with a local isolator switch

capable of disconnecting all poles, having a contact

separation of at least 3mm.

C. Ensure that the mains supply (Voltage,

Frequency, and Phase) complies with the rating label.

D. The Fan should only be used in conjunction with the

appropriate Vent-Axia products.

E. The fan should only be used in conjunction with

fixed wiring.

F. When the Fan is used to remove air from a room

containing a fuel-burning appliance, ensure that the

air replacement is adequate for both the fan and the

fuel-burning appliance.

G. The Fan should not be used where it is liable to be

subject to direct water spray for prolonged periods

of time.

H. Where ducted Fans are used to handle moisture-laden

air, a condensation trap should be fitted. Horizontal

ducts should be arranged to slope slightly downwards

away from the Fan.

I. This appliance is not intended for use by young children

or infirm persons without supervision.

J. Young children should be supervised to ensure that they

do not play with the appliance.

K. The exterior grille should be at least 2.3m above the

ground to prevent people from being able to access

moving parts. If the external grille is positioned between

0-2.3m from the ground, please use the Vent-Axia wall

kit to ensure people cannot access the fans impeller

from the outside.

Important: READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION

Contents

Important Information 2

Installation and Wiring Instructions 3-11

Accessories 12

Pin Code 12

Operating and installation instructions

Installer information

Installation

New Installations

New installations require holes using a Ø110 mm hole saw

(Figure D).

5 mm

Ø 110 mm

Installation Preparation

• Loosen the motor unit by grasping it as shown in Figure

(A), prise off the motor unit by leaveraging against the

cap with your knuckles. Ensure that you have the motor

unit in a secure grip so you do not drop it when it loosens.

• Then loosen the wall frame by using a screw–

driver pressing the lock button as shown in Figure (B)

then remove the cover from the wall frame according to

figure (C).

4Operating and installation instructions

Installer information

E. F.

R75

45°

• Vent-Axia wall kits and external grilles are available as

accessories. (Figure E).

H. I.

The fan’s wall seal has a short spigot which fits inside the Ø100

mm pipe. Make sure when mounting to adapt the length of

the wall pipe so it does not push back the wall seal so the fan

impeller cannot rotate. Always customise a wall pipe, existing

or new, so it ends about 5 mm inside the wall surface where

the fan is to be installed. The wall frame with its seal is prepared

with 5 cable entry points (Figure F) for concealed electrical

connection or surface-mounted cable using the dimension

shown in Figure G.

• Make sure that the gasket is properly installed on the wall

frame, place it in the appropriate place and centre it in the

pipe.

The wall frame can be offset horizontally by placing a spirit

level on its support points

(Figure H and I).

Operating and installation instructions

Installer information

R75

30°

65°

95°

Always use a qualified electrician

All electrical connections 100-240V must be performed by a

qualified electrician. Any electrical work on the product must

utilise a voltage break.

Electrical connection can be made according to the wiring

diagram on page 8-9 and the fan is suitable for connection to

either 100-240VAc or 12VDC.

NOTE: The internal cable route must be as indicated as

figures K/K1 (240VAC) and L (12VDC) to prevent the cable

blocking the locator’s for the motor assembly.

• Mark the three attachment points for the appropriate

screws to the substrate (Figure J).

Tighten the screws so that gasket seals against the wall.

K1.

100-240 V AC

connection

12 V DC connection

6Operating and installation instructions

Installer information

NOTE! The integrated all-pole switch S only

functions at 100-240VAC wiring.

Svara auto:

100-240VAC 50 / 60Hz

Continuous trickle speed ventilation, automatic boost at

elevated humidity levels, and via the integrated light sensor.

Possibility to start / stop via manual switch T.

Svara on/off operation through remote

switch, with overrun:

(Can be combined with backdraft shutter)

100-240VAC 50 / 60Hz

Must be selected via Vent-Axia Connect App.

Start / stop via manual switch T.

Svara humidity controlled:

(Can be combined with backdraft shutter)

100-240VAC 50 / 60Hz

Must be selected via Vent-Axia Connect App.

Trickle setting, automatic start / stop

on changes in humidity levels.

Possibility to start / stop via manual switch T.

Svara on/off operation through

remote switch:

(Can be combined with backdraft shutter)

100-240VAC 50 / 60Hz

Must be selected via Vent-Axia Connect App.

Start / stop via manual switch L.

100- 2 40VAC

12VDC

100-240VAC

12VDC

ELECTRICAL CONNECTION 100-240VAC

NOTE! Wiring of 100-240VAC must be

performed by a qualified electrician.

Operating and installation instructions

Installer information

Connection of 100-240VAC

and 12VDC can not be done

simultaneously (Figure N).

NOTE! 12VDC voltage must not exceed

between 10 - 13,6VDC.

NOTE! For 12VDC always use switches

intended for direct current, C.

N. O.

No 100-240V wiring may penetrate

the electronics portion (Figure O.)

Svara auto:

12VDC (switch C always)

Continuous trickle ventilation, automatic boost at elevated

humidity levels, and via the integrated light sensor.

Svara on/off operation through remote

switch:

(Can be combined with backdraft shutters)

12VDC

Must be selected via Vent-Axia Connect App.

Start / stop via manual switch C.

Svara humidity controlled:

(Can be combined with backdraft shutters)

12VDC (switch C always)

Must be selected via Vent-Axia Connect App.

Trickle setting, automatic start / stop

on changes in humidity levels.

ELECTRICAL CONNECTION 12VDC

8Operating and installation instructions

Installer information

Mounting the cover on the wall frame

• The fan is double insulated and must not be earthed. When the electrical connection is made place the cover back over the

wall frame fitted into the housing hole (Figure P).

Q. R.

• Next, fold the cover over the wall frame (Figure Q).

• Ensure the catch the screwdriver is pointing to (Figure R) engages properly.

• Make sure that the cover is firmly seated in the hook on the wall frame and latch by pulling a bit of cover.

• Finally put the motor unit in place (Figure S). Be careful when fitting motor unit, the impellor can be damaged if the unit is

forced in at an angle.

• A distinct ’click’ sound confirms that the device is in place, check that the integrated On switch works freely before turning on

according to (Figure T).

Operating and installation instructions

For the user

Vent-Axia Svara®

Automatic functions and settings via app

Activate the app:

You have to use a code to activate the app, the code is

unique for each fan. Enter the code or scan it through your

phone. Your unique code is on the back of the user guide and

on the right leg of the motor unit (Figure T).

Learn more about all the possibilities with our app

at www.vent-axia.com/svara

Default setting:

Vent-Axia Svara is programmed to cope with the vast

majority of installations.

The fan works continuously at a trickle flow of 10l/s.

When the fan senses somebody in the room it increases

the flow to 16l/s.

If the humidity rises rapidly, for example when the shower

is on, the fan goes up to maximum flow at 30l/s.

When the fan senses the humidity level has returned to

normal it reverts to the trickle flow of 10l/s.

If other settings or functions are desired, download the

Vent-Axia Connect App from the App Store and Google

Play.

Requirements for functionality

Versions of the operating systems are updated continously,

for information go to: www.vent-axia.com/svara.

Fault indication:

Red LED on the fan indicates power failure when the

calendar function has been activated.

10 Operating and installation instructions

For the user

Strong solvents should not be used on the fan.

The fan must not be dipped in or sprayed with water. For the

fan to operate correctly it must be cleaned at least twice a

year, more often if

necessary.

– Before cleaning, switch off the power to the fan

(Figure U).

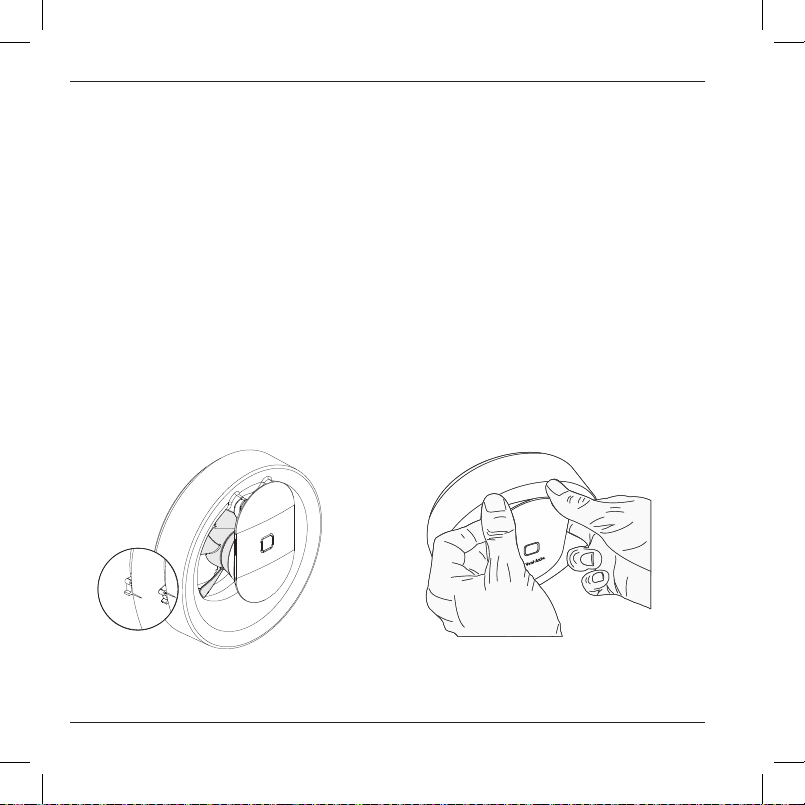

– Loosen the motor unit by grasping it (Figure V), prise off

the motor unit by leaveraging the cap with your knuckles.

Ensure that you have the motor unit in a secure grip so

you do not drop it when it loosens.

Servicing and maintenance

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE.

U. V.

– Clean opening, the duct and the motor unit with a damp

cloth (if necessary, use a mild detergent).

– The impellor does not detach and should be wiped clean

in its position on the motor housing

– If the fan has an external backdraft shutter the shutter

should be cleaned gently.

– Replace the motor unit in the frame.

Eco

Discarded fans should be submitted as electronic waste to

the recycling centre.

Otros manuales para SVARA

Tabla de contenidos

Otros manuales de Admirador de Vent-Axia

Vent-Axia

Vent-Axia Lo-Carbon Quadra Series Instrucciones de montaje

Vent-Axia

Vent-Axia VASF100B Instrucciones de montaje

Vent-Axia

Vent-Axia 45 90 49 (Pullcord) Instrucciones de montaje

Vent-Axia

Vent-Axia NBR DMEV 100 Instrucciones de montaje

Vent-Axia

Vent-Axia SDX EC Series Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon Square TM Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon Svelte Series Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon Revive Series Instrucciones de montaje

Vent-Axia

Vent-Axia QP Series Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon NBR dMEV C Instrucciones de montaje

Vent-Axia

Vent-Axia SDX100B Instrucciones de montaje

Vent-Axia

Vent-Axia ResponseSELV TP Instrucciones de montaje

Vent-Axia

Vent-Axia VA150A Instrucciones de montaje

Vent-Axia

Vent-Axia PUREAIR SENSE Manual de instrucciones y seguridad

Vent-Axia

Vent-Axia Lo-Carbon SOLO Plus SELV Series Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon Minivent B Instrucciones de montaje

Vent-Axia

Vent-Axia SOLO Plus SELV Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon dMEV Unit T Instrucciones de montaje

Vent-Axia

Vent-Axia Purge Ventilator Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon VA100 LP Instrucciones de montaje

Vent-Axia

Vent-Axia SUPRA 100 B Instrucciones de montaje

Vent-Axia

Vent-Axia Silhouette 100B Instrucciones de montaje

Vent-Axia

Vent-Axia Lo-Carbon Centra Series Instrucciones de montaje

Vent-Axia

Vent-Axia Svensa Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
