Vent-Axia VA150A Instrucciones de montaje

VA150

Window Extract Fan

VA150A / VA150P

Stock Ref.No

VA150A

– 153110B

VA150P

– 152110B

220-240V~50Hz

READ IN CONJUNCTION WITH ILLUSTRATIONS

PLEASE SAVE THESE INSTRUCTIONS

Installation and wiring Instructions

Installation and Wiring Instructions for the VA150 Kitchen A, P Extract Fan.

IMPORTANT:

READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION

DO NOT install this product in areas where the following may be present or occur:

•Excessive oil or a grease laden atmosphere.

•Corrosive or flammable gases, liquids or vapours.

•This appliance is not suitable for installation in a shower cubical or enclosure and must be sited away from any

source of water spray, and must be out of reach of a person using a fixed bath or shower.

• Ambient temperatures higher than 40°C or less than –5°C.

• Possible obstructions which would hinder the access or removal of the Fan.

•Sudden ductwork bends or transformations close to the Fan.

SAFETY AND GUIDANCE NOTES

A. All wiring to be in accordance with the current I.E.E. Regulations, or the appropriate standards of your country

and MUST be installed by a suitably qualified person.

B. The Fan should be provided with a local all pole isolator switch having a contact separation of at least 3mm.

C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label.

D. The Fan should only be used in conjunction with the appropriate Vent-Axia products.

E. It is recommended that the connection to the fan connecter terminals is made with flexible cable.

F. When the Fan is used to remove air from a room containing a fuel-burning appliance, ensure that the air

replacement is adequate for both the fan and the fuel-burning appliance.

G. This appliance is not intended for use by young children or infirm persons without supervision.

H. Young children should be supervised to ensure that they do not play with the appliance.

A. INSTALLATION.

WHERE TO FIT

AA short circuit of the airflow should always be avoided by siting the fan as far away as possible from and

opposite to the main source of air replacement.

FAN DIMENSIONS

Bi Before commencing work, the tables in Fig Bi should be read to ensure the fan will fit in the position

proposed.

THICKNESS OF GLASS

C1 Fans can be fitted in most types of glass with a fixing thickness up to 32mm, with the screws provided.

When fixing thickness exceeds 32mm, the unit should be secured with Extended Fixing Rods, available as an

accessory item (56 81 04). If the unit is to be installed in a location exposed to severe wind turbulence thicker

glass will be required – consult with Vent-Axia Technical Support for advice.

136

Suggested Minimum

Glass Thickness

PREPARATION FOR INSTALLATION (Dismantling)

D1 Place the fan unit, external grille downwards, on a flat surface.

D2 Unscrew grille securing screw located at the top of the grille. Remove internal grille.

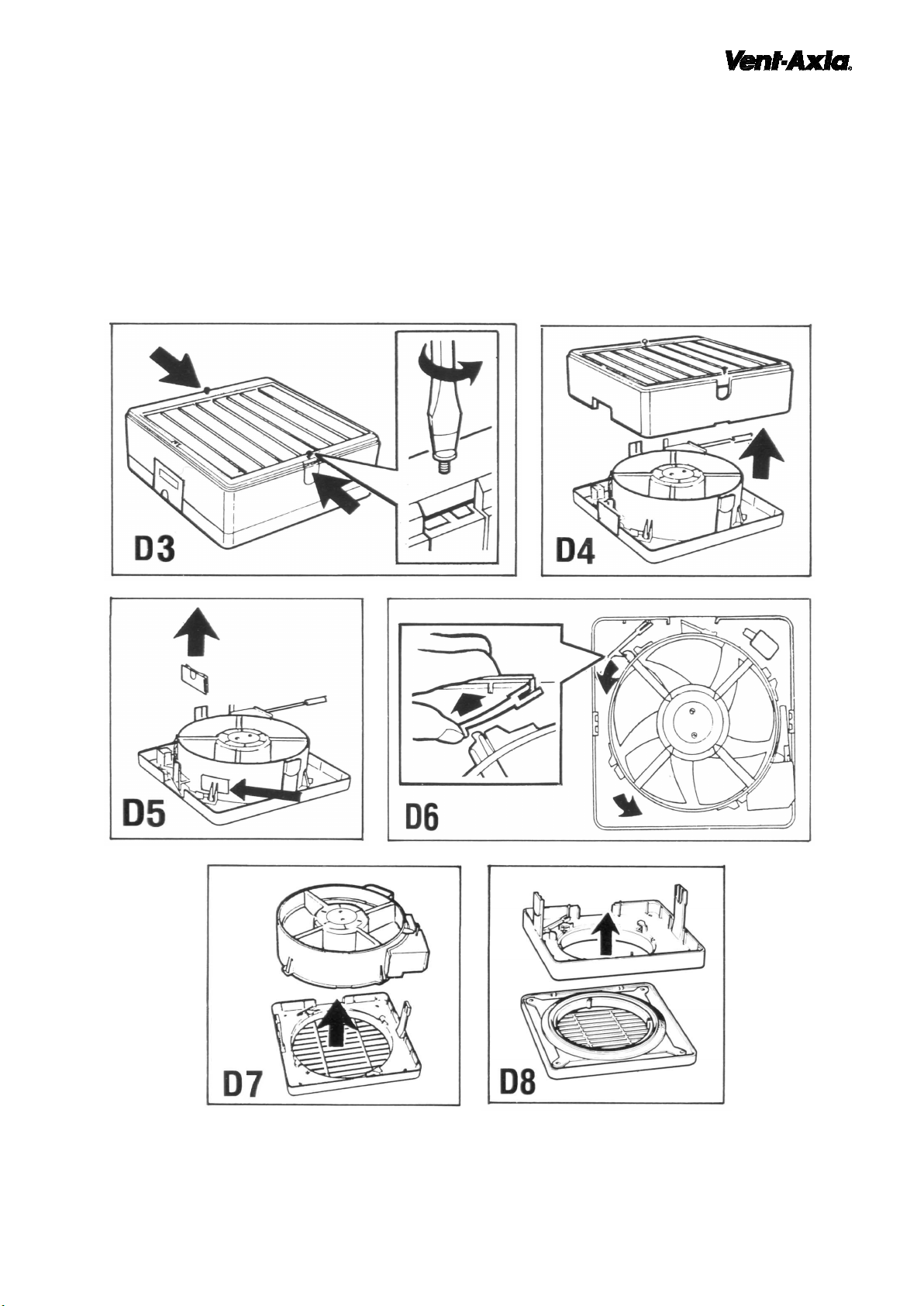

D3 Slacken the two safety catch screws on the face of the housing. Depress the side catches.

D4 Lift off the housing.

D5 Remove the top cover from its housing. Check rating label to ensure that the fan unit is the correct voltage.

D6 Ease back the motor support safety catch located in the left-hand top corner of the base housing. Rotate

motor support assembly anticlockwise until the bayonet catches disengage from the base housing.

D7 Withdraw motor support assembly and place with the impeller downwards.

D8 Separate the base housing from the external grille assembly.

FITTING

For Dimensions see Bi

Measure the glass thickness and determine the length of fixing screw required (C1).

Glass thickness 4 to 17mm – Break/ cut off ends of screws supplied.

Glass thickness 16 to 32mm – Use screw as supplied.

Glass thickness 32mm and greater – Use extended rods (56 81 04) available as an accessory.

E1 From the inside, place the spigot centrally through the fixing hole with the connector hole upwards.

Ensure the rubber seal is correctly located over lugs and around the spigot.

E2 From the outside, place the exterior grille assembly over the projecting spigot, ensure that the grille

louvers are slanting downwards.

E3 From the inside, insert the four thumbscrews through the holes around the spigot. Finger-tighten the

screws progressively, in turn, to give an even pressure round the hole into the glass.

E4 Locate and replace the motor support assembly and turn clockwise until the safety catch is fully engaged.

WARNING: THE FAN AND ANY ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

REFER TO SECTION B– WIRING. BEFORE CONTINUING WITH RE-ASSEMBLING THE FAN

RE-ASSEMBLE (WINDOW/ WALL)

E5 Replace the housing with the top cover slot uppermost. Feed the pullcord (VA150P) through the slot in the

bottom of the housing. Ensure the arm protruding from the actuator housing is in its lower position, i.e.

shutter closed.

E6 With the two side catches fully engaged, tighten the catch safety screws.

E7 Replace the internal grille. Locate the bottom edge first and then engage the top. Tighten the securing

screw at the top of the grille.

E8 Switch on the mains supply. Check the fans operation.

VA150 P – 1) Pull the pullcord once and release. The shutter will open and the fan will commence extraction.

2) Pull the pullcord again and release. The shutter will close and the fan will stop.

VA150 A – 1) Switch on power supply (switch). The shutter will open and the fan will commence extraction.

2) Switch off power supply (switch). The shutter will close and the fan will stop.

PULLCORD ON

'P' MODEL ONLY

1 Phase Supply

(220-240V 50Hz).

Switched

Fused Spur

FUSE

Fan L N

B. WIRING.

WARNING: THE FAN AND ANY ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

Take the top cover. Make a suitable hole in the grommet. Pass the cable through the hole and slide the

top cover into the base housing.

•VA150A and VA150P fans are Class II double insulated and MUST NOT BE EARTHED

•A Cable Clamp is provided adjacent to the terminal block and must be used.

1) Loosen the cable clamp screws and pass the cable through the clamp.

2) Connect the LIVE (Brown) to the terminal L, and NEUTRAL (Blue) to the terminal N.

3) Tighten the cable clamp screws evenly, ensuring a secure grip on the outer sheath of the cable.

•The Fan should be provided with a local all pole isolator switch. With contact separation of at least 3mm.

C. SERVICING AND MAINTENANCE.

WARNING: THE FAN AND ANY ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is no build

up of dirt or other deposits.

2. Remove the Indoor Grille (See Section D2 for instructions) and wash in warm soapy water.

3. Wipe the shutter blades with a damp cloth until clean.

4. Replace the Grille.

PRODUCT FICHE

For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014)

Name:

Vent-Axia

Model ID (Stock Ref.) : VA 150 P - 152110 VA 150 A - 153110

SEC Class F F

SEC Value ('Average') 13.97 13.97

SEC Value ('Warm')

6.32

SEC Value ('Cold') 27.32 27.32

Label Required? (Yes/No=Out of scope) No No

Declared as: RVU or NRVU/UVU or BVU RVU-UVU RVU-UVU

Speed Drive

Multi-Speed

Type HRS (Recuperative, Regenerative, None) None None

Thermal Eff: [ (%), NA(if none)] N/A N/A

Max. Flow Rate (m3/h) 216.00 216.00

Max. Power Input (W): (@Max.Flow Rate)

19.00

LWA: Sound Power Level (dB) 54.52 54.52

Ref. Flow Rate (m3/s) 0.04 0.04

Ref. Pressure Diff. (Pa) N/A N/A

SPI [W/(m3/h)]

0.13

Control Factor & Control Typology: (CTRL/ Typology)

Control Factor; CTRL 1.00 1.00

Control Typology Manual Control Manual Control

Declared: -Max Internal & External Leakage Rates(%) for BVUs or carry

over (for regenerative heat exchangers only),

-&Ext. Leakage Rates (%) for Ducted UVUs;

N/A N/A

Mixing Rate of Non-Ducted BVUs not intended to be equipped with

one duct connection on either supply or extract air side; N/A N/A

Position and description of visual filter warning for RVUs intended for

use with filters, including text pointing out the importance of regular

filter changes for performance and energy efficiency of the unit

N/A N/A

For UVUs (Instructions Install Regulated Supply/Extract Grilles Façade) In F&W In F&W

Internet Address (for Disassembly Instructions) www.vent-axia.com www.vent-axia.com

Sensitivity p. Variation@+20/-20 Pa: (for Non-Ducted Vus) N/A N/A

Air Tightness-ID/OD-(m3/h) (for Non-Ducted Vus) N/A N/A

Annual Electricity Consumption: AEC (kWh/a) 1.73 1.73

Annual Heating Saved: AHS (kWh/a)

AHS: Average 13.97 13.97

AHS: Warm 6.32 6.32

AHS: Cold 27.32 27.32
