USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Symbols

AC (Alternating Current)

DC (Direct Current)

Both AC and DC

Risk of Electric shock. A potentially hazardous voltage is

possible.

Caution: risk of danger, the manual must be consulted in all

cases where this symbol is marked.

Warning: a hazardous condition or action that may result in

injury or death

Caution: condition or action that may result in damage to the

meter or equipment under test

Double insulation (class 2-protection)

Earth

Fuse

Capacitor

Diode

DVM902

V. 02 –29/01/2020 4 ©Velleman nv

Continuity

3. General Guidelines

Refer to the Velleman®Service and Quality Warranty on the last pages of

this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage,

injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or

death.

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in

damage, injury or death.

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the

test leads prior to opening the housing. To prevent fire hazards,

only use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment.

Avoid cold, heat and large temperature fluctuations. When the

unit is moved from a cold to a warm location, leave it switched

off until it has reached room temperature. This to avoid

condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force

when operating.

Pollution degree 2-device. For indoor use only. Keep this device

away from rain, moisture, splashing and dripping liquids. Not for

industrial use. Refer to §8 Pollution degree.

DVM902

V. 02 –29/01/2020 5 ©Velleman nv

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful

when measuring live circuits.

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

This is an installation category CAT IV measuring

instrument. Refer to §7 Overvoltage/installation category.

Read this addendum and the manual thoroughly. Familiarise

yourself with the functions of the device before actually using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not

covered by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorized way will void the warranty. Damage caused by

disregard of certain guidelines in this manual is not covered by

the warranty and the dealer will not accept responsibility for any

ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads

from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse

replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild

detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when

measuring live circuits.

•If the equipment is used in a manner not specified by the manufacturer,

the protection provided by the equipment may be impaired.

•Never exceed the limit value for protection. This limit value is listed

separately in the specifications for each range of measurement.

•Do not touch unused terminals when the meter is linked to a circuit

which is being tested.

DVM902

V. 02 –29/01/2020 6 ©Velleman nv

•Never use the meter with CAT II installations when measuring voltages

that might exceed the safety margin of 600 V above earth ground.

Never use the meter with CAT IV installations when measuring voltages

that might exceed the safety margin of 300 V above earth ground.

•Set the range selector at its highest position if the intensity of the

charge to be measured is unknown beforehand.

•Disconnect the test leads from the tested circuit before rotating the

range selector in order to change functions.

•When carrying out measurements on a TV set or switching power

circuits, always remember that the meter may be damaged by any high

amplitude voltage pulses at test points.

•Always be careful when working with voltages above 60 VDC or 30 VAC

rms. Keep your fingers behind the probe barriers at all times during

measurement.

•Never perform resistance, diode or continuity measurements on live

circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

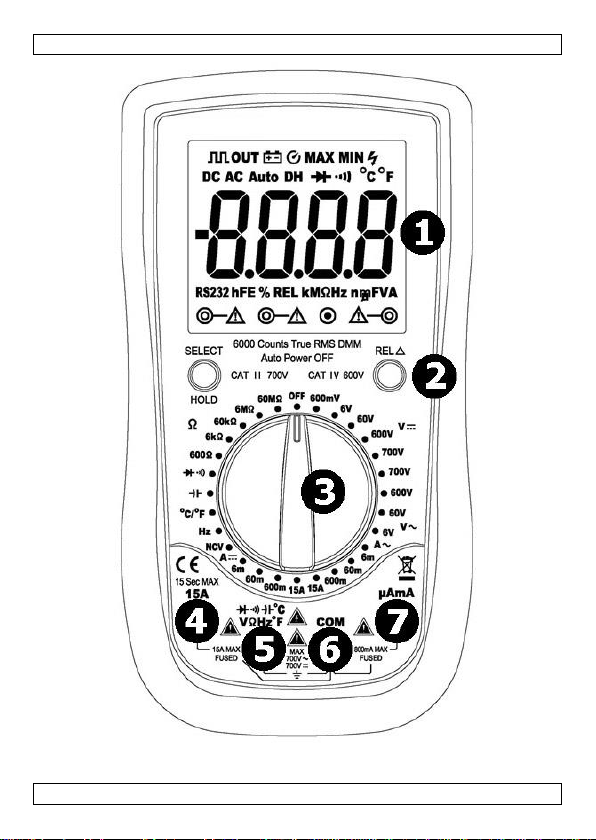

Refer to the illustration on page 2 of this manual:

1. Display

3 ½ digits, 7 segments, LCD

2. Function buttons

3. Rotary switch

4. “15A” jack

Insert the red test lead in this connector in order to measure a max.

current of 15 A.

5. “VHz” jack

Insert the red (positive) test lead in this connector to measure voltage,

resistance and frequency.

6. “COM” jack

Insert the black (negative) test lead.

7. “µAmA” jack

Insert the red (positive) test lead in this connector to measure current

(except 15 A).

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient

overvoltage that might occur at the point of test. Transients are short-lived

bursts of energy induced in a system, e.g. caused by lightning strike on a

power line.

DVM902

V. 02 –29/01/2020 7 ©Velleman nv

The existing categories according EN 61010-1 are:

CAT

A CAT I-rated meter is suitable for measurements on protected

electronic circuits that are not directly connected to mains power,

e.g. electronics circuits, control signals…

CAT

A CAT II-rated meter is suitable for measurements in CAT I-

environments and mono-phase appliances that are connected to the

mains by means of a plug and circuits in a normal domestic

environment, provided that the circuit is at least 10 m apart from a

CAT III- or 20 m apart from a CAT IV-environment. E.g. household

appliances, portable tools…

CAT

III

A CAT III-rated meter is suitable for measurements in CAT I- and

CAT II-environments, as well as for measurements on (fixed) mono-

or poly-phased appliances which are at least 10 m apart from of a

CAT IV-environment, and for measurements in or on distribution

level equipment (fuse boxes, lighting circuits, electric ovens).

CAT

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II-

and CAT III-environments as well as on the primary supply level.

Note that for all measurements on equipment for which the supply

cables run outdoors (either overhead or underground) a CAT IV

meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation

category CAT II 700 V and CAT IV 600 V. This implies that certain

restrictions in use apply that are related to voltages and voltage peaks

which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements up to 700 V in

CAT II and up to 600 V in CAT IV

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which

different protective measures are necessary to ensure safety. Harsher

environments require more protection, and the protection against the

pollution which is to be found in a certain environment depends mainly on

the insulation and the enclosure properties. The pollution degree rating of

the DVM indicates in which environment the device may be used.

Pollution

degree 1

No pollution or only dry, nonconductive pollution occurs. The

pollution has no influence. (only to be found in hermetically

sealed enclosures)

DVM902

V. 02 –29/01/2020 8 ©Velleman nv

Pollution

degree 2

Only nonconductive pollution occurs. Occasionally,

temporary conductivity caused by condensation is to be

expected. (home and office environments fall under this

category)

Pollution

degree 3

Conductive pollution occurs, or dry nonconductive pollution

occurs that becomes conductive due to condensation that is

to be expected.

(industrial environments and environments exposed to

outside air - but not in contact with precipitation)

Pollution

degree 4

The pollution generates persistent conductivity caused by

conductive dust or by rain or snow. (exposed outdoor

environments and environments where high humidity levels

or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1

pollution degree 2. This implies that certain restrictions in use apply that

are related to pollution which can occur within the environment of use. Refer

to the table above.

This device is only suitable for measurements in Pollution

degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II, CAT III and CAT IV

environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

temperature: 0 °C to 40 °C (32 °F to 104 °F)

relative humidity: max. 80 % RH

altitude: max. 2000 m (6560 ft)

voltage.............................................................................. 700 V

fuse protection

F0.8 A/1000 VDC, 6.75 x 33 mm

F15 A/1000 VDC, 6.75 x 33 mm

power supply ....................................................... 1 x 3.7 V (incl.)

display ............................................................. LCD, 6000 counts

ranging mode .......................................................... auto/manual

continuity buzzer................................................................... yes

diode test ............................................................................. yes

low-battery indication ............................................................ yes

data hold.............................................................................. yes

backlight .............................................................................. yes

DVM902

V. 02 –29/01/2020 9 ©Velleman nv

auto power-off ...................................................................... yes

dimensions .....................................................190 x 100 x 40 mm

weight (with battery) .......................................................... 320 g

storage environment

temperature .................................................. -20 °C to 60 °C

humidity ............................................................. < 90 % RH

test lead probe.......... CAT II 700 V / CAT IV 600 V, 15 A; L = 90 cm

IP rating..............................................................................IP20

9.1 DC VOLTAGE

Do not measure circuits that may contain voltages

> 700 VDC or > 700 VAC

range

resolution

accuracy

600 mV

0.1 mV

± (0.5 % + 2)

6 V

1 mV

60 V

10 mV

600 V

100 mV

700 V

1 V

± (0.8 % + 2)

Overload protection: 700 V DC or AC rms

Impedance: 10 MΩ

9.2 AC VOLTAGE

Do not measure circuits that may contain voltages

> 700 VDC or > 700 VAC

range

resolution

accuracy

6 V

1 mV

± (0.8 % + 3)

60 V

10 mV

600 V

100 mV

700 V

1 V

± (1.2 % + 3)

AC true RMS

Frequency range: 40 Hz-2 kHz

Overload protection: 700 V DC or AC rms

Impedance: 10 MΩ

DVM902

V. 02 –29/01/2020 10 ©Velleman nv

9.3 DC CURRENT

Do not measure circuits that may contain voltages

> 700 VDC or > 700 VAC

range

resolution

accuracy

6 mA

1 µA

± (1.2 % + 2)

60 mA

10 µA

600 mA

100 µA

15 A

1 mA

± (2.0 % + 3)

Overload protection: F0.8 A/700 V fuse, F15 A/700 V fuse

Continuous testing maximum steady-state current of 1 A

9.4 AC CURRENT

Do not measure circuits that may contain voltages

> 700 VDC or > 700 VAC

range

resolution

accuracy

6 mA

1 µA

± (1.5 % + 3)

60 mA

10 µA

600 mA

100 µA

15 A

10 mA

± (2.5 % + 5)

AC true RMS

Frequency range: 40 Hz-2 kHz

Overload protection: F0.8 A/700 V fuse, F15 A/700 V fuse

Continuous testing maximum steady-state current of 1 A

9.5 RESISTANCE

Do not conduct resistance measurements on live

circuits

range

resolution

accuracy

600 Ω

0.1 Ω

± (1.0 % + 3)

6 kΩ

1 Ω

± (1.0 % + 2)

60 kΩ

10 Ω

6 MΩ

1 kΩ

60 MΩ

10 kΩ

± (1.5 % + 3)

Overload protection: 700 V DC or AC rms

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Multímetro de Velleman

Velleman

Velleman DVM892 Manual de usuario

Velleman

Velleman DVM1400 Manual de usuario

Velleman

Velleman DVM4x00 Series Manual de usuario

Velleman

Velleman DVM810 Manual de usuario

Velleman

Velleman DVM 68 Manual de usuario

Velleman

Velleman DVM205AM Manual de usuario

Velleman

Velleman DVM 68 Manual de usuario

Velleman

Velleman DVM902 Manual de usuario

Velleman

Velleman DVM98 Manual de usuario

Velleman

Velleman DVM1000 Manual de usuario

Velleman

Velleman DVM101 Manual de usuario

Velleman

Velleman DVM630 Manual de usuario

Velleman

Velleman DVM68N Manual de usuario

Velleman

Velleman DVM892N Manual de usuario

Velleman

Velleman DVM345DI Manual de usuario

Velleman

Velleman EVM892 Manual de usuario

Velleman

Velleman DVM645BI Manual de usuario

Velleman

Velleman DVM830 Manual de usuario

Velleman

Velleman DVM852 Manual de usuario

Velleman

Velleman DVM92 Manual de usuario

Velleman

Velleman DVM205AM Manual de usuario

Velleman

Velleman DVM840 Manual de usuario

Velleman

Velleman DCM330 Manual de usuario

Velleman

Velleman DVM841 Manual de usuario

Manuales populares de Multímetro de otras marcas

Agilent Technologies

Agilent Technologies 34420A Manual de usuario

Fluke

Fluke 83 Manual de usuario

Hameg

Hameg HM 8012 Manual de usuario

Mastech

Mastech MY70 Manual de usuario

Steren

Steren MUL-300 Manual de usuario

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manual de usuario

PeakTech

PeakTech 4000 Manual de uso y cuidado

YOKOGAWA

YOKOGAWA 90050B Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manual de usuario

Fluke

Fluke 8846A Manual de operación y mantenimiento

Tempo Communications

Tempo Communications MM200 Manual de usuario

Elenco Electronics

Elenco Electronics CM-1555 Manual de usuario

Mastech

Mastech MS8238C Manual de usuario

SDAR

SDAR 830A, 830B, 830D, 830C Manual de usuario

RS PRO

RS PRO RS-9519BT Manual de usuario

BGS technic

BGS technic 8890 Manual de usuario

Amprobe

Amprobe Hexagon 60 Manual de usuario
