Velleman KA04 Manual de usuario

Conﬁgure your Arduino™ as a simple web server or let it

get data from the worldwide web.

ILLUSTRATED ASSEMBLY MANUAL HKA04IP’1

STRA

STR

STRA

STR

STRA

STR

STRA

TED

ASS

ASSE

SSE

MBLY

BLY

MBLY

BLY

MAN

UAL

HKA0

KA0

4IP

P’

4IP

KA04

Ethernet shield

for Arduino

Features

• For use with Arduino Uno™, Arduino Mega™

• Based on Microchip ENC28J60

• IEEE 802.3 compatible Ethernet controller

• Integrated MAC & 10BASE-T PHY

• SPI interface

• With RJ45 connector

Speciﬁcations

• Max. clock speed: 20MHz

• Transmit/receive buffer: 8kB

• Dimensions: 68 x 53mm / 2.67 x 2.08”

Forum

Participate our Velleman Projects Forum

Subscribing our newsletter?, visit www.vellemanprojects.eu

Velleman N.V.

Legen Heirweg 33

9890 Gavere

(België)

assembly

hints 1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.

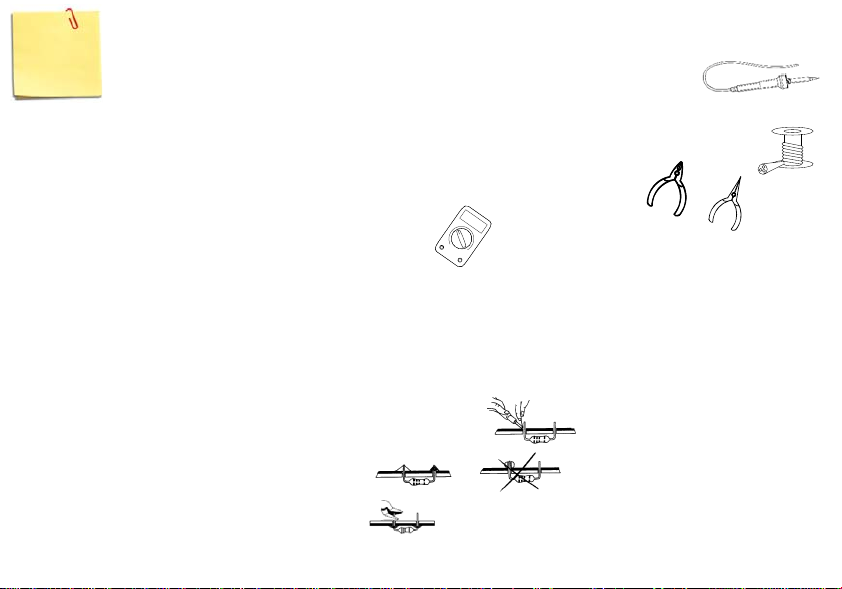

1.1 Make sure you have the right tools:

• A good quality soldering iron (25-40W) with a small tip.

• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and

will protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.

• Thin raisin-core solder. Do not use any ﬂux or grease.

• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they cannot

ﬂy towards the eyes.

• Needle nose pliers, for bending leads, or to hold components in place.

• Small blade and Phillips screwdrivers. A basic range is ﬁne.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

• Make sure the skill level matches your experience, to avoid disappointments.

• Follow the instructions carefully. Read and understand the entire step before you perform each operation.

• Perform the assembly in the correct order as stated in this manual

• Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

• Values on the circuit diagram are subject to changes, the values in this assembly guide are correct*

• Use the check-boxes to mark your progress.

• Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaﬂet.

1.3 Soldering Hints :

1. Mount the component against the PCB surface and carefully solder the leads

2. Make sure the solder joints are cone-shaped and shiny

3. Trim excess leads as close as possible to the solder joint

0.000

- 4 -

- 5 -

DO NOT BLINDLY FOLLOW THE ORDER OF THE

COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR

VALUE ON THE PARTS LIST!

- 6 -

Construction

R1: 47 (4 - 7 - 0 - B)

R2: 47 (4 - 7 - 0 - B)

R3: 18 (1 - 8 - 0 - B)

R4: 47 (4 - 7 - 0 - B)

R5: 47 (4 - 7 - 0 - B)

R6: 270 (2 - 7 - 1 - B)

R7: 270 (2 - 7 - 1 - B)

R8: 2K7 (2 - 7 - 2 - B)

R9: 10K (1 - 0 - 3 - B)

R10: 10K (1 - 0 - 3 - B)

R11: 10K (1 - 0 - 3 - B)

R...

Resistors

CONSTRUCTION

Ceramic capacitors

...

X1 : 25MHz

Chrystal

C1: 100nF (104)

C2: 100nF (104)

C3: 100nF (104)

C4: 100nF (104)

C10: 100nF (104)

C...

R...

C7: 15pF (15)

C8: 15pF (15)

SW1 : Reset

Push button

Voltage regulator

M3 NUT

TRANSISTOR

M3 BOLT

PCB

VR1 : LD1086V33

IC socket

IC1 : 28p

IC1 : 14p

2 x 6p

Do not cut the

connector pins!

Female header

Watch the position

of the notch!

- 7 -

Construction

Electrolytic capacitors

Watch the polarity!

C5 : 470μF

C6 : 10μF

C9 : 470μF

SK6: 2 x 3p

Solder

LAN connector

SK5

Watch the position of

the notch!

IC1: ENC28J60-I/SP

IC2: 74HC125

- 8 -

Connection diagram

CONNECTION DIAGRAM

DOWNLOAD SAMPLE CODE FROM KA04 PAGE ON WWW.VELLEMAN.BE

RESET

RJ45

LAN CONNECTOR

ICSP CONNECTOR

- 9 -

SK4

Vin

GND

3V 3

RST

SK3

SK1

ARDU INO U NO

SK2

AREF

GND

10 0n

C3 470μ/16V

Vin

I O

GND

LD1 086 -3 .3

VR1

GND

100n

C4 47 0μ/1 6V

V3.3

Vcap

VSS

CLKOUT

INT

WOL

SCK

RESET

VSSrx

TPI N-

TPI N+

RBIAS

14 VDDtx 15

TPOUT- 16

TPOUT+ 17

VSStx 18

VD Dr x 19

VDDpll 20

VSSpll 21

VSSosc 22

OSC 1 23

OSC 2 24

VDDosc 25

LEDB 26

LEDA 27

VDD 28

ENC2 8J 60IC1

TX+ 1

TXc 4

TX- 2

RX+ 3

RXc 5

RX- 6

LD+ G RE EN 11

LD- GR EE N 12

LD+ Y ELLOW 9

LD- Y ELLOW 10

SHIELD

RJ45LAN-V

SK5

LEDA

LEDB

TPOUT+

TPOUT-

TPI N-

TPI N+

270

LEDA

LEDB

GND TPIN-

TPI N+

TPOUT+

TPOUT-

10 0n

100n

V3.3

GND

TXc

TXc GND GND

GND

10 μ/100V

GND

2K7

GND

25 MH z

X1 15 P

15 P

C7 GND

OE1

OE2

GND

VCC 14

OE4 13

A4 12

Y4 11

OE3 10

A3 9

Y3 8

74 HC1 25

IC2

GND

MISO

MOSI

SCK

RESET

10K

SW KRS0611

SW1

GND

V3.3

100n

C10

GND

10 k

R11

GND

INT

10K

R10

V3.3

2X3PIN HEA DER P ITC H 2.54MM

SK6

MISO

SCK MOSI

RESET GND

Schematic diagram

- 10 -

PCB
