Velleman K6600 Manual de usuario

MULTI-TONE CHIME

K6600

ILLUSTRATED ASSEMBLY MANUAL H6600IP-1

Total solder points: 74

Difficulty level: beginner 12345 advanced

Thisdeviceisasimpleandeconomicwayof

generatingelectronictones.Thiskitisprimarily

intendedforuseasareplacementforthe

traditionalmechanicaldoorbell.

SPECIFICATIONS:

 For use in homechime, call systems, games or discobars.

 One, two or three tones triggered by 3 different push buttons.

 Adjustable tone and volume control.

 Peak output power: 0.3W (8 Ohm speaker).

 Power Supply: 6 to 9VAC/0.2A or 4.5V battery (3 x 1.5V).

 Standby current: less than 10µ A.

 Dimensions (WxDxH): 53x59x25mm.

 Usable housings: WCAH2851, G416, G410

 Usable battery holder: BH331B

modifications reserved

Features & Specifications

Assembly hints

1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.

1.1 Make sure you have the right tools:

• A good quality soldering iron (25-40W) with a small tip.

• Wipe it oftenon a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it awet look. This is called ‘thinning’and will

protect the tip, and enables youto make goodconnections. When solder rolls off the tip, it needs cleaning.

• Thin raisin-core solder. Do not use any flux or grease.

• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they

cannot fly towards the eyes.

• Needle nose pliers, for bending leads, or to hold components in place.

• Small blade and Phillips screwdrivers. A basic range is fine.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

⇒ Make sure the skill level matches your experience, to avoid disappointments.

⇒ Follow the instructions carefully. Read and understand the entire step before you perform each operation.

⇒ Perform the assembly in the correct order as stated in this manual

⇒ Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

⇒ Values on the circuit diagram are subject to changes.

⇒ Values in this assembly guide are correct*

⇒ Use the check-boxes to mark your progress.

⇒ Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Alwayslook for possible last minute manual updates, indicated as ‘NOTE’on a separate leaflet.

Assembly hints

1.3 Soldering Hints :

1- Mount the component against the PCB surface and carefully solder the leads

2- Make sure the solder joints are cone-shaped and shiny

3- Trim excess leads as close as possible to the solder joint

REMOVE THEM FROM THE TAPE ONE AT A TIME !

AXIAL COMPONENTS ARE TAPED IN THE

CORRECT MOUNTING SEQUENCE !

You will find the color code for the resistances and the LEDs on our website:

http://www.velleman.be/common/service.aspx

 R1 : 10K (1 - 0 - 3 - B)

 R2 : 10K (1 - 0 - 3 - B)

 R3 : 10K (1 - 0 - 3 - B)

 R4 : 10K (1 - 0 - 3 - B)

 R5 : 1K (1 - 0 - 2 - B)

 R6 : 220 (2 - 2 - 0 - B)

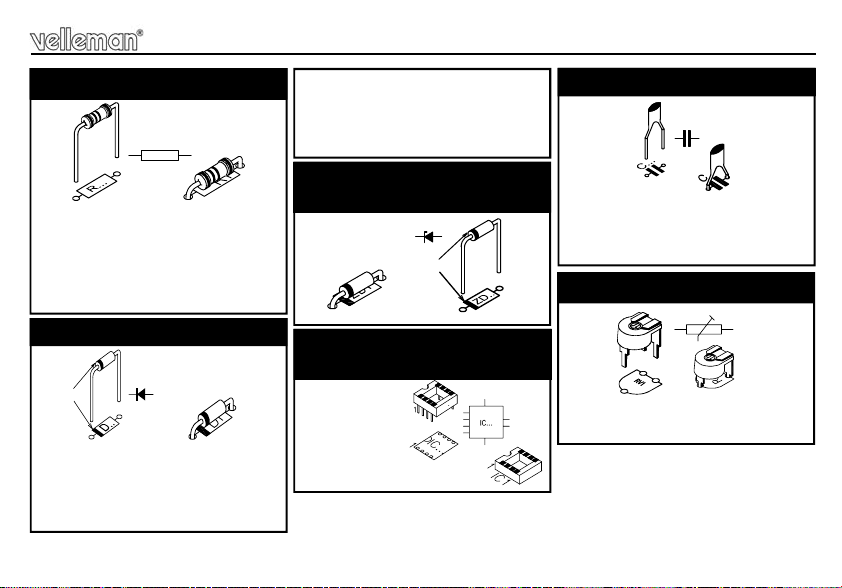

1. Resistors

R...

 IC1 : 8p

4. IC socket, Watch the po-

sition of the

Construction

 RV1: 22K

 RV2: 22K

6. Trim potentiometers

RV1

 D1 : 1N4148

 D2 : 1N4148

 D3 : 1N4007

 D4 : 1N4007

2. Diodes. Watch the polarity !

D...

CATHODE

 D5 : 1N4007

 D6 : 1N4007

 D7 : 1N4007

 D8 : 1N4007

 ZD1 : 6V2

3. Zenerdiode. Watch the

polarity !

CATHODE

ZD...

 C1 : 4n7 (472)

 C2 : 100nF (104)

 C3 : 100nF (104)

5. Capacitors.

C...

 AC

 LS

 SW1

 SW2

 SW3

8. PCB pins

 IC1: SAE800

 Pay attention to the position

of the notch!

10. IC mounting

 T1 : BC337 or eq

7. Transistors

 C4 : 10µ F



C5 : 470µ F

 C6 : 470µ F

9. Electrolytic Capacitors.

Watch the polarity !

C...

Construction

11. Connection of battery as supply

Connection

12. Connection of transformer as supply

Connection

13. Connecting a transformer and backup battery supply

Connection

14. Schematic diagram.

Schematic diagram
