Velleman K4400 Manual de usuario

Total solder points: 239

Skill level :

Beginner 1o2o3þ4o5oAdvanced

ILLUSTRATED MANUAL H4400P-ED1

ELECTRONIC RECORD/PLAYBACK MODULE

K4400

Features:

þExcellent sound quality to greet visitors, play pranks, warn

burglars, …

þMicrophone included

þ12 to 20 seconds of recording time per module

þNo memory loss in case of power failure

þLoudspeaker output

þDaisy-chain up to five units for extended recording time

þAdd an optional rotary switch for message selection

Specifications :

þ8 ohm speaker output

þPower supply : 9-12VAC or 6VDC (4 x AAA battery, battery-

holder included)

þ15µA standby power consumption

þOptional rotary switch : 8404-1C

modifications reserved

4K7= ( 4 - 7 - 2 - B )

4K7= ( 4 - 7 - 0 - 1 - 1 )

COLOR= 2… 5

IPESF SDK NDGB FNL

CODICE

COLORE

CODIGO

CORES

CODIGO

DE COL-

ORES

VÄRI

KOODI

FÄRG

SCHEMA

FARVE

KODE

FARGE

KODE

FARB

KODE

COLOUR

CODE CODIFI-

CATION

DES

COU-

LEURS

KLEUR

KODE

Nero Preto Negro Musta Svart Sort Sort Schwarz Black Noir Zwart 0

Marrone Castanho Marrón Ruskea Brun Brun Brun Braun Brown Brun Bruin 1

Rosso Encarnado Rojo Punainen Röd Rød Rød Rot Red Rouge Rood 2

Aranciato

Laranja Naranjado

Oranssi Orange Orange Orange Orange Orange

Orange

Oranje

Giallo Amarelo Amarillo Keltainen Gul Gul Gul Gelb Yellow Jaune Geel 4

Verde Verde Verde Vihreä Grön Grøn Grønn Grün Green Vert Groen 5

Blu Azul Azul Sininen Blå Blå Blå Blau Blue Blue Blauw 6

Viola Violeta Morado Purppura Lila Violet Violet Violet Purple Violet Paars 7

Grigio Cinzento Gris Harmaa Grå Grå Grå Grau Grey Gris Grijs 8

Bianco Branco Blanco Valkoinen Vit Hvid Hvidt Weiss White Blanc Wit 9

Argento Prateado Plata Hopea Silver Sølv Sølv Silber Silver Argent Zilver A

Oro Dourado Oro Kulta Guld Guld Guldl Gold Gold Or Goud B

__________________________________________________________________________________________________________________________________________________________

1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful.

Read them carefully.

1.1 Make sure you have the right tools:

•A good quality soldering iron (25-40W) with a

small tip.

•Wipe it often on a wet sponge or cloth, to keep

it clean; then apply solder to the tip, to give it a

wet look. This is called ‘thinning’ and will protect the tip, and enables you to make good connections. When sol-

der rolls off the tip, it needs cleaning.

•Thin raisin-core solder. Do not use any flux or grease.

•A diagonal cutter to trim excess wires. To avoid injury

when cutting excess leads, hold the lead so they can-

not fly towards the eyes.

•Needle nose pliers, for bending leads, or to hold components in place.

•Small blade and phillips screwdrivers. A basic range is fine.

For some projects, a basic multi-meter is required, or might be

handy

1.2 Assembly Hints :

þMake sure the skill level matches your experience, to avoid disappointments.

þFollow the instructions carefully. Read and understand the entire step before you perform each operation.

þPerform the assembly in the correct order as stated in this manual

þPosition all parts on the PCB (Printed Circuit Board) as shown on the drawings.

þValues on the circuit diagram are subject to changes.

þValues in this assembly guide are correct*

þUse the check-boxes to mark your progress.

þPlease read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’

on a separate leaflet.

1.3 Soldering Hints :

Mount the component against the

PCB surface and carefully solder the

leads

Make sure the solder joints are

cone-shaped and shiny

Trim excess leads as close as pos-

sible to the solder joint

0.000

_______________________________________________________________________________________________________________________________________________________

AXIAL COMPONENTS ARE

TAPED IN THE CORRECT

MOUNTING SEQUENCE !

START

REMOVE THEM FROM THE TAPE

ONE AT A TIME !

1. WIRE JUMPERS

2. RESISTORS

R...

qR1 : 10 (1 -0 -0 -B)

qR2 : 470 (4 -7 -1 -B)

qR3 : 470 (4 -7 -1 -B)

qR4 : 2K2 (2 -2 -2 -B)

qR5 : 10K (1 -0 -3 -B)

qR6 : 10K (1 -0 -3 -B)

qR7 : 10K (1 -0 -3 -B)

qR8 : 10K (1 -0 -3 -B)

qR9 : 47K (4 -7 -3 -B)

qR10 : 47K (4 -7 -3 -B)

qR11 : 47K (4 -7 -3 -B)

qR12 : 47K (4 -7 -3 -B)

qR13 : 47K (4 -7 -3 -B)

qR14 : 47K (4 -7 -3 -B)

qR15 : 47K (4 -7 -3 -B)

qR16 : 47K (4 -7 -3 -B)

qR17 : 47K (4 -7 -3 -B)

qR18 : 1M5 (1 -0 -5 -B)

qR19 : 1M5 (1 -0 -5 -B)

qR20 : 1M5 (1 -0 -5 -B)

qR21 : 220K (2 -2 -4 -B)

qR22 : 220K (2 -2 -4 -B)

qR23 : 220K (2 -2 -4 -B)

qR24 : 220K (2 -2 -4 -B)

qR25 : 470K (4 -7 -4 -B)

qR26 : 1M (1 -0 -5 -B)

qR27 : 1M5 (1 -5 -5 -B)

qR28 : 1M5 (1 -5 -5 -B)

__________________________________________________________________________________________________________________________________________________________

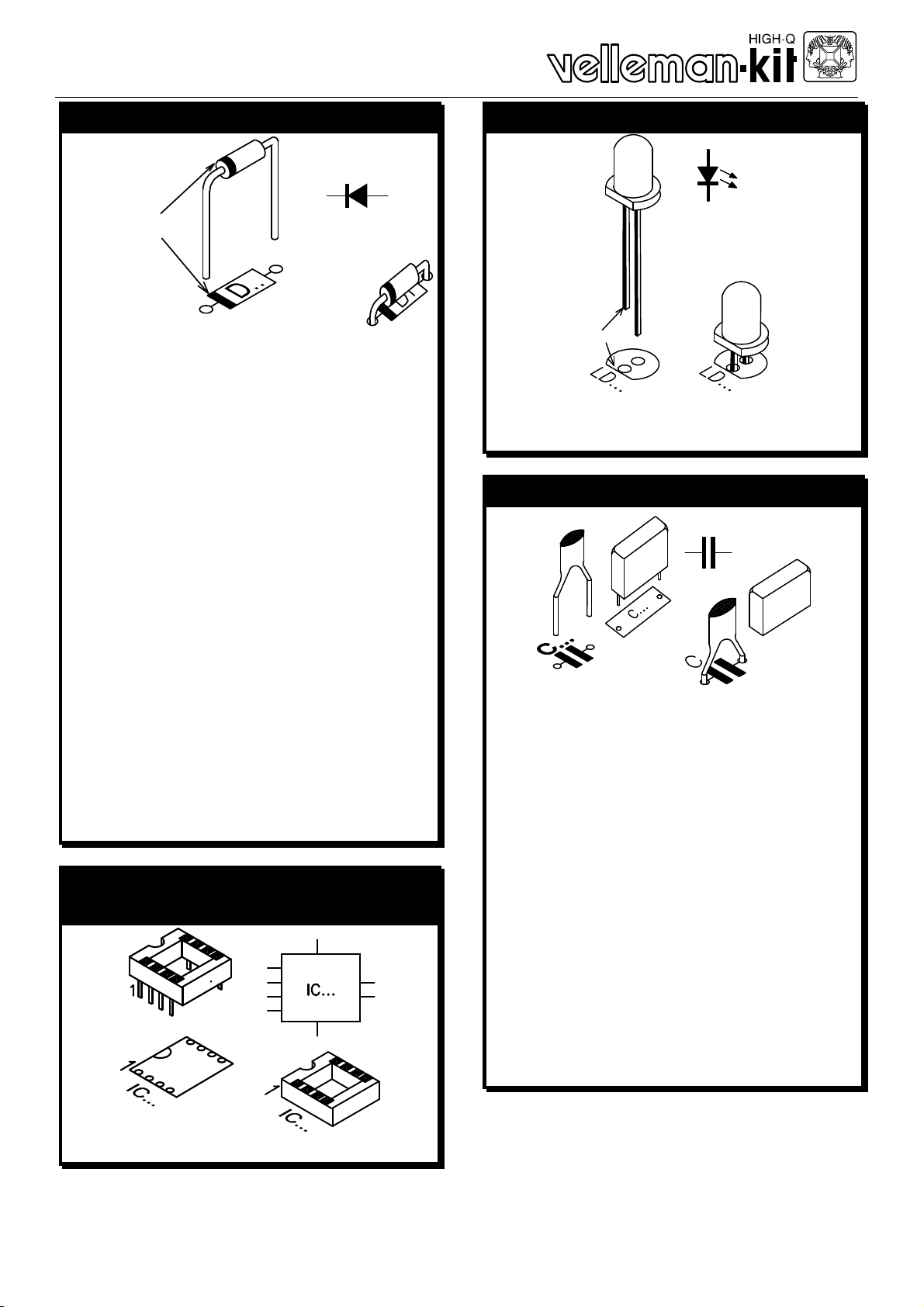

3. DIODES (Watch the polarity !)

CATHODE

D...

qD1 : 1N4148

qD2 : 1N4148

qD3 : 1N4148

qD4 : 1N4148

qD5 : 1N4148

qD6 : 1N4148

qD7 : 1N4148

qD8 : 1N4148

qD9 : 1N4148

qD10 : 1N4148

qD11 : 1N4148

qD12 : 1N4148

qD13 : 1N4148

qD14 : 1N4148

qD15 : 1N4007

qD16 : 1N4007

qD17 : 1N4007

qD18 : 1N4007

4. IC SOCKETS (Watch the posi-

tion of the notch !)

qIC1 : 24P

5. LEDs (Watch the polarity !)

LD...

CATHODE

qLD1 : 5mm LED

qLD2 : 5mm LED

6. CAPACITORS

C...

qC1 : 100nF (µ1, 104)

qC2 : 100nF (µ1, 104)

qC3 : 100nF (µ1, 104)

qC4 : 100nF (µ1, 104)

qC5 : 100nF (µ1, 104)

qC6 : 100nF (µ1, 104)

qC7 : 100nF (µ1, 104)

qC8 : 100nF (µ1, 104)

qC9 : 100nF (µ1, 104)

qC10 : 220nF (µ22, 224)

qC11 : 220nF (µ22, 224)

qC12 : 220nF (µ22, 224)

qC13 : 470nF (µ47, 474)

qC14 : 470nF (µ47, 474)

_______________________________________________________________________________________________________________________________________________________

7. ELECTROLYTIC CAPACITORS

(Watch the polarity!)

C...

qC15 : 4.7µF

qC16 : 47µF

qC17 : 47µF

qC18 : 47µF

qC19 : 47µF

qC20 : 1000µF

8. TRANSISTORS

qT1 : BC547B

qT2 : BC547B

qT3 : BC547B

qT4 : BC547B

qT5 : BC547B

qT6 : BC557B

qT7 : BC557B

9. VOLTAGE REGULATOR

VR...

qVR1 : 7806

10. PCB PINS

qMIC +; MIC -; AIN; AUX; SP +;

SP -; AC; AC; 6VDC +; 6VDC -;

GND; +V; STRT; NXT; REC;

STP; RPT

11. PUSHBUTTON

qSW1 : 1P (ON)

__________________________________________________________________________________________________________________________________________________________

12. SWITCH

qSW2 : 1P ON / OFF

13. IC (Watch the position of the

notch!)

qIC1 : ISD1012…ISD1020 or eq.

14. POWER SUPPLY : MAINS OR BATTERIES

FUSE 1A T

FUSEHOLDER

TRANSFORMER

POWER SWITCH 240V 3A

MAINS

STRAIN RELIEF

9...12VAC

AAA 1.5V

_______________________________________________________________________________________________________________________________________________________

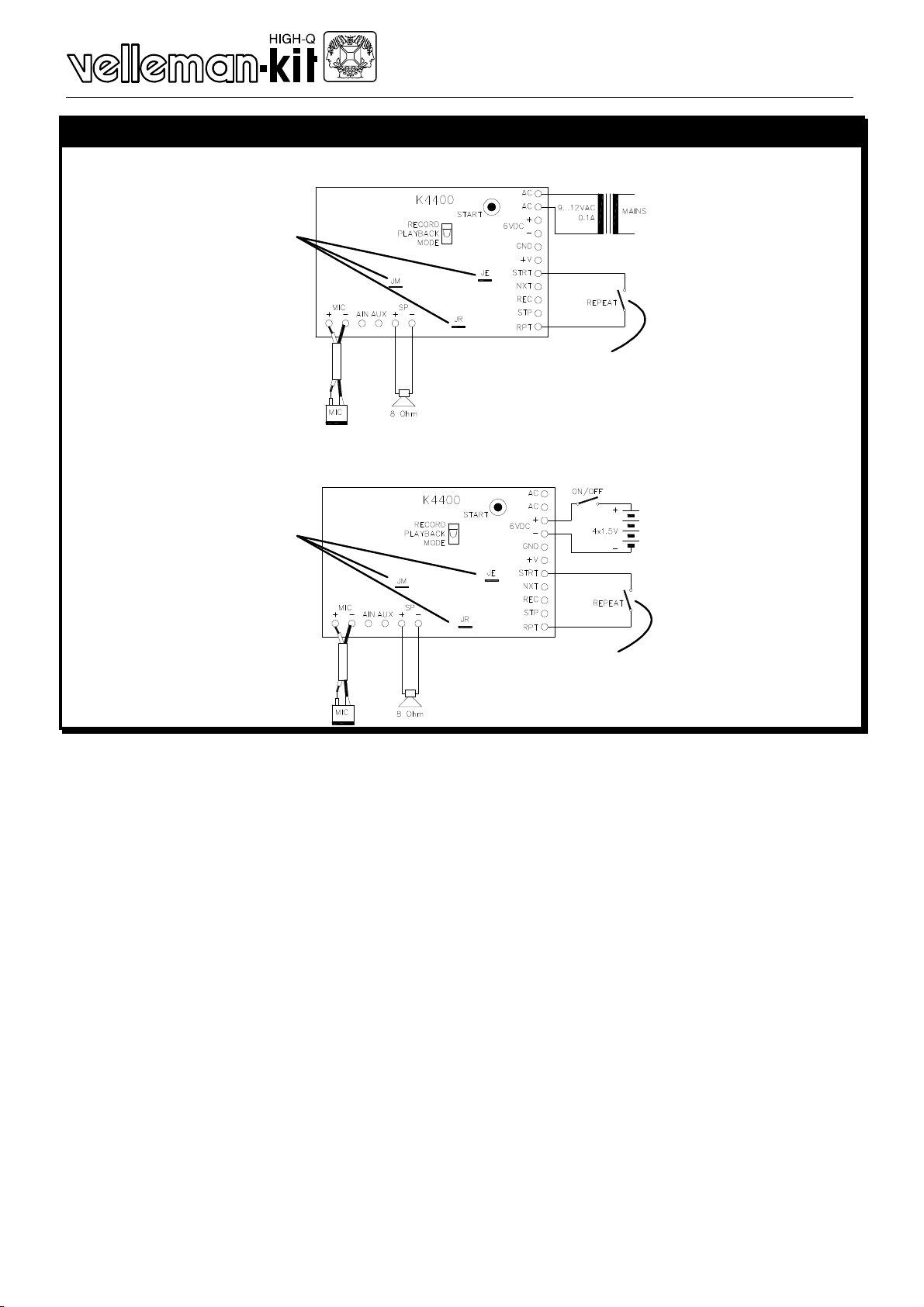

16. CHOOSE POWER SUPPLY

Single unit with microphone and speaker, transformer operated

Single unit with microphone and speaker, battery operated

mount these wire jumpers

electret microphone

speaker

transformer

to auto-repeat message, mount this switch

4x AAA battery

__________________________________________________________________________________________________________________________________________________________

17. CHOOSE INPUT AND OUTPUT DEVICE

mount these wire jumpers

Single unit with line input and speaker output

Single unit with microphone input and line output

Line input with 10K log level adjust speaker

electret microphone Line output with 4K7 log level adjust

_______________________________________________________________________________________________________________________________________________________

18. CASCADE OPERATION OF MULTIPLE UNITS FOR EXTENDED RE-

CORDING TIME

mount these wire jumpers

mount this wire jumper

mount these wire jumpers
