1

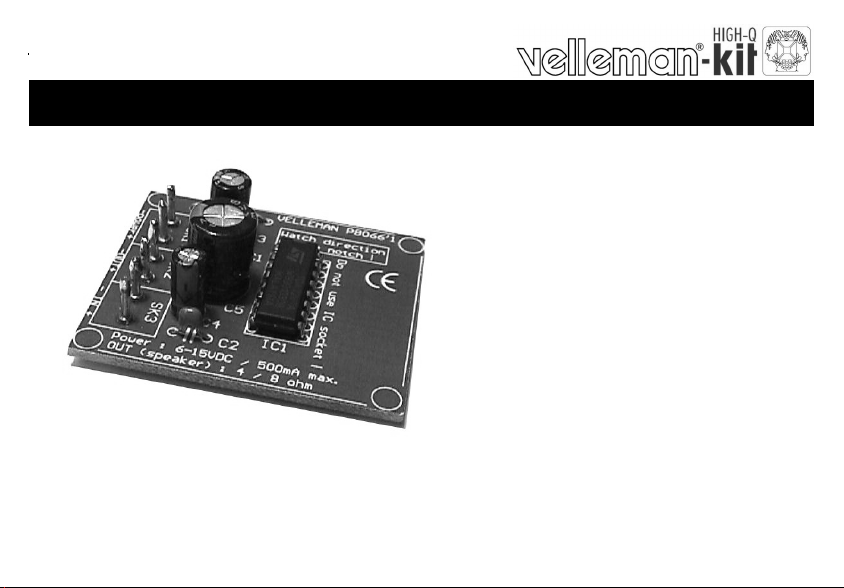

3W MONO AMPLIFIER
K8066
ILLUSTRATED ASSEMBLY MANUAL H8066IP-1
Total solder points: 34
Difficulty level: beginner 1 2 3 4 5 advanced
Smallbutpowerfulamplifier
suitsawiderangeof
applications.
2
3
Specifications:
Compact size.
Low partcount.
No additional heatsink required.
Single supply.
Wide supply range.
Excellent protection
Features:
Output power : 3Wrms (4-8 ohm, 15VDC, 10%THD).
Freq. Range : 50Hz—20KHz (1W/8ohm/-3dB).
Gain : 32dB ( 40x).
Thermal protection.
Short circuit protection.
Power supply : 6..15VDC.
Current consumption : 500mA max.
Dimensions : 42x50mm.
Features & Specifications
4
Assembly hints
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
1.1 Make sure you have the right tools:
• A good quality soldering iron (25-40W) with a small tip.
• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will
protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.
• Thin raisin-core solder. Do not use any flux or grease.
• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
• Needle nose pliers, for bending leads, or to hold components in place.
• Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or might be handy
1.2 Assembly Hints :
⇒Make sure the skill level matches your experience, to avoid disappointments.
⇒Follow the instructions carefully. Read and understand the entire step before you perform each operation.
⇒Perform the assembly in the correct order as stated in this manual
⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
⇒Values on the circuit diagram are subject to changes.
⇒Values in this assembly guide are correct*
⇒Use the check-boxes to mark your progress.
⇒Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.
0
.0
0
0
5
Assembly hints
1.3 Soldering Hints :
1- Mount the component against the PCB surface and carefully solder the leads
2- Make sure the solder joints are cone-shaped and shiny
3- Trim excess leads as close as possible to the solder joint
6
Construction
D1 : 1N4007
1. Diodes. Watch the polarity !
D...
CATHODE
IC1 : TDA7267A
Do not use an IC socket
2. IC, Watch the position of
the notch !
C1 : 100nF (104)
C2 : 100nF (104)
3. Capacitor.
C...
SK1 - power
SK1 + power
SK2 - OUT
SK2 + OUT
SK3 - IN
SK3 + IN
4. PCB tabs
C3 : 100µF
C4 : 47µF
C5 : 470µF
5. Electrolytic Capacitors.
Watch the polarity !
C...
7
Volume
47K ohm
Log - potentiometer
-
+
4/8 ohm speaker
- +
+
-
6 ... 15VDC
CD PLAYER
TAPE RECORDER
VIDEO RECORDER
COMPUTER
...
Fig. 1.0
Depending on your application, you can connect the unit for use with the line level signals of e.g. a CD-
player, a tuner, a sound card, … Connect a loudspeaker of 4 – 8 ohms with the connections OUT+ and
OUT-. You can adjust the volume by mounting a potentiometer of e.g. 47K log. in front of the input of the
K8066 (fig. 1.0). Always use shielded cable (shielding) for the connection of audio signals in order to avoid
noise, hum and interference.
6. Connection with a line level signal :
Connection
shielding cable
8
Connection
The supply voltage is connected with the "power+” and “power-“ terminals. The supply voltage can vary
between 6 and 15VDC and doesn't necessarily have to be regulated.
Thanks to the wide voltage range, the circuit can operate on batteries, via a transformer (fig. 2.0) or via an
adapter (fig. 3.0).
FUSE 250mA T
FUSEHOLDER
TRANSFORMER
SWITCH 240V 3A
MAINS
STRAIN RELIEF
12V AC 6VA
RECTIFIER BRIDGE
+ -
ELECTROLYTIC CAPACITOR 2200µF 25V
Fig 2.0
-+
9
Connection
Fig 3.0
6 ... 15VDC
10
7. PCB layout.
PCB
