INSTALLATION AND OPERATION MANUAL - VDO CYTEC C05+

Preface

Thank you for buying a VDO CYTEC bicycle computer. The more familiar you get with this model, the more

enjoyable your trips are going to be. Please read thoroughly all the information provided in this manual. You

are getting important and useful hints for operation to make you fully benefit from all the technical features of

your VDO CYTEC bicycle computer.

We wish you enjoyable trips and rides on your bike with VDO CYTEC

CYCLE PARTS GMBH

1.Mounting the system

1.1 Mounting the handlebar holder

The handlebar holder fits handlebars of any diameter. Before mounting the system, decide if you will be using

your left or right hand to operate the computer and then mount the handlebar holder on the respective side.

Position the handlebar holder, insert the strap and adjust is by tightening the screw.

Warning: Before tightening the handlebar holder, make sure to adjust the position of the computer head

(inclination) when the LCD-display is best visible for you. Only when you find the best position

tighten the screw.

screw

1.2 Mounting the speed transmitter / sender

The sensor should be mounted on the same side of the fork as the holder is on the handlebar. Make sure to

position the respective rubber shim between fork and sender, position the curved back of the sender next to

the spokes and make sure the sender is aimed at the receiver (computer head).

Important: Do not tighten the cable ties yet. Accurately position the sensor and the spoke magnet first, then

tighten the cable ties.

1.3 Mounting the spoke magnet

Distance between magnet and sensor should

be approx. 1-5 mm.

In case this distance is not achievable in the current positioning, slide the sensor and the magnet on the

fork or spoke accordingly.

Watch out: Please remove the computerhead from the handlebar holder when you intend not to use your

bike for a longer period of time. (battery power)

1-5mm

1.4 Installing battery into computer head

To save battery power, your VDO CYTEC C05+ comes with the battery not yet fitted. Prior to initial use you

have to install the battery first. Insert battery with positive (+) end on top.

Watch out: Once the battery is properly fitted, the computer immediately changes into set-up mode

(see also chapter 5). If you find the computer is not functioning properly after a battery change,

push the AC-button (Auto Clear) on the rear side of the computer to reset.

3V CR 2032

AC AC

OPEN CLOSE

1.5 Function Indicator

Your VDO CYTEC C05+ features a function indicator ((1)).

When you are done mounting the computer, ((1)) flashes at the first rotation of the wheel.

When the wheel-size is properly entered,

actual speed is displayed as well.(see chapter 5).

In case the function-indicator ((1)) is not flashing, please double-check:

Is the computer properly fitted onto the handlebar holder?

Is the spoke magnet accurately positioned opposite the speed transmitter (max 5 mm distance)?

2. Twist-Click mounting of computer onto holder

The Twist-Click mounting has been exclusively developed for the new line of

VDO CYTEC computers. The computerhead is put onto the handlebar and by a

right turn of the computerhead (TWIST) fixed to the holder (CLICK).

It is just as easy to remove the computerhead from the handlebar holder.

Slightly push the computerhead down, twist it to the left, remove computerhead

from handlebar holder.

UNLOCK

LOCK

1.LOCK

2.CLICK

1.PRESS

2.UNLOCK

3. Information features of your VDO CYTEC C05+

Your VDO CYTEC C05+ provides you with following information:

KMH-MPH current speed indicated in either KMH or MPH, featuring automatic conversion into MPH

DST trip counter, counts your trip distance up to 999,99 km or miles.

ATM trip timer, keeps track of the actual riding time featuring automatic start/stop function,

up to 9:59:59 (hrs:min:sec)

CLK clock with 24 h display mode.

ODO odometer, counting distance ridden up to 99,999 KM or M.

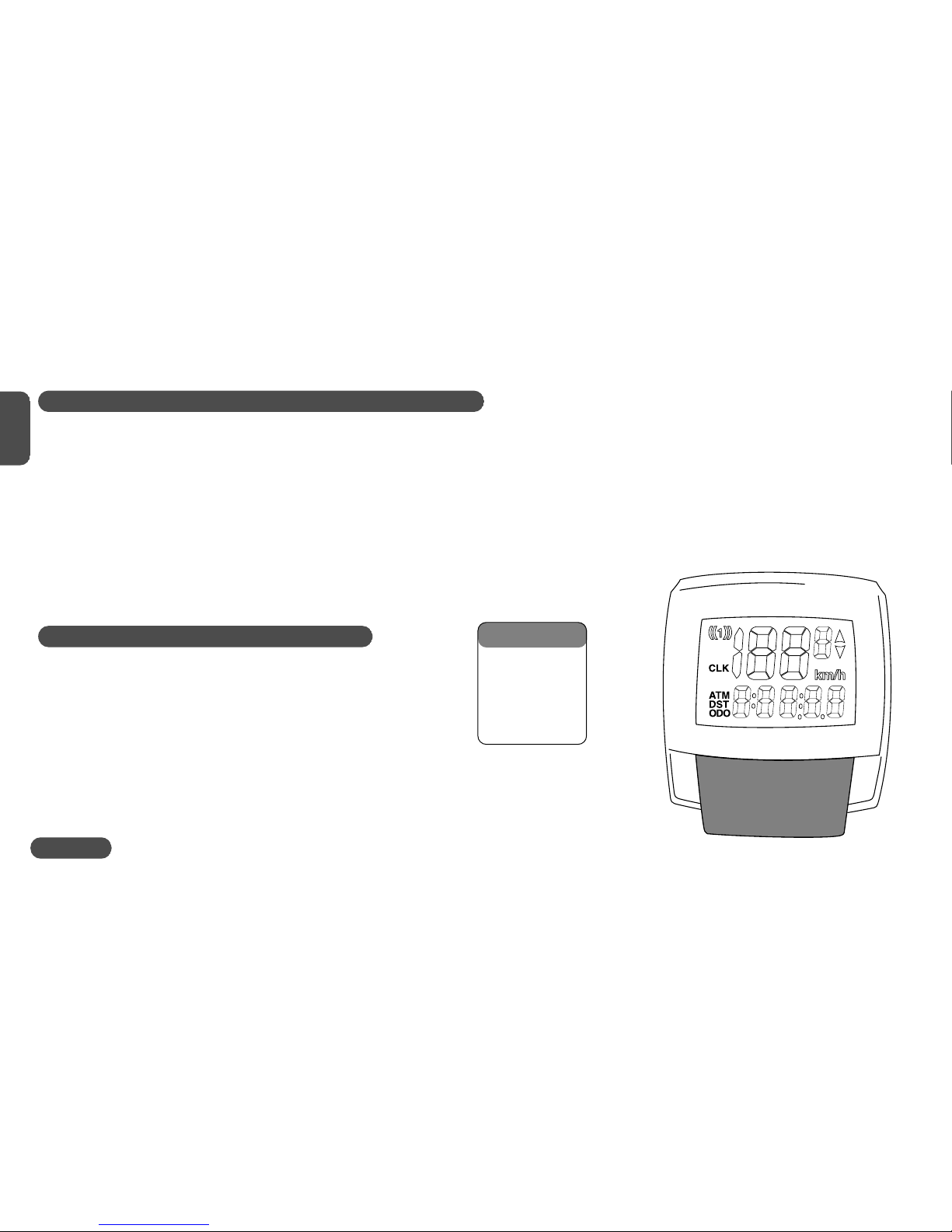

4. Operating your VDO CYTEC C05+

Button / Key Covering

Your VDO CYTEC C05+ has 1operating button / key

3. Information features of your VDO CYTEC C05+

Your VDO CYTEC C05+ provides you with following information:

KMH-MPH current speed indicated in either KMH or MPH, featuring automatic conversion into MPH

DST trip counter, counts your trip distance up to 999,99 km or miles.

ATM trip timer, keeps track of the actual riding time featuring automatic start/stop function,

up to 9:59:59 (hrs:min:sec)

CLK clock with 24 h display mode.

ODO odometer, counting distance ridden up to 99,999 KM or M.

4. Operating your VDO CYTEC C05+

Button / Key Covering

Your VDO CYTEC C05+ has 1operating button / key

Function

DST

ATM

CLK

ODO

This button / key has several functions.

All functions of the button / key are outlined in the chart below.

Your display Button / Key to Length of pushing What is going on?

indicates following be pushed the button / key

information

DST-ODO-CLK-ATM push MODE key brief (0.1 sec) next information from DST or ODO orATM

is indicated.

ODO push MODE key long (5 sec) enter set-up mode for wheelsize and odometer

CLK push MODE key long (5 sec) enter set-up mode for clock

DST push MODE key long (5 sec) DST andATM are simultaneously reset to ZERO

Watch out: To avoid resetting DST andATM by mistake, thoroughly check the information in display

before you push the MODE key for 5 sec.

5. Set-up mode

Your VDO CYTEC C05+ features the following set-up procedures Watch out:Once the battery is properly

fitted, your VDO CYTEC C05+

wheelsize = WS set-up starts out of ODO in display immediately changes into

clock = CLK set-up starts out of CLK in display set-up mode

odometer = ODO set-up starts out of ODO in display (see also chapter 5.3). 9
