VarTech Systems VT181CH Manual de usuario

VT181CH / VT181CHE User Guide 150-066

VT181CH · VT181CH-IR

VT181CHE-IR

18.1” Flat Panel for Honeywell Applications

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VarTech Systems Inc.

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

Tray Mount Flush Mount

In Honeywell Bezel

Table Of Contents

Section Page Section Page

Section 1 Section 4

Introduction Touch screen

1.1 VT181CH Display Family 1 4.1 Touch Screen Introduction 10

1.2 Product Safety Precautions 2

Section 5

Section 2 Troubleshooting Tips 11

Display Setup

2.1 Display Features 3 Section 6

2.2 Unpacking The Display 4 Cleaning & Maintenance 12

2.3 Included Parts 4

2.4 Connecting Your Display 4 Section 7

2.5 Signal Connections 4-5 Mechanical Drawings

Mounting Instructions 13

Section 3 Tray Mount Mechanical Drawing 14-15

Getting Started Flush Mount Mechanical Drawing 16-17

3.1 Adjusting the Display 6

3.2 Adjustment Procedure 7-9 Section 8

Display Specifications 18

VT181CH / VT181CHE User Guide 150-066

INTRODUCTION

Section

VT181CH Display Family

The VT181CH, VT181CH-IR, and VT181CHE-IR are part of a series of LCD

replacement displays for the Honeywell TDC Universal Stations (US) Classic Style

furniture.

The VT181CH displays are offered as chassis tray mount models and as flush

mount models. The flush models mount to the Vartech Systems replacement console

bezels or the Honeywell replacement console bezel for systems which have been

upgraded to the 19" Sony monitor. The chassis tray models mount in the same method as

the original CRT displays.

The VT181CH and VT181CH-IR displays are for stations that have EPDG video

board and EPDG I/O Adapter board. These displays replace the 20" Aydin or

Intecolor CRT displays. The VT181CH-IR is supplied complete with a replacement console

bezel and new flat IR touch frame which is compatible with the original 20" touch

frame being replaced.

The VT181CHE-IR displays are for stations that have PDG video board and PDG

I/O Adapter board. The PDG I/O Adapter board must be Honeywell PN 51109394-100.

The VT181CHE-IR replaces the 20" Electrohome and Aydin CRT displays. The

VT181CHE-IR is supplied complete with a replacement console bezel and new flat IR touch

frame which is compatible with the original 20" touch frame being replaced.

1.1

Product Safety Precautions

⇒ Ensure that sufficient space is available around the display to provide the circulation

necessary for cooling.

⇒ Ensure that the ambient air temperature will not exceed the specified maximum

temperature.

⇒ Do not attempt to service this display yourself. The rear chassis has a seal so that non

qualified personal will not expose themselves to dangerous voltages or other risks.

⇒ To protect from electrical shock, unplug the display power supply from the console before

moving.

⇒ Do not expose the display to excessive heat.

⇒ Do not use this display near water.

⇒ Unplug the power supply from the console or unit if one of the following conditions exists.

⇒ Power cord or plug is damaged or frayed

⇒ Liquid is spilled into the display or the display is exposed to rain or water.

⇒ The display does not operate normally when the operating instructions are

followed.

⇒ The display has been dropped or the enclosure has been damaged.

⇒ The display exhibits a distinct change in performance, indicating a need for

service.

1.2

VT181CH / VT181CHE User Guide 150-066

Section

DISPLAY SETUP

VT181CH Series Display Features

⇒ Capable of displaying unlimited colors in a continuous spectrum. The high contrast LCD

enhances the image with no geometric distortion.

⇒ The Displays come with a HD15 Input Connector. The VT181CH also includes an HD15 to DB9

Video Adapter Cable. The VT181CHE-IR also includes an HD15 to 5BNC Video Adapter Cable.

⇒ The Displays are supplied with a remote membrane switch assembly that mounts to the front of

the console bezel for OSD controls.

⇒ The Display is supplied with an Anti-Reflective Screen.

⇒ The Display has an integrated 115/220VAC supply as standard on all models.

2.1

1. Connect all cables to the station first. This would include the video adapter cable and the

optional IR touch screen cable.

2. After connecting the cables between the LCD monitor and the station, plug the power cord

into the display.

3. Switch on the display power switch.

4. Reboot the station.

5. Your display should now operate showing the station video information.

Note: The displays are factory OSD adjusted for each configuration. However, additional OSD

adjustments may be required (See section 3).

⇒ 18.1” LCD Monitor

⇒ Video adapter cable (HD15 to DB9 or HD15 to 5BNC)

⇒ Accessory Kit: 2-Chassis stops; OSD Membrane Kit; Optional Chassis Brackets; IR touch

frame cable; VT181CH includes a HD15 to DB9 Video Adapter Cable; VT181CHE includes

a HD15 to 5BNC Video Adapter Cable.

⇒ Users Guide (Printed or on CD)

2.2 Unpacking and setting up your display

Your LCD monitor package will consist of the basic components listed below. Depending on the

display configuration, additional components are supplied.

2.3 What is included with your display

2.4 Connecting the Display

2.5 Signal Connections

To avoid irregular operation and /or damage to the display, please insure correct video is being

supplied as shown on the following page.

VT181CH / VT181CHE User Guide 150-066

Use the HD15 to DB9 video adapter cable to connect the flat panel display to the EPDG I/O

adapter board.

Use the HD15 to 5BNC video adapter cable to connect the flat panel display to the original

Red, Green, and Blue coax cable connected to the PDG I/O adapter board. The 2 extra BNC

cables on the video adapter are not used.

Note: The following figure is the view looking into the pin end of the male connector or solder

term end of the female connector.

HD15 Connector

The following table provides the pin numbers and corresponding

pin assignments for the HD-15 video connector.

Pin Signal

1 Red Video

2 Green Video (SOG PDG only)

3 Blue Video

4 Not Used

5 Not Used

6 Red Video Ground

7 Green Video Ground

8 Blue Video Ground

9 Not Used

10 Ground

11 Ground

12 Not Used

13 Horizontal Sync (EPDG only)

14 Vertical Sync (EPDG only)

15 Not Used

2.5 Signal Connections Cont.

HD15 Connector

Female

GETTING STARTED

Section

3.1 Adjusting the display

On Screen Display

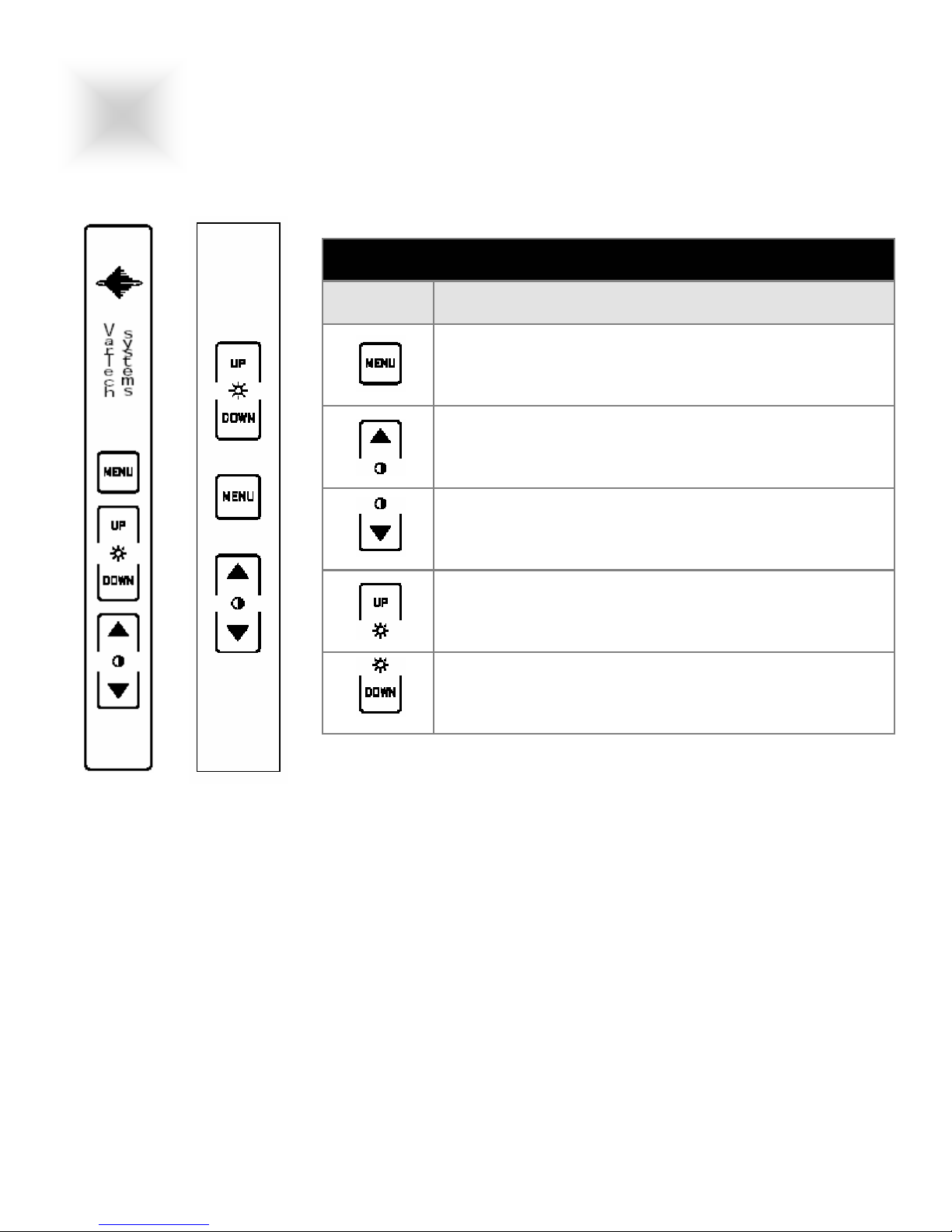

Button Description

Invokes OSD or

Next Function Level

Increase Contrast or

Increment Selected Parameter

Decrease Contrast or

Decrement Selected Parameter

Increase Backlight Brightness or

Increment Selected Parameter

Decrease Backlight Brightness or

Decrement Selected Parameter

VT181CH / VT181CHE User Guide 150-066

3.3

Direct Brightness Adjustment

OSD Agent Description

Brightness

Controls the intensity of the backlight. After adjustment, the new

Brightness value is displayed on the screen until the OSD timeout

period expires. The new setting is then stored and the display

returns to normal.

Direct Contrast Adjustment

OSD Agent Description

Contrast

Controls the contrast (video gain) of the picture. After adjustment,

the new contrast value is displayed on the screen until the OSD

timeout period expires. The new setting is then stored and the

display returns to normal.

Menu Select

OSD Agent Description

Menu Select

Displays picture identification information together with a menu of

icons. To access lower-level functions, use the brightness up and

down or the contrast up and down buttons to toggle through the

menus available for the currently displayed signal type, then press

MENU again to select that function. The MENU button has a similar

function to the ENTER key on a computer keyboard. Exit from a

menu by selecting BACK which returns to the previous level.

When leaving the main menu you will be prompted to save any

changes, if you do not wish to save any changes select NO.

OSD Menu

OSD Agent Description

OSD Menu

At the top of the menu is a line which identifies the type of signal

currently displayed. For computer signals the same section displays

the signal resolution, together with horizontal and vertical

frequencies. If its setup has been saved, the user number of the

signal is also displayed. (These figures are for guidance only).

Brightness and Contrast

OSD Agent Description

These perform the same functions as the direct brightness and direct

contrast button operations listed above.

Brightness and Contrast

User Controls

The Geometry Menu

OSD Agent Description

Edge Adjustment

Adjusts Picture Size and Position Controls. The four “Edge”

controls shift each edge within available limits. Note that the

maximum available shift depends on the incoming video standard

and the display panel type, and may be restricted vertically. This

provides very flexible and easy to use image size an position

control.

Moire Corrects Moire. Choose from one of four correction tables.

Clock

Sets the total number of input pixels per line to correspond with the

input source, and will normally require adjustment for unusual

signals.

Phase

Adjusts the internal clock to sample each pixel as near as possible

to the centre. Phase will normally require adjustment for unusual

types of signal.

Aspect Ratio

Selects the displayed aspect ratio where the signal input is at

variance with the display panel’s natural aspect ratio. The format

may be adjusted to either “Letter Box” or “Overscan”. “Letter Box”

effectively adjusts the height of the displayed image and “Overscan”

effectively adjusted the width to achieve the desired 4:3 aspect

ratio.

Input Select: Configures the preferred input selections.

(If a facility is not fitted, it will be displayed but not selectable.)

OSD Agent Description

Signal Type Priority Video-graphics or Graphics-video

Video Priority Search

Order

CVBS -Y/C - SDI - Component

Y/C - CVBS - SDI - Component

SDI - Component - CVBS - Y/C

Component - SDI - CVBS - Y/C

The Color Menu

OSD Agent Description

Video Inputs

Adjusts the contrast (video gain) and brightness (black level)

parameters, also color saturation for PAL, NTSC and SECAM

inputs can be accessed from this menu. For NTSC signals, there is

an additional HUE option.

Graphics Search RGB-DVI or DVI-RGB Note: DVI not available

Component Video Type RCB or YUV. Incorrect colors may be due to wrong selection here.

Computer Inputs-

Individual Color

Adjustments

Red, green and blue levels can be thought of as individual

brightness controls for each of red, green and blue. They should be

adjusted for the desired color balance and to minimize noise on low

intensity colors and greys. Color tints can be added as required.

3.3 Adjustment Procedure Cont.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de VarTech Systems

VarTech Systems

VarTech Systems VT520 Manual de usuario

VarTech Systems

VarTech Systems VTPC150XPE Manual de usuario

VarTech Systems

VarTech Systems ColorVue VT190PC Manual de usuario

VarTech Systems

VarTech Systems VT420W Manual de usuario

VarTech Systems

VarTech Systems VT170CM Manual de usuario

VarTech Systems

VarTech Systems VT14B-C1 Manual de usuario

VarTech Systems

VarTech Systems VT150CHB Manual de usuario

VarTech Systems

VarTech Systems VT29B-M Manual de usuario

VarTech Systems

VarTech Systems VT190PVS Manual de usuario

VarTech Systems

VarTech Systems VT420 Series Manual de usuario

VarTech Systems

VarTech Systems VT064P Manual de usuario

VarTech Systems

VarTech Systems GDM-5001PT Manual de usuario

VarTech Systems

VarTech Systems VT084XA4 Manual de usuario

VarTech Systems

VarTech Systems VT170W Manual de usuario

VarTech Systems

VarTech Systems DiamondVue VT150P Manual de usuario

VarTech Systems

VarTech Systems VT084XHB Manual de usuario

VarTech Systems

VarTech Systems VT121XA4 Manual de usuario

VarTech Systems

VarTech Systems VT190P2 Manual de usuario

VarTech Systems

VarTech Systems VT121 DiamondVue Series Manual de usuario

VarTech Systems

VarTech Systems VTPC2100VS Manual de usuario

VarTech Systems

VarTech Systems VT420D Manual de usuario

VarTech Systems

VarTech Systems VT064C Manual de usuario

VarTech Systems

VarTech Systems VT14A-D Manual de usuario

VarTech Systems

VarTech Systems DiamondVue VT201C Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
