Vanco Evolution Manual de usuario

Vanco Part Number

EVEXFBR1

HDMI® Extender over

Fiber with IR and RS-

232

www.vanco1.com • 800.626.6445

HDMI® EXTENDER

over Fiber with IR and RS-232

www.vanco1.com 800.626.6445

1. Do not expose this unit to water, moisture, or

excessive humidity.

2. Do not install or place this unit in a built-in

cabinet, or other conned space without

adequate ventilation.

3. To prevent risk of electrical shock or re

hazard, due to overheating do not obstruct

unit’s ventilation openings.

4. Do not install near any source of heat,

including other units that may produce heat.

5. Do not place unit near ames.

6. Only clean unit with a dry cloth.

7. Unplug unit during lightening storms or when

not used for an extended period of time. A

surge protector is strongly recommended.

8. Protect the power cord from being walked on

or pinched, particularly at the plugs.

9. Use unit only with accessories specied by

the manufacturer.

10. Refer all servicing to qualied personnel.

CAUTION

HDMI is a very complex technology requiring continuous authentication of the signal and the same

video resolution and audio settings on all electronic equipment in the system. When there are multiple

sources and displays, the video resolution and audio setting on all connected units must be adjusted

to correspond with that of the display having the lowest video and audio capability.

WARNING

DEAR CUSTOMER

Thank you for purchasing this product.

For optimum performance and safety, please

read these instructions carefully before connecting, operating or

adjusting this product. Please keep this manual for future reference.

This product is 100% inspected and tested in the United States to verify

HDMI performance parameters.

www.vanco1.com 800.626.6445 3

INTRODUCTION

The Evolution by Vanco EVEXFBR1 HDMI Extender with bi-directional IR and RS-232, extends 4K HDR video and audio

signals up to 984ft/300M over multi-mode ber optic cables, and 6.2mi/10km over single mode ber optic cables and

modules! Bi-directional IR pass-through allows for source and/or display control. Also features RS-232 pass-through for

additional control. For extending HDMI with 4K HDR resolution at an extreme distance, the EVEXFBR1 is a great solution

for any application.

The EVEXFBR1 includes two units: transmitting unit (EVEXFBR1-TX) and receiving unit (EVEXFBR1-RX). The transmitting

unit is used to capture the HDMI input with control signals and carries the signals via ber optic cables. The receiving unit

is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. Both units require power.

FEATURES

• Transmits audio and video via HDMI as well as bi-directional IR and RS-232

• Transmission range: 984ft/300m over multi-mode ber optic cables; 6.2mi/10km over single mode ber

optic cables

• Supports 4K@60Hz, 4:2:0 chroma sampling and HDR; 4K@60Hz and 4:4:4 chroma sampling

• Supports HDR10 and Dolby Vision

• Features bi-directional IR (20kHz to 60kHz) pass-through for source and/or display control

• RS-232 pass-through

• Supports HDCP2.2

• Multi-mode SFP modules included

• Dimensions: 4.9” W x 4.4” H x 1.1” D

HDMI® Extender over Fiber with IR and RS-232

Part # EVEXFBR1

PACKAGE CONTENTS

• EVEXFBR1 (TX & RX)

• (1) IR Transmitter

• (1) IR Receiver

• (2) DC 12V Power Supply

• (2) Multi-mode SFP Modules

• Product Manual

www.vanco1.com 800.626.6445

SPECIFICATIONS

HDMI Compliance ...................................................... HDMI 2.0a

HDCP Compliance ..................................................... HDCP 2.2

Video Bandwidth ........................................................ Single-link 594MHz [18Gbps]

Video Support ........................................................... HDR 4K@60Hz (4:2:0 10-bit color) / 4K@60Hz

(4:4:4 8-bit color)

HDMI over UTP.......................................................... Yes

Audio Support ........................................................... Surround sound [up to 7.1ch) or stereo digital audio

Input TMDS Signal .................................................... 1.2 Volts [peak-to-peak]

Input DDC Signal ....................................................... 5 Volts [peak-to-peak, TTL]

ESD Protection .......................................................... Human body model — ±15kV [air-gap discharge] &

±8kV [contact discharge]

PCB Stack-up ............................................................ 4-layer board [impedance control — differential

100Ω; single 50Ω]

IR Pass-thru.............................................................. Bi-directional

RS-232 Support ........................................................ Yes

HDMI Source Control ............................................... Controllable via IR pass-through from RX to TX with

IR extenders

HDMI Connector ........................................................ Type A [19-pin female]

3.5mm Connector...................................................... IR receiver / IR blaster

Operation Temperature............................................... 0~40°C [32~104°F]

Storage Temperature ................................................. -20~60°C [-4~140°F]

Relative Humidity....................................................... 20~90% RH [no condensation]

Power Supply ............................................................ 12V, 2A

Power Consumption ................................................... Max 10W

www.vanco1.com 800.626.6445 5

1. RS-232: Connect for control via PC or third party control system

2. Firmware Update Port: any available f/w updates will be available under the EVEXFBR1 product page on

www.vanco1.com

3. DIP Switch for Control: Enable or disable bi-directional IR and/or RS-232; see “Control Type Setup” section

4. Power and Link lights: Both LEDs should be illuminated for proper functionality, link indicates that both the

TX and RX are communicating

5. SFP OUT: Connect ber optical cables from this unit to the RX (multimode modules included)

6. HDMI IN: Connect an HDMI source

7. IR IN: Connect the included IR Receiver (RX) to control the display

8. IR OUT: Connect the included IR Transmitter (TX) to control the source

9. DC 12V: Connect the included 12V Power Supply (both TX and RX need to be plugged into power)

PANEL DESCRIPTIONS

Transmitting Unit

21 3 45

67 8 9

www.vanco1.com 800.626.6445

PANEL DESCRIPTIONS

Receiving Unit

1345

6789

1. RS-232: Connect for control via PC or third party control system

2. Firmware Update Port: Any available f/w updates will be available under the EVEXFBR1 product page on

www.vanco1.com

3. DIP Switch for Control: Enable or disable bi-directional IR and/or RS-232; see “Control Type Setup”

section

4. Power and Link Lights: Both LEDs should be illuminated for proper functionality, link indicates that both

the TX and RX are communicating

5. SFP IN: Connect multimode ber optical cables from this unit to the TX (multimode modules included)

6. HDMI OUT: Connect an HDMI display

7. IR IN: Connect the included IR Receiver (RX) to control the source

8. IR OUT: Connect the included IR Transmitter (TX) to control the display

9. DC 12V: Connect the included 12V Power Supply (both TX and RX need to be plugged into power)

www.vanco1.com 800.626.6445 7

Passing through IR and/or RS-232 Signals

CONTROL TYPE SET UP

The EVEXFBR1 can pass-through bi-directional IR and RS-232, both control types can be deactivated. Note

that both controls are activated by default. See the below table (PIN #2 and #3). The dip switches allow for

rmware updates and to either activate or de-activate IR as well (PIN #1)

See below for dip switch settings, note that DOWN is ON and both TX and RX need to be set to the same dip

switch settings.

DIP Switch Position

Description

TX & RX

PIN #1

ON For system rmware update

OFF Default and normal setting

PIN #2

ON Reserved for future use

OFF RS-232/IR function ON

PIN #3

ON Disable IR function

OFF Enable IR function

www.vanco1.com 800.626.6445

CONNECT AND OPERATE

1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.

to the HDMI input on the transmitting unit

2. Connect a display such as an HDTV or HD Projector to the HDMI output on the receiving unit

3. Connect ber optical cables with modules and insert into the output of the Transmitting unit, and the other

end to the SFP input of the Receiving unit

4. For power, plug in both the transmitting unit and receiving unit with the included power supplies

5. Power on each device in the same sequence (receiver and transmitter will already be powered when either

unit is plugged in)

At this point the display connected should display the source signal connected to the extender set. If no signal

is being displayed, connect a ber optical cable to rule out cabling. If a display is having difculty receiving a

signal, access the display’s menu and adjust the resolution (lowest to highest until signal is displayed). A 24

Hz vertical refresh rate may work better than 60 Hz or higher. Use the source remote at the receiver blaster

to test IR functionality. If the IR remote function is not responding, check the blasters to ensure they are

placed correctly and are plugged into the correct IR jacks on the Extender set receiving and transmitting units.

CONNECTION DIAGRAM

IR Tr ansmitter

Source

HDTV

ansmitter Receiv

HDMI HDMI

IR Receiver

IR Tr ansmitter

IR Receiver

Fiber Cable

www.vanco1.com 800.626.6445 9

IR PASS-THRU

IR PASS-THROUGH

The bi-directional IR system allows you to control the source that is connected to the extender unit, from the

display; or the display from the source, not simultaneously. There are two important things to note when

setting up the IR system:

1. The IR Receiver (IR RX) is always what you point your remote at to send an IR signal. This pigtail is placed

at the display for controlling the source; or at the source for controlling the display.

2. The IR Blaster (IR TX) is what sends the IR signal to what you are intending to control, whether it’s the

source or the display. This pigtail is placed at the source; either pointed at the source, or placed on the

front panel of the source, see below for placement tips. Or placed at the display to control the display

from the source.

3. Use only the IR accessories that are included with this extender, using third party IR blasters and/or

receivers may not work

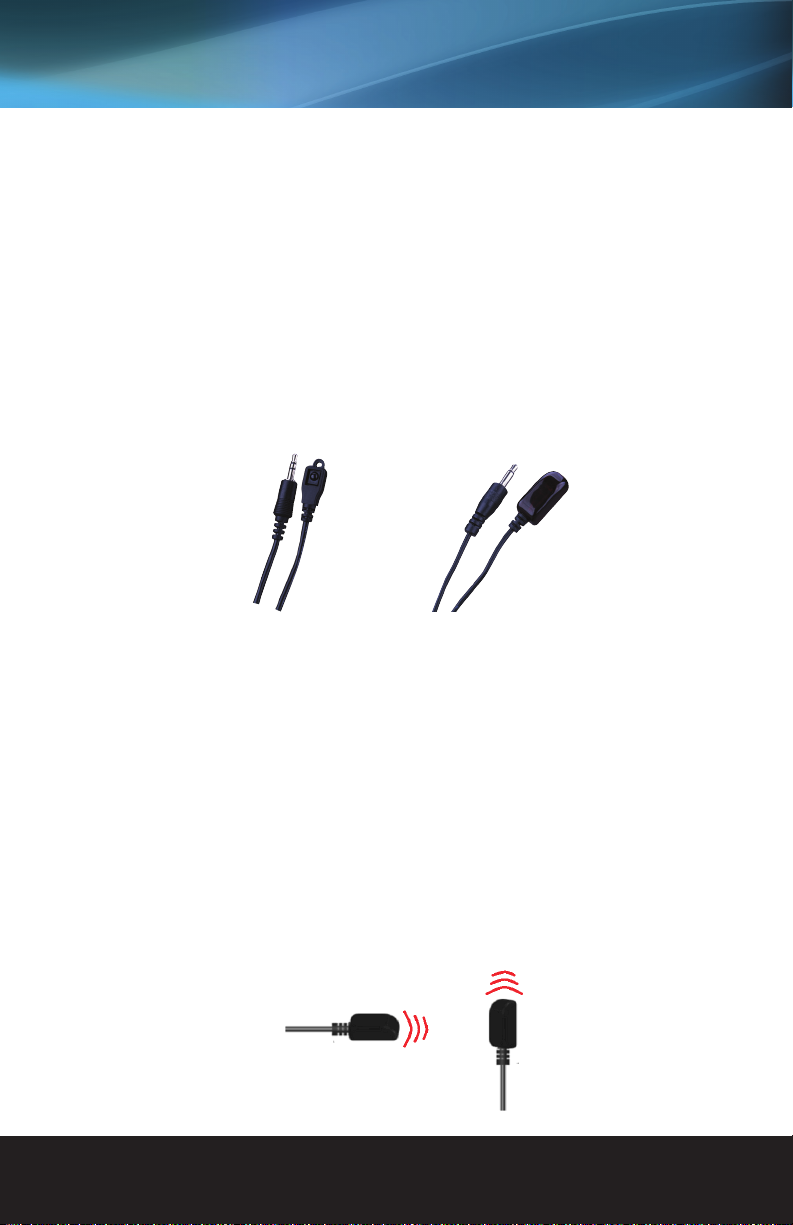

IR Receiver IR Blaster

IR Blaster (TX)

• To control the source: Plug IR Blaster into IR TX port of transmitter unit (EVEXFBR1-TX); place blaster in

front of the IR eye of the source

• To control the display: Plug IR Blaster into IR TX port of receiver unit (EVEXFBR1-RX); place blaster in

front of the IR eye of the display

Note: Placement of the IR Blaster is important and can result in the IR system not working if improperly

placed.

• First, locate the IR eye or window on the source

• If placing the IR Blaster right on the front panel of the source, do not stick right on top of the IR eye or

IR window. The IR signal cannot travel through the double-sided tape on the blaster. Instead place the

blaster on either side, or on the top or bottom of the IR eye or window, with the tip of the blaster facing

the IR eye or window. See below for illustration of where IR signal shoots from on IR Blaster:

www.vanco1.com 800.626.6445

IR RECEIVER (RX)

• To control the source: Plug IR Receiver into IR RX port of receiver unit (EVEXFBR1-RX); place receiver at

or near display

• To control the display: Plug IR Receiver into IR RX port of transmitter unit (EVEXFBR1-TX); place receiver

in position where it is able to receive remote signals
