Vanco AMP202 Manual de usuario

VANCO INTERNATIONAL

1 x 2 HDTV Digital Bi-Directional Signal Amplifier

Part No: AMP202

Features:

•Designed for a distribution system, which requires bi-directional transmission such as interactive

CATV/SMATV system and hotel pay TV and guest information system.

•Main Power Supply: 12V DC

•Gain Linearity

•Low running cost permits continuous operation.

•Built-in red LED indicator lights when power is on.

•1 input – 2 output, Bi-directional amplifier with return path

•Insertion Loss: - 5 dB

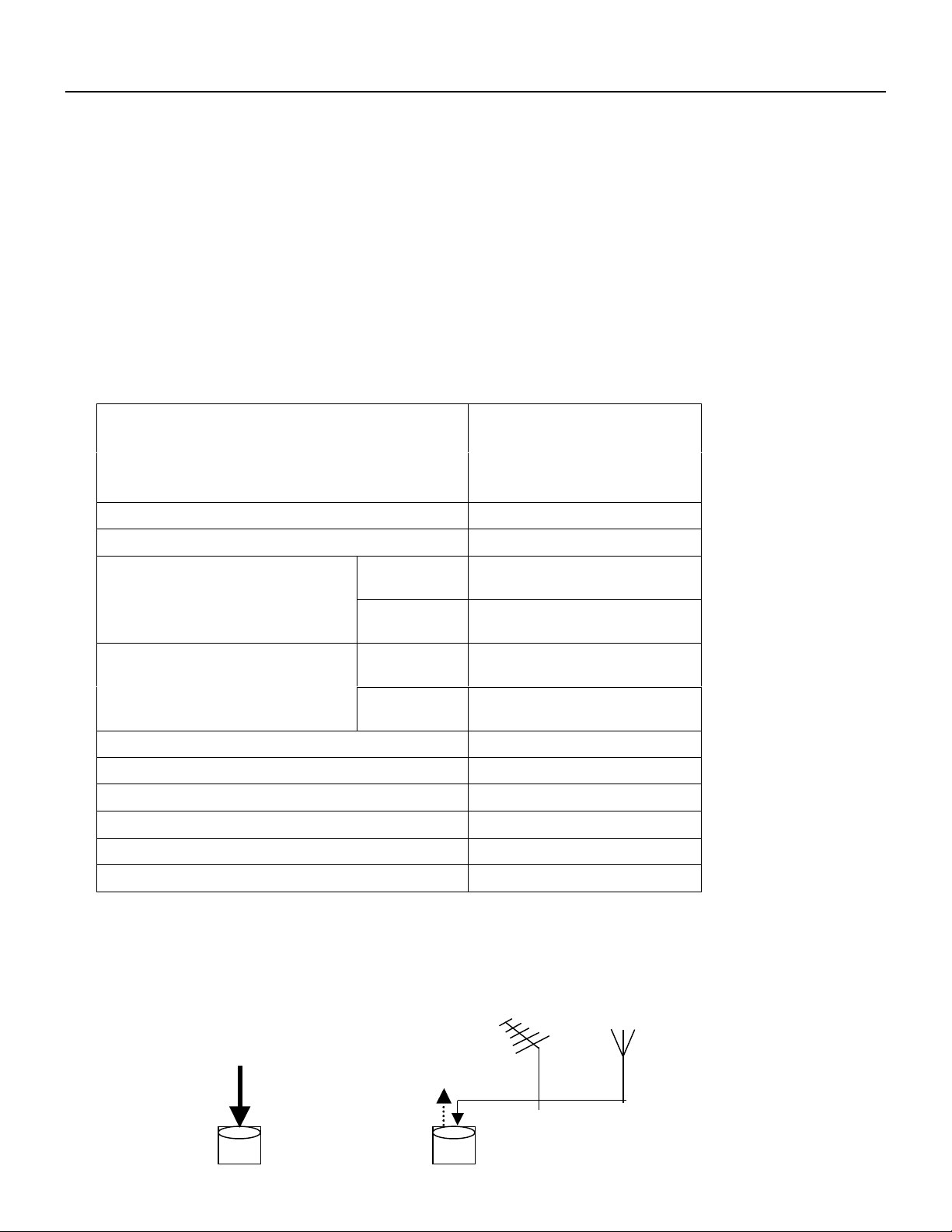

Specifications:

ITEM

Specification

Number of input

Number of output

Forward

path

54-1000

Frequency Range (MHz)

Reverse

path

5-40

Forward

path

11±2

Gain(dB)

Reverse

path

7±2

Noise figure (dB)

≤4

Return Loss( IN _OUT )(dB)

≥12

MAX output level @-60dB IMD(dB_V)

≥98

DC PASS (OUTPUT)

YES

Main Power Supply (Red LED)

12V DC

R.F. Shielded

YES

Installation:

FM antenna

VHF/UHF

antenna

VANCO INTERNATIONAL

STEP 1

Make out the signal input port first, and then connect antenna signal output port to the amplifier input port with coaxial cable.

STEP 2

Position the 75 ohm coaxial cable as requested, install F female connector to the cable.

STEP 3

Insert the power supply “F” Connector to 12V DC on AMP202 then plug into the socket of 120V 60 Hz, now the amplifier is

available.

Safety notice:

1. Don’t connect the amplifier to TV/Video/Radio before carefully reading the User’s Manual.

2. Read the instructions carefully before installation.

3. Please follow the diagram to install needed electrical devices.

4. Indoor use only! Do not expose this appliance to rain, sunlight, water or a wet location (i.e. bathtub, wash bowl, kitchen sink,

laundry tub or swimming pool, etc.). Note, the apparatus should not be exposed to dripping or splashing liquids and no objects

filled with liquids, such as vases, should be placed on it.

5. Do not insert any metallic object through the ventilation grills. Do not use this product near naked flame sources, such as a

lighted candle.

6. Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltage or other

Hazards. Refer all servicing or repairs to a qualified service technician.

Vanco International

Batavia, IL 60510, USA

www.vanco1.com

AMP202

12VDC IN

OUT1

12VDC IN OUT2

12VDC IN

Reverse path

Forward path
