Valor LIMOUSIN BR627 Manual de usuario

600B607/05

OWNER’S GUIDE

AS SUPPLIED, THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)

WHEN CONVERTED USING VALOR CONVERSION KIT NO.591159 THIS

APPLIANCE IS FOR USE WITH PROPANE GAS (G31)

THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE

REPUBLIC OF IRELAND (IE) ONLY.

This guide is intended to help you care for your Valor gas fire. Please read

thoroughly before using and keep for future reference

We trust that this guide gives sufficient details to enable the your appliance to be

operated and maintained satisfactorily. However, if further information is required,

our Valor AdviceLine will be pleased to help.

Please telephone 0345 626341 (Local call rates apply).

This guide to be left with the owner

COALFLAME

LIMOUSIN

MODEL BR627

(GC No. 32-032-22)

INSET LIVE FUEL EFFECT

GAS FIRE

OWNER’S GUIDE

Page 2

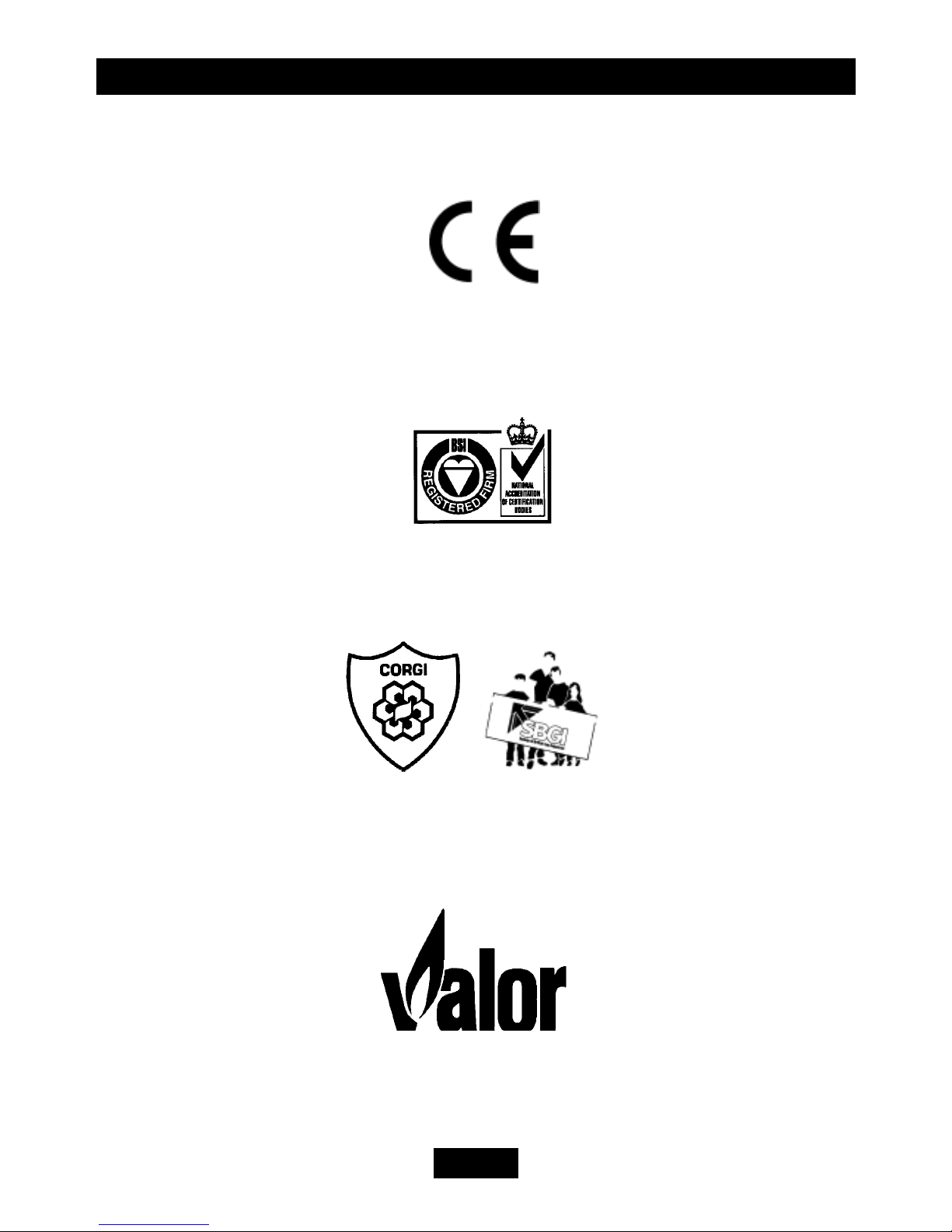

Safety First.

Valor fires are CE Approved and designed to meet the appropriate British Standards

and Safety Marks.

Quality and Excellence at the heart of every Valor fire.

All Valor fires are manufactured to the highest standards of quality and excellence

and are manufactured under a BS EN ISO 9001 quality system accepted by the

British Standards Institute.

The Highest Standards

Valor is a member of the Society of British Gas Industries which works to ensure

high standards of safety, quality and performance.

Careful Installation

Valor is a CORGI registered company. All our gas fires must be

installed by a competent CORGI Registered Installer in accordance

with our Installer Guide and should not be fitted directly on to a

carpet or floor of combustible material.

Valor Heating, Erdington, Birmingham B24 9QP

Because our policy is one of constant development and improvement, details may

vary slightly from those given in this publication

OWNER’S GUIDE

Page 3

LIST OF CONTENTS

SAFETY........................................................................................................................ 4

OPERATING YOUR FIRE.......................................................................................... 6

CLEANING................................................................................................................... 8

FITTING THE CERAMIC COALS............................................................................. 9

MAINTENANCE........................................................................................................ 10

CUSTOMER CARE

Thank you for choosing Valor.

All Valor gas fires are designed to meet the most stringent quality, performance and

safety requirements to provide our customers with many years’ trouble-free service.

Your owner guide aims to improve your understanding and appreciation of your

Valor gas fire by providing simple and informative instructions to ensure that you

benefit from the excellent performance and features it has to offer.

If you require further assistance or any advice about gas in general,

the Valor AdviceLine will be pleased to help.

Please telephone 0345-626 341 (local call rates apply in the United Kingdom).

OWNER’S GUIDE

Page 4

SAFETY

IF YOU SMELL GAS

DON’T SMOKE

EXTINGUISH ALL NAKED FLAMES

DON’T TURN ELECTRICAL SWITCHES ON OR OFF

TURN OFF THE GAS SUPPLY AT THE METER

OPEN DOORS AND WINDOWS TO GET RID OF THE GAS

IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR

LOCAL TELEPHONE DIRECTORY

1. As with any gas appliance, this fire

must be installed by a competent

person (in the United Kingdom

registered with CORGI).

In the United Kingdom, installation

must be in accordance with the

latest edition of the Gas Safety

(installation & use) Regulations.

In the Republic of Ireland,

installation must be in accordance

with all national and local

regulations in force.

2. If the fire is intended to be installed

to a chimney which was previously

used for solid fuel, the chimney must be swept prior to installation.

3. The fire must not stand on carpets or other combustible materials. The fire must

stand behind a non-combustible hearth surface. The hearth material must be at

least 12mm thick. Its top surface should be 50mm above floor level to discourage

placing carpets, rugs or other combustible materials over it. The minimum size of

the hearth is shown in figure 1.

4. If the fire is intended to be installed against a wall with combustible cladding, the

cladding must be removed from the area covered by the outer surround.

Figure 1 Hearth minimum dimensions

OWNER’S GUIDE

Page 5

5. The minimum height from the top of the

hearth to the underside of any shelf made

from wood or other combustible material

and which is not more than 150mm deep is

750mm.

For shelves deeper than 150mm add

12.5mm to the above clearance for every

25mm of additional shelf depth.

See figure 1a.

6 The minimum allowable distance to a

corner wall or other combustible projection

from the outside edge of the front surround

at either side is 100mm. See figure 1a.

7. Never put any paper or other material on

the fire. Never add any extra coals above

the number stated in these instructions.

This could cause a safety hazard.

8. It should be appreciated that although this

appliance conforms to all the applicable

standards, it is a decorative fuel effect

heating appliance and certain parts of its

surface will become hot. A suitable guard which complies with BS 6539 or 6778

should be used for the protection of young children, the elderly and the infirm.

Such a guard is also recommended for the protection of pet animals.

9. Always switch the fire off and allow to cool before handling. Note that this

appliance retains heat for some time after it has been switched off.

10.Never hang clothing, towels or any other fabrics over the fire.

11.This appliance is fitted with an Oxysafe device which will automatically shut off

the supply of gas to the fire if, for any reason, the flames go out. If this device

does operate or if the fire is turned off accidentally or intentionally, always wait

three minutes before attempting to relight.

12.Soft wall coverings (e.g. embossed vinyl etc.), are easily affected by heat. They

may, therefore, scorch or become discoloured when close to a heating appliance.

Please bear this in mind when having a heating appliance installed and when

redecorating.

13.Never add any extra coals above the number stated in this guide. This could cause

a safety hazard.

Figure 1a Front dimensions &

clearances

(

Shown with Coalflame front

)

OWNER’S GUIDE

Page 6

OPERATING YOUR FIRE

Please note

•When operating your fire for the first time, some vapours may be given off which

may cause a slight odour and could possibly set off any smoke alarms in the

immediate vicinity. These vapours are quite normal with new appliances. They are

totally harmless and will disappear after a few hours use.

•This fire is supplied with ceramic “coals” to simulate a real coal fire. After some

use, the coals may change colour. This is quite normal.

The Oxysafe flame sensing & flue blockage safety system.

For your safety, this appliance is fitted with a flue blockage safety device which will

shut down the appliance in the event of abnormal flue conditions. This device is NOT

a substitute for an independently mounted Carbon Monoxide detector.

The device will also automatically shut off the gas supply to the fire if the pilot flame

goes out due to lack of oxygen or for any other reason.

If this device starts to repeatedly shut off the gas, get expert advice.

This device incorporates a probe which senses that the heat from the pilot flame is

correct. If this probe is cool, the device will prevent any gas flow unless the sliding

control button is held at the ignition position.

If, for any reason, the flames go out when the fire is hot or if the fire is turned off

when hot, always wait at least three minutes before attempting to relight.

To light the fire

The control is shown in figure 2.

1. Slide the control button to the bottom (ignition)

position marked ✩

✩✩

✩In this position, the electronic

ignition system should cause a series of sparks which

should light the pilot. Within four seconds of the

pilot igniting, the main burner should light at its

minimum setting.

If no sparks are produced to light the pilot, the

battery may need replacing. Details of battery

replacement are given on page 10.

Until you can obtain a replacement battery the fire

can be lit with a taper as described on page 7.

2. Keep the button at the ignition position for a further ten seconds. This will

prevent the flame sensing device from shutting off the gas while its probe warms up

as explained above.

Fig. 2 control

OWNER’S GUIDE

Page 7

3. If low heat is required, release the button. The button will automatically spring

up to the low heat position shown in figure 2

(See note i below).

4. For a higher heat level slide the button upwards. The burner flames and heat

output will gradually increase until the button reaches the high heat position shown in

figure 2. When the button reaches the high heat position you will feel a check to its

movement. Do not slide the button above the high heat position unless you want to

turn the fire off (See note i below).

Note

i) If the flames go out while setting the control, repeat the full lighting procedure. If

the flames repeatedly go out have the fire serviced.

ii) Please note. When first turned on the flames will appear predominantly blue. The

coals will take time to warm up. Although some glow will be seen after

approximately ten minutes, the full visual effect will only be apparent after a

somewhat longer time.

iii) The appliance will operate to its maximum potential if the flue is primed during

the first 20 – 30 minutes of operation.To do this, simply slide the control button to

its highest setting. This will also burn off any carbon deposits that may have

formed during previous operations.

iv) If operating the appliance for long periods it is beneficial occasionaly to change

the settings. This will also help to remove any carbon deposits that may form

during operation.

To turn the fire off

Slide the button up past the high heat position to the “O” position.

Both the main burner and the pilot should go out.

While cooling, the coals may make some crackling noises.

This is quite normal.

Lighting with a taper

In the unlikely event of failure of the ignition spark, the

pilot can be lit by a taper or long spill. Insert the taper or

spill alongside of the left side of the fire box and operate

the slide control as described above. See figure 3.

Fig. 3 Lighting with a

taper

OWNER’S GUIDE

Page 8

CLEANING

Turn the fire off and allow it to cool before attempting any cleaning. Note that the

fire will retain heat for some time after it has been turned off.

If large pieces of debris are found anywhere in the fireplace, have the chimney

inspected before further use.

Metal parts

Clean the metal parts with a slightly damp cloth and then dry. Do not use abrasive

cleaners, they could scratch the surface.

Ceramic Coals

This product uses a fuel effect pieces containing Refractory Ceramic Fibres (RCF),

which are man-made vitreous silicate fibres. Excessive exposure to this material may

cause temporary irritation to eyes, skin and respiratory tract. Consequently, it makes

sense to take care when handling these articles to ensure that the release of dust is

kept to a minimum.

Light coatings of soot will usually be burnt off during the normal operation of the

fire. Should any soot accumulation become excessive, the fuel effect pieces should be

removed from the fire for cleaning. Cleaning should be carried out in a well

ventilated area or in the open air by gently brushing with the pieces held away from

your face so that you avoid inhaling the dust. We do not recommend the use of a

normal domestic vacuum cleaner which may blow dust back into the air. We suggest

that you remove the coals in the reverse order to that shown in the ceramic coal

refitting instructions.

Ceramic burner

Remove any deposits of soot or other foreign matter from the solid areas of the

burner with a dry soft brush. Be careful not to brush any particles into the open slots.

Remove any particles from the slots with a vacuum cleaner fitted with a soft brush

attachment. Do not poke wire, etc. into the slots in the burner.

OWNER’S GUIDE

Page 9

FITTING THE CERAMIC COALS

7.1 Place the

front base coal

in the burner

compartment so

that it rests on

the ledges at the

sides and front. Pull the coal forward so

that it is immediately behind the front

rim of the burner compartment See

figure 4.

7.2 Place the

rear base

coal in the

burner

compartment

behind the

front coal. It

should rest

on the ledge

at the back

of the burner

compartment

The

projections

at the sides

of the rear coal should touch the front

coal. See

figure 5.

7.3 Place

one of the

loose coals

from the

bag in the

centre of

the front base coal. Make sure that it

bridges the space between the front and

rear base coals. See figure 6.

7.4 Place

two coals

each side

of the

centre

loose coal.

Make sure

that they

bridge the space between the front and

rear base coals. See figure 7.

7.5 Place

a loose

coal behind

the central

coal in the

front row

central and

resting on the two peaks of the rear

base coal. See figure 8.

7.6 Place

two coals

each side

of the

centre

loose coal

and

immediately behind the front row of

coals. See

figure 9.

7.7 Place

two of the

remaining

coals each

side of the

central peak at the rear of the base coal

and immediately behind the second row

of coals. See figure 10.

Fig.10

Fig. 9

Fig. 8

Fig. 7

Fig. 6 First loose coal

Fig. 5 Rear base coal

Fig. 4 Front base coal

OWNER’S GUIDE

Page 10

MAINTENANCE

Battery replacement

This appliance requires 9V PP3 Ever-Ready

Silver Seal (or equivalent) battery.

To replace the battery remove the bottom

front cover casting.

Fit the new battery firmly to the connections

on the generator, the positive battery

terminal (+) being to the right as you insert.

See figure 11.

Regular maintenance

In order to achieve and maintain high levels

of personal safety and performance efficiency, it is essential that the opening at the

back of the fire and the flue are kept clear of any form of obstruction. It is possible

that deposits of mortar or soot could fall and accumulate causing the flue to be

blocked or restricted and so preventing proper clearance of dangerous exhaust fumes.

In the United Kingdom it is the law that a landlord must have any gas appliance, flue

and pipework which is situated in a tenant’s premises checked for safety at least

every twelve months by a competent person (In the U.K, a CORGI registered

installer).

We recommend that all gas appliances and their flues, wherever situated, are checked

annually.

Fig. 11. Battery fitting

(The bottom front cover has been

removed for clarity)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Valor

Valor

Valor 326 Instrucciones de montaje

Valor

Valor 636 Manual de usuario

Valor

Valor Legend G3 738 NGK Manual de usuario

Valor

Valor Retrofire RF24IDN Instrucciones de instalación

Valor

Valor 492CNA Manual de usuario

Valor

Valor LX1 Series Manual de usuario

Valor

Valor sirius br218 Manual de usuario

Valor

Valor L1 1500KN Manual de usuario

Valor

Valor BRAVA 348 Instrucciones de uso

Valor

Valor Legend 739ILN Manual

Valor

Valor President ZC Cast Front 536CXB Manual de usuario

Valor

Valor 1500IN Instrucciones de funcionamiento

Valor

Valor 1100MN Manual de usuario

Valor

Valor G3 Series Manual de usuario

Valor

Valor ALPHA 647 Manual de usuario

Valor

Valor 534AN Instrucciones de instalación

Valor

Valor BOLERO BR626 Manual de usuario

Valor

Valor G3.5 700MN Manual de usuario

Valor

Valor Wonderfire BR419 Manual de usuario

Valor

Valor PORTRAIT 530IN Guía de planificación

Valor

Valor Horizon 673EDN Manual de usuario

Valor

Valor PORTRAIT 530IN Manual de usuario

Valor

Valor 535XAN Instrucciones de instalación

Valor

Valor Black Beauty Unigas II 473 Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
