Vacron VDH-NK Manual de usuario

NVR

User Manual

VDH-NK

2014 OCT V1.0

Notice before use

This authorization agreement of client’s software/hardware is legally effective to

you(individual or single machine) and our company. This agreement covers components

of software/hardware, media, print, online publication and electronic files. All the

application through installation, duplication or the other way must be based on this

agreement. If you disagree with the terms of this agreement, please don’t install or use

this product. This product is protected by copyright law, international copyright treaties

and other international property laws and treaties. Please note this product authorizes to

you, not sold. Through the software/hardware license code on the license certificate

indicates you have got the permit of use.

Copyright 

The company owns all the headers, including but not subject to the copyright,

software/hardware products and any duplicates. The company reserves all the

rights not expressed clearly.

Unsecure notes 

The company clearly denies warrantee repairmen of any products. Unsecure of

warrantee for any kind of expressed or implied, including any documents and

software products of no limit, implied warrantee repairmen or marketability, suitable

for specific usage or non-infringement.

Terms and Conditions

The overall risk, is that arising out of the use or performance of software and hardware

products. This product will be informed, such as when it is used with certain device or

other hardware, may enable you to carry out surveillance and data processing, which

may be subject to or in violation of applicable law, which includes but is not limited to

data privacy, and criminal law. Please check your use to comply with applicable laws is

the responsibility of users themselves.

Limitation of liability 

The provision of this paragraph is in effect to the maximum extent permitted by

applicable law. In any situation Xia, VACRON or its dealer assumed any special, and

accidentally of, and indirect of, and or any indirect loss (including but not limited to

business profits loss, and business interrupted, and commercial information loss, and

or any other money loss of compensation) due to using or cannot using of software

products or provides or failed provides appropriate of support, even we of company

has is informed this class damage of possibilities. If there is no willful misconduct or

gross negligence, under any provision of this agreement, VACRON total liability, shall

be limited to the amount actually paid.

Other conventions 

(A) Prohibition of reverse engineering, decompilation, splitting or rescind the contract

within the scope allowed by the applicable law cannot be waived by, as well as

any software and hardware components of the product.

(B) As long as the recipient agrees to the terms of this agreement, you may

permanently transfer rights of use of this product.

Closing remarks 

Without prejudice to any other rights, the company may terminate this license

agreement. If you fail to comply with its terms and conditions, in which case you

must destroy all copies of the software product.

CONTENTS

Chapter 1 【Operation Options】 ...................................................................................................... 1

1. Operating with a Mouse ............................................................................................................. 1

2. Operating with a Remote ........................................................................................................... 1

Chapter 2 【Operation Options】 ...................................................................................................... 2

1. Live View and Operation ............................................................................................................ 2

2. LOG ..................................................................................................................................................... 2

3. Manual Record ............................................................................................................................... 3

4. SETUP ................................................................................................................................................. 4

5. Playback ......................................................................................................................................... 24

6. Previous and Next Page ........................................................................................................... 26

7. Display Mode ............................................................................................................................... 27

8. Sequence ....................................................................................................................................... 27

Chapter 3 【Advanced Features】 .................................................................................................. 28

Foreword 【Notices】

WARNING

Do not expose the DVR under the sunlight, heat or wet

environment while installation.As it could decrease the

performance of DVR and damage the machine.

Do not touch the power plug or case with wet hands as this

could result electric shock.

Do not forcedly bend or put heavy object on power cable as this

could result in injury to personal or equipment.

Do not operate with damaged power cord or loose electrical

outlet as this could result in electric shock or accident.

Please use individual power instead of share electrical outlets

with other electrical equipment as this could result in damage

or accident.

Do not attempt to service this DVR by yourself as it may

expose you to dangerous voltage or other hazards. Please

refer all service to the qualified servicing distributor.

Please do not remove the machine housing during operation.

It may cause electric shock or accidental injury.

CAUTION

Do not place the machine on an uneven surface or it would decrease

the DVR efficiency or malfunction.

Avoid any shock or bumping of the DVR while recording.

Improper handling could damage the system.

CAUTION

Make sure the voltage selector switch is set

to appropriate setting before plug in!

Chapter 1 【Operation Options】

Operating with a Mouse and a Remote

1. Operating with a Mouse

1) Right click at Live View screen to open system menu.

2) Click to enter selected item.

3) Scroll mouse wheel to change value at drop down menu.

4) Press [APPLY ALL CHANNEL] button to apply current settings to all channels

or right click at edit box to enter characters over screen keypad.

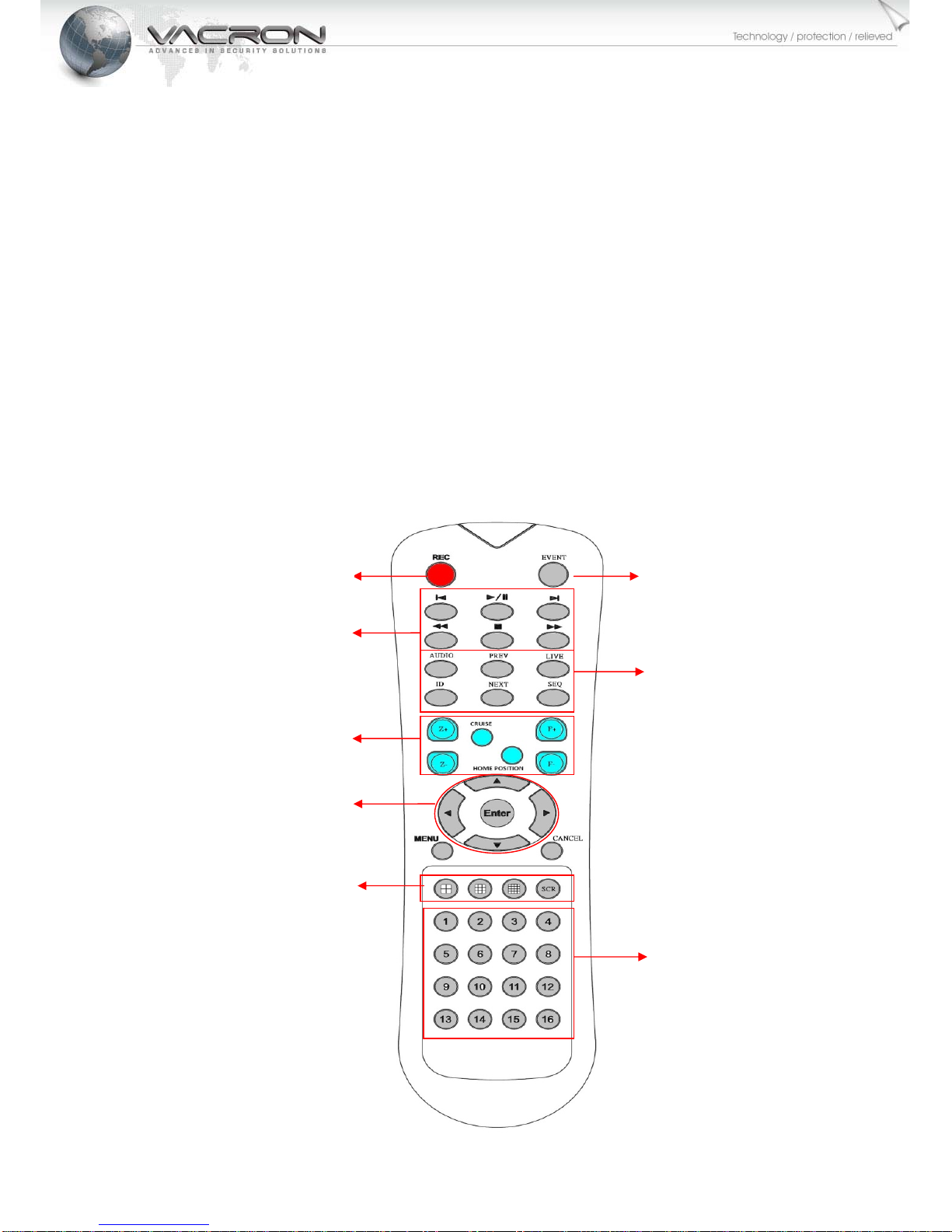

2. Operating with a Remote

1) Operation of remote controller and front panel are identical. Please refer

the diagram of the remote controller below：

Record LOG

PLAY BACK

AUDIO: Record Audio

PREV: Prev. Page

LIVE: Live View

ID:NVR ID

NEXT: Next Page

SEQ: Sequential Mode

PTZ Controller

Enter / Arrows Keys

Display Mode

Single Channel Mode

Chapter 2 【Operation Options】

1. Live View and Operation

1.1 Right click on the screen, menu bars on top-right and bottom –left will pop

up. Right click again to close menu bars.

1.2 Viewing channel display may relocate freely on screen. Simply click and

hold the left button and drag to desired display channel.

1.3 System time and HDD status.

1.4 Double click on time display to zoom-in and zoom-out. To move it, click,

hold and drag to desire location.

1.5 Please format HDD before use. If HDD is not found, please format it

again.

To format HDD, go to SETUP and STORAGE menu.

2. LOG

2.1 It generates event log of the system that are considered abnormal. Users

may click and retrieve the event log on a specific date on the calendar.

2.2 Click on [LOG] to open the Log page, click on the date you wish to view, the

event log will appear on the right side of screen.

3. Manual Record

3.1 Right click then click on [Emergency] at quick launch bar to record video

streaming sent from all IP cameras.

3.2 Click it again to stop recording.

3.3 After emergency recording, all manual recording channels will be

blocked with blue squares.

3.4 The data is indicated in blue color on time bar in playback.

4. SETUP

4.1 Right click on live view screen to bring up Quick Launch Bar. Click [SETUP]

to bring up SETUP menu as shown below.

 DISPLAY

1) OUTPUT：Support HD Out and VGA2 display simultaneously.

2) RESOLUTION：1080P, 720P, SXGA, XGA.

3) CVBS Channel 1: After select this option, single screen image will be

seen through video output from the back panel, Ch 1~Ch16 are

available to be chosen (this option is only available for

VDH-NK200/NK300/NK360)

4) CVBS Channel 2: After select this option, single screen image will be

seen through video output from the back panel, Ch 1~Ch16 are

available to be chosen (this option is only available for

VDH-NK300/NK360)

5) SEQ INTERVAL：Selections of 5, 10, 20, & 30 seconds; default sequence

duration is 5 seconds.

6) Time Display: 8 types of selections.

 CAMERA

SETUP

1) Choose type of the network camera.

2) Enable connection and display. Enter title of the camera, IP address,

port,

network camera are admin and admin.
