Vacron SA-650HD Manual de usuario

4 CH Vehicle Mobile DVR

2012 APR V1.1

TAYPE A: Without 3G Module

TAYPE B OPTIONAL

TAYPE B: 3G Module

Index

A. Features..........................................................................................................1

B. Specification ...................................................................................................2

C. Product Appearance .......................................................................................3

D. Installation 2.5”HDD........................................................................................4

E. Record / Stop-Record.....................................................................................5

F. System operating instruction ..........................................................................6

　Through IR Remote controller instruction.......................................................6

　Main menu page switch..................................................................................6

　System Setup instruction ................................................................................7

　LIVE Display .................................................................................................11

　Playback mode .............................................................................................11

G. Playback .......................................................................................................12

1. Through Carbox Player on PC site...........................................................12

2. Playback on DVR site ...............................................................................21

H. HDD Format..................................................................................................22

I. Restore Storage Device................................................................................25

J. 3G-SIM Card Setting (with 3G Module)........................................................27

K. Capacity Evaluation of Continuous Recording Storage Device ...................28

A. Features

1. Provide Video output for playing-back mode in mainframe.

2. Recording format: D1 and CIF

3. Support 1CH Audio Input.

4. User friendly player software, easy to operation.

5. Overall quick search event log.

6. The full recording time and date can be showing in the

monitor directly.

7. Wide range voltage design.

8. Auto recording after power supplied.

9. Removable HDD Track compatible with 2.5" HDD or SSD.

10. Provide 4 sets of alarm input ports, built-in buzzer.

11. Firmware can be upgraded via USB port.

12. Support recording audio, video, G-sensor and GPS data at

the same time.

13. Optional 3G module, for real time monitoring the driving

statue, or talk to driver

B. Specification

Item Description

Video Format NTSC PAL

Video Input 4CH Input / BNC

Audio Input 1CH Input / Harness Connector

Video Output 1CH Output /BNC

Audio Output 1CH Output /RCA

Alarm Input 4 Alarm Input

Alarm Output Buzzer

Display Mode Full Screen, 4 Split, Auto-Switch

Display Resolution 720 x 480 720 x 576

Recording

Resolution

D1 720 x 480 720 x 576

CIF 360 x 240 360 x 288

Recording Frame Max. 120 FPS Max. 100 FPS

Compression Format H.264 Technology

Operation System Embedded Linux Kernel

Simplex Record / Playback

Recording Mode Real Time Recording

Delaying-record function after

power off 15/30/60/120 Minutes

LED Indicator Power, HDD

Event Mode Alarm Trigger / Video Loss

Playback Mode Normal Speed x1

Search Function: Time / Event

Network 3G module (TYPE B)

GPS GPS(optional)

Storage Type 2.5" HDD

Firmware Update USB

Multi-Language English / Traditional Chinese / Others

(Customizable)

G Sensor G Sensor

Operation IR Remote Controller

Power Supply DC 8V~ 28V

Dimension 180mm x 210mm x 58mm (W x D x H)

Weight 3Kg (with bracket without HDD)

Operation Temperature -20℃∼+65℃( Inside Vehicle)

Accessories Standard

Main Machine, Remote Control, 3 Pin Power

Cable, Harness Plug for Video Input , Alarm

Cable, Driver CD, Quick Guide

Optional 3G Module, G-Mouse

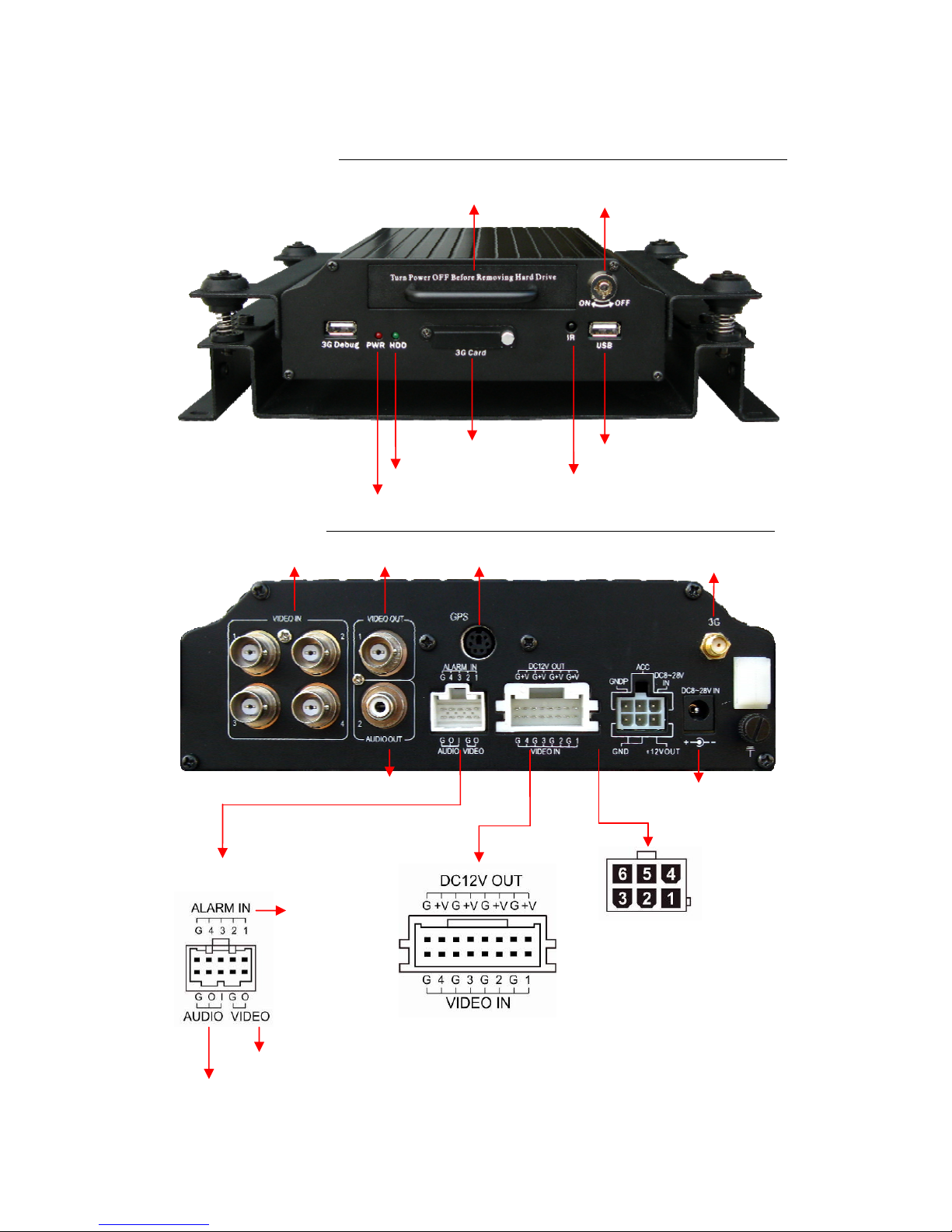

C. Product Appearance

FRONTPANEL

REARPANEL

HDD Lock

Power Indicator LED

USB

Record Indicator LED IR Receiver

2.5”HDD

SIM Card Slot (TYPE B)

Video Input Video Output

Audio Output

GPS(optional)

Power Input

DC 8-28V

Harness Connector

Alarm Input

Audio Input / Output

Video Output

1. DC12V output (+)

2. Signal and general DC

grounding

3. Signal and general DC

grounding

4. DC8~28V input (+)

5. ACC starter control

6. GNDP car power

grounding(negative

electricity)

Harness Connector:

Assorted cable includes 4

sets of Video input, power

core and S connector.

3G (TYPE B)

D. Installation 2.5”HDD

Mobile DVR Hard Disk

Drive , screws x4, 2.5” Hard

Disk(Optional)

1. Take off the side

screws of Hard Disk

Drive.

2. Push the hard disk

drive connects port out in

parallel.

3. Connect the HD flat cable

with 2.5”HD, make the

alignment between HD &

Shockproof plate and put

the HD in.

4. Lock four screws to fix the

hard disk & Hard Drive

Enclosure.

5. Push the cover of hard

drive enclosure flatly to

connect port.

6. Lock two screws into

both sides of hard

drive enclosure.

7. Install the hard drive

enclosure into mobile

DVR and make the lock

of hard disk is on

“ON” status.

E. Record / Stop-Record

1. Power on / Record

Turn on the power, and it will take approximately 40 seconds to

boot up. During the recorder booting up, the HDD indicator LED

will start flashing as the recording is in progress.

Light indicator:

● Red light: light on, means power on; light off, means no

power/power off.

● Green light: light flashing, means HDD take recording; light

off means non-recording.

★Remark: While using playback function in DVR, it cannot

take live recording at that time.

2. Power off/Stop recording:

Power off also stop recording, at then you can take out HDD to

read the recorded files.

Power Indicator LED

Record Indicator LED

F. System operating instruction

Vehicle DVR can be operated through two methods: IR remote

controller and PC software application.

Through IR Remote controller instruction

1. As following is the key mapping table for IR Remote controller：

2. DVR OSD menu operation and IR Remote controller key

mapping chart

Main menu page switch

page1/3 setting

page 2/3 setting

page3/3 (with 3G module)

CH2 display

Record

Quad display

Up / Down / Left / Right

Fast Forward

Stop

Step/Pause

CH1 displa

CH3 display

CH4 displa

Mute

Enter

Fast Rewind

Pla

◆IR Remote controller Instruction

(1) Select Item: [up/down/left/right]

(2) Change setting for selected item: [up/down/left/right]

(3) Change setting for Bar item：[Enter]

(4) Full Screen display for each CH: [CH1~CH4]

(5) Open OSD menu, back to previous page：[menu]

(6) Quad display：[Quad]

(7) Enter playback mode：[play]

(8) Stop Play/exit playback mode：[Stop]

(9) Suspend recording:[Pause]

System Setup instruction

(1) Set Encode Parameter

IR Remote controller operating instruction

(1) Can be selected Resolution/Record frame rate /Recording

quality from up/down key on remote controller.

(2) Left key→Change parameter.

(3) Right key→Back to pervious parameter.

Items Setting

(1) Encode Frame Size (Res.): D1 / CIF

(2) Encode Frame Rate: 5/15/20/25/30

(D1 max. 15 / CIF max. 30)

(3) Encode Quality: Low/Normal/High

2. Set Video Parameter

IR remote controller operating instruction

(1) Up/Down key→Select current channel for setup

(2) Left/Right key→Set brightness/contrast/hue for current

channel (Left key→To reduce)/ (Right key→To increase)

Item Setting

(1) Brightness: (Left key→to reduce)/ (Right key→to

increase)

(2) Contrast: (Left key→to reduce)/ (Right key→to increase)

(3) Hue: (Left key→to reduce Hue)/ (Right key→to increase

Hue)

3. Set Time

IR Remote controller operating instruction

(1) Up key→Plus one, Down key→Reduce one.

(2) Left key→Left one space, Right key→Right one space.

4. Set Plate Number
