urmet domus GROTHE vidoora Manual de usuario
QUICK GUIDE
Installation and commissioning
Wi-Fi
door station
2
Contents
Product data 4
Technical data 6
Preparing for assembly and configuration 7
Registration and logging in 9
Device configuration in CallMe app 10
Calls in the CallMe app
14
Barrier-free communication for system status 15
Introduction
Please read this quick guide thoroughly before installation and
commissioning. Before making any changes to the door station,
read the relevant sections of the quick guide.
Detailed information on how to
install, configure and operate the
VIDOORA door station can be found
in the installation and operating
instructions. Make sure to observe
the safety instructions listed there.
3
Checking the delivery
Before anything else, please check the packaging and the
contents for any visible damage.
If you notice any damage on the packaging, please document it
before opening the packaging.
Open the packaging carefully, so that you can reuse it for
a potential return shipment.
If parts are missing or if you notice any damage, please contact
your retailer immediately.
Important: Do not attempt to operate the device if parts are
missing or damaged.
If you need to return the device to the retailer (because parts
are missing or damaged), please use the original packaging.
Scope of delivery
VIDOORA Wi-Fi door station
Installation material
Quick guide
4

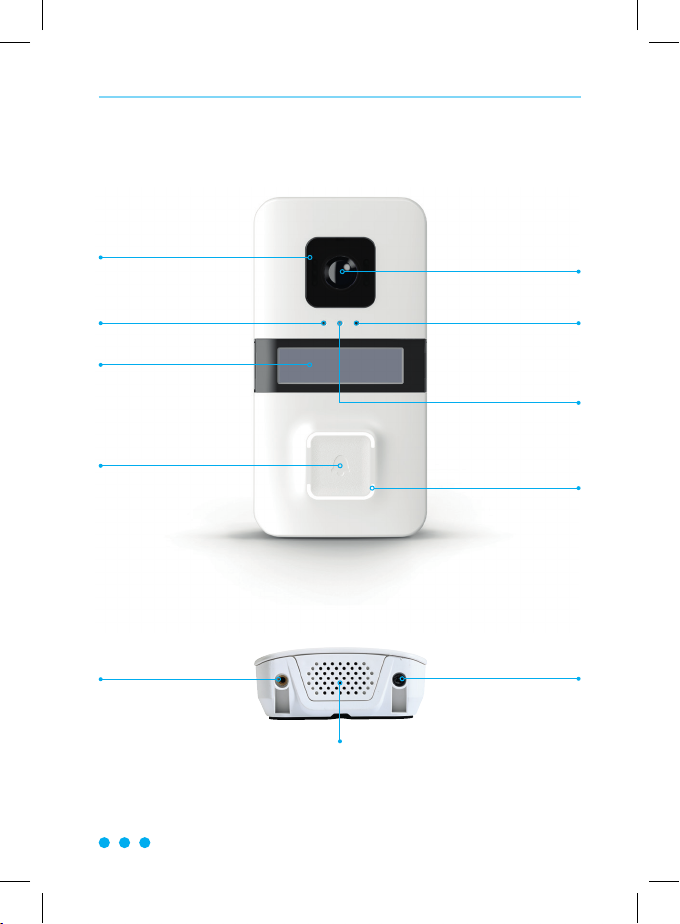

Product data
Camera
Microphone
Motion sensor
LED border with
blue lighting
Doorbell button
Display
Microphone
Housing screw and
Programming button
Loudspeaker
Infrared LEDs (behind
the protective cover)
Housing screw
5
Relais 1
Relais 2
+(~)
-(~)
QR code to scan
in the app
(e.g. #28B77C500009#)
Bottom
Top
Relays NO contact
(external doorbell)
Relay NO contact
(door opening)
Tampering contact
LAN port
(LAN models only)
Power supply
12 V DC, 8 –12 V AC
Programming button
Mounting hole
(for wall assembly or
Angle adapter)
Locking device
Angle adapter
Mounting hole
(for wall assembly or
Angle adapter)
Locking device
Angle adapter
Mounting hole
(for wall assembly)
6
Camera resolution HD 720 p; 1280 x 720 px
Compression standard H.264
Camera perspective 120° (H), 93° (V), 160° (D)
Display size 128 x 32 pixels
Wi-Fi frequency 2,4 GHz
Wi-Fi standard 802.11 b/g/n
Transmission frequency of
transmitter MISTRAL / CALIMA 868.35MHz
Transmitter range
MISTRAL / CALIMA 150m
Max. volume 80 dBA @ 1 m
Number of infrared LEDs (IR LEDs) 6
Range of IR LEDs 3m
Relay switching capacity 12 V AC/DC, max. 2 A
Temperature range - 20 °C to + 50 °C
Power supply 12 V DC or
8–12 V AC (50 Hz)
Protection class IP55 (IK07)
Weight 210 g
Dimensions (W x H x D) 80 x 156 x 35 mm
Technical data
7
Positioning
Select a position that enables the camera to capture all visitors at
face-height. The perspective of the camera must also be taken into
account.
Assembly
Open the housing by removing the screws on the bottom section
and carefully folding the housing open. Make sure to fold open the
lower part of the front section first.
1. Assemble the lower part of the VIDOORA door station’s housing
on the wall with the installation material provided.
2. When installing on a flush-mounted box, break out the pre-
punched mounting holes in the rear cover using a suitable tool.
Preparing for assembly and configuration

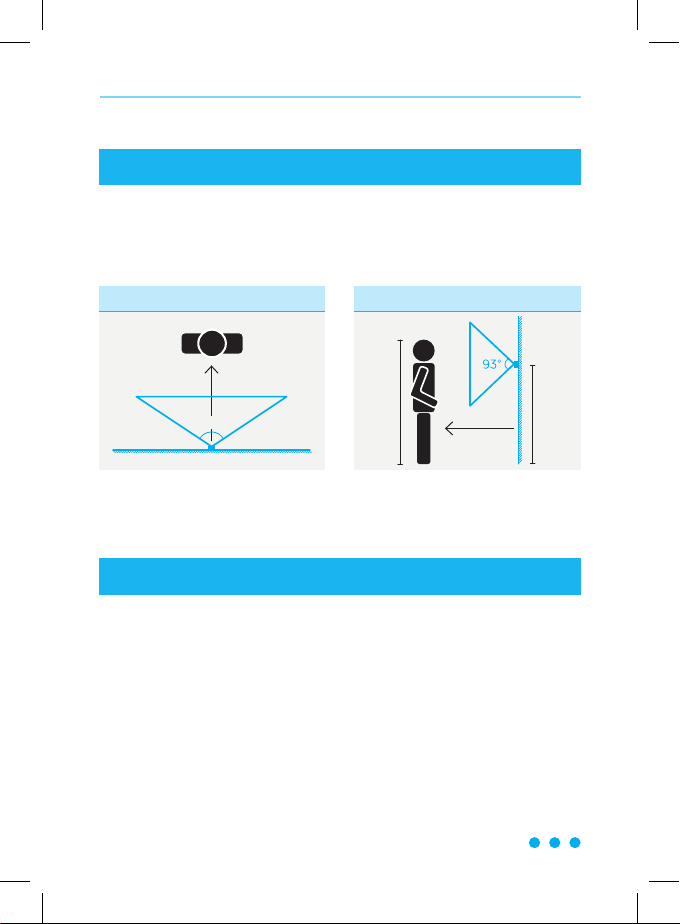

Recommended installation height (bottom edge of the door station,
measured from the ground up): 1.50 – 1.55 meters.
Horizontal perspective Vertical perspective
1meter
120°
1meter
1,50 – 1,55meters
1,80meters
8
Installation
1. While de-energized, connect the wires for the power supply.
Upper terminal connection ~ (+)
Lower terminal connection ~ (-)
DC voltage range 12 V DC
AC voltage range 8 –12 V AC (50 Hz)
2. Switch on the power supply via the upstream fuse element.
VIDOORA will switch to configuration mode after
switching on for the first time (after approx. 30
seconds, the blue LED border of the doorbell flashes,
the display shows “Configuration”).
9
Registration and logging in
1. Download the Urmet CallMe app from the Apple Store (iOS) or
Play Store (Android) and create a new user account in the CallMe
app.
2. Create a password with the following minimum requirement:
At least 6 characters
At least 1 uppercase letter
At least 1 lowercase letter
At least 1 number
At least 1 special character
The user name cannot be part of the password
3. Activate the user account via the validation link in the e-mail that
you have received.
4. Open the app and log in with the newly created user account
or with an existing user account. Give the app the following
permissions:
Access to photos, multimedia content and files on the device
Video recording
Taking photos and videos
Make and manage phone calls
10
Device configuration in the CallMe app
Start configuration
1. Make sure the doorbell’s border flashes blue and the word
“Configuration” is shown on the display of the door station.
2. On the start page of the app, select “Settings” and then the menu
item “Installation and maintenance.”
3. Select the “7540X” option.
4. To scan the QR code for the door station, tap on “Scan”
(the camera opens with a scan window). Scan the QR code on
the door station.
5. Make sure the doorbell’s border flashes blue and the word
“Configuration” is shown on the display. Tap on “Next.”
TIP:
TIP: For a detailed description of the
individual steps, please read the installation
and operating instructions.
Make sure to use the end user’s account during the
configuration! When the door station is ready, it sends
all calls to the user account used in the configuration.
