Universal Tool UT8942 Manual de usuario

INSTRUCTION MANUAL - ENGLISH

Air Auto Shut-Off Pistol Screwdriver

This product is designed for installing and removing threaded fasteners in wood, metal and

plastic. The use of spare parts/ accessories other than those originally supplied by the

manufacturer may result in a drop in performance and/or increased maintenance / noise

level / vibrations. As a result, the full cancellation of the manufacturer’s liability. No other

use is permitted. Professional use only.

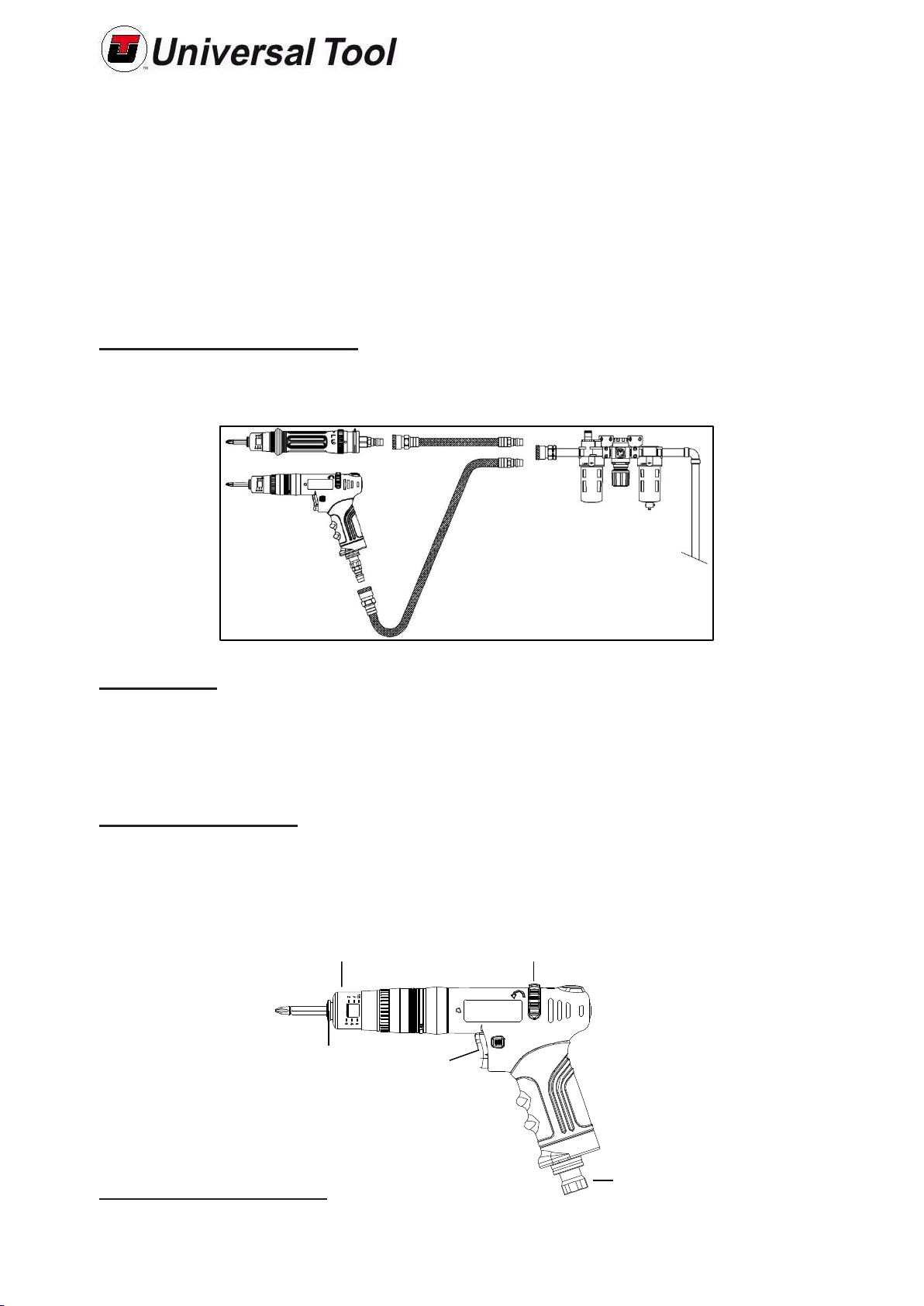

Air Supply Requirements

1. Supply tool with 6.35 KG/CM2(90 PSI) clean and dry air. Too much pressure drastically

reduces the tool life.

2. Connect the tool to air line using pipe, hose and fitting sizes shown in the diagram below.

Lubrication

1. Use an air line lubricator with SAE #10 oil. Adjustedto two (2) drops per minute. If an air

line lubricator is not available, add air motor oil to the inlet once a day.

2. For gearing and clutch, use Shell-grade grease containingmolybdenum.

3. Grease clutches every 12,000 screws.

Torque Adjustment

Shut Off Clutch: Grip the tool around the handle and press the tool into the fixing which is

to be tightened. The motor will start and tighten the fixing to the required torque set by

adjusting the tension on the clutch spring. At this point, the internal drive is disengaged and

the air to the motor cut off.

Operating Procedures

Air-inlet

Right/Left Switch

Torque Cover

Bit Retainer Sleeve

Trigger

1. Make sure the air in air line is clean and dry.

2. There are three air-inlets on the tool. Depending on different usage, choose one inlet to

connect correctly with the air compressor. Screw up the other two air-inlets separately

with screw caps.

3. Install a bit (as illustrated below). Before using, do check the bit being installed on the

tool correctly.

4. Torque Adjustment: Take off the torque cover and turn the torque adjustment ring right

(clockwise) to increase the torque. Turn the torque adjustment ring left

(counter-clockwise) to reduce the torque. After setting up the torque, put torque cover

back and fasten it tightly to avoid changing set-up accidently. (as illustrated below)

5. Right/Left Indication: Turn right (clockwise) the switch (marked “R”) for tightening screws.

Turn left (counter-clockwise) the switch (marked “L”) for loosening screws.

6. Two ways to operate:

A. Push + Pull The Trigger to Start: Set the bit aiming the screw. Push down the tool

steadily and pull the trigger to activate the motor. When the required torque is reached,

the motor will shut off automatically. Either releasing the trigger or take the tool away

from the fixing will stop the motor. (Dual security design)

B. Push to Start: Press the trigger and push the “Locking” switch to the right to lock the

trigger. Push down the tool steadily to activate the motor. The operation can be repeated

without pulling trigger constantly. When the required torque is reached, the motor will

shut off automatically.

7. Suggestion: Correct / Re-set torques before operation on a daily basis.

8. If the tool is not to be used for a long time, re-set the torque to the lowest.

Press & Lock

1234

Switch Operation of Three Way Air-inlet

Installation of Bit

Press the sleeve softly

Insert a bit

Make sure the bit

is fixed tightly

Shut off

123

Set-up of Torque

Operation of R/L Switch

12 3

678

12 3

678

1L 2L

Shut off 1R 2R

Turn clockwise to

increase the torque

Take off the

adjustment ring

Put the torque

cover back

Fasten the rear

housing tightly

Release and remove the torque cover

Insert torque

adjustment ring to

the tool

Turn counter clockwise

to lower the torque

R Indication –turn right (clockwise)

–fastening screw

L Indication –turn left (counter

clockwise) –loosening screw

1L 2L

1R 2R

1L 2L

1R 2R

UT8942 AUTO SHUT-OFF PISTOL SCREWDRIVER, 900rpm / 0.7~6.5Nm

INDEX NO.

PARTS NO. DESCRIPTON

QTY/SET

INDEX NO.

PARTS NO. DESCRIPTION

QTY/SET

17160001PS REAR HOUSING 145 7155040PS ROTOR 1

27160061PS-W TORQUE COVER 146 7160042PS CYLINDER 1

37160070PG HOUSING CAP 147 SPP0208 SPRING PIN 1

47160002PS C RING 148 7160043PS END PLATE 1

57160003PS BIT RETAINER SLEEVE 149 B606ZZ BALL BEARING 1

67160004PS SPRING 150 7160048PG VALVE 1

77160005PS TORQUE RING 151 OR1898 O-RING 4

87160006PS REGULATION WASHER 152 7160063PG-BK MOTOR HOUSING 1

97120007PS NEEDLE 353 7160052PS SCREW 1

10 7160008PS CLUTCH HOUSING 154 7160051PG-RD SWITCH 1

11 7160009PS ANVIL BUSHING 155 HEXM806 SCREW 1

12 7160010PS WASHER 156 7120067PG SCREW CAP 2

13 7155011PS TORQUE SPRING 157 HEXM308 SCREW 4

14 7160012PS ANVIL 158 7120069PG VALVE BUSHING 1

15 7160013PS STEEL BALL 159 589058 O-RING 2

16 7160014PS STEEL BALL 260 7160054PS OPERATING ROD 1

17 7160015PS SPRING 161 OR0302 O-RING 2

18 7160016PS SLIDE BASE 162 7160056PS VALVE PLATE 1

19 7160017PS C RING 263 7160057PS SPRING 1

20 7160018PS BALL RACE 164 7120068PG SCREW 1

21 7160019PS STEEL BALL 60 65 OR0612 O-RING 3

22 7160020PS END CLUTCH 166 7120076PG PLUG 1

23 7160021PS CENTER CLUTCH 167 611239-1 SPRING 1

24 STB3175 STEEL BALL 268 SB0003-1 STEEL BALL 1

25 7160023PS REAR CLUTCH 169 7120075PG TRIGGER LOCKING 1

26 7160024PS RETAINER 170 7120073PG SPRING 1

27 7160025PS PILOT PIN 171 7120065PG TRIGGER PIN 1

28 B6001ZZ-TPI BALL BEARING 172 OR0312 O-RING 1

29 7160027PG CENTER HOUSING 173 7120066PG BUSHING 1

30 7160028PG SPACER 274 7120074PG TRIGGER 1

31 7120029PS GEAR CAGE 175 SPP0214 SPRING PIN 1

32 7160030PS PIN 476 7120072PG GRIP 1

33 7155031PS PLANETARY GEAR 477 OR2402 O-RING 1

34 7150032PS SUN GEAR 178 ZZ389507 SILENCER 1

35 7150033PS GEAR CAGE 179 7120071PG EXHAUST DEFLECTOR 1

36 7160034PS PIN 480 861432-3 SCREW 1

37 7155035PS PLANETARY GEAR 481 7120062PG AIR INLET 1

38 7120036PS INTERNAL GEAR 1

39 7155065PS SUN GEAR 1

40 7155066PS RETAINER COLLAR 1

41 L-1680HH BALL BEARING 1

42 7160039PG FRONT PLATE 184 CP1HP60 SUSPENSION RING 1

43 589040 SPRING PIN 2

44 7160041PS BLADE 5

7160064PS

TORQUE ADJUSTMENT

RING

7160080PS

DISTINGUISHABLE

RING(4)

Division of Florida Pneumatic Mfg Corp.,

851 Jupiter Park Lane,

Jupiter, FL 33458, USA.

Ph: (1) 561 744 9500

Fax: (1) 561 575 5574

EC/UKCA DECLARATION OF CONFORMITY

We FLORIDAPNEUMATICMFGCORP,851JUPITERPARKLANE,JUPITER,FL33458,USA

Declareunderoursoleresponsibilitythatthemachinefallswithintheprovisionsofthe directive:

MachineType: UT8942 AirAutoShut-Off Screwdriver

TechnicalData:

ChuckSize: 1/4”HEXQC FreeSpeed: 900 rpm

Weight: 1.11kg(2.45lbs) Length: 227mm(8.94”)

Recommended HoseSize: 10m(3/8”) WorkingAirPressure: 6.3bar(90PSI)

Noise: (soundpressurelevel) 72dB(A) Vibration: 1.81Metres/Sec ²

Spindlesize: N/A Serial No: ________________

Towhichthisdeclarationrelates,isinconformitywiththerequirementsof:TheMachineryDirective2006/42/EC,General

SafetyISO12100:2010,SpecificSafety-ImpactWrenches:ISO11148-6:2012,SpecificVibration- ISO28927,Noise:ISO

15744:2008

Nameandpositionofissuer: TonyLeNeveu:VPEngineering&Development

--------------------------------------------------------------------------------
